Johdanto
The SUPVAN G15M is a compact, industrial-grade thermal transfer label maker designed for reliable labeling in various environments, including outdoor, industrial, electrical, and office settings. It offers robust features and ease of use for a wide range of applications. Its thermal transfer printing technology ensures labels are resistant to UV, water, and wear, providing durability for up to 10 years.
Mitä laatikossa on
Varmista, että pakkauksessa on kaikki osat:
- 1 x SUPVAN G15M Mini Label Printer
- 1 x USB Type-C -kaapeli
- 1 x Käyttöohje
- 4 x Continuous Label Rolls
Asennus
Laitteen lataaminen
The G15M label maker is equipped with a built-in 1200mAh lithium battery. Before initial use, fully charge the device using the provided USB Type-C cable. A full charge provides approximately three months of standby autonomy.
Loading Label Rolls
The G15M supports various label tapes ranging from 6 mm to 15 mm in width, as well as heat-shrink tubes from 3.5 mm to 9 mm. To load a label roll:
- Avaa etikettilokeron kansi.
- Insert the label roll with the label material facing upwards, ensuring it is properly seated.
- Feed the leading edge of the label material into the printer's feed slot until it is detected.
- Close the label compartment cover securely. The transparent rear window allows you to check the label material type and remaining level without opening the cover.
Käyttöohjeet
Virta päälle/pois
Käynnistä tai sammuta laite pitämällä virtapainiketta painettuna.
Näppäimistö ja näyttö
The integrated QWERTY keyboard facilitates quick and intuitive text input. The 300-nit backlit LCD screen ensures clear readability in diverse lighting conditions, from bright daylight to low-light environments.
Tulostusominaisuudet
The G15M offers a print speed of 20 mm/s. It features automatic label recognition and intelligent retraction for precise printing. The integrated full blade allows for one-touch cutting of labels without the need for additional tools.
The device supports printing up to 4 lines of text, 9 font sizes, 6 styles, 5 borders, and over 400 symbols. It also includes functionality for printing QR codes and various barcode formats.
Label Types and Efficiency

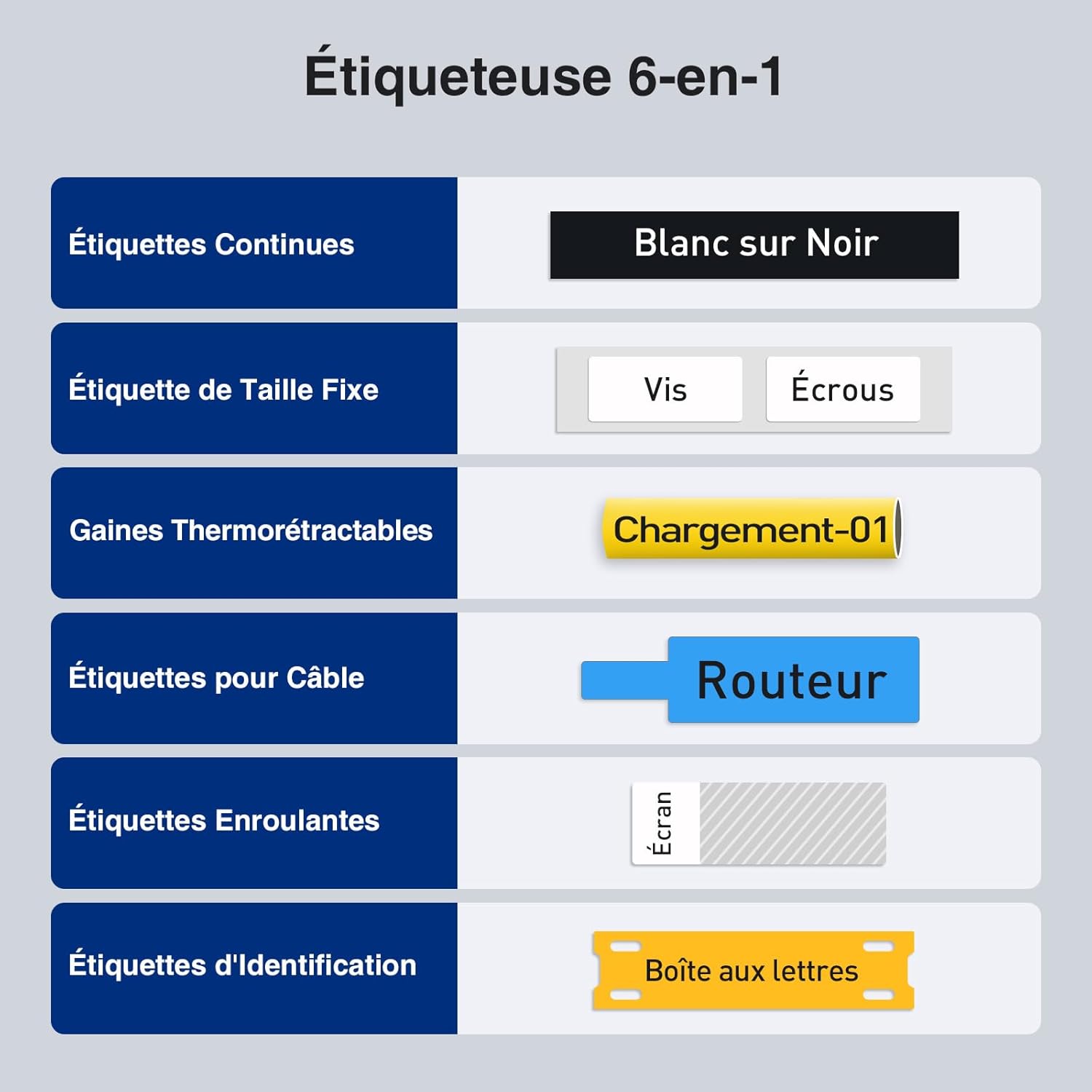

The G15M is compatible with a variety of label types, including continuous labels, fixed-size labels, heat-shrink tubes, cable labels, wrap-around labels, and identification labels. These labels are designed for durability, resisting heat, cold, and abrasion. They also feature a split-back design for easy peeling.
The printer is designed for minimal margin printing (5 mm), which helps to reduce label waste compared to other models that may have larger margins (e.g., 10 mm).
Sovellukset
The SUPVAN G15M is suitable for a wide range of indoor and outdoor labeling tasks, including electrical cabling, industrial equipment identification, data communication, telecommunications, and general organization in homes and offices.
Huolto
Tulostuspään puhdistaminen
To ensure optimal print quality, regularly clean the print head. Power off the device before cleaning. Use a soft, lint-free cloth lightly dampened with isopropyl alcohol to gently wipe the print head. Avoid using abrasive cleaners or solvents, as these can damage the print head.
Varastointi
Store the label maker and label rolls in a cool, dry place, away from direct sunlight and extreme temperatures. This helps to preserve the life of the device and the quality of the label materials.
Vianetsintä
- Ei virtaa: Ensure the device is fully charged. Connect the USB Type-C cable and check if the charging indicator light is active.
- Huono tulostuslaatu: Verify that the label roll is correctly installed and the label material is suitable for thermal transfer printing. Clean the print head as described in the Maintenance section.
- Tarratukos: Power off the device. Open the label compartment and carefully remove any jammed label material. Ensure the label roll is inserted correctly and is not creased or damaged.
- Difficulty Peeling Labels: Many SUPVAN labels feature a split-back design for easier peeling. Ensure the label is fully cut. If difficulty persists, try peeling from a corner or using a sharp, non-metallic tool to lift the edge.
Tekniset tiedot
| Mallinumero | G15M Mini |
| Merkki | SUPVAN |
| Tulostustekniikka | Lämmönsiirto |
| Yhteystekniikka | USB-tyyppi C |
| Materiaalin enimmäiskoko | 12 mm x 7.5 m |
| Tuetut tarraleveydet | 6 mm - 15 mm |
| Supported Heat-Shrink Tube Widths | 3.5 mm - 9 mm |
| Suurin tulostustarkkuus | 203 DPI |
| Tulostusnopeus | 20 mm/s |
| Akku | 1200mAh Lithium (Rechargeable) |
| Virrankulutus | 10 wattia |
| Tuotteen mitat (P x L x K) | 17 cm x 8.5 cm x 4.3 cm |
| Erikoisominaisuudet | For heat-shrink tubes, rechargeable, 5mm minimum edge spacing, QWERTY keyboard, backlit LCD |
Takuu ja tuki
Takuutiedot
The SUPVAN G15M label maker is covered by a limited warranty. For specific details regarding the warranty period and terms, please refer to the warranty card included with your product or contact SUPVAN customer support directly.
Asiakastuki
For technical assistance, troubleshooting, or any other inquiries regarding your SUPVAN G15M, please visit the official SUPVAN websivustolla tai ota yhteyttä heidän asiakastukitiimiinsä. Lisätietoja ja tuotteita löydät osoitteesta SUPVAN Brand Store.
