Vannect X390S 6-in-1 Folding Treadmill User Manual

1. Johdanto

Thank you for choosing the Vannect X390S 6-in-1 Folding Treadmill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new fitness equipment. Please read this manual thoroughly before initial use and retain it for future reference.

2. Tärkeitä turvallisuusohjeita

To reduce the risk of serious injury, always follow basic precautions when using this treadmill. Read all instructions before use.

• Ensure the safety lock is properly engaged before starting any exercise.
• The maximum user weight capacity for this treadmill is 150 kg (330 lbs)Älä ylitä tätä rajaa.
• Pidä lapset ja lemmikkieläimet loitolla juoksumatosta käytön aikana.
• Aseta juoksumatto tasaiselle ja vakaalle alustalle, jonka ympärillä on riittävästi tilaa.
• Käytä sopivia urheilujalkineita ja -vaatteita.
• Jos tunnet kipua, huimausta tai hengenahdistusta, lopeta liikunta välittömästi.
• Pidä aina kiinni kaiteista käynnistäessäsi tai pysäyttäessäsi juoksumattoa.
• Irrota juoksumatto pistorasiasta, kun sitä ei käytetä tai ennen puhdistusta ja huoltoa.

3. Pakkauksen sisältö

Varmista, että pakkauksessa on kaikki osat:

• Vannect X390S Folding Treadmill
• Magneettinen kaukosäädin
• Turva-avain
• Virtajohto
• Käyttöopas (tämä asiakirja)
• Voiteluaine (huoltoa varten)

4. Asennus

The Vannect X390S treadmill is designed for minimal setup and comes largely pre-assembled, ready for immediate use.

1. Purkaminen: Poista juoksumatto varovasti pakkauksestaan.
2. Sijoitus: Position the treadmill on a flat, stable surface. Ensure there is sufficient space around the unit for safe operation.
3. Avaaminen (jos sovellettavissa): If the treadmill is in its folded state, gently unfold it according to the diagrams below until it locks into the upright position.
4. Virtaliitäntä: Liitä virtajohto maadoitettuun pistorasiaan.
5. Turva-avain: Attach the safety key clip to your clothing and insert the magnetic end into the designated slot on the console. The treadmill will not operate without the safety key in place.

Figure 4.1: The treadmill's ultra-thin design (13.5 cm) allows for easy storage under furniture or against a wall. It features transport wheels for effortless movement.

5. Käyttöohjeet

The Vannect X390S offers multiple control methods and exercise modes to suit your fitness needs.

5.1-kontrollimenetelmät

You can control the treadmill using the console display, the magnetic remote control, or the dedicated mobile application.

Figure 5.1: The treadmill console features an LED display showing speed, time, distance, and calories. Control is available via the console, remote, or app.

• Konsolin näyttö: The integrated LED display clearly shows time, calories burned, step count, speed (1-12 KM/H), and distance. Touch controls on the console allow for direct adjustment.
• Magneettinen kaukosäädin: Use the remote to start/stop the treadmill and adjust speed. Its magnetic design allows it to be securely attached to the treadmill console, preventing loss.
• Mobiilisovellus: Connect via Bluetooth to the Vannect app for advanced control, real-time data synchronization, and access to various exercise programs.

5.2 Kaltevuuden säätö

The treadmill features a manual incline adjustment of up to 9% to simulate uphill walking or running, enhancing calorie burn and muscle engagement.

Figure 5.2: Manual incline adjustment from 0% to 9% allows for varied workout intensity, simulating outdoor terrain.

5.3 Harjoitustilat

The 6-in-1 design supports various activities:

• Work Mode (1-3 km/h): Ideal for light walking while working or reading.
• Kävelytila ​​(4–6 km/h): Sopii reippaaseen kävelyyn.
• Jogging Mode (7-9 km/h): For a moderate jogging pace.
• Juoksutila (10–12 km/h): For higher intensity running workouts.
• Climbing Mode (9% Incline): Engages more muscles and increases calorie expenditure.

Figure 5.3: The treadmill supports various exercise modes from walking to running and incline training.

6. Sovellusyhteydet

Enhance your workout experience by connecting your Vannect X390S treadmill to the mobile application via Bluetooth.

1. Lataa sovellus: Etsi the official Vannect fitness app on your mobile device's app store (e.g., Google Play Store or Apple App Store).
2. Ota Bluetooth käyttöön: Varmista, että Bluetooth on käytössä mobiililaitteellasi.
3. Pariliitos: Open the Vannect app and follow the on-screen instructions to pair with your treadmill.
4. Ominaisuudet: Once connected, the app will synchronize real-time movement data such as speed, calories, and more. You can track your progress, participate in challenges, and access updated exercise programs. The treadmill is compatible with popular fitness apps like Zwift, Kinomap, and Fitshow.

Figure 6.1: The mobile app provides scientific and intelligent training programs, syncing data in real-time.

7. Huolto

Säännöllinen huolto varmistaa juoksumattosi pitkän käyttöiän ja optimaalisen suorituskyvyn.

• Puhdistus: Pyyhi juoksumatto mainoksellaamp Puhdista hiki ja pöly pyyhkeellä jokaisen käyttökerran jälkeen. Vältä hankaavien puhdistusaineiden käyttöä.
• Voitelu: The running belt requires periodic lubrication to reduce friction and wear. Apply the provided special treadmill lubricant under the belt as instructed in the lubricant's packaging, typically every few months depending on usage.
• Hihnan kireys ja kohdistus: Check the running belt tension and alignment regularly. If the belt slips or moves off-center, refer to the troubleshooting section or contact customer support for adjustment instructions.
• Moottori: The 2.75 HP motor is designed for quiet operation (<25 dB) and low maintenance, with a lifespan exceeding 5000 hours.

Figure 7.1: The 2.75 HP motor offers a long lifespan and quiet operation, requiring minimal maintenance.

8. Vianmääritys

Jos kohtaat ongelmia juoksumatossasi, katso seuraavat yleiset ongelmat ja ratkaisut:

If the problem persists after attempting these solutions, please contact Vannect customer support.

9. Tekniset tiedot

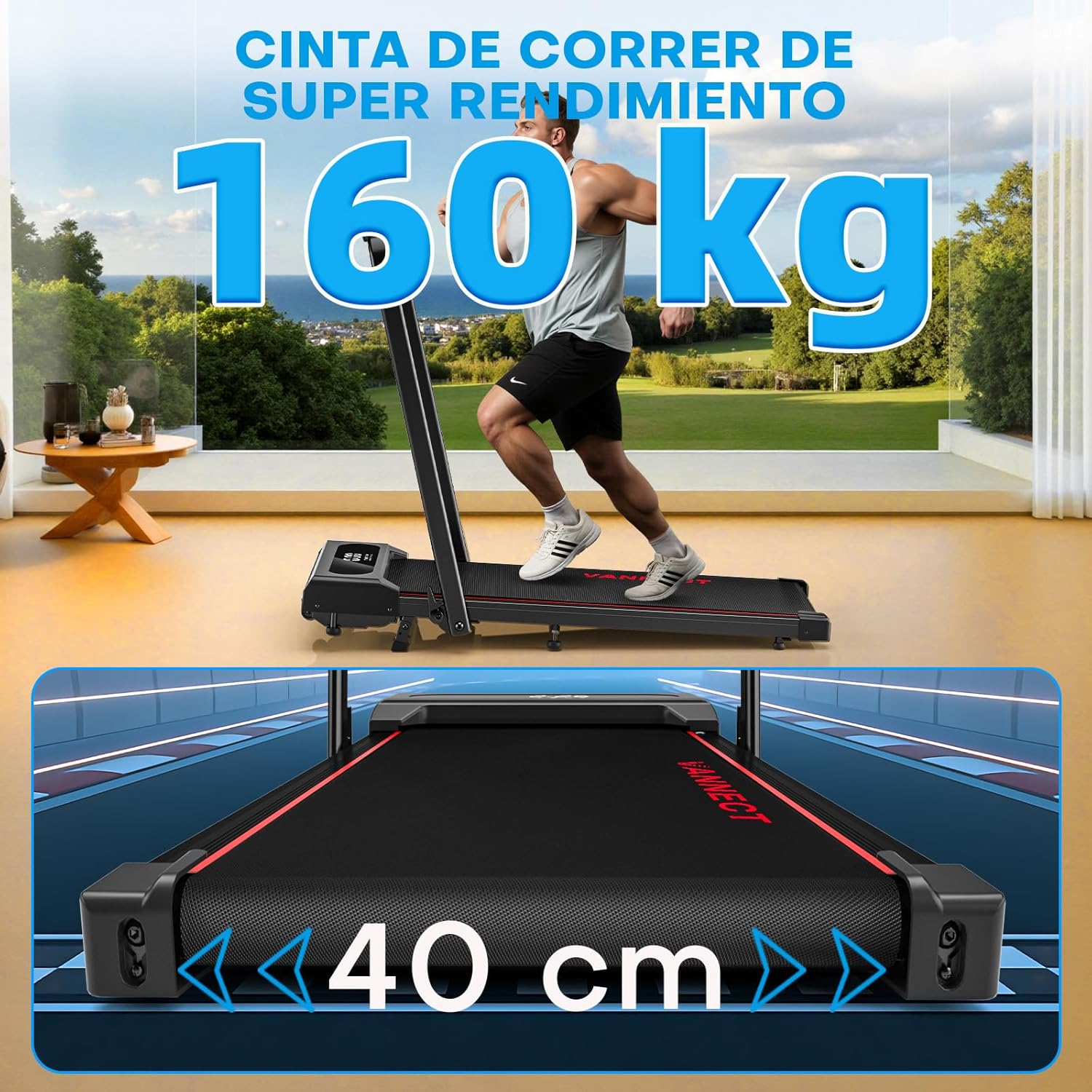

Figure 9.1: The treadmill supports users up to 150 kg (160 kg in image, using 150kg from feature bullets for consistency) and features a 40 cm wide running belt for comfort.

Figure 9.2: Advanced cushioning with 5 anti-slip layers and 8 silicone shock absorbers effectively protects joints and reduces muscle pressure.

10. Takuu ja tuki

Vannect is committed to providing high-quality products and excellent customer service.

• Takuu: Vannect offers a 5 vuoden ilmainen vaihtopalvelu for eligible parts.
• Tekninen tuki: Nauti 24 tunnin tuki for any issues you may encounter.

For warranty claims, technical assistance, or any product-related inquiries, please contact Vannect customer service through the official websivustollasi tai ostoalustallasi.
