1. Turvallisuustiedot
Please read these instructions carefully before installing and using the appliance. Keep this manual for future reference. The manufacturer is not responsible for any injury or damage caused by incorrect installation or improper use.
- Ensure the appliance is disconnected from the power supply before performing any maintenance.
- Installation must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
- Älä käytä hankaavia puhdistusaineita tai teräviä metallikaapimia uuninluukun lasin puhdistamiseen, sillä ne voivat naarmuttaa pintaa, mikä voi johtaa lasin särkymiseen.
- Laite ja sen käsiksipäästävät osat kuumenevat käytön aikana. Varo koskettamasta lämmityselementtejä.
- Alle 8-vuotiaat lapset tulee pitää poissa, ellei heitä valvota jatkuvasti.
2. Tuote ohiview

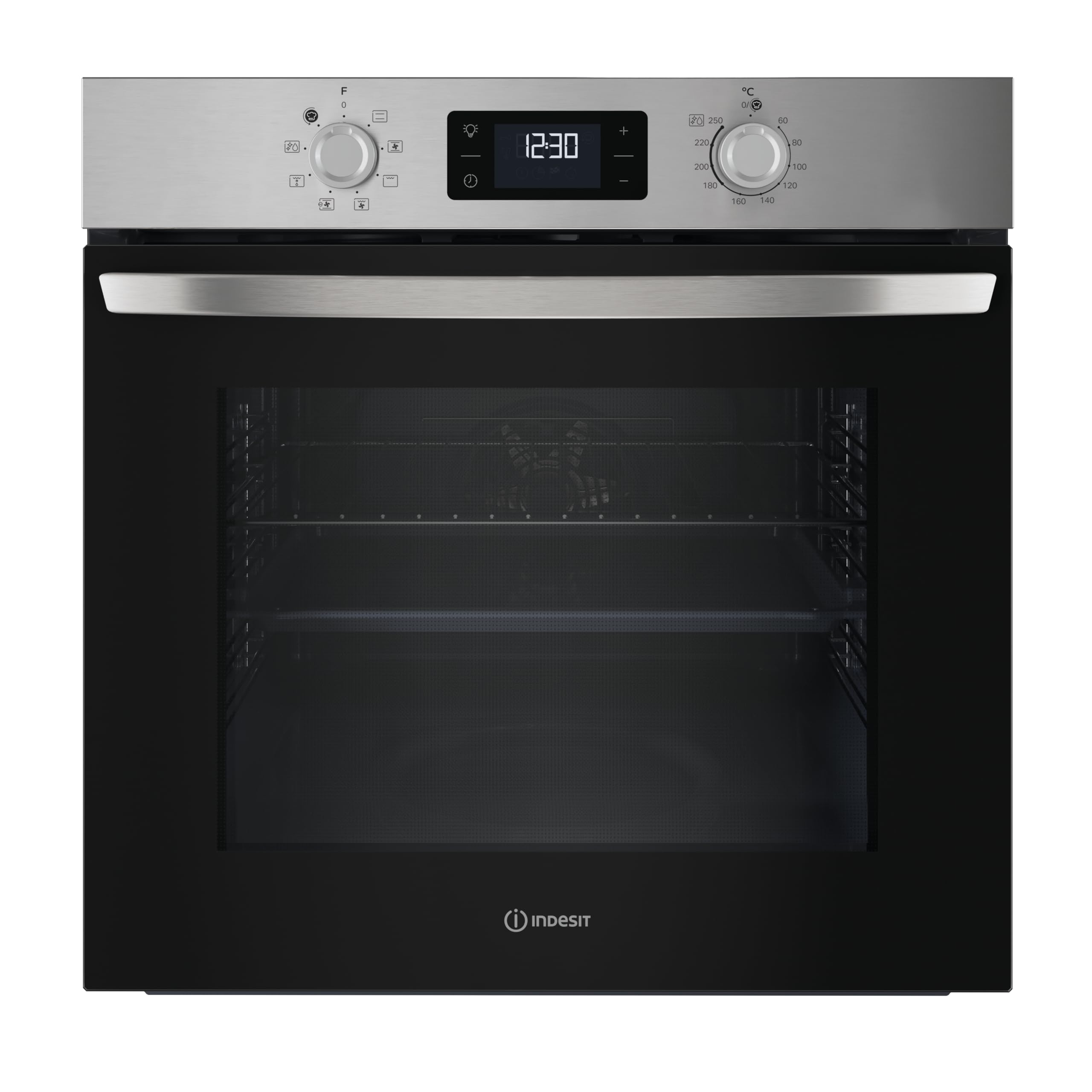

The Indesit IO 255H X is a 71-liter multifunction built-in electric oven designed for efficient and versatile cooking. It features a modern stainless steel finish with a digital display, offering a range of cooking functions and easy-to-clean solutions.
3. Asennus
The Indesit IO 255H X oven is designed for built-in installation. Ensure the cabinet dimensions are appropriate for the oven's size (approximately 59.5 x 59.5 x 55.1 cm). Professional installation is recommended to ensure proper electrical connection and secure fitting.
The oven comes with a power cable. Ensure a suitable electrical outlet is available and accessible for connection. Refer to the detailed installation diagrams in the separate installation guide provided with the product for precise measurements and wiring instructions.
4. Asennus
- Purkaminen: Carefully remove the oven from its packaging. Retain all packaging materials for potential future transport or service. Ensure the power cable is present.
- Ensimmäinen puhdistus: Puhdista uunin sisäosa ja varusteet ennen ensimmäistä käyttökertaa vedelläamp liinalla ja miedolla pesuaineella. Kuivaa perusteellisesti.
- Ensimmäinen käyttökerta: Heat the empty oven for approximately one hour at maximum temperature to burn off any manufacturing residues. Ensure the room is well-ventilated during this process.
5. Käyttöohjeet
5.1 Ohjauspaneeli
The oven features intuitive rotary knobs for function and temperature selection, along with a digital display for precise time and setting adjustments.
5.2 Kypsennystoiminnot
- Käännä ja mene: This function allows you to prepare a variety of tasty dishes in a single gesture, such as roast beef, chicken, salmon fillet, and stuffed vegetables, in rapid times. Simply select the Turn&Go function, and the oven will optimize settings for common recipes.
- Integral Grill: Ideal for achieving perfect and uniform browning and gratination. Use this function for savory pies, baked pasta, and skewers to ensure they are cooked to perfection without the need for excessive oils or fats.
- Ilmastoitu kypsennys: The oven's fan-assisted heating ensures even heat distribution throughout the cavity, providing consistent cooking results for all types of dishes.
5.3 Ohjelmoitava ajastin
The integrated programmable timer allows you to set precise cooking durations for your recipes. Once the set time elapses, the oven will alert you and may automatically switch off, depending on the selected function.
6. Huolto ja puhdistus
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Indesit oven.
- Click&Clean: For easy cleaning of the oven door, the glass panel can be removed in two simple steps. Refer to the detailed instructions in the full manual for safe removal and reinstallation.
- Steam&Clean: This function utilizes steam to eliminate dirt and residues from the oven cavity in just 35 minutes, without the need for harsh detergents. Pour water into the designated area at the bottom of the oven and activate the Steam&Clean cycle. Once complete and the oven has cooled, wipe away softened residues with a soft cloth.
- Reclinable Grill: The integral grill can be unhooked and tilted outwards, providing easy access to the upper part of the oven cavity for thorough cleaning.
- Yleinen puhdistus: Käytä ilmoitusta päivittäiseen siivoukseenamp cloth and mild, non-abrasive cleaning agents. Avoid harsh chemicals or scouring pads that could damage surfaces.
7. Vianmääritys
If you encounter any issues with your oven, consult the following common troubleshooting tips:
- Uuni ei kuumene: Check if the oven is properly plugged in and if the circuit breaker has tripped. Ensure the timer is not set to a delayed start.
- Epätasainen kypsennys: Ensure food is placed centrally on the rack and that the correct cooking function (e.g., ventilated) is selected for even heat distribution. Avoid overcrowding the oven.
- Smoke or odors during first use: This is normal during the initial burn-off process. Ensure good ventilation. If it persists after initial use, consult the full manual.
- Näytöllä näkyvät virhekoodit: Refer to the comprehensive troubleshooting section in the full user manual for specific error code meanings and solutions.
Jos ongelmat jatkuvat näiden ratkaisujen kokeilemisen jälkeen, ota yhteyttä asiakastukeen.
8. Tekniset tiedot
- Malli: Indesit IO 255H X
- Tyyppi: Multifunction Built-in Electric Oven
- Kapasiteetti: 71 litraa
- Mitat (K x L x S): 59.5 x 59.5 x 55.1 cm
- Energiatehokkuusluokka: A
- Polttoainetyyppi: Sähköinen
- Lämmitysmenetelmä: konvektion
- Väri: Ruostumaton teräs
- Mukana tulevat tarvikkeet: Virtajohto
9. Takuu ja tuki
Your Indesit IO 255H X oven comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical assistance, spare parts, or to schedule a service appointment, please contact Indesit customer support. Keep your purchase receipt and product model number (IO 255H X) readily available when contacting support.
