HEINNER HWM-TL8013IVA++ 8 kg Top-Load Washing Machine User Manual

1. Johdanto

This manual provides essential information for the safe and efficient operation of your HEINNER HWM-TL8013IVA++ 8 kg Top-Load Washing Machine. Please read it thoroughly before installation, use, and maintenance. Keep this manual for future reference.

2. Turvallisuusohjeet

Noudata aina sähkölaitteita käyttäessäsi perusturvallisuusohjeita tulipalon, sähköiskun tai loukkaantumisen riskin vähentämiseksi.

• Varmista, että pesukone on maadoitettu oikein.
• Älä anna lasten leikkiä laitteen päällä tai sisällä.
• Pidä pakkausmateriaalit poissa lasten ulottuvilta.
• Älä käytä konetta, jos se on vaurioitunut tai toimii virheellisesti.
• Irrota laite pistorasiasta ennen puhdistusta tai huoltotoimenpiteitä.
• Älä pese vaatteita, jotka on puhdistettu, pesty, liotettu tai joihin on tahriintunut syttyviä tai räjähtäviä aineita.
• The built-in child lock prevents programs from being accidentally changed during washing.
• Overflow protection and automatic imbalance correction ensure safe use.

3. Tuote ohiview

3.1 Ohjauspaneeli

The washing machine features a clear LED display and user-friendly push buttons for easy operation. The rotary knob allows for program selection.

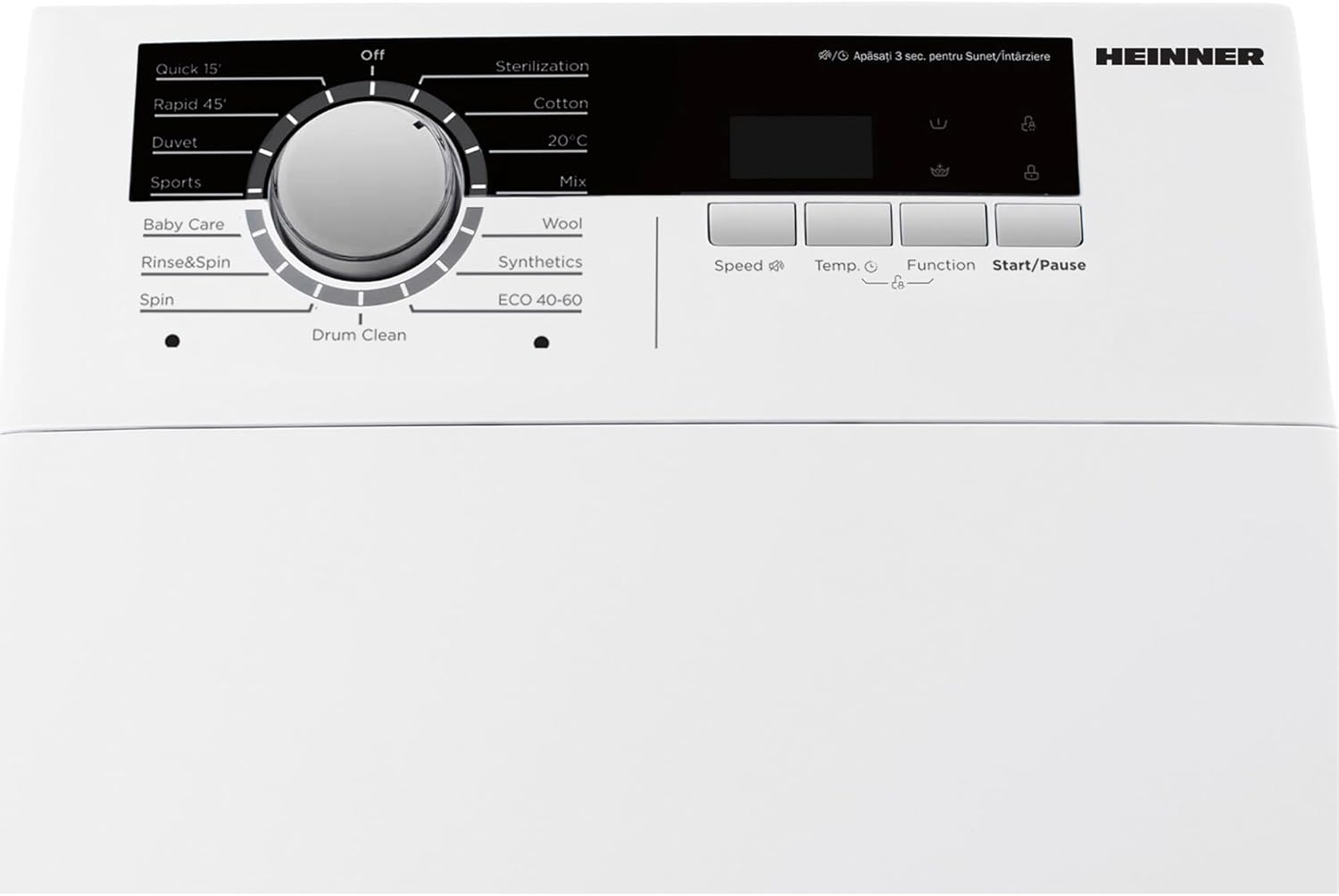

Kuva: Yksityiskohtainen view of the washing machine's control panel, showing the program selection dial, digital LED display, and buttons for speed, temperature, function, and start/pause.

3.2 Tärkeimmät ominaisuudet

• 8 kg Load Capacity: Ideal for medium-sized households, accommodating family laundry in one cycle.
• 1300 RPM Max Spin Speed: Effectively removes water, shortening drying times and reducing creasing.
• Invertterimoottoritekniikka: Ensures quiet operation, reduced vibrations, longer motor lifespan, and increased energy efficiency.
• Digitaalinen LED-näyttö: Provides clear information on program status, remaining time, and selected settings.
• 15 ohjelmaa: Versatile washing options for various fabric types and needs.
• Quick & Short Programs: Includes a 15-minute quick wash and a 45-minute short wash for convenience.
• Turvaominaisuudet: Built-in child lock, overflow protection, and automatic imbalance correction.
• Top-Load Design: Ergonomic design for easy loading and unloading without bending.

4. Asennus ja asennus

4.1 Pakkauksesta purkaminen

Carefully remove all packaging materials. Ensure no parts are left inside the drum.

4.2 Sijoitus

The HEINNER HWM-TL8013IVA++ is a freestanding appliance. Place it on a firm, level surface. Ensure there is adequate space around the machine for ventilation and access. The compact size of 40 × 61 × 87.5 cm (Width x Depth x Height) allows installation in smaller spaces.

Image: Diagram showing the compact dimensions of the washing machine: 87.5 cm height, 61 cm depth, and 40 cm width, highlighting its suitability for limited spaces.

4.3 Vesi- ja sähköliitäntä

Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain. Plug the power cord into a grounded 230 Volt electrical outlet. Refer to a qualified technician for complex installations.

5. Käyttöohjeet

5.1 Pyykin täyttö

Open the top lid and load your laundry into the drum. The top-loader design allows for easy loading and unloading without bending. Do not overload the machine; ensure there is enough space for clothes to tumble freely.

Image: The top-loading design of the washing machine, with the lid open, demonstrating the ease of loading laundry from above.

5.2 Pesuaineen lisääminen

Add the appropriate amount of detergent and fabric softener to their respective compartments. Consult your detergent packaging for recommended dosages.

5.3 Ohjelman valinta

Turn the program selection dial to choose one of the 15 available programs. The LED display will show the selected program and estimated time.

• Nopea 15 min: Pienille, kevyesti likaantuneille pyykkimäärille.
• Nopea 45': For a more thorough, yet fast, cleaning.
• Vauvanhoito: Hellävarainen pesu vauvanvaatteille.
• Urheilu: Urheiluvaatteille.
• Huuhtelu ja linkous: Vain huuhteluun ja linkoukseen.
• spin: Vain kehruuun.
• Rummun puhdistus: Pesukoneen rummun puhdistukseen.
• ECO 40-60: Energy-efficient program for cottons and mixed items at 40-60°C.
• Synteettiset materiaalit: Synteettisille kankaille.
• Villa: Hellävarainen pesu villavaatteille.
• Sekoita: Sekapyykkimäärälle.
• 20°C: Low-temperature wash.
• Puuvilla: Puuvillakankaille.
• Sterilointi: High-temperature wash for hygiene.

Image: The digital LED display and program dial, illustrating the intuitive controls and the variety of 15 programs available for different washing needs.

5.4 Asetusten säätäminen

Use the push buttons to adjust settings such as temperature, spin speed, or to activate a delayed start.

• Lämpötila (Lämp.): Säädä pesuveden lämpötilaa.
• Spin Speed (Speed): Valitse haluamasi linkousnopeus, enintään 1300 rpm.
• Delayed Start (Function): Schedule the wash cycle to start at a later time, ideal for off-peak hours.
• Lapsilukko: To activate, press and hold the "Temp." and "Function" buttons simultaneously for 3 seconds until a beep sounds and the child lock indicator lights up. This prevents accidental program changes.

Image: Illustration of the child lock feature, showing a child near the washing machine, emphasizing the safety aspect. The child lock prevents accidental changes to settings.

5.5 Inverter Motor Benefits

The advanced inverter motor automatically adjusts power consumption to the load size, resulting in quiet operation, fewer vibrations, and a longer motor lifespan. This technology also enhances energy efficiency and ensures consistent drum movements for thorough cleaning.

Kuva: Räjähtänyt view diagram of an inverter motor, illustrating its internal components and electromagnetic operation, which contributes to reduced vibrations, wear, and improved energy efficiency.

5.6 Pre-wash Function

For heavily soiled clothing, utilize the pre-wash function. This intensifies the washing process, improving stain removal and overall cleaning results.

Image: A close-up of laundry inside the washing machine drum, specifically a shirt with a paw print stain, demonstrating the pre-wash function's action on heavily soiled items.

6. Huolto

6.1 Rummun puhdistusohjelma

Regularly use the "Drum Clean" program to keep the drum and interior of the washing machine clean. This program thoroughly cleans the drum at a temperature of 90°C, removing dirt and bacteria.

Image: A microscopic representation of bacteria and viruses, illustrating the effectiveness of the 90°C sterilization program in eliminating germs and maintaining hygiene within the washing machine drum.

6.2 Yleinen puhdistus

Pyyhi koneen ulkopuoli pehmeällä, damp cloth. Do not use abrasive cleaners or solvents. Clean the detergent dispenser regularly to prevent residue buildup.

7. Vianmääritys

If your washing machine is not functioning correctly, please check the following before contacting service:

• Varmista, että virtajohto on kunnolla kiinni.
• Check if the water supply taps are fully open.
• Verify that the drain hose is not kinked or blocked.
• Varmista, että kansi on kunnolla kiinni.
• If an error code appears on the display, consult the full user manual (if available) for specific instructions.

8. Tekniset tiedot

9. Takuu ja tuki

9.1 Takuutiedot

Your HEINNER HWM-TL8013IVA++ washing machine comes with a full 5 vuoden valmistajan takuu on parts and labor. This warranty is valid provided the appliance is installed and maintained correctly according to the instructions in this manual. Please retain your proof of purchase for warranty claims.

9.2 Asiakastuki

For technical assistance, service requests, or questions regarding your product, please contact the retailer or the manufacturer, Network One Distribution srl. Refer to your purchase documentation for specific contact details.
