Hobbywing QUICRUN WP 10BL120 SD G2 ESC & 3650 SD G2 Motor Combo Instruction Manual

1. Johdanto

1.1 Tuote ohiview

This manual provides essential instructions for the proper setup, operation, and maintenance of your Hobbywing QUICRUN WP 10BL120 SD G2 Sensored Electronic Speed Controller (ESC) and 3650 SD G2 Brushless Motor Combo. This high-performance system is designed for remote-controlled vehicles, offering reliable and efficient power delivery. Please read this manual thoroughly before use to ensure optimal performance and safety.

1.2 Pakkauksen sisältö

Upon opening your package, verify that all components are present:

• 1 x QUICRUN WP 10BL120 SD G2 ESC (Sensored)
• 1 x QUICRUN 3650 SD G2 Brushless Motor (with customizable Turn)
• Hobbywing Decals
• Various Accessories (e.g., wires, connectors, heat shrink tubing)

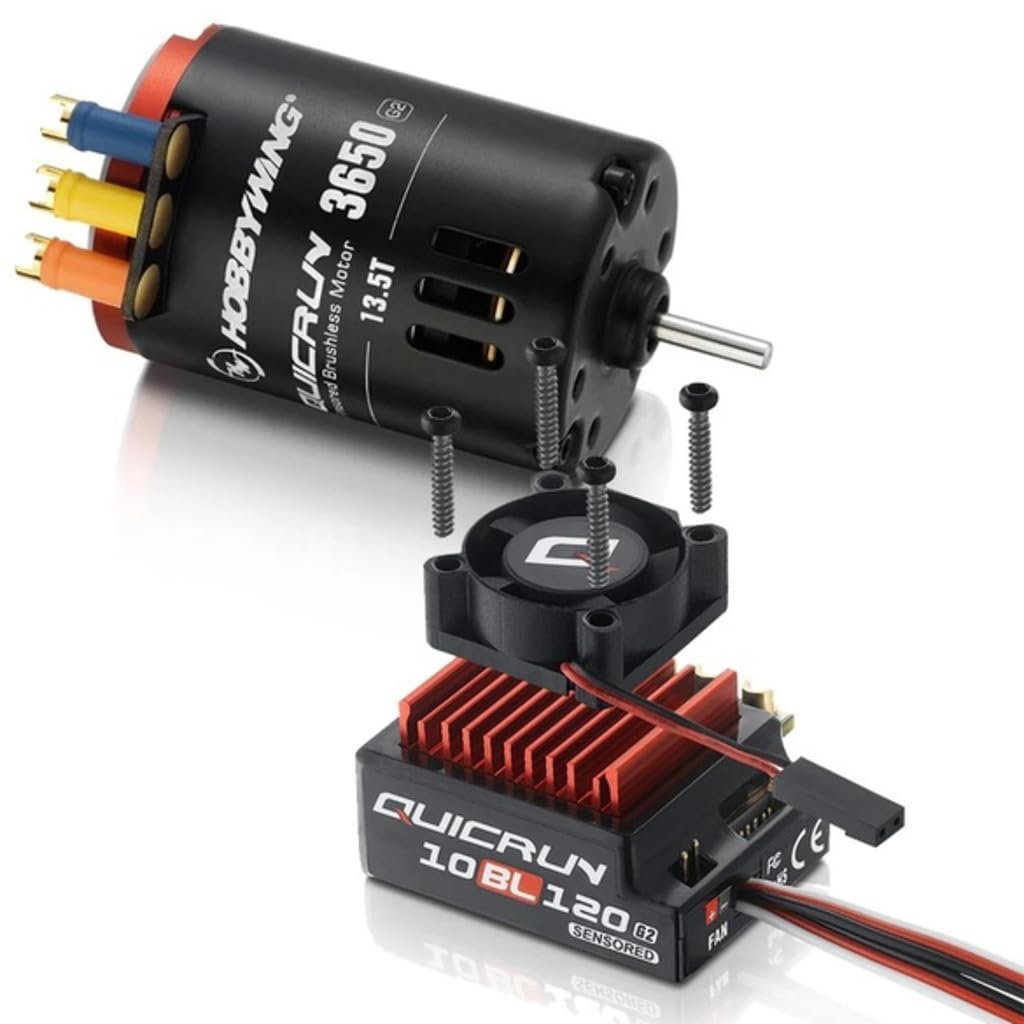

Image: The Hobbywing QUICRUN WP 10BL120 SD G2 ESC and 3650 SD G2 Motor Combo, showcasing the electronic speed controller and brushless motor components.

2. Turvaohjeet

Seuraavien turvallisuusohjeiden noudattaminen on ratkaisevan tärkeää tuotteen vaurioitumisen estämiseksi ja käyttäjän turvallisuuden varmistamiseksi:

• Lue käsikirja: Familiarize yourself with all instructions before operating the product.
• Oikeat liitännät: Ensure all connections are correct and secure. Incorrect wiring can cause damage.
• Akun turvallisuus: Use only compatible batteries. Observe correct polarity. Do not overcharge or short-circuit batteries.
• Lämmönhallinta: ESCs and motors can become hot during operation. Allow components to cool before handling.
• Veden altistuminen: While the ESC is waterproof (WP), avoid prolonged submersion or exposure to corrosive liquids. Ensure all ports are sealed if applicable.
• Ilmanvaihto: Ensure adequate airflow around the ESC and motor to prevent overheating.
• Lapset: Keep the product and its components out of reach of small children.
• purkaminen: Do not attempt to disassemble or modify the ESC or motor. This voids the warranty and can cause damage.

3. Asennus ja asennus

3.1 ESC-liitäntä

Follow these steps to connect the ESC:

1. Moottorin liitäntä: Connect the three motor wires (A, B, C) from the ESC to the corresponding motor phases. For sensored motors, connect the sensor cable from the motor to the ESC's sensor port. Ensure the sensor cable is oriented correctly.
2. Akun liitäntä: Connect the ESC's power input wires (red for positive, black for negative) to your battery pack. Ensure correct polarity.
3. Vastaanottimen liitäntä: Plug the ESC's throttle cable (usually a three-wire servo connector) into the throttle channel (CH2) of your receiver.
4. Cooling Fan (if applicable): If your ESC includes a cooling fan, connect it to the designated fan port on the ESC.

3.2 Moottorin asennus

Mount the 3650 SD G2 motor securely in your vehicle's motor mount using appropriate screws. Ensure proper gear mesh between the motor pinion and the spur gear. Incorrect gear mesh can lead to excessive wear and heat.

3.3 Throttle Range Calibration

Before first use, the ESC's throttle range must be calibrated to match your radio transmitter. Refer to the detailed calibration procedure in the separate ESC manual or Hobbywing's official website for your specific ESC model. Generally, this involves:

1. Turn on your transmitter and set throttle trim to neutral.
2. Hold the ESC's SET button, then turn on the ESC. Release the button when the LED flashes.
3. Set full throttle on your transmitter, press SET.
4. Set full brake/reverse on your transmitter, press SET.
5. Set neutral throttle on your transmitter, press SET.

4. Käyttöohjeet

4.1 Virran kytkeminen päälle/pois

• Virran kytkeminen: Ensure all connections are secure. Turn on your radio transmitter first, then connect the battery to the ESC. Press the ESC's power button.
• Virran sammuttaminen: Disconnect the battery from the ESC. Then turn off your radio transmitter.

4.2 ESC-ohjelmointi

The QUICRUN WP 10BL120 SD G2 ESC features programmable parameters to fine-tune its performance. These parameters can typically be adjusted using:

• The SET button on the ESC (limited parameters).
• A Hobbywing LED Program Box (recommended for full access to parameters).

Refer to the specific ESC manual for a complete list of programmable items and detailed instructions on how to adjust them.

5. Huolto

Säännöllinen huolto varmistaa ESC-moottorin ja -yhdistelmän pitkän käyttöiän ja optimaalisen suorituskyvyn:

• Puhdistus: After each use, especially in dusty or dirty conditions, clean the ESC and motor with a soft brush or compressed air. Remove any debris that may impede cooling.
• Tarkastus: Periodically check all wires and connectors for signs of wear, fraying, or corrosion. Ensure all screws are tight.
• Moottorin laakerit: Inspect motor bearings for smooth operation. If they feel rough, they may need cleaning or replacement.
• Varastointi: Store the ESC and motor in a clean, dry place away from direct sunlight and extreme temperatures. Disconnect batteries when storing.

6. Vianmääritys

Tässä osiossa käsitellään yleisiä ongelmia, joita saatat kohdata:

7. Tekniset tiedot

Key technical specifications for the Hobbywing QUICRUN WP 10BL120 SD G2 ESC and 3650 SD G2 Motor Combo:

8. Takuu ja tuki

8.1 Takuutiedot

Tarkemmat takuuehdot löytyvät Hobbywingin virallisesta käyttöohjeesta. website or contact your local distributor. Warranty coverage typically applies to manufacturing defects and may vary by region.

8.2 Asiakastuki

If you encounter issues not covered in this manual or require further assistance, please visit the official Hobbywing support page or contact their customer service department. Provide your product model number (HWI38020382) and a detailed description of the issue for efficient support.
