Outsunny 20' x 40' raskaaseen käyttöön tarkoitetun juhlateltan käyttöohje

1. Johdanto

This manual provides detailed instructions for the safe and efficient assembly, operation, maintenance, and troubleshooting of your Outsunny 20' x 40' Heavy Duty Party Tent. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Turvallisuustiedot

• Kokoonpano: Always assemble the tent with at least 4 adults. Ensure all components are correctly connected and secured.
• Ankkurointi: Proper anchoring is crucial. Use all provided ground stakes and ropes to secure the tent firmly to the ground. In windy conditions, additional anchoring (e.g., sandbags, weights) is highly recommended.
• Sääolosuhteet: This tent is designed for temporary use in fair weather. Do not use in strong winds, heavy rain, snow, or other severe weather conditions. Disassemble and store the tent if adverse weather is expected.
• Paloturvallisuus: Pidä kaikki lämmönlähteet ja avotuli poissa teltan kankaasta. Materiaali ei ole paloturvallista.
• Sijainti: Choose a flat, level surface free from overhead obstructions (e.g., tree branches, power lines). Ensure adequate clearance around the tent.
• Lapset: Keep children away from the assembly area. Never leave children unattended inside or around the tent.

3. Pakkauksen sisältö

Verify that all parts are present before beginning assembly. Refer to the parts list in your packaging for specific quantities.

• Galvanized Steel Tubes (various lengths and shapes for frame)
• Sinkityt teräsliittimet
• 170gsm PE Canopy (UPF30+, water-resistant)
• Removable Sidewalls (with 12 windows)
• 2 Zipped Doors
• Maapanokset
• Guy Ropes

4. Asennusohjeet

Follow these steps carefully for proper assembly. It is recommended to have at least 4 people for efficient and safe setup.

4.1. Runkokokoonpano

1. Pura ja järjestä: Lay out all frame components on a clean, flat surface. Group similar tubes and connectors together.
2. Kokoa pohjarunko: Connect the horizontal and vertical base tubes using the appropriate connectors. Ensure all connections are secure.
3. Katon rakenteen rakentaminen: Assemble the roof support beams and connectors. The galvanized steel tubes (φ37mm) and connectors (φ41mm) are designed for strength.
4. Raise the Frame: With assistance, carefully raise the assembled frame. Ensure it is stable and level.

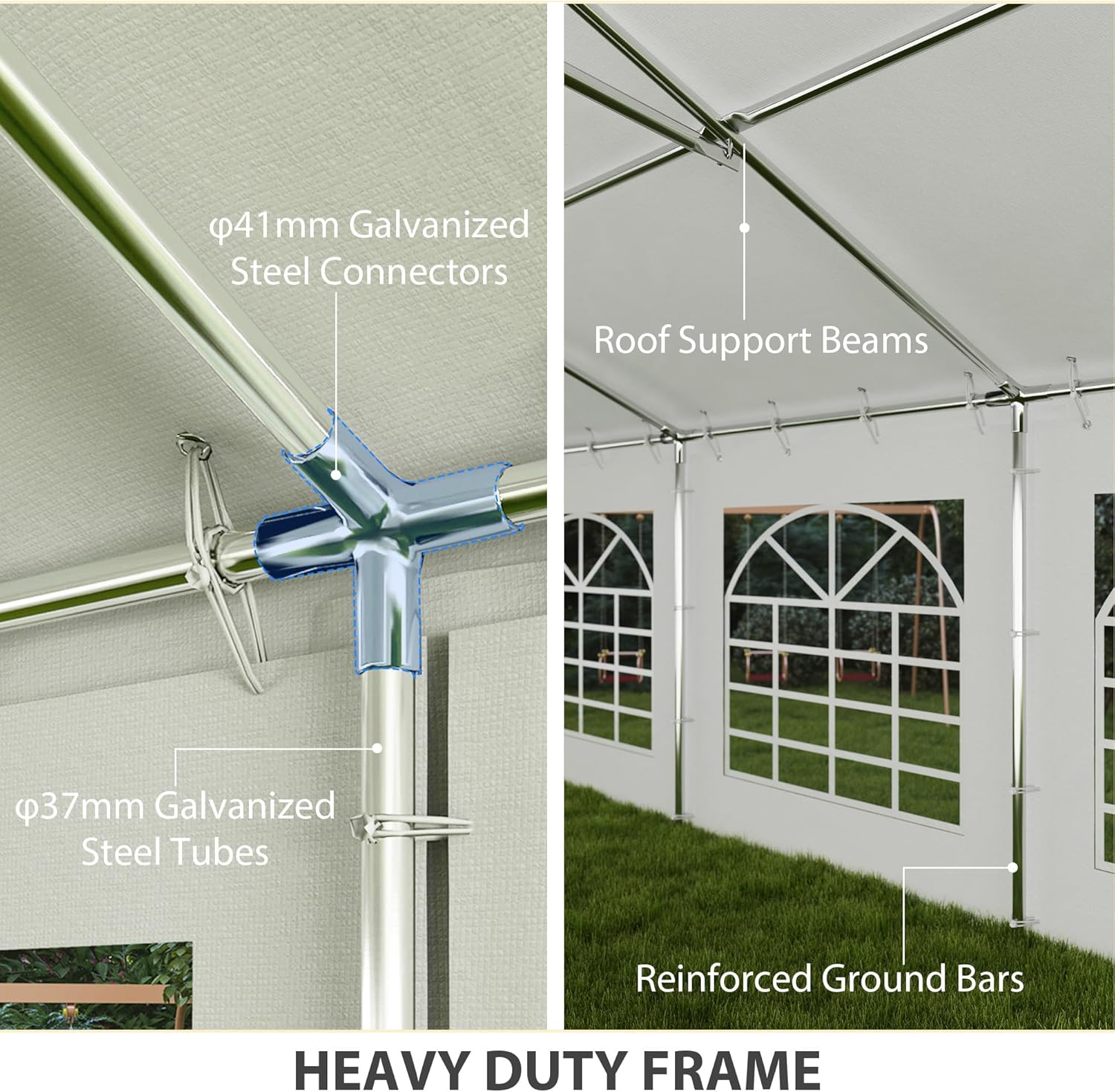

Figure 1: Detail of the heavy-duty galvanized steel frame components, including connectors, tubes, roof support beams, and reinforced ground bars.

4.2. Katoksen ja sivuseinien asennus

5. Verhokatos: Carefully drape the PE canopy over the assembled roof frame. Ensure it is centered and evenly distributed.
6. Turvallinen katos: Attach the canopy to the frame using the provided ties or bungee straps. Ensure a snug fit to prevent flapping in light winds.
7. Asenna sivuseinät: Attach the removable sidewalls to the tent frame. The sidewalls feature 12 large windows for natural light.
8. Kiinnitä ovet: Install the two extra-wide zipped doors at the desired ends of the tent. These doors can be zipped closed for privacy or rolled up and secured with buckles for open access.

Figure 2: The party tent with its 12 removable window sidewalls, offering flexibility for various event setups.

Figure 3: The tent features two large zipped doors, providing wide access for guests and equipment.

4.3. Ankkurointi

9. Maavaarnat: Drive the provided ground stakes through the footplates of the tent poles and into the ground.
10. Köydet: Attach the guy ropes to the designated points on the tent frame and secure them to additional ground stakes, pulling taut at an angle for maximum stability.

Kuva 4: Täydellinen view of the Outsunny party tent, demonstrating its large size and suitability for outdoor events.

4.4. Asennus päättyyview Video

5. Käyttöohjeet

• Ilmanvaihto: Utilize the 12 large windows and two doors to ensure adequate airflow, especially during warm weather.
• Sivuseinän kokoonpano: The sidewalls are removable, allowing for flexible configurations. You can remove some or all sidewalls to create an open canopy or enclose the space as needed.
• Ovien hallinta: The two zipped doors can be fully closed for privacy and protection from elements, or rolled up and secured to create wide entryways.

6. Huolto

• Puhdistus: Clean the canopy and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this may damage the material. Allow all parts to dry completely before storage.
• Rungon tarkastus: Regularly inspect the galvanized steel frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or replace damaged parts as necessary.
• Varastointi: Disassemble the tent and store all components in a dry, cool place away from direct sunlight when not in use. Ensure the fabric is clean and dry to prevent mold or mildew.

7. Vianmääritys

• Teltan epävakaus: Ensure all ground stakes are firmly driven into the ground and guy ropes are taut. Check all frame connections for tightness. Add additional weights if necessary, especially in moderate wind.
• Veden kertyminen katokseen: Ensure the canopy is stretched taut and properly secured to prevent water pooling. Clear any accumulated water promptly to avoid damage.
• Kokoamisen vaikeudet: Refer to the detailed assembly instructions and ensure all parts are correctly identified and oriented. Having sufficient personnel (4+ adults) is crucial for a large tent.

8. Tekniset tiedot

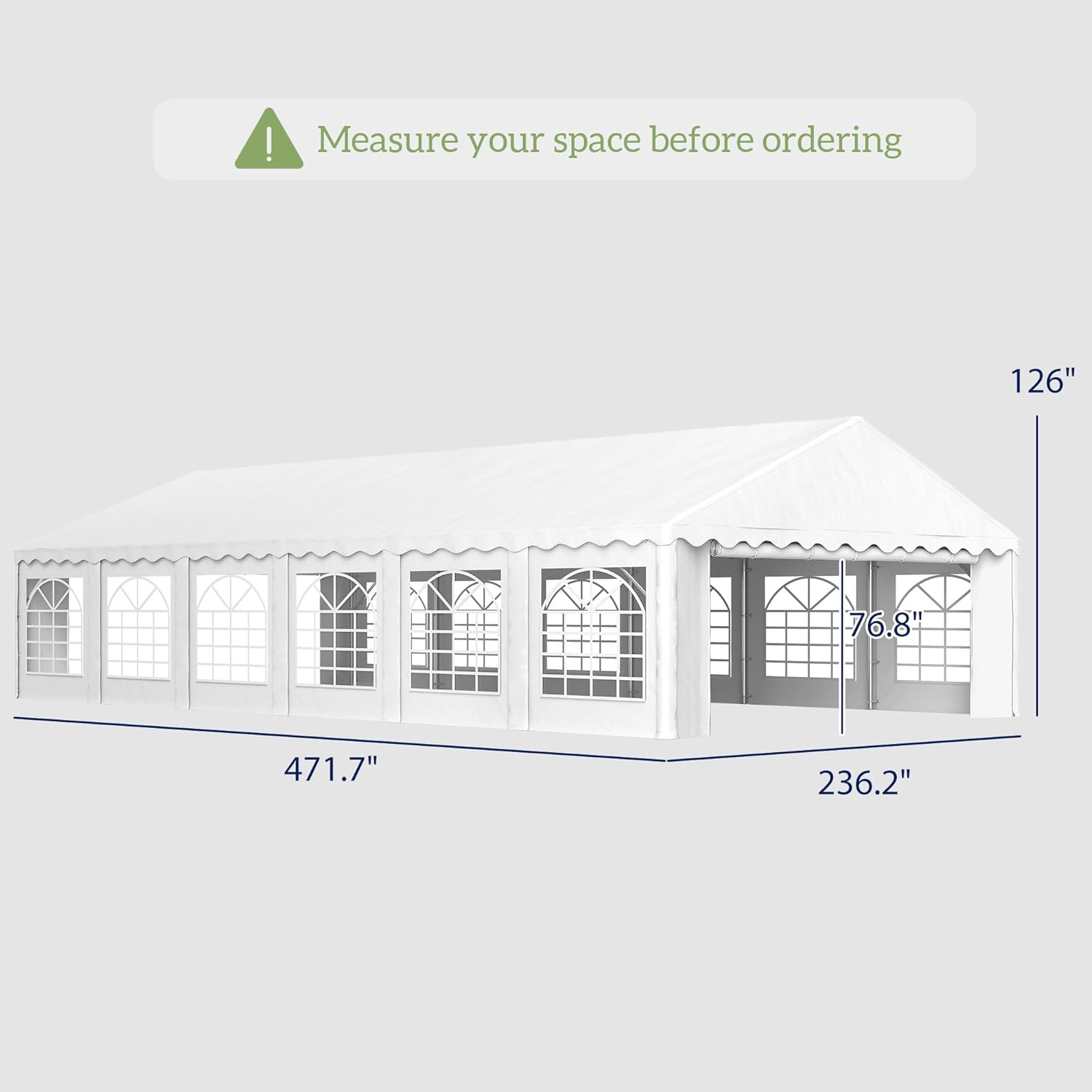

Figure 5: Key dimensions of the Outsunny party tent for planning your space.

9. Takuu ja tuki

For warranty information, product support, or to inquire about replacement parts, please contact Outsunny customer service or refer to the official Outsunny website. Keep your purchase receipt and model number handy for faster service.
