ELECOM Automatic Pet Feeder PET-AF06WH Instruction Manual

1. Johdanto

Kiitos ostoksestasiasing the ELECOM Automatic Pet Feeder PET-AF06WH. This device is designed to provide scheduled meals for your cat or small to medium-sized dog, ensuring they receive fresh food even when you are away. It features a dial timer for easy scheduling, a stainless steel food tray for hygiene, and an ice pack to maintain food freshness. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Turvaohjeet

• Do not immerse the main unit in water. Only the stainless steel tray is washable.
• Ensure the ice pack is securely placed and inaccessible to pets to prevent accidental ingestion.
• Use only the specified battery type (AA battery x 1). Do not mix old and new batteries or different types of batteries.
• Keep the feeder on a stable, flat surface to prevent tipping.
• This product is intended for pets only. Keep out of reach of children.
• Do not use this product for purposes other than feeding pets.

3. Pakkauksen sisältö

• Automatic Pet Feeder Main Unit
• Stainless Steel Food Tray
• Jäähaude
• Connecting Parts (for linking multiple units)
• Battery Replacement Date Sticker
• Lid Lock Belt
• Käyttöohje (tämä asiakirja)

4. Tuote ohiview

The ELECOM Automatic Pet Feeder PET-AF06WH, shown with a cat nearby, highlighting its compact design and ease of use.

Detailed dimensions of the feeder: approximately 23cm length, 13.9cm width, and 7.8cm height. Also shows the connecting parts and lid lock belt.

Tärkeimmät komponentit:

• Kansi: Protects food and opens at the set time.
• Dial Timer: Used to set the feeding time.
• Ruokatarjotin: Removable stainless steel tray for holding pet food.
• Ice Pack Compartment: Located beneath the food tray to keep food cool.
• Akkulokero: Located on the underside of the unit.

5. Asennus

5.1. Akun asennus

1. Käännä syöttölaite ylösalaisin.
2. Avaa paristolokeron kansi.
3. Aseta yksi AA-paristo paikalleen varmistaen oikean napaisuuden (+/-).
4. Sulje paristolokeron kansi kunnolla.

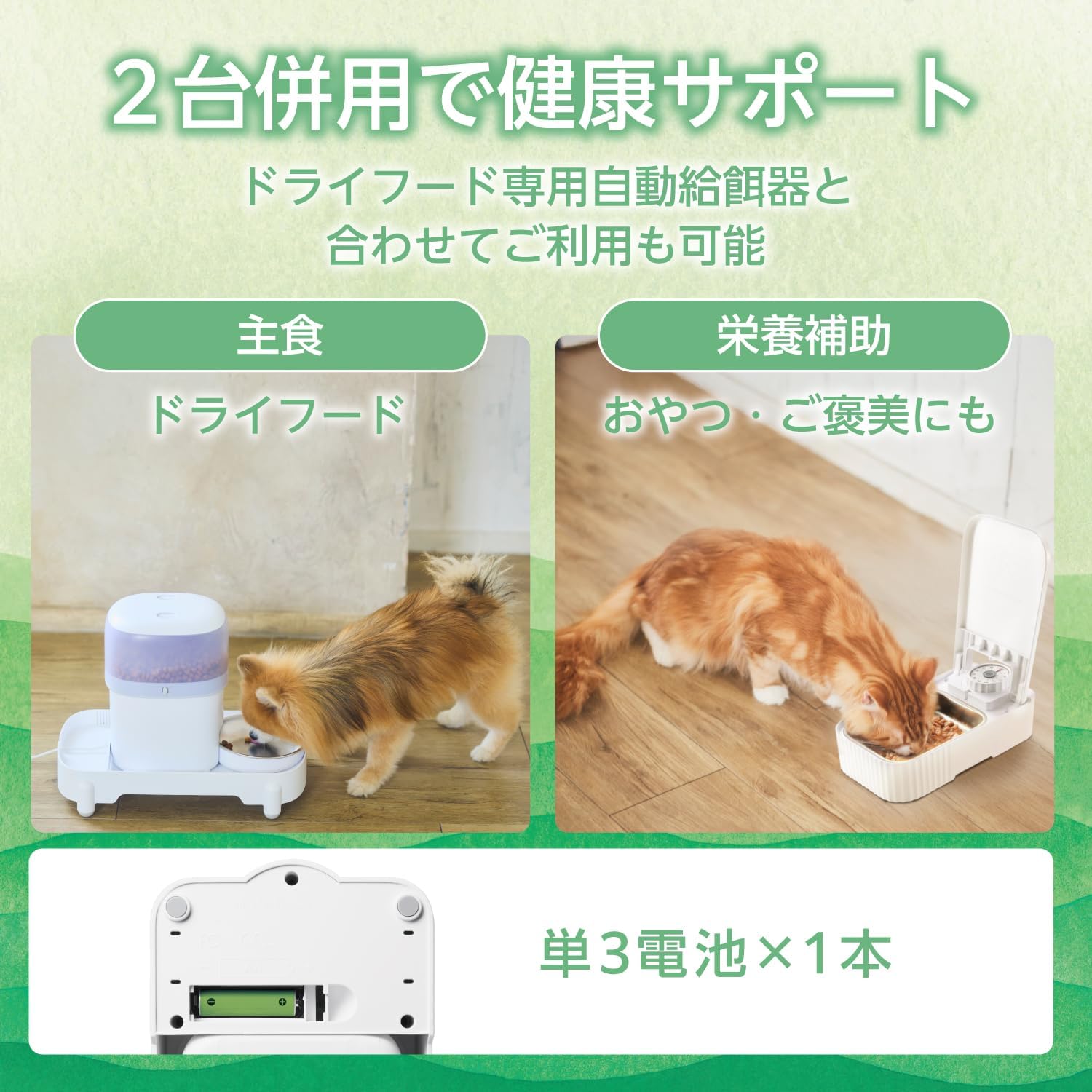

The underside of the feeder showing the battery compartment. Insert one AA battery as indicated.

5.2. Food Tray and Ice Pack Placement

1. Place the frozen ice pack into the designated compartment under the food tray.
2. Insert the stainless steel food tray into the main unit.
3. Fill the tray with your pet's food. The capacity is 350ml (approximately 190g of dry food).

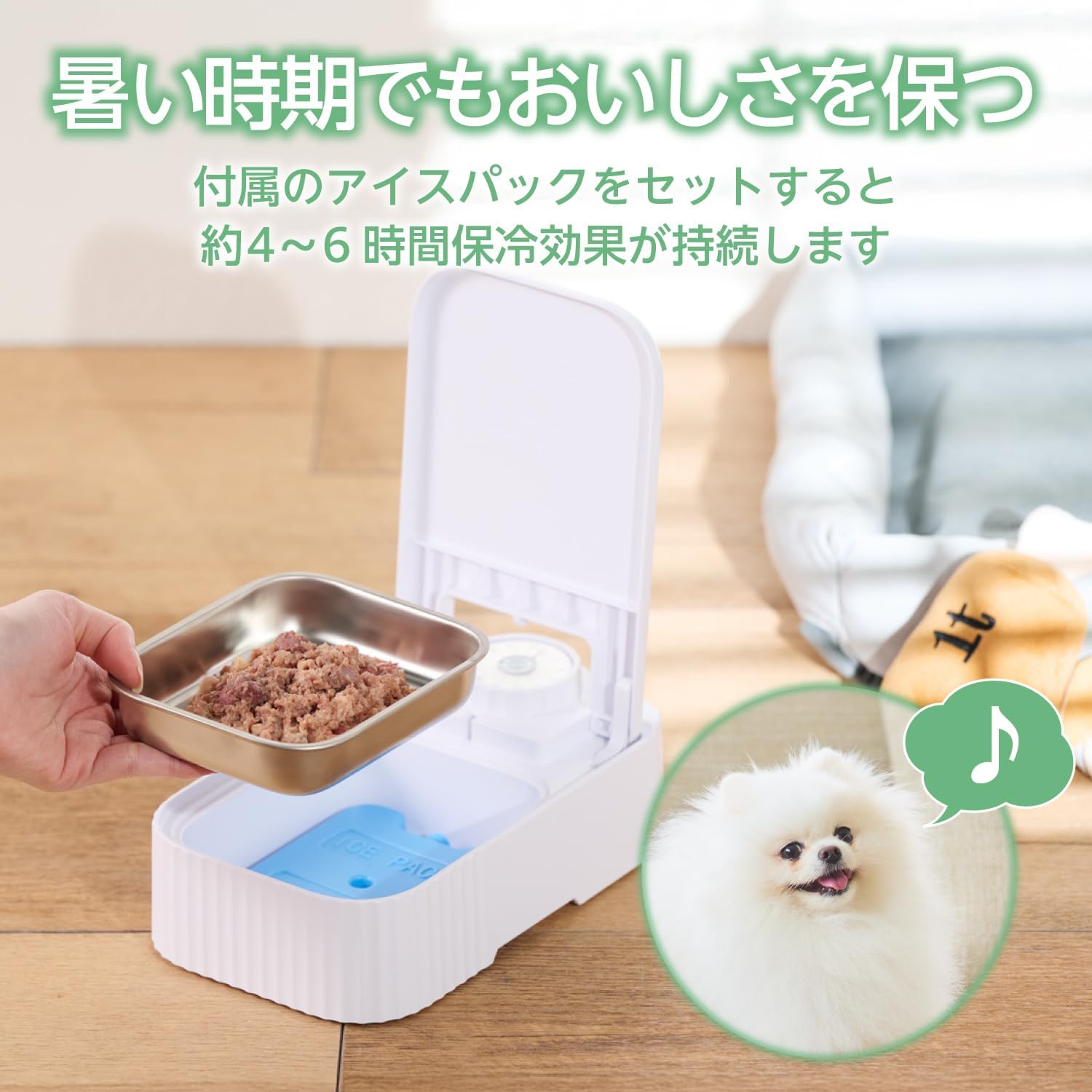

A hand placing the ice pack into the feeder's compartment, followed by the food tray filled with wet food.

5.3. Useiden yksiköiden linkittäminen (valinnainen)

If you wish to provide multiple meals or use multiple feeders, you can link two units together using the included connecting parts. This allows for a more stable setup.

Two feeder units connected side-by-side, demonstrating how the connecting parts are used to create a larger feeding station.

6. Käyttöohjeet

6.1. Setting the Dial Timer

The feeder uses a simple dial timer to schedule meal times. You can set the timer for 1 to 48 hours in 1-hour increments.

1. Turn the dial clockwise past your desired time setting.
2. Then, turn the dial counter-clockwise to align the red bar with your desired feeding time (e.g., 12 hours).
3. The lid will automatically open after the set number of hours has passed.

Visual guide demonstrating the two-step process of setting the dial timer: first clockwise past the desired time, then counter-clockwise to the exact time.

6.2. Food Compatibility

This feeder is compatible with various types of pet food, including:

• Kuiva ruoka
• Soft Dry Food
• Semi-Moist Food
• Märkä Ruoka

Illustrations of dry, soft dry, semi-moist, and wet food, indicating the feeder's versatility.

7. Huolto

7.1. Cleaning the Stainless Steel Food Tray

The stainless steel food tray is removable and dishwasher-safe, making it easy to clean and maintain hygiene. It resists stains and odors.

1. Remove the food tray from the main unit.
2. Wash the tray with mild detergent and water.
3. Rinse thoroughly and dry completely before placing it back into the feeder.

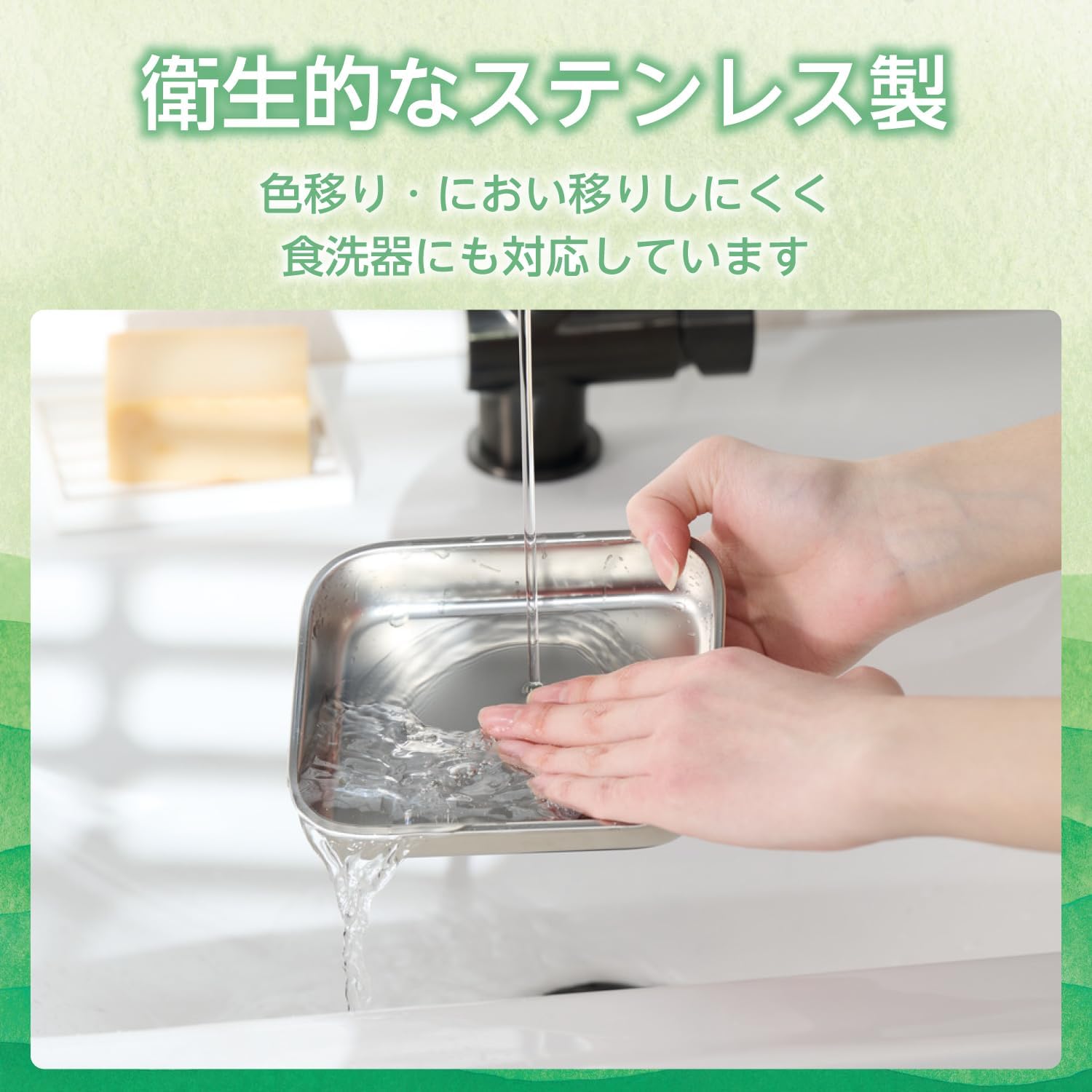

A person washing the stainless steel food tray under running water, demonstrating its easy cleaning.

7.2. Pääyksikön puhdistus

Pyyhi pääyksikön ulkopinta pehmeällä,amp liinalla. Älä käytä hankaavia puhdistusaineita äläkä upota laitetta veteen.

8. Vianmääritys

• Feeder not opening at the set time: Check if the battery is inserted correctly and has sufficient power. Replace the battery if necessary. Ensure the dial timer is set properly according to the instructions.
• Lid not closing: Ensure no food particles are obstructing the lid mechanism.
• Ice pack ingested by pet: Immediately consult a veterinarian. Ensure the ice pack is always securely placed and the lid is closed to prevent access.
• Timer inaccuracy: The dial timer may have a slight margin of error (approximately +/- 30 minutes). This is normal for mechanical dial timers.

9. Tekniset tiedot

10. Takuu ja tuki

For warranty information and customer support, please refer to the official ELECOM website or contact your local ELECOM distributor. Keep your purchase receipt as proof of purchase for any warranty claims.

Image illustrating how to locate product manuals on the ELECOM official websivustosta etsimällä mallinumeroa.

Lisätietoja ja resursseja tuotteesta löydät osoitteesta ELECOM Brand Store.
