MageGee K2 Wired RGB Backlit 104-Key Ergonomic Keyboard User Manual

1. Johdanto

This manual provides detailed instructions for the proper setup, operation, and maintenance of your MageGee K2 Wired RGB Backlit 104-Key Ergonomic Keyboard. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Pakkauksen sisältö

The MageGee K2 Keyboard package includes the following items:

• MageGee K2 Wired RGB Backlit 104-Key Ergonomic Keyboard
• Käyttöopas (tämä asiakirja)

Image: MageGee K2 Keyboard shown with its accompanying user manual.

3. Asennusohjeet

3.1 Näppäimistön kytkeminen

1. Locate an available USB port on your computer (PC, laptop, or Mac).
2. Plug the USB connector of the MageGee K2 keyboard into the USB port.
3. The keyboard is plug-and-play and should be automatically recognized by your operating system (Windows 2000/XP/ME/Vista/7/8/10, Android, Linux, Mac). No additional drivers are typically required.

3.2 Näppäimistön korkeuden säätäminen

The keyboard features a foldable bracket at the bottom, allowing you to adjust its height for a more comfortable typing angle.

• To raise the keyboard, gently pull out the foldable feet located on the underside of the keyboard.
• To lower the keyboard, fold the feet back into their recessed positions.

Image: The MageGee K2 Keyboard demonstrating its ergonomic design with adjustable feet.

4. Käyttöohjeet

4.1 RGB-taustavalon säätö

The MageGee K2 keyboard features vibrant RGB backlighting with multiple modes and brightness levels. Use the following key combinations to control the lighting:

• FN + L.: Lisää taustavalon kirkkautta.
• FN + J.: Vähennä taustavalon kirkkautta.
• FN + K.: Switch between different backlight modes.
• FN + M: Switch between constant color and multi-color backlight modes.
• FN + I: Kytke taustavalo päälle/pois.

Image: Visual guide to RGB backlight control keys on the MageGee K2 Keyboard.

4.2 Multimedian pikakuvakkeet

Access common multimedia functions quickly using the FN key in combination with the F1-F12 keys:

• FN + F1-F12: Quickly switch between multimedia playback, volume adjustment, and other functions. Refer to the keycap legends for specific functions.

4.3 Anti-ghosting ja N-näppäimen rollover

The MageGee K2 keyboard features advanced anti-ghosting technology, allowing up to 19 keys to be pressed simultaneously without conflicts. This ensures accurate and fast input, especially during gaming or rapid typing.

• 19-näppäimen rollover: Allows simultaneous pressing of multiple keys without issues.
• FN + W: Switch between the W, A, S, D keys and the arrow keys for enhanced gaming control.

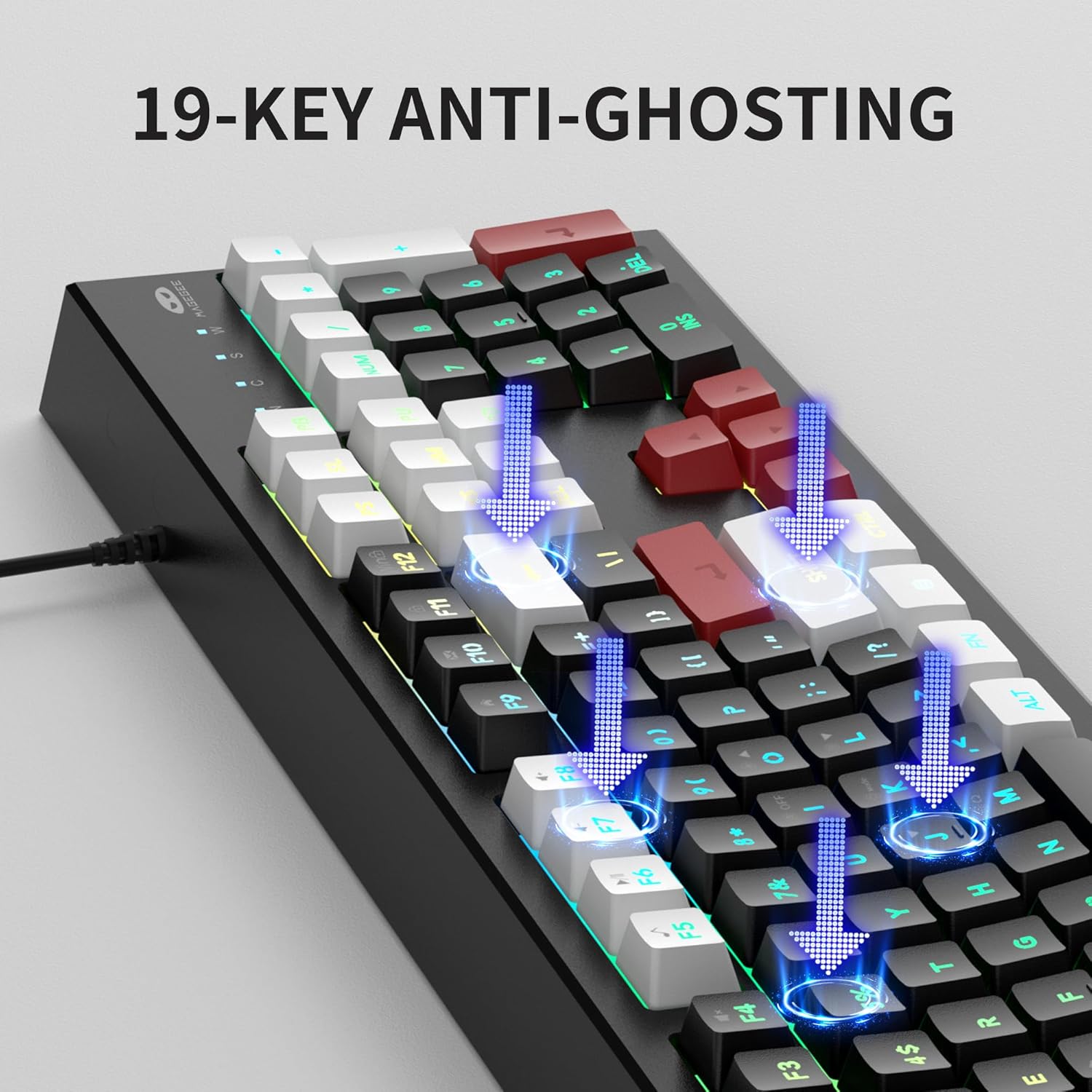

Image: Illustration of 19-key anti-ghosting functionality on the MageGee K2 Keyboard.

4.4 Ergonominen muotoilu

The keyboard is designed with carefully crafted high and low keys and a stepped layout to provide an ergonomic angle, reducing strain during long typing sessions and promoting comfortable finger movement.

5. Huolto

5.1 Näppäimistön puhdistaminen

• Irrota näppäimistö tietokoneesta ennen puhdistamista.
• Käytä pehmeää, damp cloth to wipe the surface of the keyboard. Avoid using harsh chemicals or abrasive materials.
• Näppäinhattuvälien puhdistamiseen käytä paineilmaa pölyn ja roskien poistamiseen.

5.2 Yleishoito

• Avoid exposing the keyboard to extreme temperatures, direct sunlight, or high humidity.
• While the keyboard is designed to be waterproof, avoid submerging it in liquids. In case of accidental spills, disconnect immediately and allow it to dry completely before reconnecting.
• Do not attempt to disassemble the keyboard, as this may void the warranty.

6. Vianmääritys

6.1 Näppäimistö ei vastaa

• Varmista, että USB-kaapeli on kytketty kunnolla sekä näppäimistöön että tietokoneeseen.
• Kokeile kytkeä näppäimistö tietokoneen toiseen USB-porttiin.
• Käynnistä tietokone uudelleen.
• Testaa näppäimistöä toisella tietokoneella selvittääksesi, onko ongelma näppäimistössä vai alkuperäisessä tietokoneessa.

6.2 Taustavalo ei toimi tai on virheellinen

• Varmista, että taustavalo on päällä käyttämällä FN + I.
• Säädä kirkkautta käyttämällä FN + L. (lisää) ja FN + J. (vähennys).
• Selaa eri tiloja käyttämällä FN + K. ja FN + M.

6.3 Avaimet eivät rekisteröidy tai kirjoitetaan kahteen kertaan

• Clean the keyboard as described in the Maintenance section to remove any debris under the keycaps.
• Ensure the keyboard is connected directly to the computer and not through a USB hub, which can sometimes cause power or signal issues.

7. Tekniset tiedot

Image: Detailed dimensions of the MageGee K2 Keyboard.

8. Virallinen tuotevideo

9. Takuu ja tuki

MageGee products are designed for reliability and performance. For any issues or inquiries, please refer to the following information:

• After-Sales System: The product is supported by MageGee's after-sales system. For specific warranty details or technical support, please contact the retailer or visit the official MageGee websivusto.
• Palautuskäytäntö: This product typically comes with a 30-day return policy. Please check with your point of purchase for exact return terms.
