YARD FORCE Snow Shovel with Non-Slip Grip Tape

1. Johdanto

Kiitos ostoksestasiasing the YARD FORCE Snow Shovel, Model YFSS-C01. This instruction manual provides important information on the assembly, operation, and maintenance of your snow shovel. Please read this manual carefully before use and keep it for future reference.

2. Tuotteen ominaisuudet

The YARD FORCE Snow Shovel is designed to make snow removal easier and less strenuous. Its key features include:

• Lever Principle Handle: A patented auxiliary handle applies the lever principle, significantly reducing the effort required to lift and throw snow. This design minimizes strain on your back and arms.
• Kestävä rakenne: The pole is made of robust carbon steel, and the blade is constructed from durable polypropylene (PP) resin with a wide aluminum blade edge for effective snow clearing.
• Non-Slip Grip Tape: The handle is equipped with a PU leather punching grip tape (110cm) to enhance stability and provide a secure hold during operation.
• Elastic Handle Section: The handle's elastic properties provide a rebound force that further assists in lifting heavy snow.

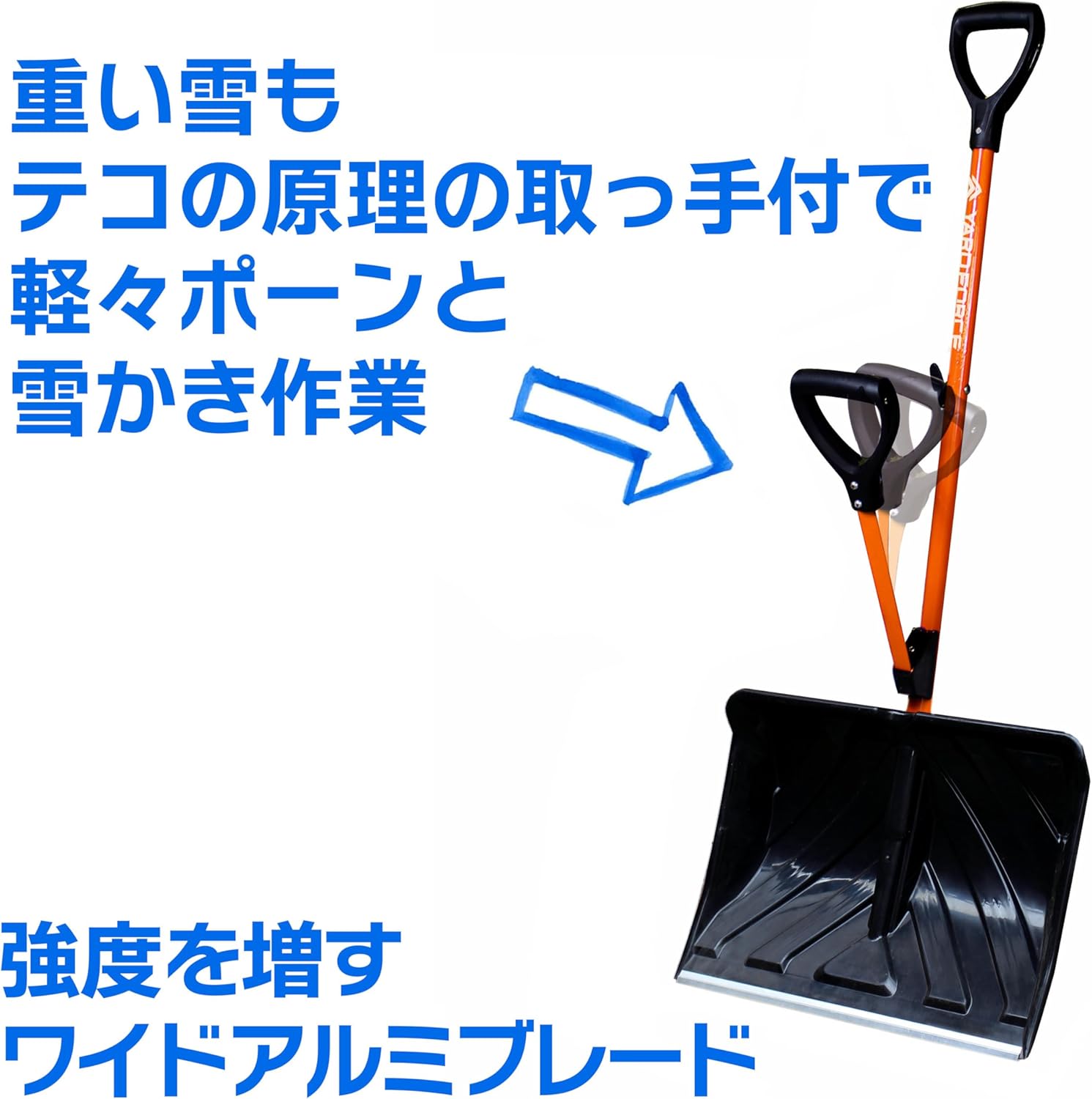

Figure 2.1: Illustration of the lever principle, demonstrating how the auxiliary handle reduces the load when lifting snow.

Figure 2.2: Detail of the non-slip PU leather grip tape for enhanced handling and stability.

3. Asennus ja kokoonpano

The YARD FORCE Snow Shovel requires partial assembly. It is delivered disassembled in its retail packaging. Follow these steps to assemble your shovel:

1. Unpack all components from the box. Ensure all parts are present: shovel blade, main pole, auxiliary handle, and any connecting hardware.
2. Connect the main pole to the shovel blade. Ensure the connection is secure and the locking mechanism (if any) is engaged.
3. Attach the auxiliary handle to the main pole at a comfortable height. The handle's position can be adjusted to suit your preference for optimal leverage.
4. If included, apply the non-slip grip tape to the designated areas on the handle for improved grip.
5. Varmista ennen käyttöä, että kaikki liitännät ovat tiukat ja tukevat.

Figure 3.1: Disassembled components of the snow shovel, ready for assembly.

4. Käyttöohjeet

Using the YARD FORCE Snow Shovel effectively involves leveraging its unique design to minimize physical exertion:

1. Paikannus: Stand upright with your feet shoulder-width apart. Place the shovel blade into the snow.
2. Engage Auxiliary Handle: Grip the main handle with one hand and the auxiliary handle with the other. The auxiliary handle should be positioned to allow you to maintain an upright posture.
3. Leverage for Lifting: Instead of bending your back, use the auxiliary handle to pivot the shovel, lifting the snow with minimal effort. The lever action transfers the lifting force more efficiently.
4. Throwing Snow: Utilize the rebound force from the elastic handle section to assist in tossing the snow away. This allows for throwing snow further with less strain.
5. Maintain Posture: Always strive to keep your back straight and use your legs to push and lift, rather than bending at the waist.

Figure 4.1: Comparison of traditional shoveling (left) versus using the YARD FORCE shovel (right), highlighting improved posture and reduced back strain.

Figure 4.2: Proper usage of the YARD FORCE snow shovel, demonstrating an ergonomic stance.

Figure 4.3: Demonstrating the ease of throwing snow using the shovel's lever action.

5. Huolto

Proper maintenance will extend the life of your snow shovel:

• Puhdistus: After each use, remove any snow, ice, or debris from the shovel blade and pole. Wipe down with a dry cloth.
• Varastointi: Store the shovel in a dry place away from direct sunlight and extreme temperatures. For compact storage during off-season, the shovel can be disassembled.
• Tarkastus: Periodically check all connections and hardware for tightness. Ensure the blade edge is free from significant damage.

6. Vianmääritys

If you encounter any issues with your YARD FORCE Snow Shovel, consider the following:

• Difficulty in Lifting Snow: Ensure the auxiliary handle is positioned correctly to maximize leverage. Adjust its height for your comfort and optimal mechanical advantage.
• Löysät liitännät: Check all assembly points (blade to pole, auxiliary handle to pole) and tighten any loose screws or fasteners.
• Blade Damage: Avoid using the shovel on hard surfaces like concrete or asphalt to prevent damage to the blade edge. Small nicks may not affect performance, but significant damage might require replacement.

Jos tarvitset lisäapua, ota yhteyttä asiakastukeen.

7. Tekniset tiedot

8. Takuu ja tuki

For warranty information or customer support, please refer to the product packaging or contact your retailer. Keep your purchase receipt as proof of purchase.
