1. Johdanto
Thank you for choosing the vannect 2025 New Foldable Exercise Bike. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read it thoroughly before assembly and operation. This exercise bike is designed for home use, offering a versatile workout experience with its multi-functional design, adjustable magnetic resistance, and comfortable features.
This image displays the overall design of the vannect 2025 New Foldable Exercise Bike, highlighting its compact and ergonomic structure. The bike features a sturdy frame, comfortable seat with backrest, and integrated handlebars with a display console.
2. Tärkeitä turvallisuustietoja
Before using this exercise bike, please read and understand all safety warnings and instructions.
- Keskustele lääkärisi kanssa ennen minkään harjoitusohjelman aloittamista.
- Pidä lapset ja lemmikkieläimet loitolla laitteesta käytön aikana.
- Aseta kuntopyörä tasaiselle ja vakaalle alustalle.
- Varmista, että kaikki pultit ja mutterit on kiristetty tiukasti ennen jokaista käyttökertaa.
- Do not wear loose clothing that could get caught in moving parts.
- Lopeta harjoittelu välittömästi, jos tunnet olosi heikoksi, sinua huimaa tai sinulla on kipua.
- Tämän pyörän suurin käyttäjäpaino on 160 kg (350 lbs).
- This product is designed for home use only, not for commercial or institutional use.
3. Pakkauksen sisältö
Please check the package to ensure all components are present and undamaged. If any parts are missing or damaged, contact customer service.
| Tuote | Kuvaus | Määrä |
|---|---|---|
| Päärungon kokoonpano | Pre-assembled core unit with flywheel and resistance mechanism. | 1 |
| Front & Rear Stabilizers | Pohjatuet vakauden takaamiseksi. | 2 |
| Istuin ja selkänoja | Cushioned seat and back support. | 1 setti |
| Handlebars & Monitor | Handlebar assembly with integrated LCD display. | 1 setti |
| Polkimet (vasen ja oikea) | Foot pedals with straps. | 1 pari |
| Resistance Bands (Hand & Leg) | Dual hand pull cords and dual leg pull cords. | 2 sarjaa |
| Laitteiston pakkaus | Bolts, washers, nuts, and tools for assembly. | 1 setti |
| Käyttöopas | Tämä käyttöohje. | 1 |
4. Asennus ja kokoonpano
The exercise bike is designed for easy assembly. Most screws and washers are pre-assembled. Follow these steps for quick setup.
- Pura pakkaus ja tunnista osat: Carefully remove all components from the packaging. Refer to the "Package Contents" section to ensure all parts are present.
- Kiinnitä tukijalat: Kiinnitä etu- ja takatukijalat päärunkoon mukana toimitetuilla pulteilla ja muttereilla. Varmista, että ne ovat tiukasti kiinni vakauden takaamiseksi.
- Asenna polkimet: Attach the left and right pedals. Note that the left pedal (L) screws counter-clockwise and the right pedal (R) screws clockwise. Tighten securely.
- Istuimen ja selkänojan kiinnitys: Attach the cushioned seat and backrest to the seat post. Adjust the seat height to your preference using the adjustment knob. The bike accommodates users from 140 cm (4'7") to 195 cm (6'4").
- Kiinnitä ohjaustanko ja näyttö: Connect the handlebar assembly to the main frame. Plug in the sensor wires from the main frame to the LCD monitor. Secure the monitor to the handlebar post.
- Attach Resistance Bands: Connect the hand and leg pull cords to their designated attachment points on the bike.
- Adjusting Bike Mode (Elastic Bolt): To change between upright, semi-recumbent, or folding modes, gently lift the front frame and pull out the elastic bolt. The bolt will automatically lock into the desired position. This eliminates the need to unscrew nuts.

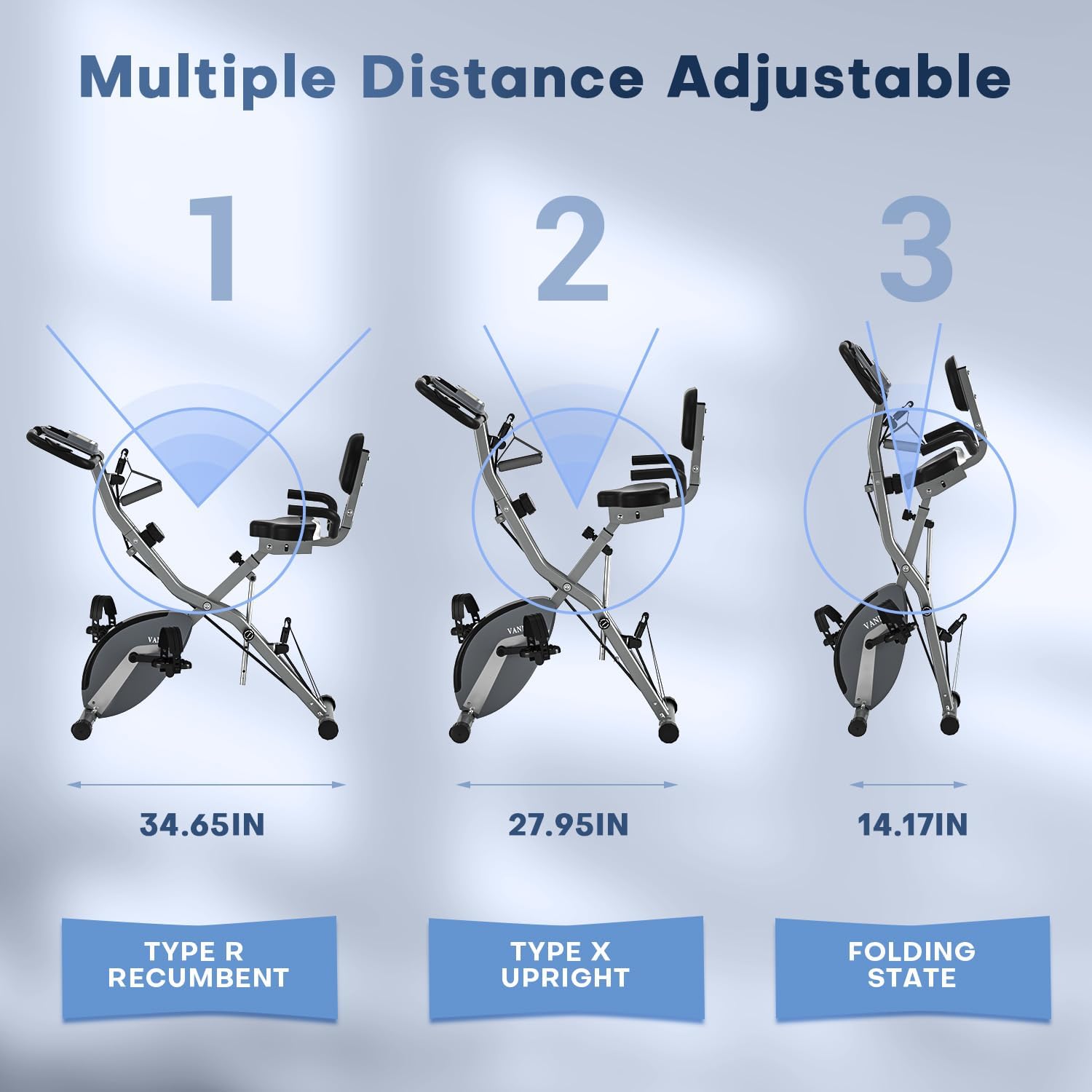

This image illustrates the three main configurations of the exercise bike: Recumbent (Type R), Upright (Type X), and the fully folded state, showing how the bike can be adjusted for different workout styles and compact storage.
5. Käyttöohjeet
5.1 harjoitustilaa
Your vannect exercise bike offers multiple workout positions to suit your fitness goals:
- Pystysuora standardi: For a classic cycling experience.
- Upright-Competitive: For an intense cardio workout.
- Semi-Recumbent: For a more relaxed ride, providing comfort and support.
Additionally, the bike includes dual hand pull cords for arm stretches and dual leg pull cords for lower body strengthening, transforming it into a mini home gym.
This image demonstrates the various exercise positions supported by the bike, including upright, competitive cycling, leg stretch, arm training, and relaxed recumbent ride, showcasing its versatility for a full-body workout.
This image highlights the recumbent mode of the exercise bike, emphasizing the ease of adjustment by gently lifting the front frame and pulling out the elastic bolt to achieve a comfortable, relaxed riding position.
5.2 Magneettisen vastuksen säätö
The bike features a 16-level magnetic resistance system. Turn the resistance knob located below the handlebars to increase or decrease the workout intensity.
- Tasot 1-4: Ideal for warm-up or light exercise.
- Tasot 5-8: Suitable for fat burning and moderate cardio.
- Tasot 9-13: For building endurance and more challenging workouts.
- Tasot 14-16: High intensity for strengthening muscles and advanced training.
This image shows the resistance knob and illustrates the 16 levels of magnetic resistance, indicating how different levels correspond to various workout intensities from warm-up to muscle strengthening.
5.3 LCD-näytön toiminnot
The integrated LCD display tracks your workout data.
- AIKA: Näyttää nykyisen harjoituksesi keston.
- NOPEUS: Näyttää nykyisen pyöräilynopeutesi.
- ETÄISYYS: Seuraa harjoituksen aikana kuljettua matkaa.
- KALORIT: Arvioi poltettujen kalorien määrän.
- PULSSI: Displays your heart rate (requires holding heart rate sensors on handlebars).
- ODO (matkamittari): Näyttää ajetun kokonaismatkan.
- SKANNATA: Käy kaikki mittarit automaattisesti läpi.
Use the "MODE" button to select the desired function to display. Press "RESET" to clear current workout data.

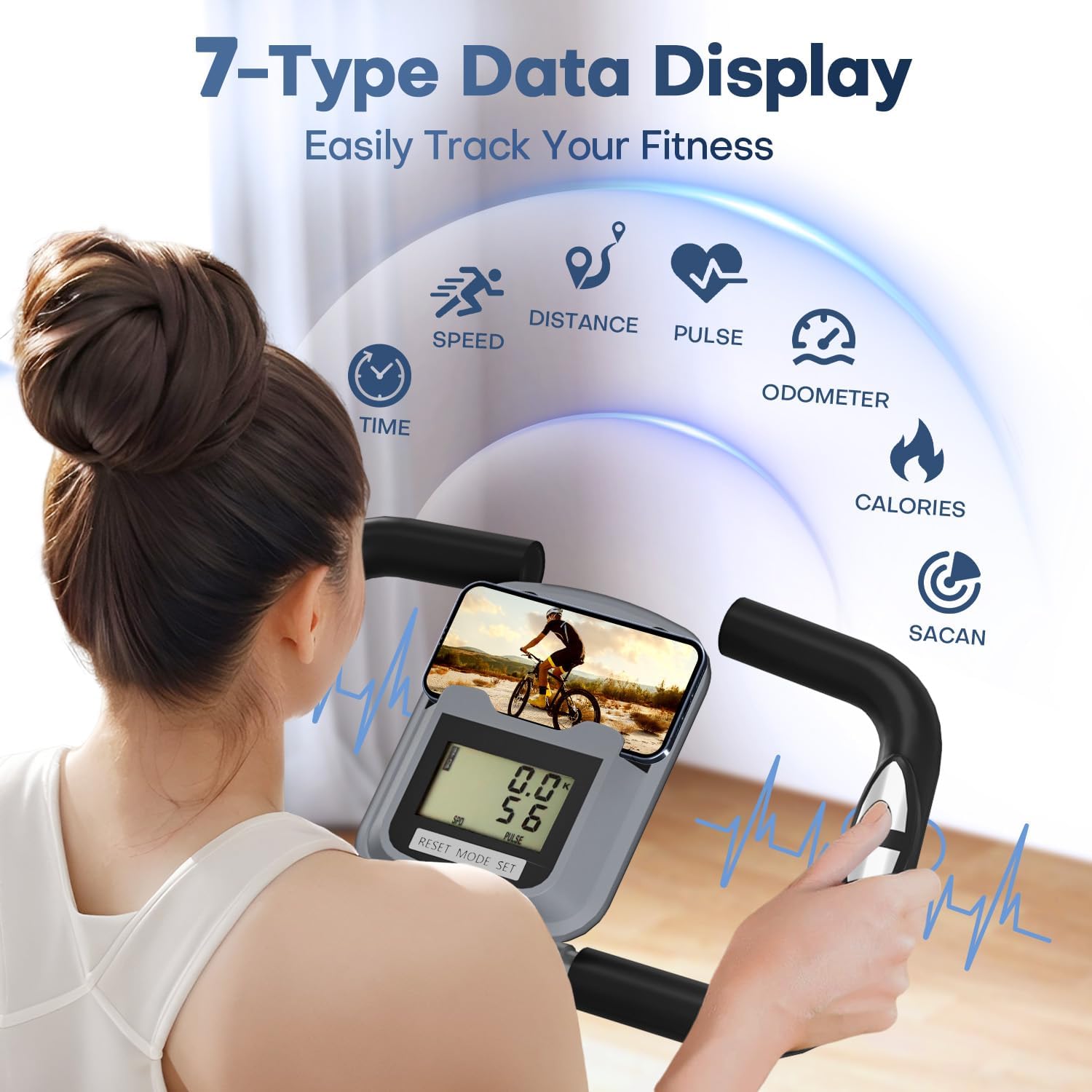

This image illustrates the LCD display on the exercise bike, showing the various data points it tracks, including time, speed, distance, pulse, odometer, and calories, enabling users to monitor their workout progress effectively.
6. Huolto ja varastointi
- Puhdistus: Pyyhi pyörä mainoksellaamp pyyhi hiki ja pöly pyyhkimällä liinalla jokaisen käyttökerran jälkeen. Älä käytä hankaavia puhdistusaineita.
- Tarkastus: Tarkista säännöllisesti kaikkien pulttien, mutterien ja liikkuvien osien kireys ja kuluminen. Kiristä kaikki löysät kiinnikkeet.
- Voitelu: Magneettiselle vastusjärjestelmälle ei tarvita erityistä voitelua.
- Varastointi: The bike's foldable design and mobility wheels allow for easy storage. Fold the bike and store it in a dry, cool place away from direct sunlight and moisture.
This image highlights the quiet operation of the exercise bike, indicating a sound level of less than 10 dB, and its foldable design, which makes it easy to store in small spaces, ideal for home use.
7. Vianmääritys
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Näyttö ei toimi | Loose sensor cable connection; Dead batteries. | Check and secure all cable connections to the monitor. Replace batteries if necessary (batteries not included). |
| Unstable or wobbling bike | Uneven surface; Loose bolts. | Ensure the bike is on a flat, level surface. Check and tighten all assembly bolts, especially on the stabilizers. |
| Vastus ei muutu | Resistance knob not fully engaged; Internal mechanism issue. | Turn the resistance knob fully to ensure it engages. If the issue persists, contact customer service. |
| Narisevaa tai epätavallista ääntä | Loose parts; Friction. | Inspect all connections and tighten any loose bolts. Ensure no foreign objects are caught in moving parts. |
8. Tekniset tiedot
| Ominaisuus | Yksityiskohta |
|---|---|
| Mallinumero | 917FM (917FM-2A X Bike) |
| Merkki | vannect |
| Vastusjärjestelmä | 16-tasoinen magneettinen vastus |
| Ajojärjestelmä | Hihnakäyttö |
| Materiaali | Thickened High Carbon Steel (3mm) |
| Käyttäjän enimmäispainokapasiteetti | 160 kg (350 lbs) |
| Suositeltu käyttäjän pituus | 140 cm (4'7") to 195 cm (6'4") |
| Tuotteen mitat (P x L x K) | 80 x 45 x 112 cm (31.5 x 17.7 x 44.1 tuumaa) |
| Tuotteen paino | 22.3 kg (49.16 lbs) |
| Näytön tyyppi | LCD (Time, Speed, Distance, Calories, Pulse, ODO, Scan) |
| Erikoisominaisuudet | Foldable Design, Mobility Wheels, Dual Hand/Leg Pull Cords, Cushioned Seat with Backrest, Elastic Bolt Adjustment |

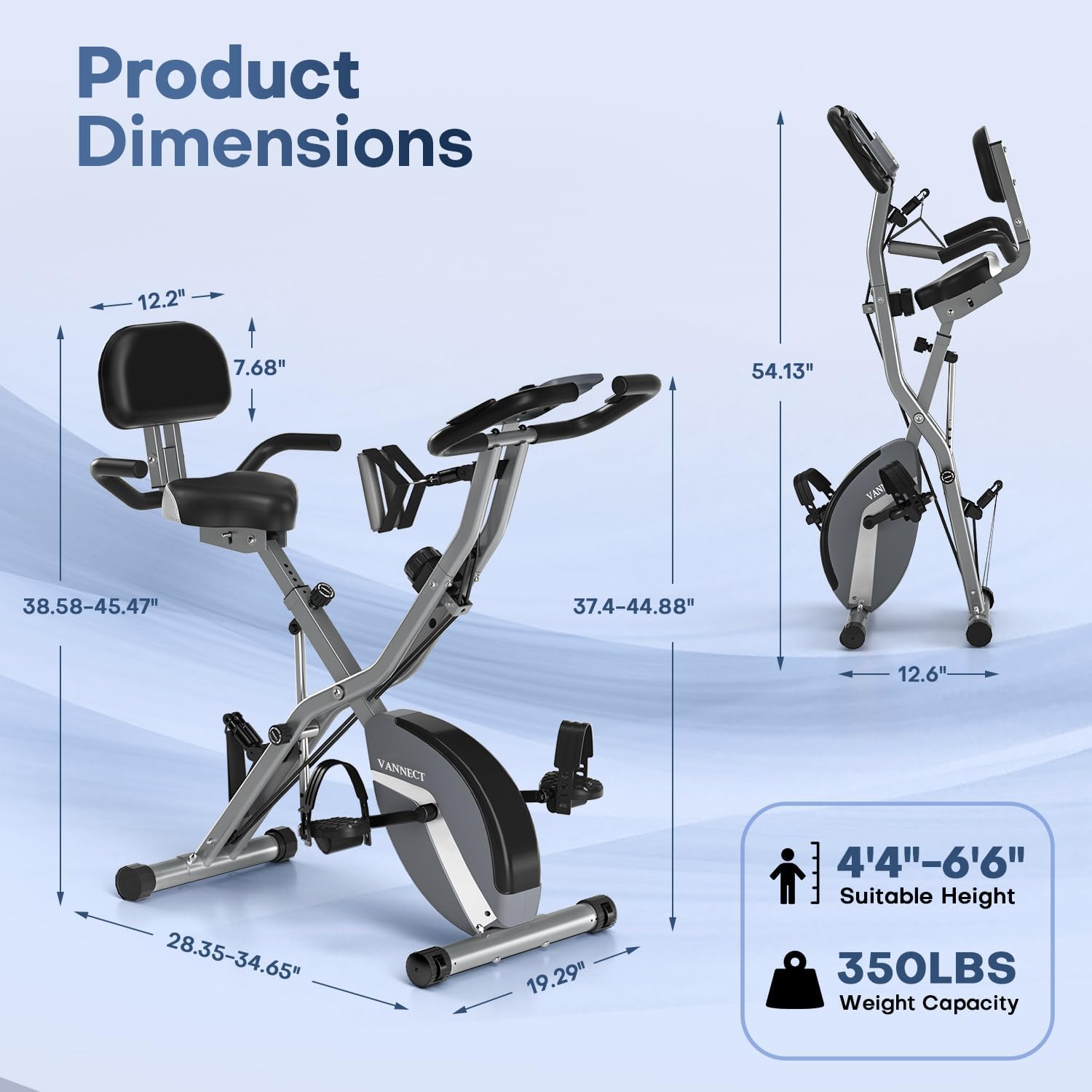

This image provides a detailed diagram of the exercise bike's dimensions in both its extended and folded states, along with the recommended user height range and maximum weight capacity.
9. Takuu ja asiakastuki
vannect provides free parts replacement for 5 years. If you have any questions, encounter issues, or require professional guidance, please contact our customer service team.
Yhteystiedot: Please refer to the contact details provided on the product packaging or the official vannect websivusto.
Our factory engineers are available to provide professional guidance via video support to ensure your satisfaction and optimal product performance.
