KISUFU Solar Powered 12V Flexible LED Strip Lights

1. Johdanto

Thank you for choosing the KISUFU Solar Powered 12V Flexible LED Strip Lights. This product is designed for outdoor decoration, offering a bright, energy-efficient, and flexible lighting solution. Featuring an IP67 waterproof rating, a solar panel with a built-in battery, and remote control functionality, these lights are ideal for various outdoor settings.

Tuote loppuview

Image 1.1: KISUFU Solar Powered LED Strip Light Kit showing the LED strip, remote control, and solar panel with stake.

The KISUFU LED strip light system includes a flexible LED strip, a solar panel with an integrated controller and battery, and a remote control for convenient operation. The strip is designed for durability and ease of use in outdoor environments.

Tärkeimmät ominaisuudet

• Aurinkovoimalla toimiva: Utilizes a solar panel with a 1200mAh battery for energy efficiency.
• Suuri kirkkaus: 2835 LED type with 120 LEDs per meter, providing 900lm/m brightness.
• Joustava muotoilu: Easily bendable and formable to fit various surfaces and angles.
• IP67 vedenpitävä: Suitable for prolonged outdoor use, resistant to dust and water jets.
• Kaukosäädin: Offers 8 lighting modes, dimming, and timer functions.
• Leikattava: Can be cut every 2.5cm for custom length adjustments.

2. Mukana olevat osat

Varmista, että pakkauksessa on kaikki seuraavat osat:

• Flexible LED Strip Light (White, 2 meters)
• Solar Panel with Integrated Controller and 1200mAh Battery
• Kaukosäädin
• Ground Stake and Mounting Clip for Solar Panel
• USB Charging Cable (Type-C port on controller)

Image 2.1: The flexible LED strip light rolled up, illustrating its form factor.

3. Asennusohjeet

Follow these steps to set up your KISUFU Solar Powered LED Strip Lights:

1. Aurinkopaneelien sijoitus: Choose a location for the solar panel that receives 6-8 hours of direct sunlight daily. Use the provided ground stake or mounting clip to secure the panel. Ensure the panel is angled to maximize sun exposure.

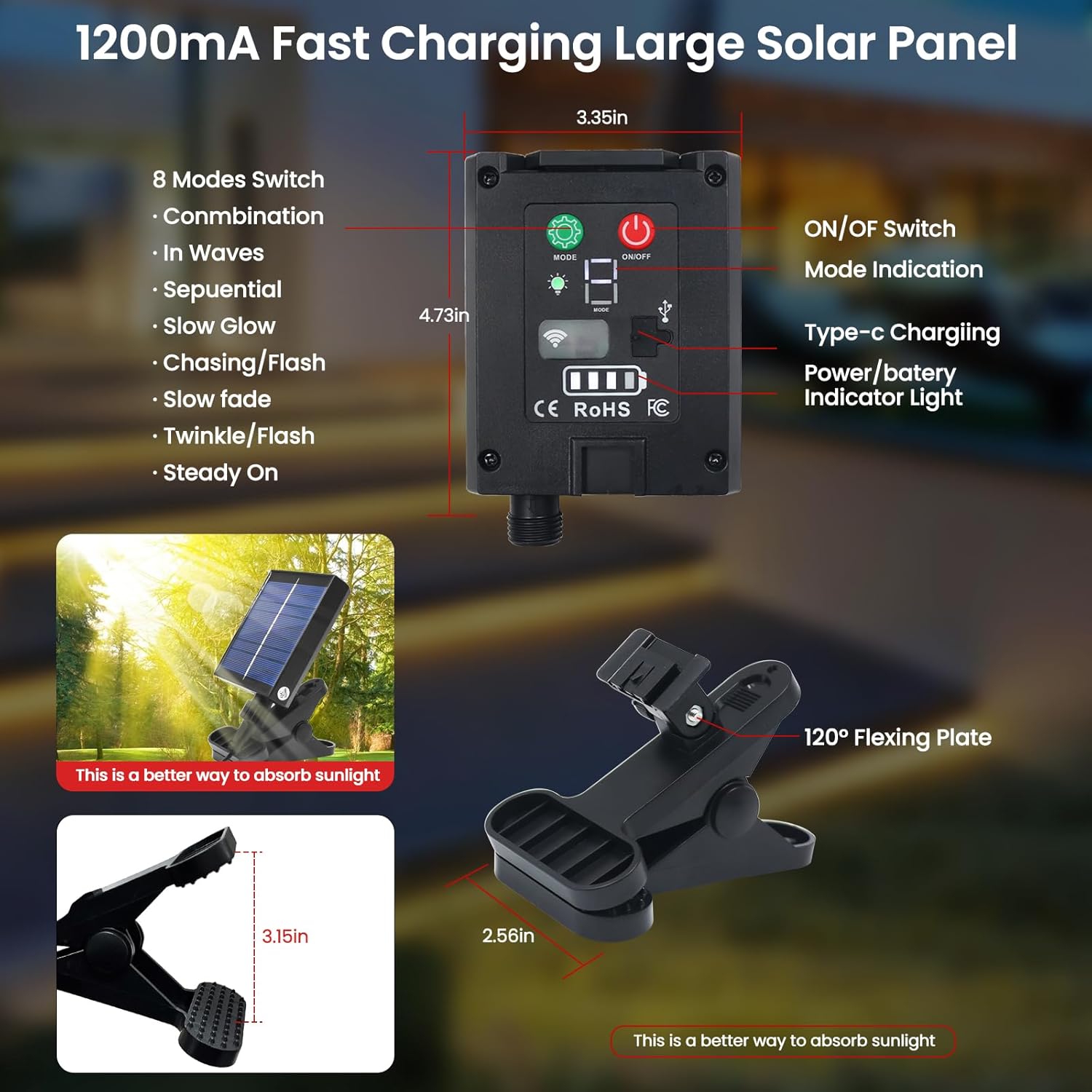

Kuva 3.1: Yksityiskohtainen view of the solar panel, its integrated controller, Type-C charging port, and the flexible mounting clip for optimal sunlight absorption.

2. Alkulataus: Before first use, allow the solar panel to charge in direct sunlight for at least 6-8 hours. The integrated battery will store power for nighttime operation. Alternatively, you can use the Type-C USB port on the controller for faster initial charging.
3. LED-nauhan kytkentä: Plug the connector from the LED strip into the designated port on the solar panel controller. Ensure a secure connection.
4. Asenna LED-nauha: Plan your desired lighting path. The flexible strip can be bent and shaped. Secure the strip using appropriate fasteners (not included) or by adhering it to a clean, dry surface.

Image 3.2: Visual guide demonstrating the connection of the LED strip to the solar panel controller and examples of outdoor installation on a fence.
5. Kaukosäätimen valmistelu: Remove the battery separator tab from the remote control before use.

4. Käyttöohjeet

Your KISUFU LED Strip Lights can be operated using the remote control or the buttons on the solar panel controller.

Kaukosäätimen toiminnot

Image 4.1: Diagram of the remote control, detailing buttons for ON/OFF, mode selection, brightness adjustment, and timer settings.

• ON/OFF: Press the 'ON' button to turn the strip on, and 'OFF' to turn it off or switch to standby mode.
• MODE (1-8): Select from 8 different lighting modes: Fireflies flashing, In Wave, Double-lamp Flash, Slow Flash, Chasing/Salama, Hidas häivytys, Tuike/Salama ja Tasainen valo.
• DIM/Brightness: Säädä valon voimakkuutta kirkkauden ylös/alas-painikkeilla.
• TIMER (3/5/8 Hours): Aseta valot sammumaan automaattisesti 3, 5 tai 8 tunnin kuluttua.

Solar Panel Controller Functions

• On / off kytkin: Manual power control for the entire system.
• MODE-painike: Cycles through the 8 lighting modes.
• Tilan ilmaisin: An indicator light shows the currently selected mode.
• Type-C latausportti: For optional USB charging of the internal battery.
• Virran/akun merkkivalo: Näyttää akun nykyisen tilan.

5. Huolto

Regular maintenance ensures optimal performance and longevity of your LED strip lights:

• Puhdas aurinkopaneeli: Pyyhi aurinkopaneelin pinta säännöllisesti pehmeällä,amp liinalla pölyn, lian tai roskien poistamiseksi. Puhdas paneeli varmistaa tehokkaan latauksen.
• Tarkista liitännät: Ensure all connections between the LED strip and the solar panel controller remain secure and free from corrosion.
• Akun hoito: While the battery is designed for outdoor use, avoid prolonged periods of extreme temperatures (below -20°C or above 40°C) if possible, as this can affect battery life.
• LED-nauhan puhdistus: If the LED strip becomes dirty, gently wipe it with a damp kangas. Älä käytä voimakkaita kemikaaleja tai hankaavia materiaaleja.

6. Vianmääritys

If you encounter issues with your KISUFU LED Strip Lights, refer to the following common problems and solutions:

7. Tekniset tiedot

Image 7.1: Visual representation of the LED strip's dimensions, cuttable sections, and a summary of key specifications.

8. Asiakastuki

KISUFU is committed to providing high-quality products and ensuring customer satisfaction. If you encounter any problems, have questions, or require assistance with your LED strip lights, please contact our customer service team. We are ready to help and provide a quick solution.

For support, please refer to the contact information provided at the point of purchase or visit the official KISUFU store page on Amazon.
