hygger HG121-8W 5-in-1 Aquarium Internal Filter Instruction Manual

Johdanto

Thank you for choosing the hygger HG121-8W 5-in-1 Aquarium Internal Filter. This versatile filter is designed to provide comprehensive water purification and circulation for your aquarium, offering multiple functional modes to suit various aquatic environments. Please read this manual thoroughly before installation and operation to ensure proper use and optimal performance.

Tuotteen ominaisuudet

• 5-in-1 Multiple Functions: Offers ventilation, rain shower, wave making, fountain, and water exchange capabilities.
• Tehokas 3-Stage Suodatus: Utilizes biochemical sponges, activated carbon, and bio-balls for physical, chemical, and biological filtration, effectively removing odors and impurities.
• Erittäin hiljainen toiminta: Engineered with a super quiet motor, ensuring minimal noise during operation, even at maximum flow.
• Adjustable Flow Design: Allows adjustment of water flow rate, airflow rate, and wave direction to meet specific aquarium needs.
• Monipuolinen sovellus: Suitable for both freshwater and saltwater aquariums ranging from 2 to 13 gallons (8-50 liters).
• Helppo asennus ja huolto: Equipped with strong suction cups for secure attachment and a removable design for simple cleaning.

Pakkauksen sisältö

Varmista, että kaikki osat ovat mukana ennen asennuksen aloittamista:

• hygger HG121-8W Internal Filter Unit
• Bioceramic Balls (pre-installed or separate)
• Biochemical Sponge (pre-installed or separate)
• Activated Carbon (pre-installed or separate)
• Rain Shower Bar and Connectors
• Aeration Tube
• Fountain Suutin
• Adjustable Flow Knob
• Imukupit (4 kpl)
• DC 5V Adapter with USB Port

Asennusohjeet

1. Pura ja tarkista: Poista kaikki osat varovasti pakkauksesta. Tarkista mahdollisten vaurioiden varalta.
2. Kokoa suodatinmateriaali: The filter unit typically comes with pre-installed media. If not, insert the biochemical sponge into the bottom compartment, followed by activated carbon, and then the bioceramic balls into the top compartment. Ensure they are seated correctly.
3. Attach Output Accessories:


   This image illustrates the various output accessories and how they connect to the filter head for different functional modes.

   • Sadekuuro: Connect the rain shower bar to the filter's output nozzle.
   • Ilmastus: Attach the aeration tube to the designated air intake port on the filter head.
   • Fountain/Water Exchange: Attach the fountain nozzle or appropriate connector for water exchange.
4. Secure Filter in Tank: Attach the four strong suction cups to the back of the filter unit. Submerge the filter completely in your aquarium water and press the suction cups firmly against the inner glass wall to secure it. Ensure the filter is positioned vertically and the water level is above the minimum water level mark indicated on the filter unit.


   This image shows the filter unit securely attached to the aquarium wall, with the rain shower output positioned above the water surface.

5. Liitä virta: Plug the DC 5V adapter into a standard electrical outlet and connect the USB port to the filter's power cable.

Käyttöohjeet

1. Virta päälle: Once the filter is properly installed and submerged, plug in the power adapter. The filter will begin operating immediately.
2. Säädä virtausnopeutta: Use the adjustable flow knob located on the filter head to increase or decrease the water flow rate as desired.
3. Adjust Airflow (if using aeration): If the aeration tube is connected, you can adjust the amount of air introduced into the water by manipulating the air intake valve on the tube.
4. Change Functional Modes: To switch between functions (e.g., from rain shower to fountain), you may need to detach one accessory and attach another. Ensure the filter is unplugged before making any changes to accessories.

Huolto

Regular cleaning is crucial for maintaining the efficiency and longevity of your filter. It is recommended to clean the filter every 1-2 weeks.

1. Katkaise virta: Irrota suodatin aina virtalähteestä ennen huoltotoimenpiteitä.
2. Poista säiliöstä: Gently detach the filter from the aquarium wall.
3. Pura suodatin: Carefully separate the filter compartments. Note the order of the filter media for correct reassembly.


   This image displays the filter's internal structure and the three types of filter media: bioceramic balls, biochemical sponge, and activated carbon.

4. Puhdas suodatinmateriaali: Rinse the biochemical sponge and bioceramic balls with old aquarium water (from a water change) to preserve beneficial bacteria. Do not use tap water directly, as chlorine can harm these bacteria. Activated carbon should be replaced every 2-4 weeks, or as needed, as its adsorptive capacity diminishes over time.
5. Puhdista juoksupyörä ja kotelo: Use a small brush to clean the impeller and the impeller housing to remove any debris or algae buildup.
6. Kokoaminen ja uudelleenasennus: Reassemble the filter in the reverse order of disassembly, ensuring all parts are securely fitted. Reinstall the filter in the aquarium and reconnect power.

Vianetsintä

Tekniset tiedot

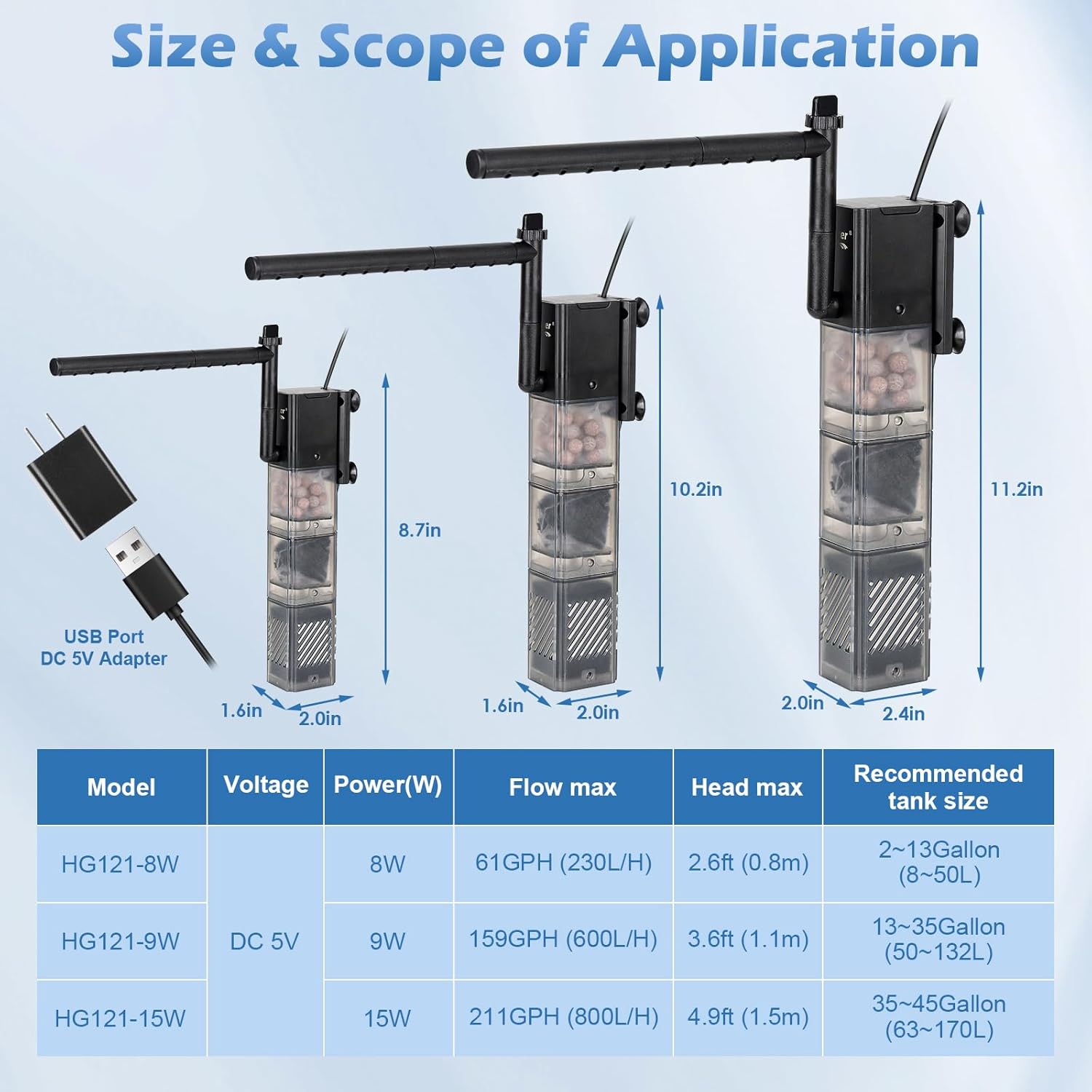

This image provides a detailed specification table for the HG121-8W model, alongside other variants, outlining dimensions, power, flow, and tank suitability.

Takuu ja tuki

For warranty information or technical support, please contact hygger customer service through the retailer where the product was purchased or visit the official hygger websivusto. Säilytä ostokuitti takuuvaatimuksia varten.
