ErGear Electric Standing Desk with Drawers (55" x 28") - Instruction Manual

1. Johdanto

Thank you for choosing the ErGear Electric Standing Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Designed for ergonomic comfort and enhanced productivity, this height-adjustable desk features integrated storage and monitor compatibility to optimize your workspace.

2. Turvallisuustiedot

Lue kaikki ohjeet huolellisesti ennen kokoamista ja käyttöä. Säilytä tämä käyttöohje myöhempää tarvetta varten.

• Noudata aina asennusohjeita tarkasti.
• Ensure the desk is properly anchored to the floor or wall to prevent tipping.
• Do not exceed the maximum weight recommendation of 176 pounds (80 kg) to maintain stability and prevent damage.
• Pidä lapset ja lemmikit poissa pöydältä käytön aikana loukkaantumisten välttämiseksi.
• Ensure all cables are properly managed to avoid tripping hazards or damage during height adjustments.
• Älä istu tai seiso pöydällä.

3. Tuotteen ominaisuudet

• Sujuva korkeuden säätö: Freely select adjustable standing desk height, from 28.35" to 46.46" (71.12 cm to 118 cm). Save your favorite three settings and smoothly switch the electric standing desk between them.
• Kaksi laatikkoa: Two integrated drawers provide convenient storage for your essentials, helping to maintain a clutter-free workspace.
• Erinomainen vakaus: Features a sturdy solid steel frame with aerospace-grade lifting column connectors, tested for over 100,000 cycles to ensure stability and security, even at full height.
• Päivitetty moottori: Equipped with a powerful motor for lifting performance (Max 176 lbs load) and reliable long-term operation (tested 50,000 times).
• Built-In Monitor Stand: Position your monitor/laptop and speakers or other devices at an ergonomic height.
• C-Clamp Kiinnitys yhteensopivuus: Designed to accommodate C-clamp mounted accessories, such as monitor arms, for flexible setup options.

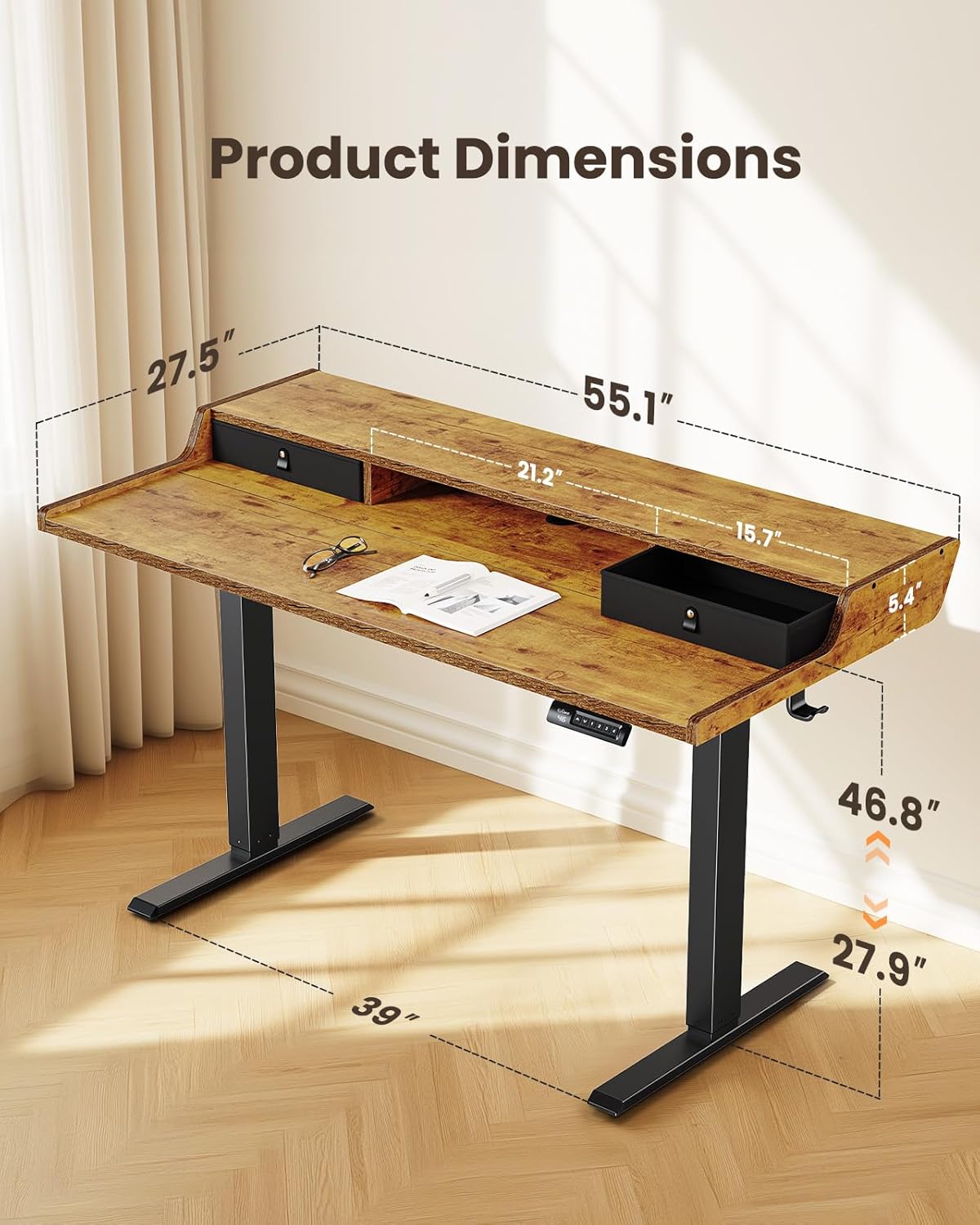

This image illustrates the key dimensions of the ErGear Electric Standing Desk, including its overall width, depth, and adjustable height range.

The desk's electric height adjustment feature is highlighted, showing its ability to transition smoothly between sitting (28 inches) and standing (47 inches) positions.

The desk offers versatile storage solutions, including two integrated drawers, an open cubicle, and a monitor riser to keep your workspace tidy.

The desk is designed with compatibility for C-clamp mounting, allowing users to easily attach monitor arms and other accessories for an optimized setup.

4. Kokoamisohjeet

For detailed visual guidance, please refer to the official assembly video below. Ensure all parts are present before beginning assembly.

Yleiskokouksen vaiheet:

1. Vaihe 1: Kehyksen kokoaminen
   Connect the motor rod to the lifting columns and attach the support beams. Ensure all screws are tightened securely.
2. Step 2: Assembling the Top Stand
   Attach the monitor stand components to the main desktop panel using the provided dowels and screws.
3. Vaihe 3: Työpöydän kokoaminen
   Join the desktop panels together, ensuring a tight fit without gaps. Secure them with the connecting plates and screws.
4. Step 4: Attaching the Desktop to the Frame
   Carefully place the assembled desktop onto the lifting frame. Align the pre-drilled holes and secure the desktop to the frame using the provided screws. Attach any cable management hooks.
5. Vaihe 5: Kaapeleiden liittäminen
   Connect the motor cables to the control box. Route all cables neatly using the integrated cable management features and secure them.
6. Step 6: Attaching the Drawers
   Insert the fabric drawers into their designated slots on the desktop.

5. Käyttöohjeet

Your ErGear Electric Standing Desk is equipped with an intuitive control panel for easy height adjustment.

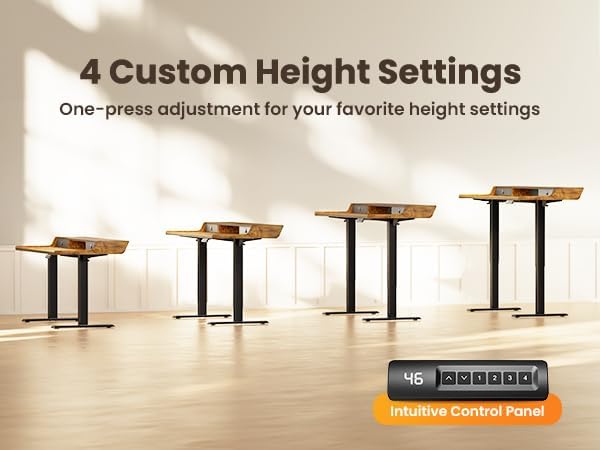

The intuitive control panel allows for easy adjustment of the desk height and features four programmable preset buttons for quick transitions between preferred sitting and standing positions.

Korkeuden säätö:

• Manuaalinen säätö: Use the up (▲) and down (▼) arrow buttons on the control panel to adjust the desk to your desired height.
• Preset Heights: The desk features four programmable memory presets (1, 2, 3, 4). To save a height setting:
  1. Säädä työpöytä haluamallesi korkeudelle.
  2. Paina M-painiketta. Näyttö vilkkuu.
  3. Press the desired number button (1, 2, 3, or 4) before the display stops flashing. The height is now saved.
• Voit hakea tallennetun korkeuden painamalla vastaavaa numeropainiketta. Pöytä siirtyy automaattisesti tallennettuun asentoon.

6. Huolto

• Pyyhi työpöydän pinnat säännöllisesti pehmeällä,amp kangas. Vältä vahvoja kemikaaleja, jotka voivat vahingoittaa pintaa.
• Check all screws and connections periodically to ensure they remain tight. Re-tighten if necessary.
• Inspect power cords and cables for any signs of wear or damage. Replace immediately if damage is found.
• Keep the lifting columns free from obstructions to ensure smooth operation.

7. Vianmääritys

If you encounter any issues with your ErGear Electric Standing Desk, please refer to the following common solutions:

• Desk not responding: Check if the power cord is securely plugged into both the desk and the wall outlet. Ensure all motor cables are correctly connected to the control box.
• Uneven height or tilting: Perform a reset procedure (refer to your specific model's detailed manual for exact steps, usually involving holding down a specific button or combination of buttons). Ensure the desk is on a level surface.
• Näytöllä näkyvät virhekoodit: Consult the detailed user manual for a list of error codes and their corresponding solutions. A common solution is to perform a reset.
• Melu käytön aikana: While the motor is designed for quiet operation, minor sounds can occur. Ensure no cables are rubbing against moving parts. If the noise is excessive or unusual, contact customer support.

8. Tekniset tiedot

9. Takuu ja tuki

ErGear products are designed for durability and performance. For warranty information, technical support, or any questions regarding your product, please contact ErGear customer service through the retailer's platform or the official ErGear websivusto.

Pidä ostokuitti ja tuotemallin tiedot käsillä, kun otat yhteyttä tukeen.
