YARD FORCE Snow Shovel YFSS-C01 with UV-Cut Goggles Instruction Manual

1. Turvallisuustiedot

Please read and understand all safety instructions before operating the YARD FORCE Snow Shovel. Failure to follow these instructions may result in injury or property damage.

• Käytä suojavarusteita: Always wear appropriate protective gear, including the provided UV-cut goggles, sturdy footwear, and gloves, to protect against flying snow, ice, and cold weather.
• Säilytä oikea asento: Utilize the shovel's ergonomic design and auxiliary handle to maintain an upright posture, reducing strain on your back and arms. Avoid bending excessively.
• Selkeät esteet: Before shoveling, inspect the area for any obstacles such as rocks, debris, or hidden objects that could cause damage to the shovel or lead to injury.
• Vältä ylikuormitusta: Take frequent breaks and avoid attempting to lift or throw excessively large amounts of snow at once. The shovel is designed to make snow removal easier, but physical exertion is still required.
• Lapset ja lemmikit: Keep children and pets away from the work area during snow removal.
• Varastointi: Store the shovel in a dry, secure location away from children and pets when not in use.

2. Pakkauksen sisältö

The YARD FORCE Snow Shovel is delivered disassembled for compact packaging. Please ensure all components are present before assembly.

• Snow Shovel Blade (PP with wide aluminum edge)
• Main Pole (Carbon Steel)
• Auxiliary Handle (Ergonomic grip)
• UV-Cut Protective Goggles (PROSTAR original, can be worn over glasses)
• Assembly Hardware (screws, nuts, etc. - specific details may vary, refer to included diagram)

Figure 2.1: YARD FORCE Snow Shovel YFSS-C01 with included UV-cut protective goggles.

3. Kokoamisohjeet

Follow these steps to assemble your YARD FORCE Snow Shovel. A detailed diagram is usually included in the product packaging.

1. Kiinnitä apukahva: Secure the auxiliary handle to the main pole at the desired height. Ensure it is firmly tightened to prevent movement during use.
2. Connect the Blade to the Pole: Attach the snow shovel blade to the lower end of the main pole. Use the provided hardware to ensure a secure connection.
3. Tarkista yhteydet: Double-check all connections to ensure they are tight and stable before first use.

Figure 3.1: Disassembled YARD FORCE Snow Shovel YFSS-C01 components for compact storage. Assembly is the reverse process.

4. Käyttöohjeet

The YARD FORCE Snow Shovel is designed to reduce physical strain during snow removal by utilizing a patented lever principle.

4.1 Basic Snow Shoveling Technique

• Paikannus: Stand with your feet shoulder-width apart. Place the shovel blade into the snow.
• Lever Action: Use the auxiliary handle to leverage the snow. Instead of lifting with your back, pull the auxiliary handle towards your body while pushing down on the main handle. This action uses your body's natural leverage to lift and throw snow with minimal effort.
• Throwing Snow: Once the snow is lifted, pivot your body and use the momentum from the lever action to throw the snow to your desired location. Avoid twisting your back.
• Small Loads: For heavy or wet snow, take smaller loads to maximize efficiency and minimize strain.

Figure 4.1: Illustrates the reduced back strain when using the YARD FORCE shovel compared to traditional methods.

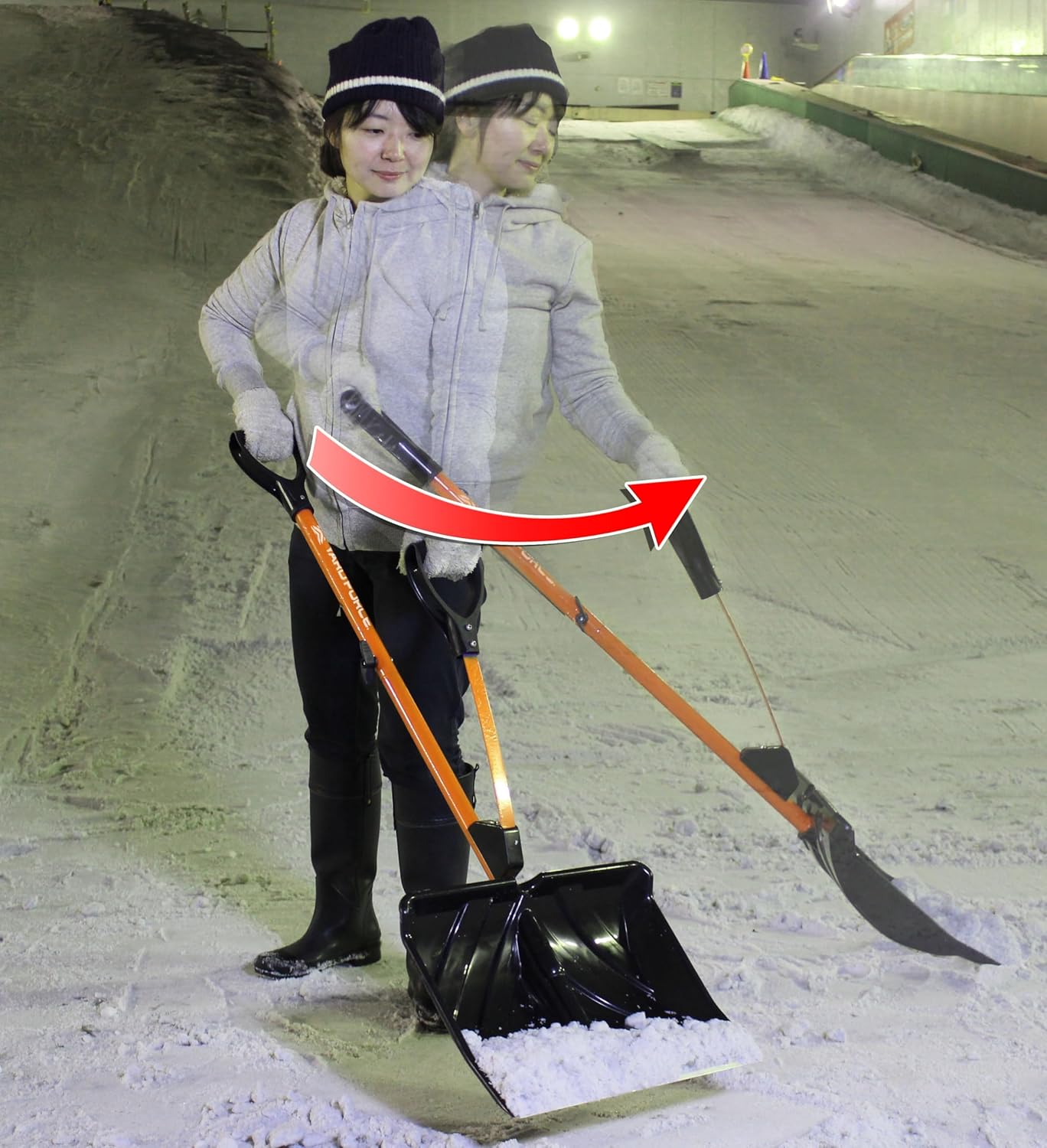

Figure 4.2: Demonstrating the ergonomic lever action for efficient snow removal.

4.2 Videoesittely

5. Huolto

Proper maintenance will extend the life of your snow shovel.

• Puhdistus: After each use, remove any snow, ice, or debris from the shovel blade and pole. Wipe down with a dry cloth.
• Tarkastus: Periodically inspect the blade for wear or damage. Check all screws and connections for tightness and re-tighten if necessary.
• Varastointi: Store the disassembled shovel in a cool, dry place to prevent rust and material degradation. The foldable design allows for compact storage.

6. Vianmääritys

If you encounter issues with your YARD FORCE Snow Shovel, refer to the following common problems and solutions.

• Difficulty Lifting Heavy Snow: If snow feels too heavy, try taking smaller loads. Ensure the auxiliary handle is positioned correctly for optimal leverage.
• Irralliset komponentit: If any part of the shovel feels loose, immediately stop use and tighten all screws and connections.
• Blade Damage: The blade is designed for snow removal. Avoid using it on hard surfaces or for prying ice, as this may cause damage to the aluminum edge or PP blade. If the blade is damaged, contact customer support for replacement options.

7. Tekniset tiedot

8. Takuu ja tuki

YARD FORCE is committed to providing quality products and excellent customer service.

• Takuu: This product comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. Keep your proof of purchase for warranty claims.
• Asiakastuki: For any questions, concerns, or assistance with your YARD FORCE Snow Shovel, please contact our customer support team. Contact information can typically be found on the product packaging or the official YARD FORCE websivusto.
• Included Goggles: The UV-Cut Protective Goggles are a special accessory provided by PROSTAR/Pack to ensure visibility during snow removal tasks. They are designed to be worn over prescription glasses if needed.
