COSTWAY 24-Inch Natural Gas Range User Manual

Johdanto

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your COSTWAY 24-Inch Natural Gas Range. Please read all instructions carefully before using the appliance and retain this manual for future reference. Proper installation and adherence to safety guidelines are crucial for optimal performance and user safety.

Image: The COSTWAY 24-Inch Natural Gas Range integrated into a kitchen setting, showcasinsen ruostumattomasta teräksestä valmistettu viimeistely ja kompakti muotoilu.

Tärkeitä turvallisuustietoja

Noudata aina laitteen käytön aikana perusturvallisuusohjeita tulipalon, sähköiskun tai henkilövahinkojen vähentämiseksi.

• Kaasun turvallisuus: Varmista asianmukainen ilmanvaihto. Älä säilytä tai käytä bensiiniä tai muita syttyviä höyryjä ja nesteitä tämän tai minkään muun laitteen läheisyydessä. Jos haistat kaasua, noudata kaasuntoimittajan antamia ohjeita.
• Sähköturvallisuus: Tämä laite on maadoitettava asianmukaisesti. Älä käytä liesituuletinta, jos sen johto tai pistoke on vaurioitunut.
• Lasten turvallisuus: Never leave children unsupervised near the range. Do not allow them to sit or stand on any part of the appliance.
• Kuumat pinnat: The oven and cooktop surfaces become hot during use. Use oven mitts or pot holders. Allow surfaces to cool before cleaning or touching.
• Kaatumisenestolaite: The range is equipped with an anti-toppling device. Ensure it is properly installed to prevent the range from tipping over.
• CSA-sertifiointi: This appliance is CSA certified, indicating it meets applicable safety and performance standards.

Pakkauksen sisältö

Verify that all items listed below are included in your package. If any items are missing or damaged, contact customer service.

• 1 x COSTWAY Gas Range
• 2 x Oven Grills
• 1 x Baking Pan
• 1 x Pan Lid
• 1 x LP Conversion Kit (for liquefied gas)
• 1 x käyttöohje

Asennus ja asennus

Purkaminen

Carefully remove all packaging materials, tape, and protective films from the range. Keep packaging materials away from children. Inspect the appliance for any shipping damage.

Fuel Conversion (Natural Gas to LP)

This range is designed for natural gas but can be converted to liquefied petroleum (LP) gas using the included LP kit. This conversion must be performed by a qualified technician. Refer to the detailed instructions in the LP conversion kit for specific steps.

Leveling and Stability

The range must be level for optimal cooking performance. Use the adjustable foot pads at the bottom of the range to level the appliance. Install the anti-toppling device securely to the wall or floor according to the provided instructions to prevent accidental tipping.

Sähköliitäntä

Connect the range to a properly grounded 120V, 60Hz electrical outlet with a 15A circuit breaker. Ensure the electrical supply meets these requirements.

Image: Illustration highlighting key structural features including the anti-toppling device for safety, adjustable foot pads for leveling, and the convenient storage drawer.

Käyttöohjeet

Keittotason polttimet

The cooktop features four high-efficiency aluminum burners with varying BTU outputs for diverse cooking needs. Each burner is controlled by a dedicated professional knob.

• Burner Outputs: 3500 BTU, 9000 BTU, 12000 BTU, 18000 BTU.
• Sytytys: Push and turn the corresponding knob to the 'LITE' position. Hold until the burner ignites, then adjust to the desired flame size.
• Liekin säätö: Turn the knob to adjust the flame from high to low. Ensure the flame does not extend beyond the edge of the cooking utensil.

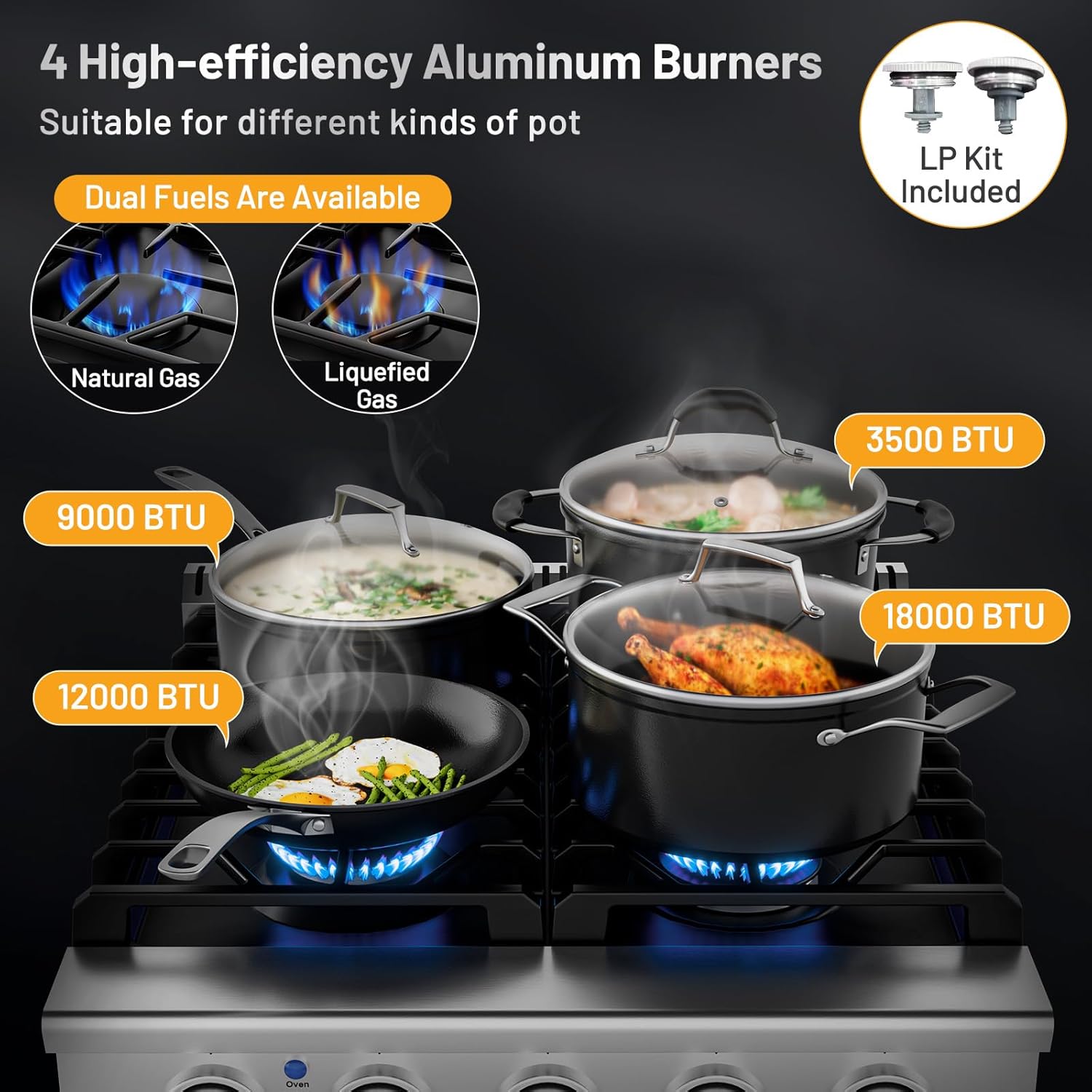

Kuva: Lähikuva view of the four cooktop burners, indicating their respective BTU ratings (3500, 9000, 12000, 18000 BTU) and the range's compatibility with both natural gas and liquefied gas.

Uunin toiminnot

The 3.73 cubic feet oven offers multiple cooking modes and features a convection fan for even heat distribution.

• Kapasiteetti: 3.73 Cu.Ft
• Kypsennystavat: The oven provides 7 different cooking modes, including Natural Airflow Bake, Convection Bake, Convection Roast, Convection Defrost, Defrost, and Convection Dehydration. Select the desired mode using the oven control knob.
• Paistopoltin: A 12000 BTU bake burner ensures even baking.
• Paistopoltin: A 10000 BTU broil burner is designed for crisping food.
• Huomautus: The bake and broil burners cannot be used simultaneously due to the powerful convection fan operation.
• Sisäinen valo: A bright halogen light illuminates the oven interior for easy monitoring of food.
• Konvektiotuuletin: The convection fan circulates hot air for faster and more even cooking.

Image: The spacious 3.73 cubic feet oven interior, with a roast chicken cooking, and a graphic listing the 6 available cooking modes.

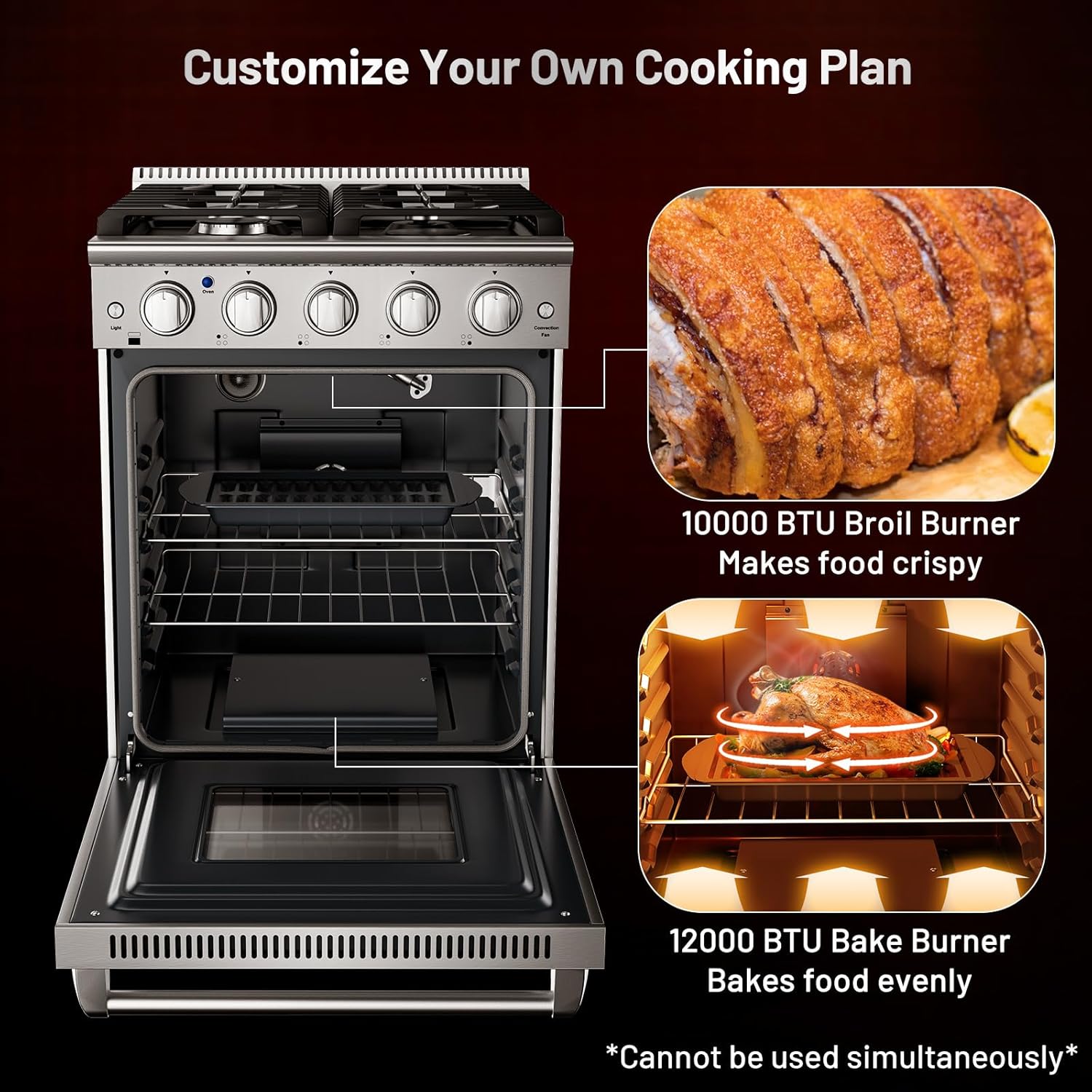

Kuva: Yksityiskohtainen view of the oven interior, pointing out the 12000 BTU bake burner for even cooking and the 10000 BTU broil burner for crisping, with a note that they cannot be used simultaneously.

Säilytyslaatikko

An additional storage drawer is located at the bottom of the range, providing convenient space for storing bakeware or other kitchen essentials.

Huolto ja puhdistus

Säännöllinen puhdistus ja huolto takaavat liesituulettimesi pitkän käyttöiän ja optimaalisen suorituskyvyn.

Keittotason puhdistus

• Valurautaiset ritilät: The cast iron grates are removable and dishwasher safe for easy cleaning. Allow them to cool completely before handling.
• Polttimen kannet ja päät: Clean burner caps and heads regularly to prevent clogs. Ensure they are dry before reassembling.
• Ruostumattoman teräksen pinta: Pyyhi ruostumattomasta teräksestä valmistettu keittotaso mainosliinallaamp liinalla ja miedolla pesuaineella. Vältä hankaavia puhdistusaineita, jotka voivat naarmuttaa pintaa.

Oven Interior Cleaning

• Enamel Interior: The oven features a heat-resistant enamel interior that is easy to clean. Wipe spills and splatters with a damp cloth and mild soap once the oven has cooled.
• Uunin telineet: Remove oven racks and clean them with warm, soapy water.
• Ovi: Clean the oven door glass with a non-abrasive glass cleaner.

Image: Visual guide illustrating the hassle-free cleaning process, showing dishwasher-safe cast iron grates and the easy-to-clean, heat-resistant enamel interior of the oven.

Vianetsintä

Ennen kuin otat yhteyttä huoltoon, tarkistaview näitä yleisiä ongelmia ja ratkaisuja.

• Poltin ei syty: Check if the gas supply is on. Ensure burner caps and heads are properly seated and clean. Verify the igniter is sparking.
• Uuni ei lämmitä: Confirm the oven control knob is set correctly. Check if the circuit breaker has tripped. Ensure the oven door is fully closed.
• Epätasainen kypsennys: Ensure the range is level. For oven cooking, use the convection fan for more even heat distribution. Avoid overcrowding the oven.
• Kaasun haju: If you detect a gas odor, immediately turn off the gas supply to the appliance and ventilate the area. Do not operate any electrical switches or appliances. Contact your gas supplier or a qualified technician.

For issues not resolved by these steps, or for any gas-related concerns, contact a qualified service technician.

Tekniset tiedot

Detailed technical specifications for the COSTWAY 24-Inch Natural Gas Range.

Image: Technical diagram illustrating the overall dimensions of the range (24" W x 28.5" D x 38"-39" H) and internal oven dimensions, along with key electrical specifications and included accessories.

Takuu ja tuki

For warranty information, product support, or to purchase replacement parts, please refer to the documentation provided at the time of purchase or contact COSTWAY customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

You can typically find contact information for COSTWAY on their official websivustolta tai jälleenmyyjän kautta, jolta tuote on ostettu.
