Zyxel USGFLEX200H ZyWALL High Speed Cyber Security Firewall User Manual

1. Johdanto

The Zyxel USGFLEX200H ZyWALL High Speed Cyber Security Firewall is designed to provide robust network security and high performance for small to medium-sized businesses. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance and protection.

Figure 1: Zyxel USG FLEX H Series Firewall, a solution for SMBs.

2. Tuote ohiview

2.1 Tärkeimmät ominaisuudet

• Security Focused Networking: High-performance Multi-Gig network security firewall with 1-Year UTM Gold security services included, recommended for small to mid-size offices with internet speeds up to 1000 Mbps.
• Korkea suorituskyky: Max Throughput: 5000 Mbps SPI Firewall, 1500 Mbps UTM (AV+IDP), 1200 Mbps VPN, 600k Sessions (Results may vary based upon testing method).
• Joustavat portit: High throughput Multi-Gig 2x 2.5Gbps and 6x Configurable GbE for flexible configuration and fast local network connectivity.
• Complete Security Bundle: Includes 1 year Gold Security sandboxing, DNS reputation, anti-malware, ransomware blocking, web filtering, application control and IDP security services and Nebula cloud Pro management.
• Unparalleled Management: Use Zyxel's award-winning Nebula Cloud Management solution to easily manage, monitor and configure network security.

2.2 Fyysinen kuvaus ja portit

The USGFLEX200H features a robust design with clearly labeled ports for easy connectivity.

Figure 2: Front panel of the Zyxel USGFLEX200H. Features include Status LEDs, 1x USB 3.0 port, 2x 2.5G Ethernet ports, 6x 1G Ethernet ports, and 1x Console (RJ45) port.

Figure 3: Rear panel of the Zyxel USGFLEX200H. Includes the 12V-2A power input and a grounding screw.

Figure 4: Flexible Ports with Multi-Gig and PoE+ capabilities.

2.3 Pakkauksen sisältö

Varmista, että paketti sisältää seuraavat kohteet:

• Zyxel USGFLEX200H Firewall Unit
• Virtalähde
• Konsolikaapeli (RJ45 - DB9)
• Mounting Brackets (for rack or wall mounting)
• Power Plug Adapters (various regions)
• Pika-aloitusopas

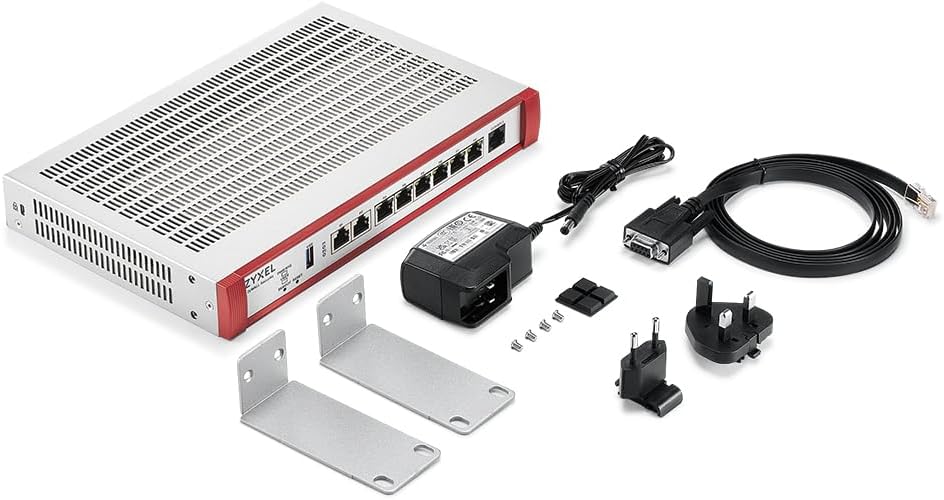

Figure 5: Included accessories with the Zyxel USGFLEX200H.

3. Asennus

Follow these steps to set up your Zyxel USGFLEX200H firewall:

1. Fyysinen yhteys: Connect your internet service provider's modem to one of the WAN ports on the firewall. Connect your internal network devices (switches, computers) to the LAN ports.
2. Virta päälle: Connect the power adapter to the firewall and plug it into a power outlet. The device will power on automatically.
3. Alkukokoonpano: Pääsy laitteeseen web-based management interface using a connected computer. Refer to the Quick Start Guide for default IP address and login credentials.
4. Nebula Cloud Setup: For simplified management, register your device with Zyxel Nebula Cloud. This allows for remote configuration and monitoring.

Figure 6: Manage your network from anywhere with the Nebula Mobile app.

4. Käyttöohjeet

The Zyxel USGFLEX200H provides comprehensive security and networking features. Utilize the web interface or Nebula Cloud for detailed configuration.

4.1 Suojausominaisuudet

• UTM (Unified Threat Management): Activate and configure services like Anti-Malware, IDP (Intrusion Detection and Prevention), Web Filtering, and Application Control for multi-layered protection.
• VPN (virtuaalinen yksityisverkko): Set up VPN tunnels for secure remote access and site-to-site connectivity.
• Palomuurisäännöt: Define granular firewall rules to control network traffic based on your organization's security policies.
• Sandboxing: Leverage cloud-based sandboxing for advanced threat detection against unknown malware.

Figure 7: AI-Powered Cloud Cybersecurity for robust protection.

Figure 8: Licensed vs. Unlicensed features comparison.

Figure 9: License Comparison for security services.

4.2 Verkonhallinta

• Nebula-pilvipalveluiden hallinta: Centralize management of multiple Zyxel devices, including firewalls, access points, and switches, through a single cloud platform.
• VLANit: Configure Virtual Local Area Networks to segment your network for improved security and performance.
• Reititys: Manage static and dynamic routing protocols to optimize network traffic flow.

Figure 10: Highlighting performance and flexible management of the USG FLEX H series.

5. Huolto

Regular maintenance ensures the longevity and optimal performance of your firewall.

• Laiteohjelmistopäivitykset: Regularly check for and install the latest firmware updates from the Zyxel support portal to ensure your device has the most current security patches and features.
• Asetusten varmuuskopiointi: Periodically back up your device configuration. This allows for quick restoration in case of unexpected issues.
• Fyysinen tarkastus: Ensure the device is placed in a well-ventilated area and free from dust accumulation.

6. Vianmääritys

If you encounter issues with your USGFLEX200H, consider the following troubleshooting steps:

• Ei virtaa: Tarkista virtalähteen liitäntä ja pistorasia. Varmista, että etupaneelin virran merkkivalo palaa.
• Ei Internet-yhteyttä: Verify that your modem is working correctly. Check the WAN port connection and ensure the link/activity LEDs are active. Review your firewall's WAN settings.
• Verkkoyhteysongelmat: Check LAN port connections and corresponding LEDs. Ensure IP addresses are correctly assigned to devices on your network.
• Laite ei vastaa: If the device is unresponsive, press the 'REBOOT' button on the front panel. If the issue persists, use the 'RESET' button (requires a paperclip) to restore factory default settings (note: this will erase your configuration).
• Hidas suorituskyky: Check network utilization through the management interface. Ensure your UTM services are not causing excessive overhead. Refer to the product matrix for throughput limits.

7. Tekniset tiedot

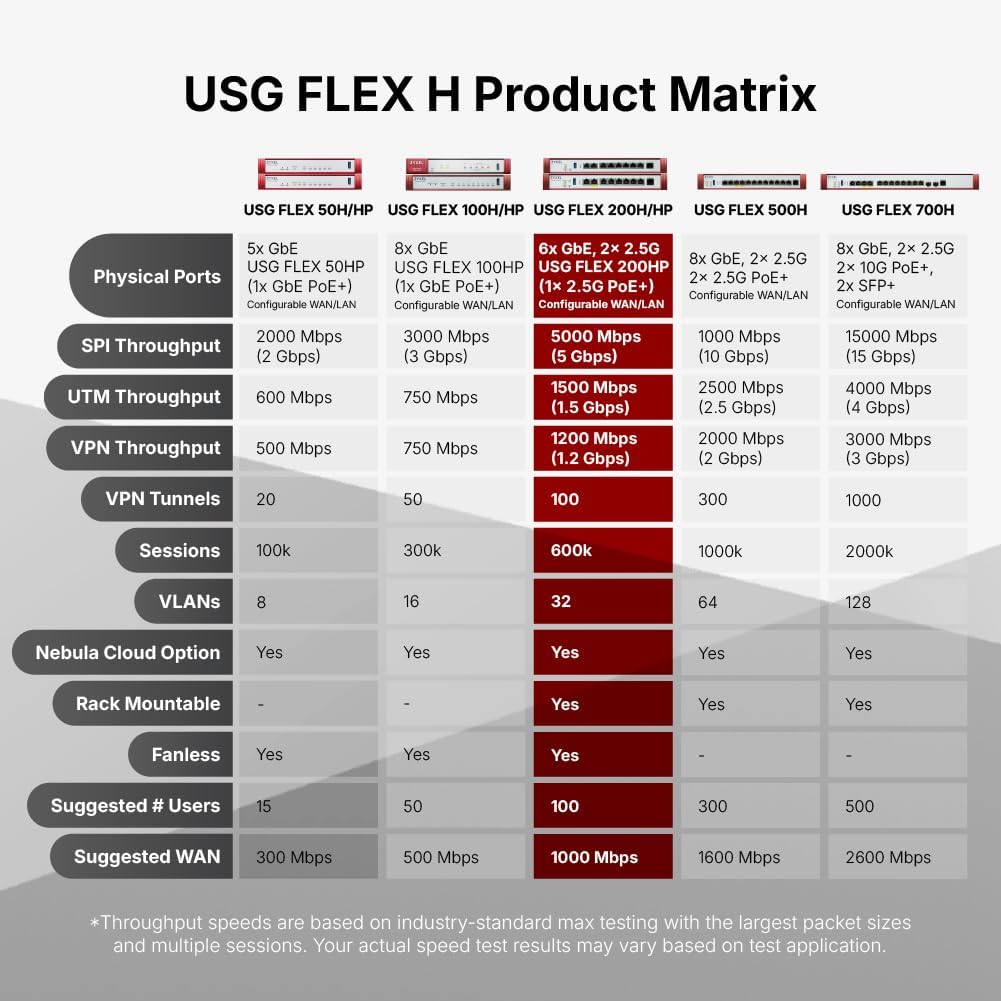

Figure 11: USG FLEX H Product Matrix for model comparison.

Figure 12: Comparison of USG FLEX 200 (Prior Generation) vs. USG FLEX 200 H/HP (New Generation).

8. Takuu ja tuki

Takuutietoja, teknistä tukea ja lisäresursseja varten käy Zyxel Networksin virallisella verkkosivustolla. websivustolta tai ota yhteyttä heidän asiakaspalveluunsa. Säilytä ostokuitti takuuvaatimuksia varten.
