1. Johdanto
Kiitos ostoksestasiasing the COSTWAY Wall-Mounted Medicine Cabinet. This manual provides essential information for the safe assembly, installation, and proper use of your new cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
This cabinet is designed to provide organized storage with its two mirrored doors, an adjustable interior shelf, and an open lower compartment. Its wall-mounted design helps save space in various rooms such as bathrooms, laundry rooms, living rooms, or kitchens.
3. Osaluettelo
Ennen kokoamista tarkista, että kaikki osat ovat mukana ja ehjät. Jos osia puuttuu tai on vaurioitunut, ota yhteyttä asiakaspalveluun.
| Osa | Kuvaus | Määrä |
|---|
| Kaapin runko | Main frame of the cabinet. | 1 |
| Mirrored Doors | Doors with integrated mirrors. | 2 |
| Säädettävä hylly | Interior shelf for customizable storage. | 1 |
| Nupit | Ovenkahvat. | 2 |
| Asennuslaitteisto | Screws, anchors, etc., for wall installation. | 1 setti |
| Käyttöohje | Tämä asiakirja. | 1 |
4. Asennus ja kokoaminen
Assembly is required for this product. It is recommended to have two people for easier and safer assembly. Please refer to the included instruction leaflet for detailed step-by-step diagrams.
4.1 Purkaminen ja valmistelu
- Avaa pakkaus huolellisesti ja poista kaikki osat.
- Aseta kaikki osat puhtaalle, pehmeälle alustalle (esim. peitolle tai pahville) naarmuuntumisen estämiseksi.
- Identify all parts against the parts list provided in the separate instruction leaflet.
- Gather necessary tools: Phillips head screwdriver, hammer, drill (for wall mounting).
4.2 Kaappikokoonpano
Follow the numbered steps in the separate instruction leaflet to assemble the cabinet frame, attach the backboard, install the doors, and secure the knobs. Pay close attention to the orientation of each piece.

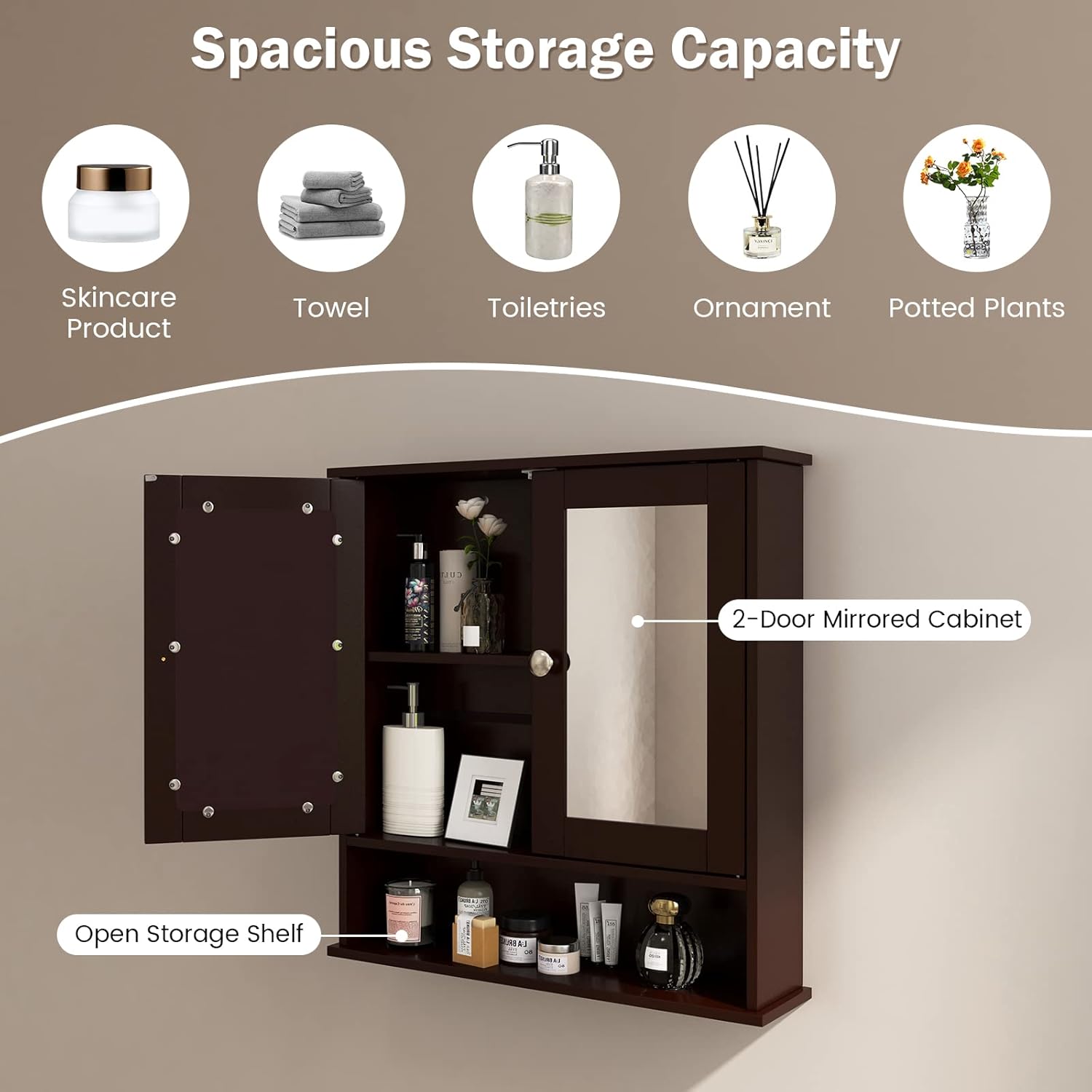

Image: The assembled cabinet with its doors open, revealing the interior storage and the open lower shelf. This image illustrates the internal structure and capacity.
Image: The cabinet with its mirrored doors closed, showcasing its compact design and the open storage area below.
4.3 Seinäasennus
- Valitse sijainti: Select a suitable wall location, ensuring it is free from electrical wires or plumbing. Consider the cabinet's dimensions (22" W x 5" D x 23" H) and ensure adequate clearance for door opening.
- Merkintä: Hold the assembled cabinet against the wall at the desired height. Use a pencil to mark the positions of the mounting holes on the backboard.
- Poraus: Drill pilot holes at the marked locations. Use a drill bit appropriate for your wall type (e.g., smaller bit for wood studs, larger for drywall anchors).
- Install Anchors (if needed): If mounting into drywall without studs, insert wall anchors into the pilot holes.
- Turvallinen kaappi: Align the cabinet with the drilled holes/anchors and secure it to the wall using the provided mounting screws. Ensure the cabinet is level and firmly attached.
Image: A detailed diagram illustrating the overall dimensions of the cabinet (22" W x 5" D x 23" H) and internal measurements, crucial for planning installation space.

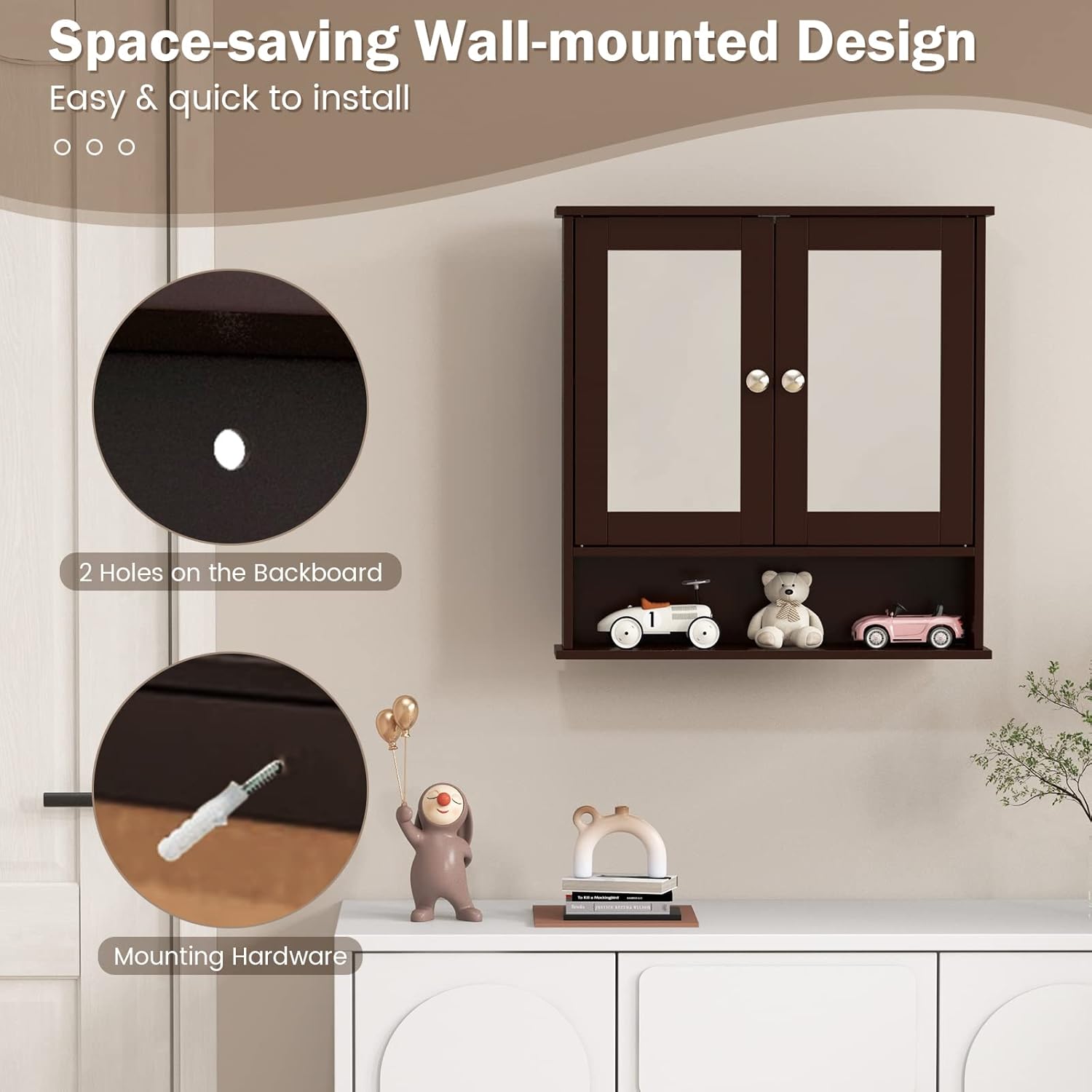

Image: This image highlights the two pre-drilled holes on the cabinet's backboard for wall mounting and demonstrates the type of mounting hardware (wall anchor) used for secure installation.
5. Käyttöohjeet
5.1 Using the Mirrored Doors
The cabinet features two doors with integrated mirrors. Gently pull the knobs to open the doors. The magnetic catches will hold the doors securely closed when not in use.
5.2 Adjusting the Interior Shelf
The interior shelf can be adjusted to three different positions to accommodate items of various heights. To adjust:
- Tyhjennä hylly kaikesta sisällöstä.
- Nosta hyllyä varovasti ja poista se nykyisestä paikastaan.
- Aseta hylly takaisin haluttuihin esiporattuihin reikiin. Varmista, että se on vaakasuorassa ja tukevasti paikallaan.

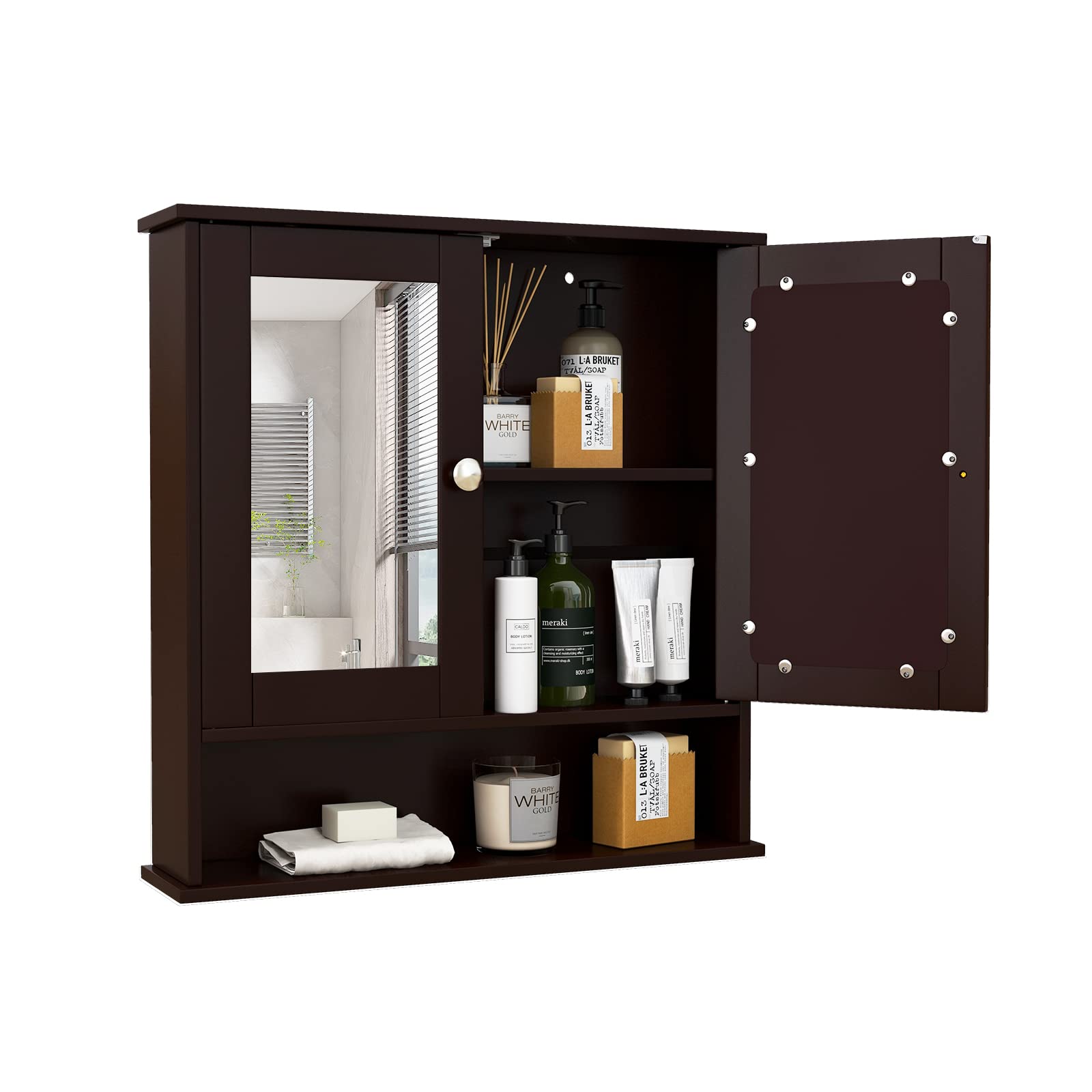

Image: The cabinet with one door open, displaying the adjustable shelf and various items stored within, demonstrating its practical use.
Kuva: Lähikuva view illustrating the adjustable shelf mechanism, showing the different height options available in 1.3-inch increments for flexible storage.
5.3 Using the Open Compartment
The open lower compartment provides easy access storage for frequently used items or decorative pieces.
6. Huolto
6.1 Puhdistus
- For the cabinet surfaces, wipe with a soft, damp kangas. Vältä hankaavia puhdistusaineita tai vahvoja kemikaaleja, jotka voivat vahingoittaa pintaa.
- For the mirrors, use a standard glass cleaner and a lint-free cloth.
- Ensure the cabinet is dry after cleaning to prevent water damage to the engineered wood.
Image: A visual representation of the cabinet's waterproof surface being wiped clean, highlighting its easy maintenance.
6.2 Yleishoito
- Tarkista säännöllisesti kaikki ruuvit ja liitokset varmistaaksesi, että ne ovat edelleen tiukasti kiinni.
- Vältä asettamasta liian kuumia tai kylmiä esineitä suoraan kaapin pinnalle ilman suojaa.
- Do not expose the cabinet to excessive moisture or direct sunlight for prolonged periods.
9. Takuu ja tuki
9.1 Takuutiedot
COSTWAY products are typically covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official COSTWAY website for specific warranty terms and conditions applicable to your product. Keep your purchase receipt as proof of purchase for warranty claims.
9.2 Asiakastuki
If you have any questions regarding the assembly, operation, maintenance, or troubleshooting of your COSTWAY Wall-Mounted Medicine Cabinet, please contact COSTWAY customer support. Contact information can usually be found on the product packaging, the official COSTWAY websivustolta tai ostodokumentaatiostasi.
Saat online-tukea osoitteesta: www.costway.com/contact-us (Esimample link, verify actual support page if possible).
