Lock'er Down LD2012EX EXxtreme Console Safe User Manual

1. Johdanto

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Lock'er Down LD2012EX EXxtreme Console Safe. This product is designed to provide secure storage within the center console of 2005-2015 Toyota Tacoma vehicles. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Tuote ohiview

The Lock'er Down LD2012EX EXxtreme Console Safe is a heavy-duty security vault constructed from domestic 12-gauge cold-rolled steel, featuring an additional 10-gauge steel plate on the door for enhanced pry resistance. It integrates seamlessly into your vehicle's center console, utilizing factory bolt holes for a secure, immovable installation. The safe is equipped with a 4-digit combination lock for convenient access and security.

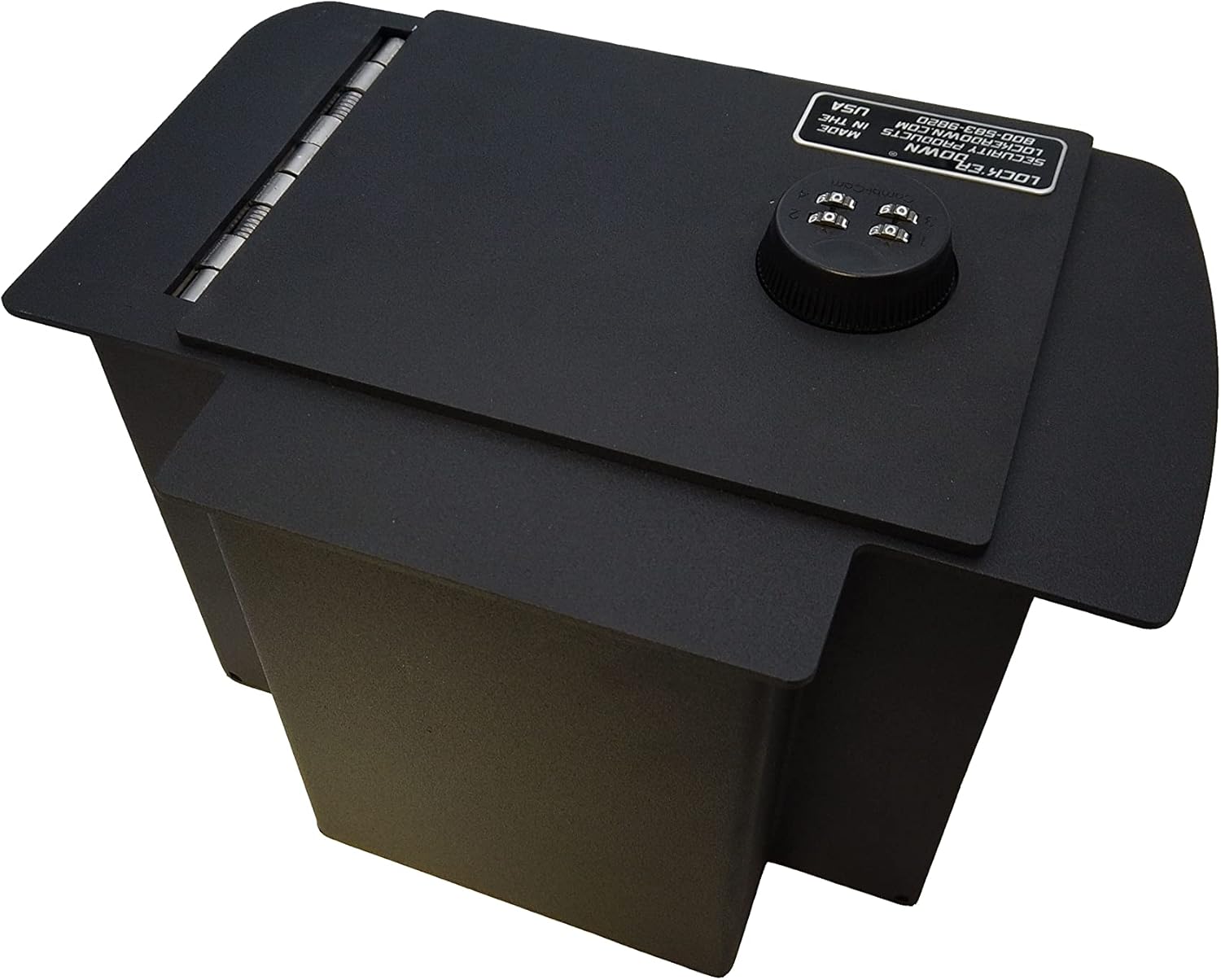

Kuva 2.1: Ylhäältä alas view of the Lock'er Down LD2012EX EXxtreme Console Safe, showing the combination lock and robust construction.

Kuva 2.2: Lähikuva view of the 4-digit combination lock mechanism on the console safe.

Tärkeimmät ominaisuudet:

• Materiaali: Domestic 12-gauge cold-rolled steel with 10-gauge steel door plate.
• Lukon tyyppi: 4-digit combination lock.
• Yhteensopivuus: Specifically designed for 2005-2015 Toyota Tacoma models.
• Turvallisuus: Pry-resistant design, secured to vehicle's factory console bolt holes.
• Viimeistely: Durable black powder coat.
• Sarana: Spring-assisted door hinge for smooth operation.

3. Turvallisuustiedot

• Always ensure the safe is properly installed and secured before driving.
• Do not store hazardous materials or illegal items in the safe.
• Keep the combination code confidential and in a secure location, separate from the vehicle.
• Exercise caution when opening and closing the safe door to avoid pinching fingers.

4. Pakkauksen sisältö

Varmista, että kaikki osat ovat mukana ennen asennuksen aloittamista:

• Lock'er Down LD2012EX EXxtreme Console Safe
• Kiinnitystarvikkeet (pultit, aluslevyt, mutterit tarpeen mukaan)
• Asennusohjeet (tämä käsikirja)

5. Asennus ja asennus

Installation of the Lock'er Down console safe is designed to be straightforward, utilizing existing factory console bolt holes. No drilling is typically required.

Tarvittavat työkalut:

• Hylsyavainsarja
• Screwdriver (Phillips or flathead, depending on console fasteners)

Asennusvaiheet:

1. Valmistele ajoneuvo: Open your vehicle's center console lid. Remove any existing console liner or tray to expose the console's interior base.
2. Pääsykiinnityskohdat: Locate the factory bolt holes at the bottom of the console. You may need to remove existing bolts or fasteners that secure the console to the vehicle's floor.
3. Position the Safe: Carefully place the Lock'er Down console safe into the center console opening. Ensure it sits flush and aligns with the factory mounting holes.
4. Varmista kassakaapin suojaus: Using the provided mounting hardware (bolts, washers, nuts), secure the safe to the vehicle's console. Tighten all fasteners firmly, but do not overtighten, to prevent damage.
5. Testi sopii: Close the console lid to ensure proper clearance and operation. The safe should be securely mounted and not shift.

Kuva 5.1: Esim.ample of the console safe securely installed within a vehicle's center console, demonstrating its integrated fit.

6. Käyttöohjeet

Your Lock'er Down console safe is equipped with a 4-digit combination lock. The factory default combination is typically 0-0-0-0. It is highly recommended to change this combination immediately after installation.

6.1 Opening the Safe:

1. Rotate the dials to align your current 4-digit combination with the indicator line.
2. Press the release button or turn the knob (depending on lock model) to open the safe door. The spring-assisted hinge will aid in opening.

6.2 Changing the Combination:

Follow these steps carefully to set a new personal combination:

1. Avaa kassakaappi: Ensure the safe is open using the current combination.
2. Locate Reset Lever/Button: Inside the safe door, locate the small reset lever or button. This is usually on the edge or underside of the lock mechanism.
3. Ota käyttöön nollaustila: While the safe is open, push the reset lever to the "SET" position or press and hold the reset button. (Refer to specific lock instructions if provided with the safe for exact mechanism).
4. Aseta uusi yhdistelmä: While the reset lever is engaged, rotate the dials to your desired new 4-digit combination. Choose a memorable but secure combination.
5. Nollaustilan poistaminen käytöstä: Return the reset lever to the "OFF" or original position, or release the reset button.
6. Testaa uutta yhdistelmää: With the safe door still open, scramble the dials. Then, enter your new combination and attempt to open the safe. If it opens, the new combination is set.
7. Sulje ja lukitse: Close the safe door and scramble the dials to lock it.

Important: Do not close the safe before testing the new combination. If you forget your combination, Lock'er Down may be able to assist, but it could involve a service fee or replacement of the lock mechanism.

7. Huolto

• Puhdistus: Pyyhi kassakaapin ulkopinta pehmeällä,amp cloth. Avoid abrasive cleaners or solvents that could damage the powder coat finish.
• Lukitusmekanismi: The combination lock is designed for durability and typically requires no lubrication. If the dials become stiff, a small amount of graphite powder (not oil) can be applied sparingly.
• Saranat: The spring-assisted hinge is maintenance-free. Ensure no debris obstructs its movement.
• Turvatarkastus: Periodically check the mounting bolts to ensure they remain tight and the safe is securely fastened to the console.

8. Vianmääritys

9. Tekniset tiedot

10. Takuu ja tuki

All Lock'er Down Safe products are proudly manufactured in the United States of America and come with a Lifetime Warranty. This warranty covers defects in materials and workmanship under normal use.

For technical assistance, warranty claims, or general inquiries, please contact Lock'er Down customer support:

• Puhelin: 800-583-9820
• Websivusto: www.lockerdown.com

Please have your product model number (LD2012EX) and purchase information available when contacting support.
