Cornat Arielli TECB3478 Hand Shower Instruction Manual

Johdanto

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Cornat Arielli TECB3478 hand shower. Designed for comfort, functionality, and durability, this hand shower enhances your daily bathing experience with its versatile features and water-saving capabilities. Please read these instructions carefully before use to ensure proper function and longevity of the product.

Tuote loppuview

The Cornat Arielli TECB3478 is a high-quality hand shower featuring a chrome/grey finish and an 80 mm head diameter. It offers four distinct jet types, an integrated water-saving insert, and anti-limescale silicone nozzles for easy maintenance. Its universal 1/2-inch connection thread ensures compatibility with standard shower hoses.

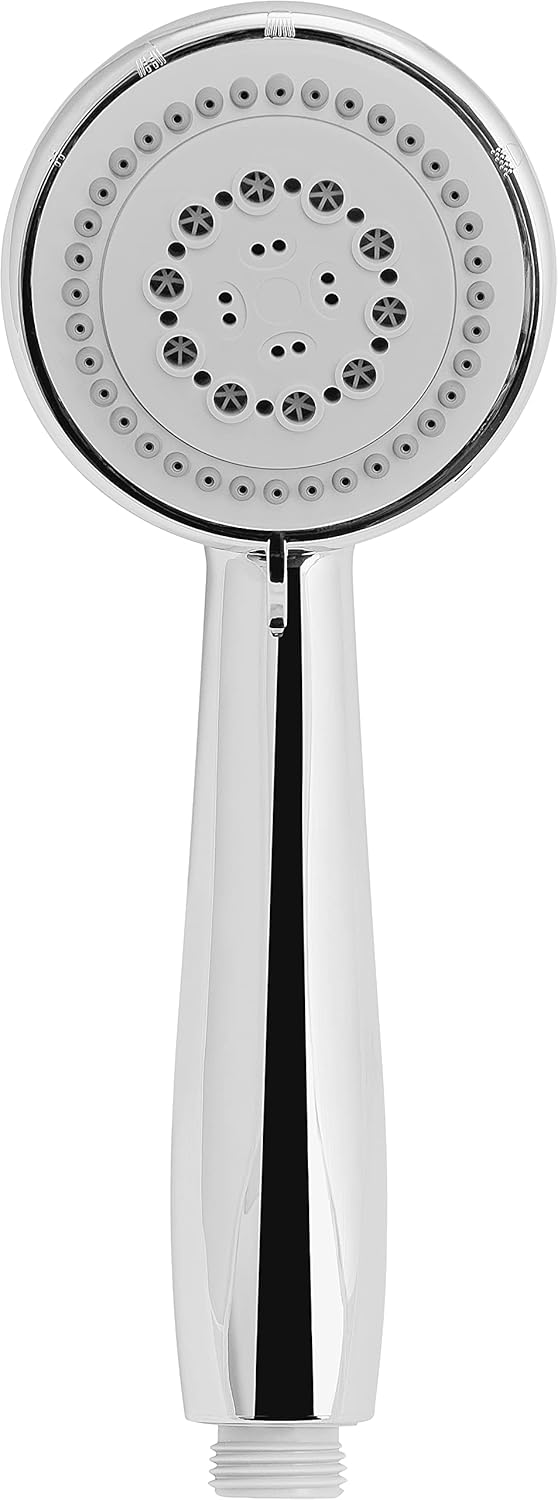

Kuva: Edessä view of the hand shower, highlighting the nozzle design.

Kuva: Sivu view of the hand shower, illustrating the handle and jet selector.

Tekniset tiedot

Image: Product Dimensions (Ø 80 mm head, 56.6 mm depth, 221 mm length).

Asennus ja asennus

The Cornat Arielli TECB3478 hand shower is designed for easy installation with all standard shower hoses. No specialized tools are typically required.

1. Valmistelu: Ensure your existing shower hose has a standard 1/2-inch connection thread. Turn off the main water supply to your shower.
2. Vanhan suihkupään irrottaminen: Unscrew your old shower head from the shower hose.
3. Install Gasket and Water-Saving Insert: Place the provided gasket and water-saving insert into the connection end of the new hand shower. Ensure they are seated correctly to prevent leaks and optimize water usage.
4. Kiinnitä uusi suihkupää: Screw the Cornat Arielli TECB3478 hand shower onto your shower hose. Hand-tighten until secure. Do not overtighten, as this can damage the threads or gasket.
5. Tarkista vuodot: Turn the main water supply back on and check for any leaks at the connection point. If leaks occur, gently tighten the connection further or re-seat the gasket and water-saving insert.

The hand shower is suitable for instantaneous water heaters.

Käyttöohjeet

Your Cornat Arielli TECB3478 hand shower offers four distinct jet types and a convenient water stop function for a customized shower experience.

Changing Jet Types

To switch between the different jet types, use the practical rotary slider located on the shower head. Simply slide it to select your desired spray pattern:

• Normaali suihkukone: Provides an evenly flowing stream of water, ideal for everyday rinsing.
• Powerful Massage Jet: A concentrated, invigorating water jet for a stimulating body massage.
• Soft Air-Refined Jet: A gentle, air-enriched spray for a delicate and soothing experience.
• Combined Jet Types: Various combinations of the above jets can also be selected for a personalized flow.

Image: Jet type selection mechanism and examples of different spray patterns.

Water Stop Function

The hand shower includes a water stop function, allowing you to temporarily pause the water flow without adjusting the temperature settings at the faucet. This feature helps conserve water during your shower, for example, while lathering. The water temperature remains set as before, ensuring a consistent experience when you resume the flow.

Image: Icon for the water stop function.

Huolto

Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your hand shower.

Anti-Limescale Nozzles

The jet nozzles are equipped with silicone nubs, making limescale removal effortless. To clean, simply rub the silicone nubs with your fingers to dislodge any limescale deposits. This ensures an even jet and a pleasant shower experience at all times.

Image: Icon illustrating the easy-clean anti-limescale nozzles.

Yleissiivous

• Clean the chrome surfaces regularly with a soft cloth and a mild, non-abrasive cleaner.
• Avoid using harsh chemicals, abrasive sponges, or cleaners containing acid or chlorine, as these can damage the finish.
• Huuhtele huolellisesti puhtaalla vedellä puhdistuksen jälkeen ja kuivaa pehmeällä liinalla vesitahrojen välttämiseksi.

Vianetsintä

If you encounter any issues with your hand shower, please refer to the following common troubleshooting steps:

• Alhainen vedenpaine:
  • Tarkista, onko päävesihana täysin auki.
  • Ensure the shower hose is not kinked or blocked.
  • Clean the shower nozzles as described in the Maintenance section to remove any limescale buildup.
  • Verify that the water-saving insert is correctly installed and not obstructed.
• Leaking at Connection:
  • Ensure the hand shower is securely tightened to the hose (hand-tighten only).
  • Check that the gasket is properly seated and not damaged. Replace if necessary.
• Epäjohdonmukainen ruiskutuskuvio:
  • Clean the silicone nozzles to remove any limescale or debris that might be blocking individual jets.
  • Ensure the jet type selector is fully engaged in one of the desired positions.

Jos ongelma jatkuu näiden vaiheiden suorittamisen jälkeen, ota yhteyttä asiakastukeen.

Takuutiedot

Specific warranty details for the Cornat Arielli TECB3478 hand shower may vary by region and retailer. Please retain your proof of purchase. For information regarding the warranty period and terms, refer to the documentation provided at the time of purchase or contact your retailer directly. The warranty typically covers manufacturing defects under normal use.

Tukitiedot

For further assistance, technical support, or spare parts, please contact the retailer from whom you purchased the Cornat Arielli TECB3478 hand shower. You may also visit the official Cornat website for general product information and contact details for your region.

When contacting support, please have your product model number (TECB3478) and proof of purchase readily available.
