KETOTEK 21W Seedling Heat Mat Instruction Manual

Johdanto

This manual provides essential instructions for the safe and effective use of your KETOTEK 21W Seedling Heat Mat. Please read this manual thoroughly before operation and retain it for future reference.

Tärkeitä turvallisuusohjeita

• Älä upota veteen. The mat is IP67 waterproof, but immersion is not recommended for the electrical connection.
• Do not place the heat mat on any heating or insulating device.
• Do not pierce the PVC surface of the heat mat.
• Always unroll the heat mat flat during use. Do not roll or fold it in half when powered on.
• Varmista ennen käyttöä, ettei virtajohto ole vaurioitunut.
• Use only with a standard 220V power outlet.
• Säilytä poissa lasten ja lemmikkieläinten ulottuvilta.
• Vain sisäkäyttöön.

Varoitus: Failure to follow these safety instructions may result in electric shock, fire, or damage to the product.

Tuotteen ominaisuudet

• Stable Heating System: Automatically warms the rooting area 5-11°C (10-20°F) above ambient air temperature. Provides stable, even heat distribution without overheating.
• Kestävä ja luotettava: Multi-layer structure with integrated insulated heating wire and PET film design. Meets strict CE standards.
• Vedenpitävä muotoilu: IP67 rated surface for easy and safe cleaning.
• Energiatehokas: Operates at only 21 watts, saving electricity.
• Optimaalinen koko: Measures 25.2 cm x 52.6 cm (approximately 10" x 20.75"), suitable for standard 1020 seedling trays.

Image: The KETOTEK 21W Seedling Heat Mat, showing its rectangular shape and power cord.

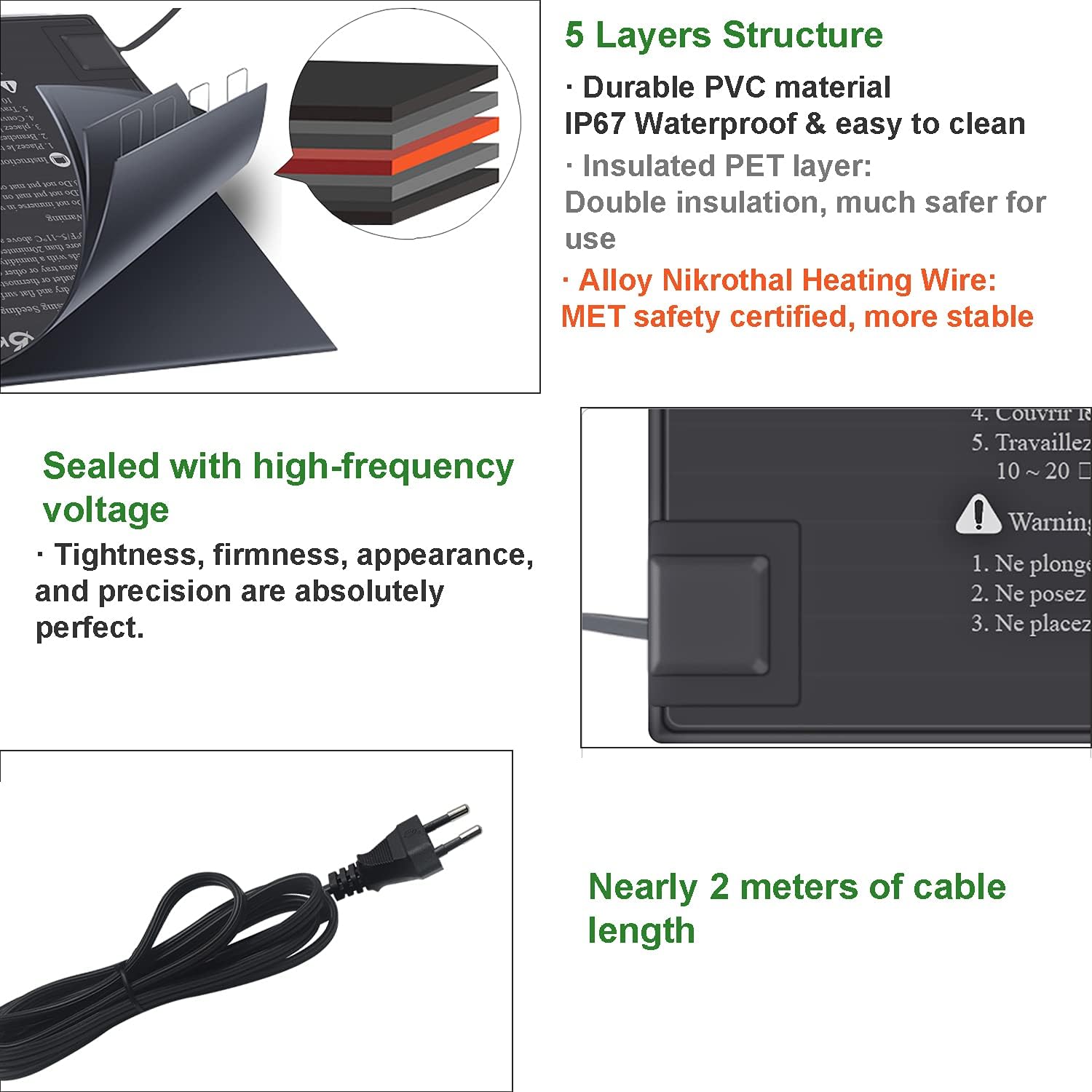

Image: Diagram illustrating the 5-layer structure of the heat mat, including durable PVC, insulated PET, and Nikrothal heating wire. Also shows the sealed edge and power cable.

Asennusohjeet

1. Pura pakkauksesta: Carefully remove the heat mat from its packaging.
2. Sijoitus: Lay the heat mat flat on a dry, stable, and level surface. Ensure there are no wrinkles or folds.
3. Position Seedlings: Place your seedling tray or propagation container directly on top of the heat mat. For best results, cover the tray with a humidity dome.
4. Virtaliitäntä: Liitä virtajohto tavalliseen 220 V:n pistorasiaan.
5. Alkulämmittely: Allow at least 20 minutes for the mat to reach its optimal operating temperature, which will be 5-11°C (10-20°F) above the ambient air temperature.

Image: The KETOTEK heat mat displaying printed instructions and a germination guide for various plants.

Image: The KETOTEK heat mat placed under seedling trays with young plants, illustrating the upward heat distribution.

Käyttöohjeet

The KETOTEK Seedling Heat Mat is designed for continuous operation to maintain a consistent temperature for germination and rooting. It does not feature adjustable temperature controls. For precise temperature management, an external thermostat (sold separately) can be used.

• Once plugged in, the mat will begin to heat.
• Monitor the temperature of your rooting medium using a soil thermometer for optimal results.
• Ensure adequate ventilation to prevent excessive humidity, especially when using a humidity dome.

Kuva: esimamples of the heat mat's versatile applications, including plant propagation, reptile terrarium heating, and home brewing fermentation.

Huolto

• Puhdistus: Disconnect the mat from the power outlet before cleaning. Wipe the surface with a damp liinalla. Älä käytä hankaavia puhdistusaineita äläkä upota mattoa veteen.
• Varastointi: When not in use, ensure the mat is clean and dry. Roll it loosely or store it flat in a cool, dry place, away from direct sunlight.
• Tarkastus: Periodically inspect the mat and power cord for any signs of damage, such as cuts, fraying, or discoloration. If damage is found, discontinue use immediately.

Image: The KETOTEK heat mat with water droplets on its surface, demonstrating its IP67 waterproof capability for easy cleaning.

Vianetsintä

Tekniset tiedot

Takuu ja tuki

For warranty information or technical support, please contact KETOTEK customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Sähköposti: info@ketotek.com

Please have your model number (YQ103) and purchase date available when contacting support.
