1. Johdanto
Thank you for choosing the Traxxas TRX-6 Mercedes-Benz G 63 RC Crawler. This high-performance, 6x6 remote-controlled vehicle is engineered for extreme off-road capability and scale realism. This manual provides essential information for the proper setup, operation, and maintenance of your new RC crawler to ensure a safe and enjoyable experience.
Kuva 1: Etuosa view of the Traxxas TRX-6 Mercedes-Benz G 63 RC Crawler, showcasing its detailed grille and headlights.
2. Turvallisuustiedot
Operating this remote-controlled vehicle requires caution and responsibility. Failure to operate in a safe manner can result in injury or damage to the product or property. Always read and follow all instructions and warnings before use.
- Pidä kädet, hiukset ja löysät vaatteet poissa liikkuvista osista.
- Älä käytä laitetta ihmisten, lemmikkien tai esteiden lähellä.
- Always use the recommended battery types and chargers.
- Ensure the vehicle is turned off and batteries are disconnected when not in use or during maintenance.
- Avoid operating in wet conditions unless specifically designed for it, and always follow waterproofing guidelines.
- Valvo lapsia käytön aikana.
3. Asennus
3.1 Akun asennus
The TRX-6 requires a suitable LiPo battery (sold separately) for operation and four AA batteries for the transmitter. Ensure batteries are fully charged before first use.
- Irrota ajoneuvon kori varovasti päästäksesi käsiksi akkutilaan.
- Insert the charged LiPo battery into the designated tray, ensuring secure fitment.
- Connect the battery to the Electronic Speed Control (ESC) using the appropriate connector.
- Install four fresh AA batteries into the transmitter, observing correct polarity.
3.2 Alkutarkastukset
- Verify all wheels are securely attached.
- Check for any loose wires or connections.
- Ensure the steering mechanism moves freely without obstruction.

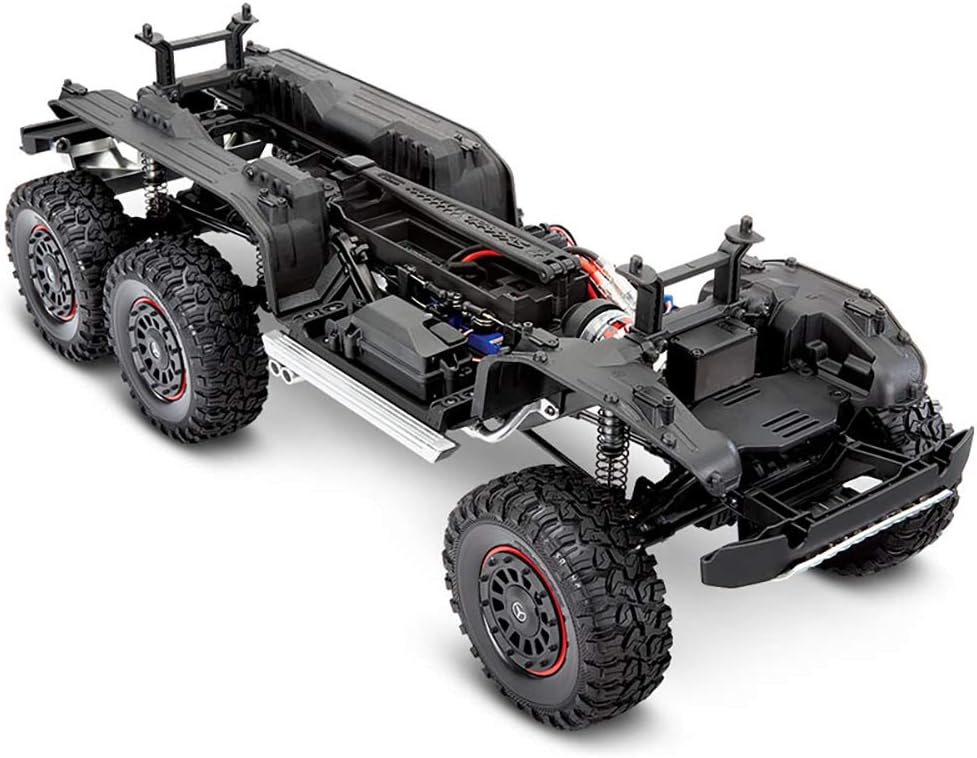

Figure 2: The TRX-6 chassis with the body removed, illustrating the battery tray and electronic components.
4. Käyttöohjeet
4.1 Perusohjaimet
Power on the transmitter first, then the vehicle. To turn off, reverse the order.
- Kaasulaukaisin: Vedä liikkuaksesi eteenpäin, työnnä jarruttaaksesi/peruaksesi.
- Ohjauspyörä: Käännä vasemmalle tai oikealle ohjataksesi etupyöriä.
4.2 Lisäominaisuudet
The TRX-6 features advanced controls for enhanced off-road performance:
- Tasauspyörästön lukitus: The transmitter allows you to remotely lock and unlock the front and rear differentials independently or all together. This provides increased traction on challenging terrain.
- High/Low Gearbox: Switch between high-speed and low-speed gears for different driving conditions. Low gear provides maximum torque for crawling, while high gear offers greater speed.
- Vakionopeudensäädin: Maintain a consistent speed for technical crawling.

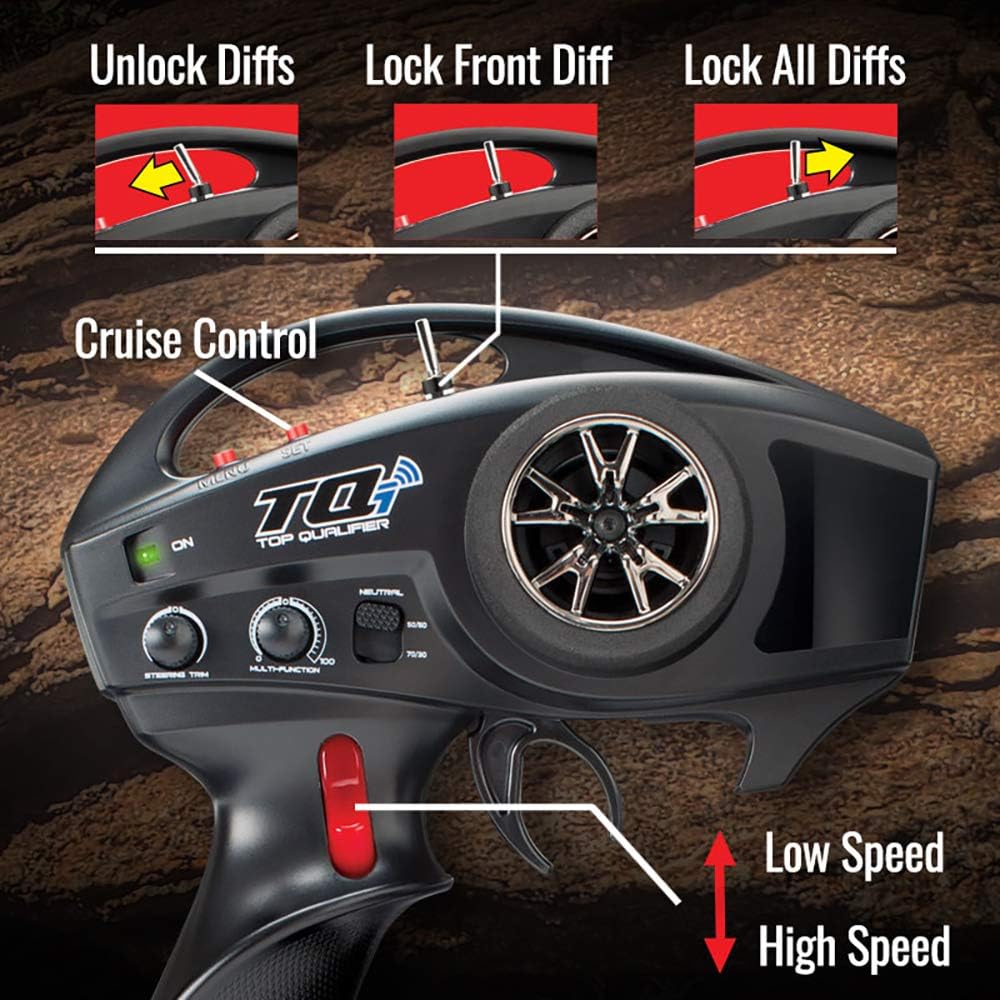

Figure 3: Traxxas TQi transmitter showing controls for differential locking, cruise control, and high/low speed selection.
4.3 Ajovinkkejä
- For technical crawling, engage low gear and lock differentials as needed to maximize traction.
- Practice gentle throttle and steering inputs to maintain control on uneven surfaces.
- Explore various terrains such as rocks, sand, and dirt to experience the full capability of your TRX-6.
Figure 4: The TRX-6 demonstrating its capability on sandy terrain.

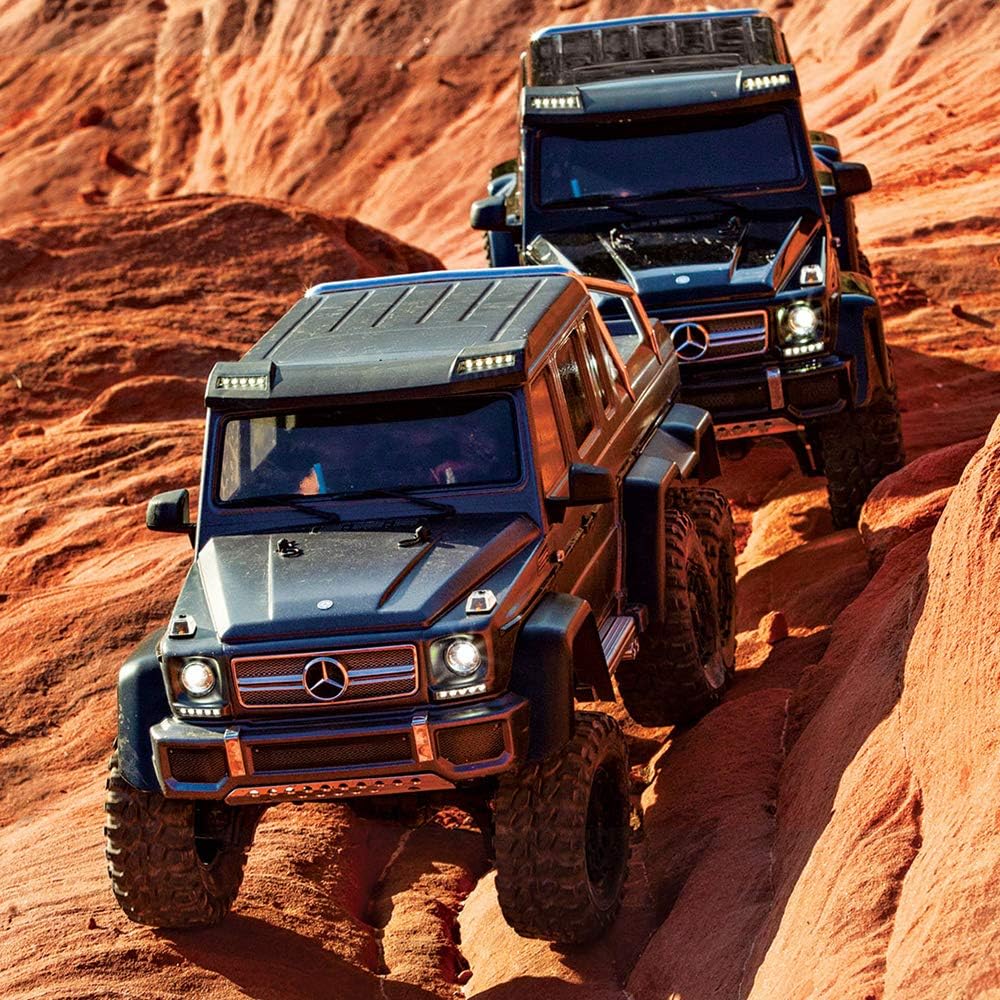

Figure 5: Two TRX-6 crawlers tackling a challenging rocky incline.
5. Huolto
Regular maintenance ensures the longevity and performance of your TRX-6.
- Puhdistus: After each use, especially in dirty or dusty conditions, clean the vehicle with a soft brush or compressed air. Avoid using water directly on electronics unless the component is specifically rated as waterproof.
- Tarkastus: Tarkista säännöllisesti löysien ruuvien, vaurioituneiden osien tai kuluneiden renkaiden varalta. Vaihda vaurioituneet osat välittömästi.
- Voitelu: Periodically lubricate moving parts such as universal joints and gears with appropriate RC-grade lubricant.
- Akun hoito: Store LiPo batteries in a cool, dry place and follow manufacturer guidelines for charging and discharging.
Kuva 6: Alapuoli view of the TRX-6 chassis, highlighting the robust drivetrain and suspension for maintenance checks.
6. Vianmääritys
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Ajoneuvo ei reagoi lähettimeen. | Low transmitter/vehicle battery, not properly bound, power switch off. | Charge/replace batteries, re-bind transmitter to receiver, ensure power switches are ON. |
| Huono ohjausvaste. | Damaged steering servo, loose steering linkage, low battery. | Inspect/replace servo, tighten linkages, charge vehicle battery. |
| Alennettu teho tai nopeus. | Low battery charge, motor overheating, debris in drivetrain. | Recharge battery, allow motor to cool, clean drivetrain components. |
| Ajoneuvo pitää epätavallisia ääniä. | Damaged gears, foreign objects in drivetrain. | Inspect and replace damaged gears, remove any obstructions. |
7. Tekniset tiedot
- Merkki: Traxxas
- Mallinumero: TRX-88096-4SLVR
- Tuotteen mitat: 4.33 x 3.94 x 5.12 tuumaa
- Tuotteen paino: 8.8 kiloa
- ASIN: B07X2759YL
- Valmistaja: ROCO 4X4
8. Takuu ja tuki
For detailed warranty information, technical support, or to purchase replacement parts, please visit the official Traxxas websivustolta tai ota yhteyttä heidän asiakaspalveluunsa. Säilytä ostokuitti takuuvaatimuksia varten.
Virallinen Traxxas Websivusto: www.traxxas.com
