1. Johdanto
This manual provides comprehensive instructions for the proper installation and maintenance of the Puig Rear Mudguard, model 3503J. This accessory is designed to enhance the protection of your motorcycle from road debris and adverse weather conditions.
Yhteensopivuus: This mudguard is compatible with the following BMW motorcycle models:
- BMW R1200R (2018)
- BMW R1200RS (2018)
- BMW R1250R (2019, 2020, 2021, 2022)
- BMW R1250RS (2019, 2020, 2021, 2022)
2. Asennus ja asennus
The Puig Rear Mudguard 3503J is engineered for a precise fit on compatible BMW models. It features an injected aluminum support designed for secure attachment to the motorcycle's swingarm. A complete mounting kit and visual instructions are included to facilitate a quick and incident-free installation process.
Tärkeä huomautus:
Before proceeding with the installation, it is crucial to verify that there will be no interference between the mudguard and any other original equipment manufacturer (OEM) or aftermarket accessories already installed on your motorcycle. Ensure adequate clearance for all moving parts and components.
Asennusvaiheet (yleiset ohjeet):
- Valmistele moottoripyörä: Park the motorcycle on a stable, level surface. Ensure the engine is off and cool.
- Kiinnityskohtien tunnistaminen: Locate the designated mounting points on the motorcycle's swingarm as indicated in the provided visual instructions.
- Kokoa komponentit: If necessary, assemble the mudguard components according to the visual guide.
- Attach Mudguard: Carefully position the mudguard and its aluminum support onto the swingarm. Secure it using the hardware provided in the mounting kit. Do not overtighten initially.
- Tarkista välys: Before fully tightening, rotate the wheel and compress the suspension (if safe to do so) to ensure there is no contact or interference with the tire, chain, brake lines, or any other components.
- Lopullinen kiristys: Once proper clearance is confirmed, tighten all fasteners to the manufacturer's recommended torque specifications. Refer to the included instructions for specific torque values.

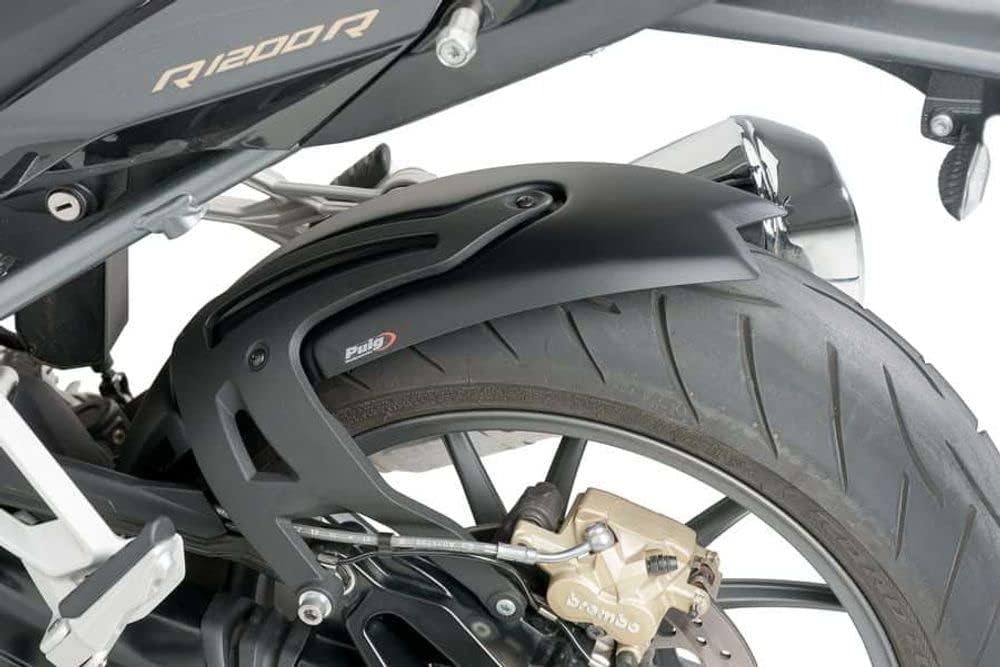

Figure 2.1: Puig Rear Mudguard 3503J, showcasing its design and aluminum support.
Figure 2.2: The Puig Rear Mudguard 3503J installed on a BMW motorcycle, demonstrating its fitment and protective coverage.
3. Toimintaperiaatteet
The Puig Rear Mudguard 3503J functions as a protective barrier for the rear section of your motorcycle. Its primary purpose is to minimize the amount of water, mud, dirt, and other road debris that is thrown up by the rear wheel onto the motorcycle's suspension, exhaust, and other components, as well as the rider.
Designed with an avant-garde aesthetic specific to each motorcycle model, this mudguard combines style with maximum protection against environmental elements. It contributes to keeping your motorcycle cleaner and can help prolong the life of exposed components by reducing wear from abrasive debris.
4. Huolto
Regular maintenance of your Puig Rear Mudguard will ensure its longevity and continued effectiveness.
- Puhdistus: Clean the mudguard regularly with mild soap and water. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish. Rinse thoroughly and dry with a soft cloth.
- Tarkastus: Periodically inspect the mudguard for any signs of damage, cracks, or loose fasteners. Check the aluminum support for any deformation.
- Kiinnittimen tarkistus: Ensure all mounting bolts and nuts remain securely tightened. Over time, vibrations can cause fasteners to loosen. Re-tighten to the recommended torque if necessary.
- Yhteensopivuuden tarkistus: If you install new accessories on your motorcycle, re-verify that there is no interference with the mudguard.
5. Vianmääritys
Should you encounter any issues with your Puig Rear Mudguard, consider the following troubleshooting steps:
- Löysä istuvuus: If the mudguard feels loose or rattles, check all mounting bolts. Ensure they are tightened to the correct torque specifications. Refer to the installation instructions.
- Interference with Components: If the mudguard is rubbing against the tire, chain, or other motorcycle parts, immediately stop riding. Re-check the installation steps, paying close attention to clearance. It may be necessary to adjust the positioning or ensure no other aftermarket parts are causing the conflict.
- Excessive Spray: If the mudguard is not effectively reducing spray, ensure it is correctly positioned and not damaged. Verify that it is the correct model for your specific motorcycle.
- Vahingoittaa: In case of physical damage (cracks, breaks), the mudguard may need to be replaced to maintain its protective function and aesthetic.
If problems persist after performing these checks, contact your dealer or Puig customer support for further assistance.
6. Tekniset tiedot
| Erittely | Arvo |
|---|---|
| Merkki | Puig |
| Mallinumero | 3503J |
| Materiaali | Alumiini |
| Valmis | Matta Musta |
| Tuotteen paino | 1.3 kiloa |
| Tuotteen mitat (P x L x K) | 48.77 x 39.88 x 16.51 cm (19.2 x 15.7 x 6.5 tuumaa) |
| asema | Takaosa |
| Ajoneuvopalvelun tyyppi | Moottoripyörä |
| Alkuperämaa | Kiina |
7. Takuu ja tuki
For specific warranty information regarding your Puig Rear Mudguard 3503J, please refer to the documentation provided at the time of purchase or contact your authorized Puig dealer or retailer. Warranty terms and conditions may vary by region and point of sale.
For technical support, installation queries not covered in this manual, or to report a defect, please contact Puig customer service through their official website or the retailer from whom the product was purchased. Ensure you have your product model number (3503J) and proof of purchase available when seeking support.
