Progress Lighting Sanford 24-inch Enclosed Ceiling Fan with LED Light User Manual

1. Johdanto

The Progress Lighting Sanford 24-inch Enclosed Ceiling Fan with LED Light is designed to provide both air movement and illumination. This modern fixture is suitable for various settings, including porches, foyers, bath, and vanity areas. It features an integrated 23W LED module for energy-efficient lighting and includes a remote control for convenient operation. This manual provides essential information for the safe installation, operation, and maintenance of your ceiling fan.

While the product description indicates suitability for both interior and outdoor settings, the specifications list its usage as 'Indoor'. Please consult local electrical codes and ensure the installation environment is appropriate for an indoor-rated appliance.

2. Turvallisuustiedot

VAROITUS: To reduce the risk of fire, electric shock, or personal injury, always turn off power to the fan at the main circuit breaker or fuse box before installation, cleaning, or servicing.

• Lue kaikki ohjeet huolellisesti ennen asennuksen aloittamista.
• Kaikkien johdotusten on oltava kansallisten ja paikallisten sähkömääräysten mukaisia. Jos et ole perehtynyt johdotukseen, ota yhteyttä pätevään sähköasentajaan.
• Ensure the installation site can support the weight of the fan (approximately 25.8 pounds).
• Do not operate the fan with damaged parts. Inspect the fan for any damage before installation.
• Pidä kädet, vaatteet ja muut esineet poissa tuulettimen siivistä käytön aikana.
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please check your local laws before purchasintätä tuotetta.

3. Pakkauksen sisältö

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact customer service.

• Sanford Enclosed Ceiling Fan Unit
• Remote Control (with 1 x 12V Alkaline battery included)
• Asennusarkki
• Asennuslaitteisto

4. Asennus ja asennus

4.1 Tarvittavat työkalut (eivät sisälly toimitukseen)

• Ristipääruuvimeisselillä
• Litteäpäinen ruuvimeisseli
• Säädettävä jakoavain
• Sivuleikkurit
• Sähköteippi
• Tikapuut

4.2 Asennuspaikka

Select a location where the fan can operate without obstruction. Ensure the ceiling structure can support the fan's weight. The fan is designed for a protruding mount installation.

4.3 Downrod Selection Guide

For optimal performance and safety, allow at least 7 feet (84 inches) from the floor to the bottom of the fan. An ideal placement is typically 8 or 9 feet above the floor.

This image illustrates various downrod lengths recommended for different ceiling heights to ensure proper fan clearance and airflow. For example, an 8-9 foot ceiling typically uses a 4-inch downrod, while a 15-17 foot ceiling may require a 72-inch downrod.

4.4 Choosing the Perfect Fan Size

Use the following chart to determine the appropriate fan size for your room to ensure effective air circulation.

This image displays a chart recommending fan sizes based on room square footage. For instance, a room of 0-75 sq ft suggests a fan size of 0-36 inches, while a room over 401 sq ft requires a fan of 60 inches or more.

4.5 Assembly and Wiring

Follow the detailed instructions provided in the included 'Installation Sheet' for step-by-step assembly and wiring. Ensure all electrical connections are secure and properly insulated. The fan operates on 120 Volts AC power.

This image shows the Progress Lighting Sanford ceiling fan with its downrod and canopy, illustrating the assembled appearance before final ceiling installation.

This diagram provides the overall dimensions of the Sanford ceiling fan: 22-7/8 inches in diameter and 17-3/4 inches in height, crucial for planning installation space.

5. Käyttöohjeet

5.1 Kaukosäätimen toiminnot

The Sanford ceiling fan is operated using the included remote control. Ensure the 12V Alkaline battery is correctly installed.

This image displays the remote control for the Sanford ceiling fan, featuring buttons for fan speed, light control, and power.

• Virtapainike: Kytkee tuulettimen ja valon päälle tai pois päältä.
• Tuulettimen nopeuspainikkeet: Adjusts the fan speed (typically low, medium, high).
• Valopainike: Controls the integrated LED light (on/off, dimming if applicable).

5.2 Airflow Direction (Seasonal Use)

The fan offers two airflow directions to optimize comfort throughout the year. The direction can typically be changed via a switch on the fan housing or the remote control, if equipped with this feature.

This diagram illustrates the two airflow directions for a ceiling fan. In counter-clockwise (forward) mode, air is blown downward for a cooling effect in warmer months. In clockwise (reverse) mode, air is drawn upward to circulate warm air near the ceiling during cooler months.

• Counter-Clockwise / Forward (Summer Mode): This direction creates a downward breeze, making the room feel cooler.
• Clockwise / Reverse (Winter Mode): This direction draws air upwards, circulating warm air near the ceiling and along the walls, making the room feel warmer.

6. Huolto

6.1 Puhdistus

To maintain the appearance and performance of your fan, clean it periodically. Always turn off power to the fan at the circuit breaker before cleaning.

• Käytä pehmeää, damp cloth to wipe down the fan housing and blades.
• Älä käytä hankaavia puhdistusaineita tai liuottimia, sillä ne voivat vahingoittaa pintaa.
• Avoid getting water into the motor housing or electrical components.

6.2 LED-moduuli

The Sanford fan features an integrated LED module. This module is designed for long-lasting performance and is generally not user-serviceable. If the LED light fails, contact customer support for assistance.

6.3 Yleishoito

Periodically check all screws and connections for tightness. Tighten any loose connections as needed. No lubrication is required for the fan motor.

7. Vianmääritys

Before performing any troubleshooting, ensure the power to the fan is turned off at the circuit breaker.

8. Tekniset tiedot

9. Takuu ja tuki

9.1 Takuutiedot

This Progress Lighting product is covered by a Limited Lifetime Warranty. This warranty guarantees your satisfaction with your purchase and covers defects in materials and workmanship under normal use. For specific details regarding coverage and limitations, please refer to the warranty documentation included with your product or visit the official Progress Lighting websivusto.

9.2 Asiakastuki

For technical assistance, replacement parts, or warranty claims, please contact Progress Lighting customer service. Have your model number (P2594-12930K) and purchase date available when contacting support.

Yhteystiedot:
Please refer to the official Progress Lighting webKatso ajantasaisimmat asiakaspalvelun yhteystiedot verkkosivustoltasi tai tuotepakkauksesta.

10. Tuote ohiview

Tämä osio tarjoaa visuaalisen yleiskuvanview of the Progress Lighting Sanford ceiling fan.

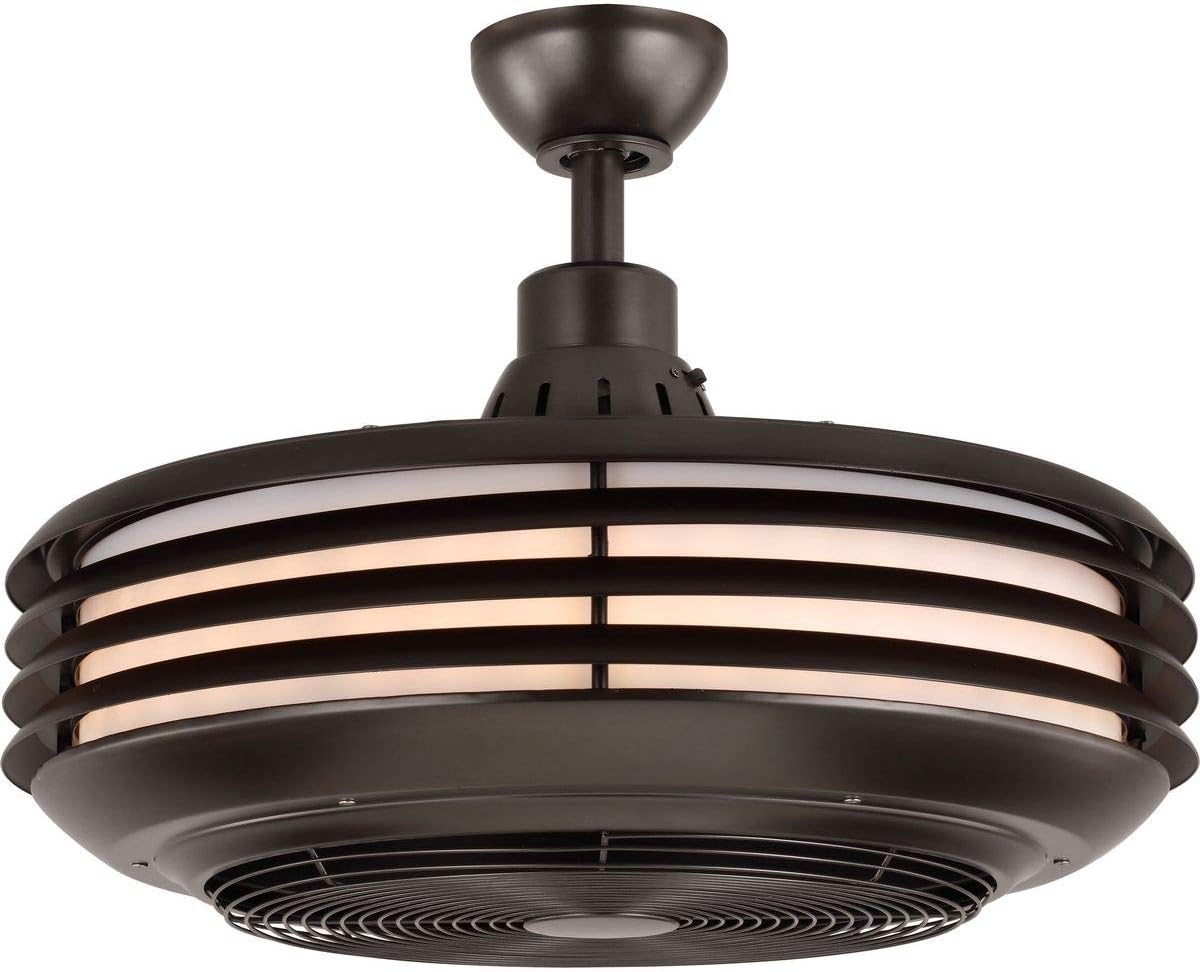

Lähikuva view of the Progress Lighting Sanford ceiling fan in bronze finish, highlighting the enclosed design and integrated light bands.

The Sanford ceiling fan installed in a modern bedroom setting, showcasing its contemporary aesthetic and how it complements interior decor.

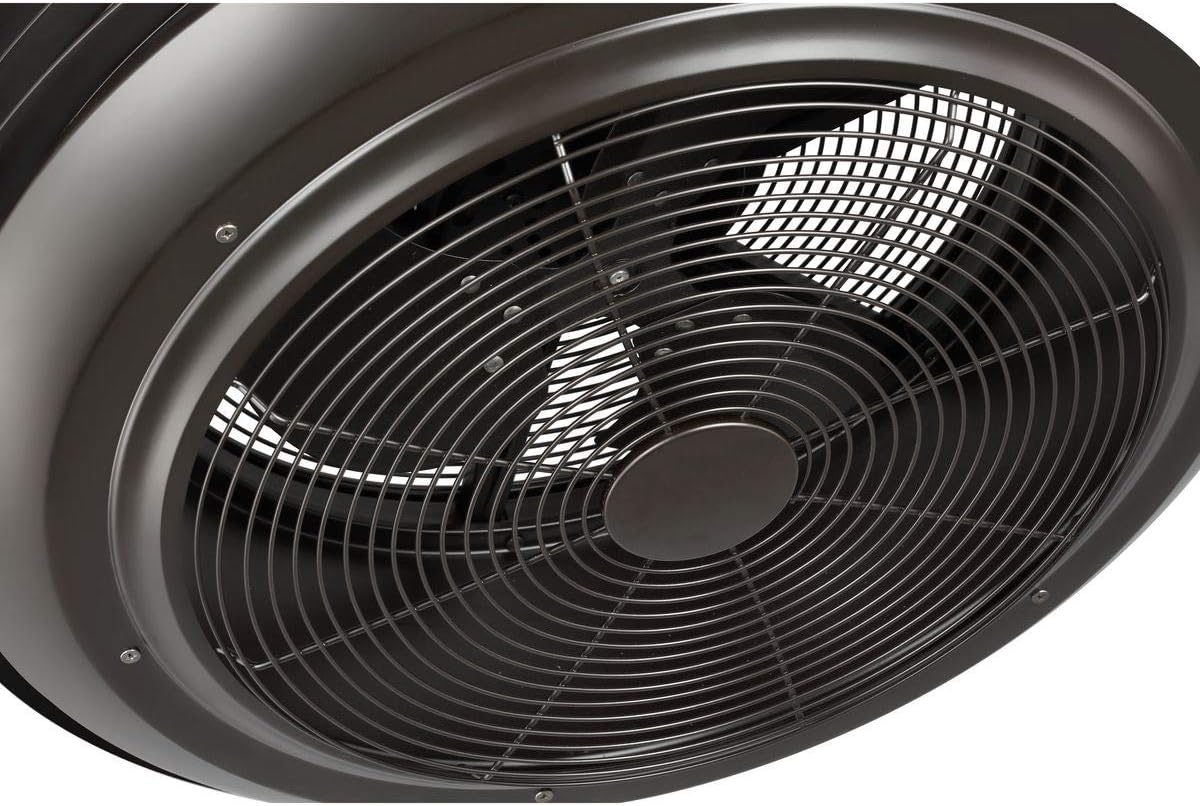

Alapuoli view of the Progress Lighting Sanford ceiling fan, detailing the protective grille covering the fan blades.

Detail of the integrated LED light bands on the Sanford ceiling fan, providing efficient illumination.

10.1 Tuotevideo

Katso tämä video lyhyestiview of the Progress Lighting Sanford ceiling fan.
