Cornat Cervia 90 cm Chrome Wall Bar Instruction Manual

Tuote loppuview

The Cornat Cervia 90 cm Chrome Wall Bar is a functional and adjustable shower rail designed to securely hold your hand shower. Its robust construction and chrome finish ensure durability and easy cleaning. This manual provides essential information for proper installation, operation, and maintenance.

Tärkeimmät ominaisuudet:

• Functional shower rail for hand shower support.
• Adjustable wall mounts for flexible installation, allowing reuse of existing drill holes.
• Easy attachment of the hand shower via the slider.
• Continuously adjustable push-button for individual height adjustment.
• Strong holding force to prevent accidental slipping of the hand shower.
• High-quality chrome finish for corrosion resistance and easy cleaning.

1. Asennus ja asennus

Before beginning installation, ensure you have all necessary tools and components. The Cornat Cervia Wall Bar is designed for wall mounting via drilling.

1.1 Sisältyvät komponentit

• Shower Bar (90 cm length)
• Adjustable Wall Mounts
• Shower Holder/Slider
• Kiinnitystarvikkeet (ruuvit, seinätulpat)

1.2 Tarvittavat työkalut (ei sisälly)

• Porata
• Drill bit appropriate for wall material and wall plugs
• Lyijykynä
• Mittanauha
• Vesivaaka
• Ruuvimeisseli

1.3 Asennusvaiheet

1. Valmistele asennusalue: Choose a suitable location on your bathroom wall. Ensure there are no hidden pipes or electrical wires behind the drilling points.
2. Merkitse porauspisteet: Hold the shower bar with its wall mounts against the wall at the desired height. Use a spirit level to ensure it is perfectly vertical. Mark the positions for the drill holes through the wall mounts with a pencil. The adjustable wall mounts allow for flexibility if you are reusing existing holes.
3. Poraa reikiä: Drill holes at the marked positions using the appropriate drill bit for your wall material. Insert the wall plugs into the drilled holes.
4. Attach Wall Mounts: Secure the wall mounts to the wall using the provided screws. Do not overtighten.
5. Suihkutangon asentaminen: Slide the shower bar into the attached wall mounts. Ensure it is firmly seated.
6. Suihkupidikkeen asentaminen: Slide the shower holder onto the bar. It should move freely but hold its position when adjusted.
7. Lopputarkastus: Gently pull on the installed bar to ensure it is securely fixed to the wall.

2. Käyttöohjeet

The Cornat Cervia Wall Bar is designed for simple and convenient use of your hand shower.

2.1 Attaching the Hand Shower

To attach your hand shower, simply insert the conical end of your shower hose into the opening of the shower holder. The design ensures a secure fit.

2.2 Korkeuden ja kulman säätäminen

• Korkeuden säätö: Press the push-button on the shower holder to release its grip on the bar. Slide the holder up or down to your desired height. Release the button to lock the holder in place. The continuous adjustment allows for personalized positioning.
• Kulman säätö: The shower holder also allows for individual adjustment of the hand shower's tilt angle. Gently pivot the hand shower within the holder to direct the water flow as needed.

The strong holding force of the shower holder prevents the hand shower from accidentally slipping down the bar during use.

3. Huolto ja hoito

Proper maintenance will ensure the longevity and appearance of your Cornat Cervia Wall Bar.

3.1 Puhdistus

• Regularly clean the chrome surface with a soft, damp kangas.
• For stubborn stains or limescale, use a mild, non-abrasive bathroom cleaner specifically designed for chrome finishes.
• Avoid using abrasive sponges, harsh chemicals, or acidic cleaners, as these can damage the chrome plating.
• Puhdistuksen jälkeen huuhtele huolellisesti puhtaalla vedellä ja kuivaa pehmeällä liinalla vesitahrojen välttämiseksi.

3.2 Tarkastus

Periodically check the wall mounts and screws for tightness. If any components appear loose, gently tighten them to ensure the bar remains secure.

4. Vianmääritys

This section addresses common issues you might encounter with your Cornat Cervia Wall Bar.

4.1 Shower Holder Slips Down

• Antaa: The shower holder does not stay in place and slides down the bar.
• Ratkaisu: Ensure the push-button mechanism is fully released after adjusting the height. If the issue persists, inspect the internal mechanism of the holder for any debris or wear.

4.2 Wall Bar Feels Loose

• Antaa: The entire wall bar feels wobbly or loose on the wall.
• Ratkaisu: Check the screws securing the wall mounts. Gently tighten them if they are loose. If the problem persists, the wall plugs or drill holes might be compromised, requiring re-installation with new plugs or in a slightly different position.

4.3 Chrome Finish Discoloration

• Antaa: The chrome surface shows signs of discoloration or rust.
• Ratkaisu: This can be caused by harsh cleaning agents or prolonged exposure to moisture without drying. Refer to the "Maintenance and Care" section for proper cleaning instructions. For existing discoloration, try a specialized chrome polish, but avoid abrasive products.

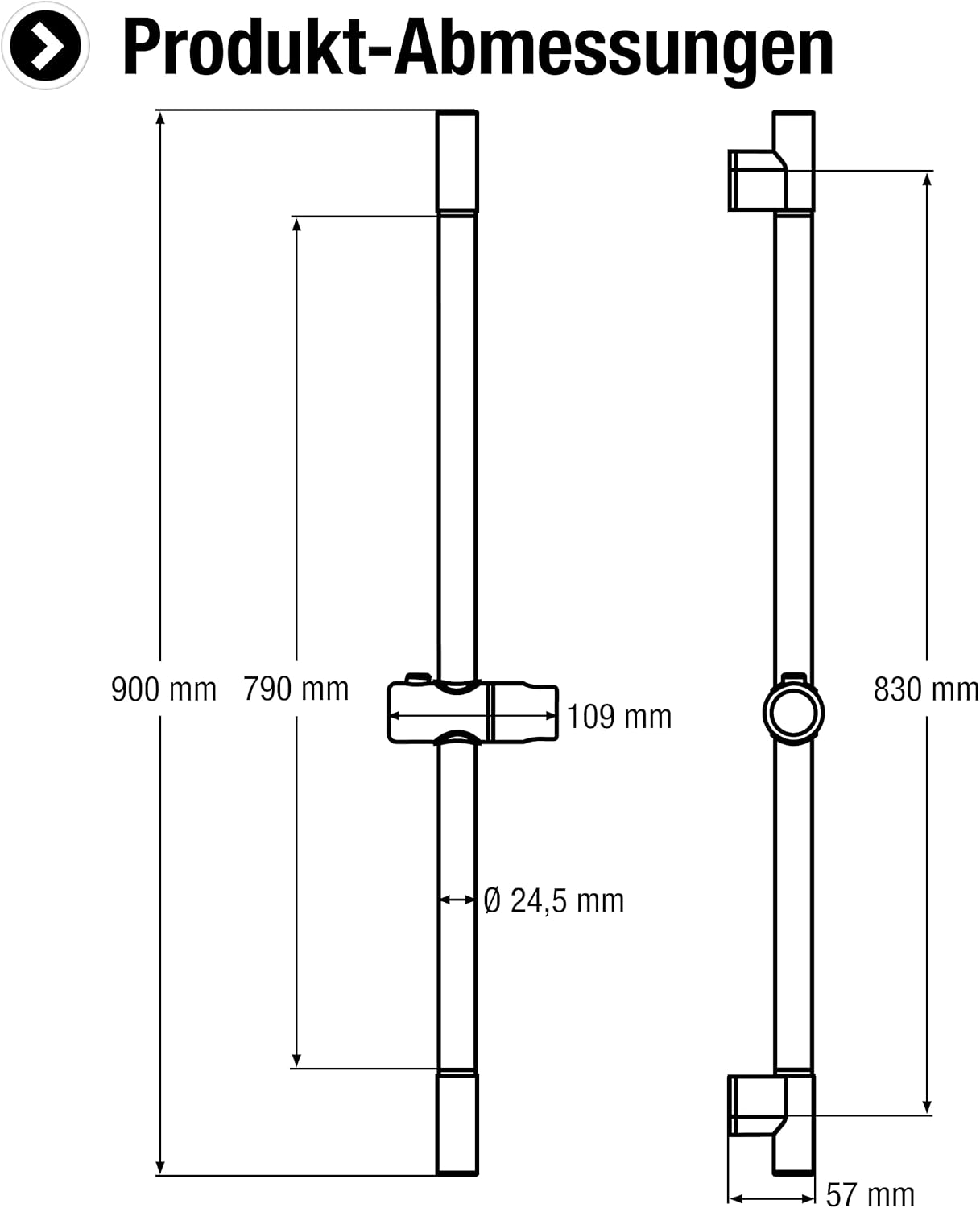

5. Tekniset tiedot

6. Takuu ja tuki

Specific warranty details for the Cornat Cervia Wall Bar are not provided in the product information. Please refer to your purchase documentation or contact the retailer for warranty information.

For further assistance or technical support, please contact Cornat customer service or your local distributor. Contact information can typically be found on the manufacturer's official websivustolla tai tuotepakkauksessa.
