Kufatec Bi-Xenon Headlight Adapter for Audi A3 8V - Model 41027

Johdanto

This instruction manual provides essential information for the installation and use of the Kufatec Bi-Xenon Headlight Adapter, Model 41027. This adapter is specifically designed to facilitate the conversion from halogen headlights to bi-xenon headlights in Audi A3 8V vehicles, ensuring a high-quality, OEM-standard integration.

Pakkauksen sisältö

• Xenon Adapter (one set required for connecting both headlights)

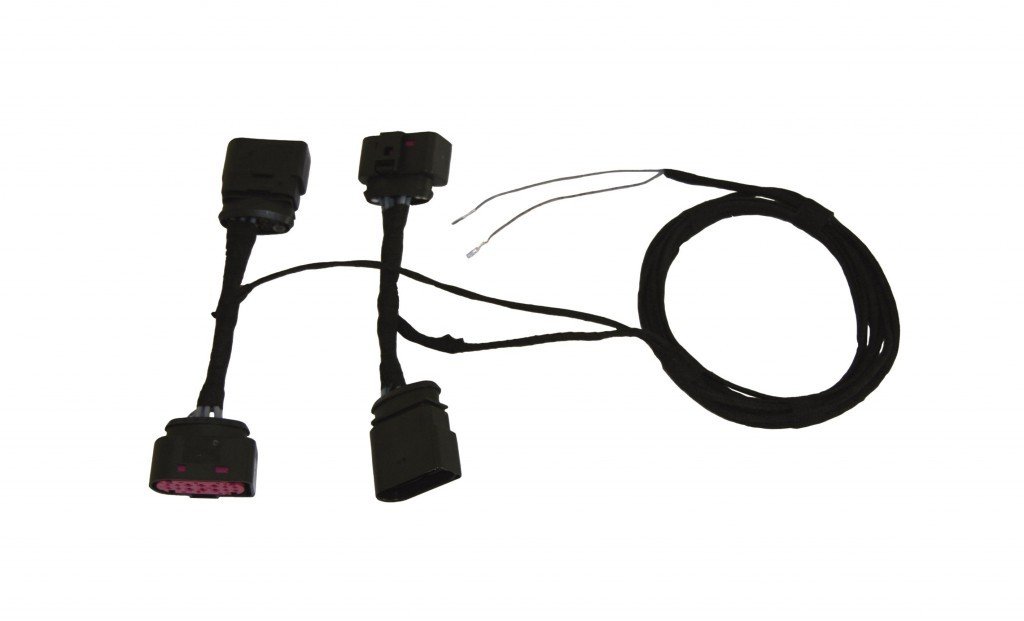

Kuva 1: The Kufatec Bi-Xenon Headlight Adapter cable. This image shows the complete adapter harness, featuring multiple connectors designed for integration into the vehicle's electrical system, along with exposed wires for specific connections.

Yhteensopivuus

This adapter is specifically designed for use with Audi A3 8V models. Before installation, it is crucial to verify the compatibility of the adapter with your vehicle's onboard power supply system. Incorrect compatibility may lead to malfunctions or damage.

Asennus ja asennus

Installation of this adapter involves connecting it to the vehicle's existing wiring harness and the onboard control unit. Due to the complexity of vehicle electrical systems and the specific requirements for bi-xenon headlight functionality, professional installation by a qualified technician is highly recommended.

Tärkeimmät asennuksen vaiheet:

1. Varmista, että ajoneuvon sytytysvirta on katkaistu ja akku on irrotettu ennen sähkötöiden aloittamista.
2. Locate the existing headlight connections in your Audi A3 8V.
3. Connect the main adapter plugs to the corresponding headlight and vehicle harness connectors.
4. The additional integrated cables of the xenon adapters must be connected to the vehicle's onboard control unit. These connections are essential for transmitting the impulse required for bi-xenon switching (high beam/low beam functionality). Refer to your vehicle's specific wiring diagrams or a professional for precise connection points.
5. Secure all connections and route the cables safely away from moving parts or heat sources.
6. Reconnect the vehicle battery and test the headlight functions thoroughly.

Tärkeää: Incorrect wiring can lead to system errors or damage. If you are unsure about any step, seek assistance from a certified automotive electrician.

Toiminta

Once correctly installed, the Kufatec Bi-Xenon Headlight Adapter operates seamlessly with your vehicle's existing headlight control system. It enables the bi-xenon functionality, allowing for both low and high beam operation through the newly installed xenon headlights. The adapter itself is a passive component that facilitates the electrical communication between the vehicle and the bi-xenon headlights.

Important Notes and Legal Information

Please be aware of the following legal and technical requirements when converting to bi-xenon headlights:

• Automatic Headlight Leveling (aLwR): The use of xenon headlights without an automatic headlight leveling system (aLwR) is generally not permitted according to StVZO (German Road Traffic Licensing Regulations). Ensure your vehicle is equipped with or upgraded to include an aLwR system.
• Headlight Cleaning System: In conjunction with xenon headlights, a headlight cleaning system is also required by law. This cable set for the cleaning system is available separately and is not included with this adapter.
• StVZO §50 Abs. 10-(10) Requirements: Motor vehicles equipped with gas discharge lamps for high and low beam must feature:
  1. An automatic headlight leveling system.
  2. A headlight cleaning system.
  3. A system that ensures the continuous operation of the low beam even when the high beam is activated.
• It is the user's responsibility to ensure compliance with all local and national regulations regarding vehicle lighting modifications.

Huolto

The Kufatec Bi-Xenon Headlight Adapter is designed for durability and requires no specific routine maintenance. Periodically inspect all connections to ensure they remain secure and free from corrosion or damage. If any part of the adapter appears damaged, it should be replaced by a qualified technician.

Vianetsintä

If you encounter issues after installing the Bi-Xenon Headlight Adapter, consider the following:

• Ajovalot eivät toimi:
  • Check all electrical connections for proper seating and security.
  • Verify that the vehicle's fuses related to the headlights are intact.
  • Ensure the additional integrated cables are correctly connected to the onboard control unit.
• Bi-Xenon Switching Issues:
  • Confirm the connection to the onboard control unit is correct and making proper contact.
  • Consult your vehicle's diagnostic system for any error codes related to lighting or control units.
• Yhteensopivuusongelmat:
  • Re-verify that your Audi A3 8V model and its onboard power supply are fully compatible with this adapter.

If troubleshooting steps do not resolve the issue, it is recommended to consult a professional automotive technician or contact Kufatec customer support.

Tekniset tiedot

Takuu ja tuki

For detailed warranty information, technical assistance, or to purchase additional components (such as the headlight cleaning system cable set), please refer to the official Kufatec websivustolta tai ota yhteyttä suoraan heidän asiakastukeen. Säilytä ostokuitti ostotodistuksena takuuvaatimuksia varten.
