Johdanto
Thank you for choosing Genius Audio GPRO-T08 Super Tweeter Speakers. This manual provides essential information for the proper installation, operation, and maintenance of your new audio components. Please read these instructions carefully before installation and retain them for future reference. These super tweeters are designed to enhance the high-frequency response of your car audio system, delivering clear and crisp sound.

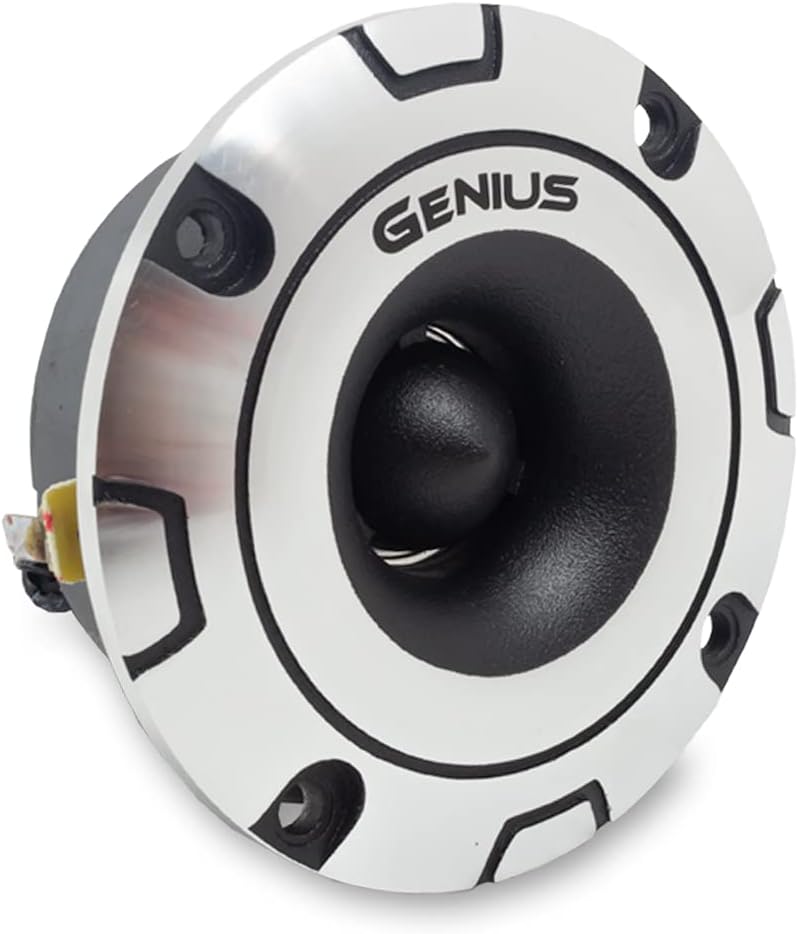

Kuva: Edessä view of the Genius Audio GPRO-T08 Super Tweeter Speaker.
Tuotteen ominaisuudet
The Genius Audio GPRO-T08 Super Tweeter Speakers are engineered for high-performance audio reproduction. Key features include:
- Tehon käsittely: 30 Watts RMS, 100 Watts Max at 4 Ohms (per speaker).
- Kalvo: Durable aluminum diaphragm for clear high-frequency output.
- Äänikela: 1-inch CCAW (Copper Clad Aluminum Wire) voice coil for reliable performance.
- magneetti: High-temperature Ferrite Y25 magnet designed to maintain magnetization under demanding conditions.
- Impedanssi: 4 Ohms, compatible with most car audio amppelastajia.
- Taajuusvaste: 2KHz - 20KHz, ensuring a wide range of high-frequency sound.
- Herkkyys: 98 dB, providing efficient sound output.
- Integrated Capacitor: Includes an in-line noise capacitor to block low frequencies and protect the tweeter.
Kuva: Räjähtänyt view highlighting the Aluminum Diaphragm, 1" CCAW Voice Coil, and Y25 Ferrite Magnet.
Asennus ja asennus
Proper installation is crucial for optimal performance and longevity of your super tweeters. If you are unsure about any steps, it is recommended to seek professional installation.
1. Turvallisuus ennen kaikkea
- Irrota ajoneuvon akku ennen sähkötöiden aloittamista oikosulkujen ja vaurioiden välttämiseksi.
- Käytä asianmukaisia suojavarusteita, mukaan lukien silmäsuojaimet.
2. Asennuspaikka
Choose a mounting location that allows for optimal sound dispersion and secure attachment. Common locations include dashboard corners, A-pillars, or door panels. Ensure there is sufficient depth and clearance for the tweeter and its magnet structure.
Image: Detailed dimensions of the GPRO-T08 tweeter for mounting reference.
3. Johdotusliitännät
- The GPRO-T08 tweeters have an impedance of 4 Ohms. Ensure your ampvahvistin tai pääyksikkö voi turvallisesti ajaa 4 ohmin kuormaa.
- Connect the positive (+) terminal of the tweeter to the positive (+) output of your amplifier/crossover, and the negative (-) terminal to the negative (-) output. Maintain correct polarity for optimal sound imaging.
- The tweeters include an in-line capacitor. This capacitor acts as a high-pass filter, blocking low frequencies that could damage the tweeter. Do not bypass this capacitor.
- Use appropriate gauge speaker wire for your installation to minimize power loss and ensure clear signal transmission.
4. Turvallinen kiinnitys
Once the wiring is complete, securely mount the tweeters using the provided hardware. Ensure they are firmly attached to prevent vibration and potential damage.
Käyttöohjeet
After successful installation, follow these steps for initial operation:
- Liitä akku uudelleen: Kytke ajoneuvosi akku takaisin.
- Ensimmäinen käynnistys: Turn on your car audio system. Start with the volume at a low level.
- Äänenvoimakkuuden säätö: Gradually increase the volume to a comfortable listening level. Listen for clear, crisp high frequencies.
- Crossover-asetukset: Jos pääyksikkösi tai amplifier has adjustable crossover settings, ensure they are configured appropriately for tweeters. A high-pass filter setting above 2KHz is generally recommended to protect the tweeters from low-frequency signals. The integrated capacitor provides a basic high-pass function.
- Balance and Fade: Adjust the balance and fade controls on your head unit to achieve optimal sound staging and imaging within your vehicle.
Avoid operating the tweeters at excessively high volumes for extended periods, as this can lead to distortion and potential damage.
Huolto
Your Genius Audio GPRO-T08 Super Tweeter Speakers require minimal maintenance to ensure long-lasting performance.
- Puhdistus: Periodically wipe the tweeters with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
- Tarkastus: Occasionally inspect the wiring connections to ensure they are secure and free from corrosion. Check the mounting points for any looseness.
- Ympäristötekijät: While designed for automotive use, avoid exposing the tweeters to extreme moisture or direct sunlight for prolonged periods, as this can affect their lifespan.
Vianetsintä
If you encounter issues with your super tweeters, refer to the following common problems and solutions:
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| No sound from tweeters | Löysät tai virheelliset johdot; palanut sulake ampkestävämpi; Amplifier not powered; Incorrect head unit settings. | Check all wiring connections for proper polarity and security. Verify amplifier power and fuse. Ensure head unit output is enabled. |
| Vääristynyt tai karhea ääni | Overpowering the tweeters; Amplifier gain too high; Incorrect crossover settings; Damaged tweeter. | Vähennä äänenvoimakkuutta. Säädä amplifier gain. Verify crossover settings (high-pass filter). If distortion persists at low volumes, the tweeter may be damaged. |
| Low volume from tweeters | Incorrect wiring polarity; Low amplifier output; Head unit settings. | Check wiring polarity. Increase amplifier gain (carefully). Adjust head unit balance/fade settings. |
| Tweeters cutting out intermittently | Löysät liitännät; Ylikuumeneminen amplifier; Short circuit. | Inspect all wiring for loose connections or frayed wires. Ensure amplifier has adequate ventilation. Check for any short circuits in the wiring. |
Tekniset tiedot
Detailed technical specifications for the Genius Audio GPRO-T08 Super Tweeter Speakers:

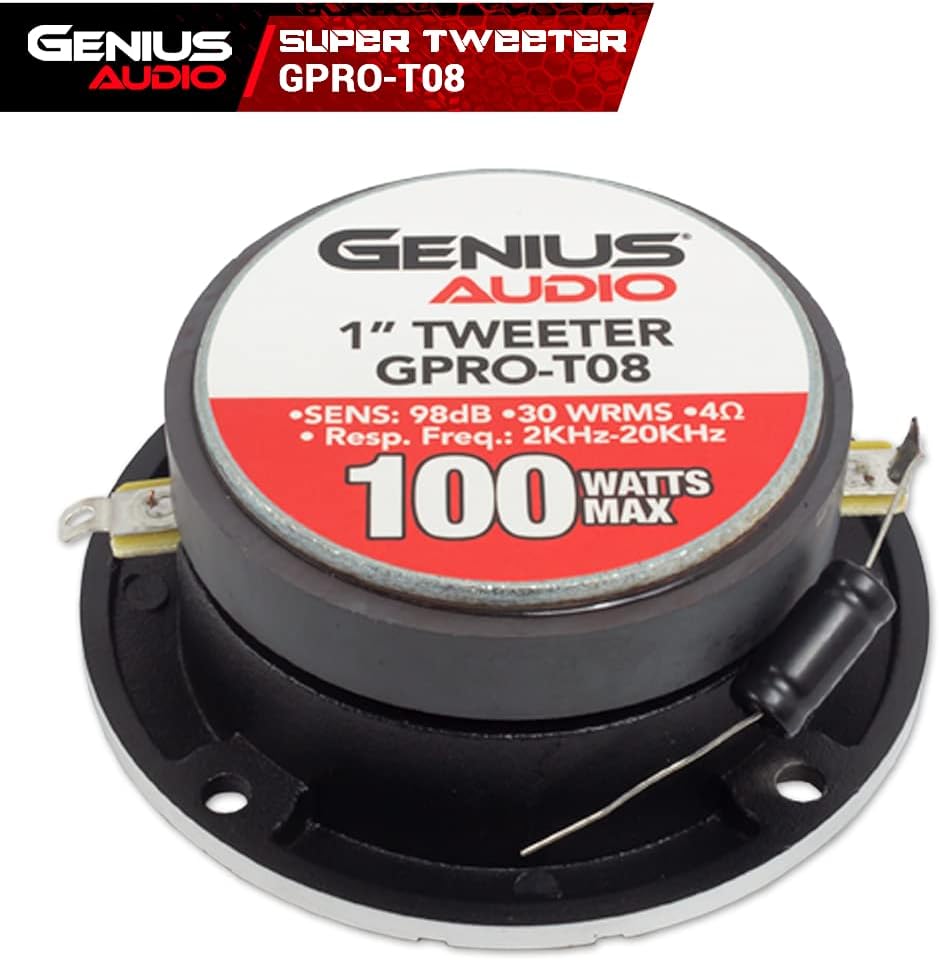

Kuva: Takaosa view of the tweeter showing printed specifications.
| Erittely | Arvo |
|---|---|
| Mallin nimi | GPRO-T08 |
| Kaiuttimen tyyppi | Diskantti |
| Kaiuttimen koko | 1 tuumaa |
| RMS-teho | 30 wattia |
| Suurin lähtöteho | 100 wattia |
| Impedanssi | 4 ohmia |
| Taajuusvaste | 2 kHz - 20 kHz |
| Herkkyys | 98 dB |
| Kalvomateriaali | Alumiini |
| Magneetti tyyppi | Ferriitti Y25 |
| Äänikela | 1" CCAW |
| Tuotteen mitat | 8.86 x 4.33 x 2.05 tuumaa |
| Tuotteen paino | 2.4 kiloa (parille) |
| Kohteiden määrä | 2 (kaiuttimet) |
| Mukana olevat komponentit | Car Speakers - Tweeters |
Takuutiedot
Genius Audio GPRO-T08 Super Tweeter Speakers come with a limited warranty. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for any warranty claims. The warranty typically covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from improper installation, abuse, accidents, modifications, or unauthorized repairs.
For detailed warranty terms and conditions, please refer to the documentation provided with your purchase or contact Genius Audio customer support.
Asiakastuki
If you require further assistance, have questions not covered in this manual, or need to report a problem, please contact Genius Audio customer support or your authorized retailer. When contacting support, please have your product model number (GPRO-T08) and proof of purchase readily available.
