1. Tuote ohiview
The Alarm.com ADC-V723 is a high-definition 1080p outdoor Wi-Fi camera designed to provide reliable surveillance for your property. Featuring High Dynamic Range (HDR) and powerful Video Analytics, it can detect and alert you to people, vehicles, and animals. Its robust design ensures performance in various lighting conditions and environments. This manual provides comprehensive instructions for installation, operation, and maintenance.
Kuva: Edessä view of the Alarm.com ADC-V723 Outdoor Wi-Fi Camera, showing its compact, bullet-style design and lens.
2. Turvallisuustiedot
- Ensure the camera is installed in a location that complies with local building codes and regulations.
- Käytä ainoastaan kameran mukana toimitettua virtalähdettä.
- Älä altista kameraa äärimmäisille lämpötiloille sen käyttöalueen ulkopuolella.
- Avoid placing the camera near sources of strong electromagnetic interference.
- Katkaise virta ennen puhdistusta tai huoltotoimenpiteitä.
3. Pakkauksen sisältö
Varmista, että pakkauksessasi on kaikki tarvittavat osat:
- Alarm.com ADC-V723 Outdoor Wi-Fi Camera
- Asennuslevy
- Kiinnitysruuvit ja seinäankkurit
- Virtalähde
- Asennusopas (tämä asiakirja)
4. Asennus ja asennus
4.1 Sijainnin valitseminen
Valitse ulkotila, joka tarjoaa halutun viewing angle and is within range of your Wi-Fi network. The camera is designed for outdoor use and is IP67 rated for weather resistance. Consider areas with good lighting or where the camera's night vision capabilities can be maximized.
4.2 Kameran asennus
- Secure the mounting plate to the desired surface using the provided screws and wall anchors. Ensure the plate is level.
- Attach the camera to the mounting plate by aligning the camera with the plate and twisting until it locks securely.
- Adjust the camera's angle to achieve the optimal field of view.

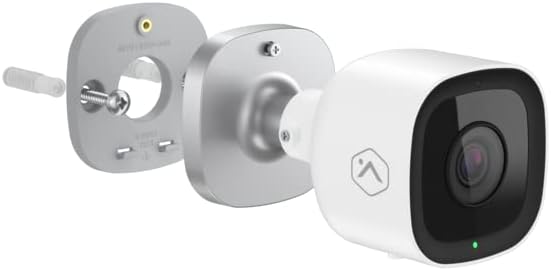

Kuva: Räjähtänyt view showing the Alarm.com ADC-V723 camera, its mounting plate, and a screw with wall anchor, illustrating the assembly process.
4.3 Powering On and Connecting to Wi-Fi
- Connect the power adapter to the camera and plug it into a suitable outdoor power outlet.
- Wait for the camera's LED indicator to show a specific status (refer to the LED status guide in Section 5.2).
- Download the Alarm.com mobile application from your device's app store.
- Follow the in-app instructions to add the ADC-V723 camera to your Alarm.com system and connect it to your Wi-Fi network. This typically involves scanning a QR code on the camera or entering its MAC address.
5. Kameran käyttö
5.1 Livenä View ja Tallennus
Access live video feeds and recorded clips through the Alarm.com mobile app or web portal. You can view reaaliaikainen footage, aloita manuaaliset tallennukset ja uudelleenview event-triggered clips.
5.2 LED -tilan ilmaisinta
The camera features an LED indicator that communicates its current status:
- Tasainen vihreä: Connected to Wi-Fi and operating normally.
- Vilkkuva vihreä: Attempting to connect to Wi-Fi.
- Tasainen punainen: Not connected to Wi-Fi or an error has occurred.
- Vilkkuva punainen: Firmware update in progress or factory reset.
5.3 Video Analytics and Alerts
The ADC-V723 supports advanced Video Analytics. Configure detection zones and rules within the Alarm.com app to receive specific alerts for people, vehicles, or animals entering designated areas. Alerts can be customized to send notifications to your mobile device.
5.4 Yönäkö ja HDR
The camera is equipped with infrared night vision, allowing clear video capture up to 40 feet in low-light conditions. High Dynamic Range (HDR) technology enhances video quality by balancing bright and dark areas, providing clearer images in challenging lighting environments.
6. Huolto
- Puhdista kameran linssi säännöllisesti pehmeällä,amp liinalla selkeän kuvanlaadun varmistamiseksi. Älä käytä voimakkaita kemikaaleja.
- Periodically check the mounting hardware to ensure the camera remains securely fastened.
- Ensure the power cable is free from damage and properly secured.
- Keep the camera's firmware updated through the Alarm.com app to ensure optimal performance and access to new features.
7. Vianmääritys
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Kamera ei käynnisty | Ei virtaa, viallinen adapteri, löysä liitos. | Check power outlet, ensure connections are secure, try a different outlet. |
| Ei voi muodostaa yhteyttä Wi-Fi-verkkoon | Incorrect Wi-Fi password, camera too far from router, network interference. | Verify Wi-Fi password, move camera closer to router, reduce interference, restart router. |
| Huono videon laatu | Likainen linssi, pieni kaistanleveys, huono valaistus. | Clean lens, check internet speed, ensure adequate lighting or rely on night vision. |
| Ei liikehälytyksiä | Incorrect Video Analytics settings, notifications disabled. | Review and adjust Video Analytics rules in the app, enable notifications for the camera. |
8. Tekniset tiedot
| Ominaisuus | Yksityiskohta |
|---|---|
| Mallinumero | ADC-V723x |
| Videon sieppaustarkkuus | 1080p (1920x1080) |
| Yhteydet | Wi-Fi |
| Virtalähde | Johdollinen sähkö |
| Sisä-/ulkokäyttö | Ulkona |
| Viewkulma | 167 astetta |
| Yönäköalue | 40 jalkaa |
| Materiaali | Metalli |
| Mitat (P x L x K) | 2.5 x 2.5 x 4.5 tuumaa |
| Tuotteen paino | 1.32 kiloa |
| Kansainvälinen turva-arviointi | IP67 |
| Erikoisominaisuus | Motion Sensor, HDR |
9. Takuu ja tuki
For warranty information and technical support, please contact your Alarm.com service provider or visit the official Alarm.com webÄlä yritä korjata laitetta itse, sillä se voi mitätöidä takuun.
For additional resources and FAQs, please refer to the Alarm.com support portal.
