Whirlpool WP67003753 OEM SxS Refrigerator Water Inlet Valve Instruction Manual

Tuote loppuview

The Whirlpool WP67003753 OEM SxS Refrigerator Water Inlet Valve is a genuine replacement part designed to control the flow of water into your refrigerator's water dispenser and ice maker. This valve ensures proper water supply for these functions.

This is an Original Equipment Manufacturer (OEM) part, meaning it is designed and manufactured by Whirlpool to meet the exact specifications and quality standards of your appliance.

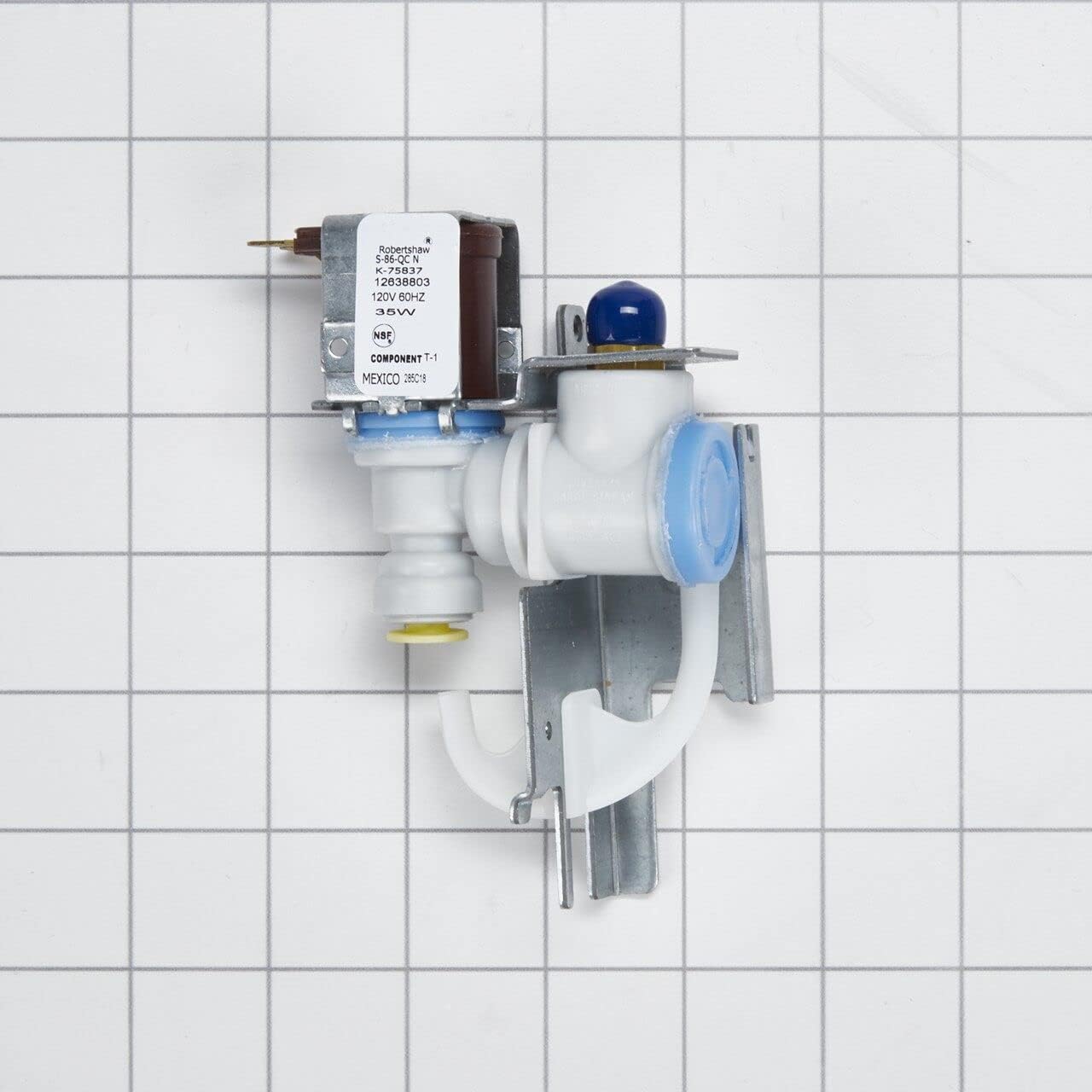

Image: Whirlpool WP67003753 OEM SxS Refrigerator Water Inlet Valve, front view.

Turvallisuustiedot

WARNING: Before attempting any repair or installation, always prioritize safety.

• Katkaise virta: Unplug the appliance from the electrical outlet or turn off the house circuit breaker for the appliance.
• Sulje vedensyöttö: Close the main water supply valve to the refrigerator.
• Käytä suojavarusteita: Käytä asianmukaisia ​​henkilökohtaisia ​​suojavarusteita, kuten käsineitä ja suojalaseja.
• Ammattimainen apu: Jos olet epävarma jostakin vaiheesta, ota yhteyttä pätevään kodinkoneasentajaan.
• Tarvittavat työkalut: Basic hand tools such as a multiscrewdriver are typically required. Partial dismantling of the appliance may be necessary.

Mitä sisältyy

The package for the WP67003753 water inlet valve typically includes the following components:

• New Water Inlet Valve (WP67003753)
• Asennusohjeet
• ¼" Tubing
• Plastic ¼" Coupler

Kuva: Sivu view of the Whirlpool WP67003753 water inlet valve, showing tubing connections.

Yhteensopivuus

This water inlet valve (WP67003753) is compatible with various Whirlpool refrigerator models. It also replaces several other part numbers:

• Compatible Whirlpool Models: MFF2558VEM, GX5FHDXVY, EB9SHKXVQ, MFF2258VEB, MFF2258VEW
• Korvaa osanumerot: 8208237, 12638801, 12638803, 12002299, 67001241, 8171101, 67003753

Always verify compatibility with your specific appliance model before purchasing ja minkä tahansa varaosan asentaminen.

Asennusohjeet

This section provides general guidance for installing the water inlet valve. Refer to the detailed instructions included with your part for model-specific steps.

1. Valmistele laite:
   • Ensure the refrigerator is unplugged or its circuit breaker is off.
   • Sulje jääkaapin vedensyöttö.
   • Move the refrigerator away from the wall to access the rear panel.
2. Access the Old Valve:
   • Remove the rear access panel of the refrigerator, typically secured with screws.
   • Locate the existing water inlet valve.
3. Irrota vanha venttiili:
   • Carefully disconnect the electrical wire connections from the old valve. Note their positions for reattachment.
   • Disconnect the water lines. The new valve features a "push to lock" fitting, which means you will need to remove any old-style compression fittings surrounding the water line and trim the tubing for a clean connection.
   • Remove the mounting screws or clips securing the old valve.
4. Asenna uusi venttiili:
   • Position the new WP67003753 valve and secure it with the mounting screws or clips.
   • Connect the water lines to the new valve's "push to lock" fittings. Ensure the tubing is fully inserted and locked into place.
   • Connect the electrical wires to the back of the new valve.
5. Testaa ja kokoa uudelleen:
   • Turn on the water supply to the refrigerator and check for leaks around the new valve and connections.
   • Kytke jääkaappi takaisin pistorasiaan tai kytke sulake päälle.
   • Test the water dispenser and ice maker to ensure proper function.
   • Once confirmed, reattach the rear access panel.

Kuva: Yläosa view of the water inlet valve, showing the electrical connections and water line ports.

Toiminta

The water inlet valve operates automatically to supply water to your refrigerator's dispenser and ice maker as needed. Once installed correctly, no manual operation of the valve itself is required.

• When the water dispenser lever is pressed, the valve opens to allow water flow.
• When the ice maker calls for water, the valve opens to fill the ice mold.

Huolto

The Whirlpool WP67003753 water inlet valve is designed for durability and reliable performance. Regular maintenance of the valve itself is generally not required. However, ensuring the overall water system of your refrigerator is well-maintained can prolong the life of the valve and prevent issues.

• Vedensuodattimen vaihto: Regularly replace your refrigerator's water filter according to the manufacturer's recommendations to prevent sediment buildup that could affect the valve.
• Inspect Water Lines: Periodically check the water lines connected to the valve for any signs of kinks, leaks, or damage.
• Clean Rear Area: Keep the area behind the refrigerator clean and free of dust and debris to ensure proper ventilation and access to components.

Vianetsintä

If you experience issues with your refrigerator's water dispenser or ice maker, the water inlet valve may be a contributing factor. Here are common symptoms and potential solutions:

If water isn't entering the ice maker and dispenser, and basic checks don't resolve the issue, replacing the water inlet valve (WP67003753) may alleviate the problem.

Tekniset tiedot

Takuutiedot

The Whirlpool WP67003753 OEM SxS Refrigerator Water Inlet Valve comes with a yhden vuoden valmistajan takuu. Tämä takuu kattaa materiaali- ja valmistusvirheet normaalikäytössä.

For specific warranty claims or details, please refer to the warranty documentation included with your product or contact Whirlpool customer support.

Support and Genuine Parts

For further assistance, technical support, or to purchase additional genuine Whirlpool parts and accessories, please visit the official Whirlpool websivustolla tai ota yhteyttä heidän asiakaspalveluunsa.

Using genuine OEM parts ensures optimal performance and longevity of your appliance, as they are specifically designed and tested to meet Whirlpool's engineering standards.
