Johdanto
The ProForm 235 CSX Recumbent Bike is designed to provide an effective low-impact cardiovascular workout in a comfortable home environment. This manual provides essential information for the safe assembly, operation, and maintenance of your exercise bike. It features an inertia-enhanced flywheel for a smooth pedal stroke, 18 resistance levels, and EKG grip pulse sensors for heart rate monitoring. Please read this manual thoroughly before using the product.
Turvallisuustiedot
VAROITUS: To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the exercise bike. ProForm assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
- Keskustele lääkärisi kanssa ennen minkään harjoitusohjelman aloittamista.
- Pidä lapset ja lemmikit aina poissa kuntopyörän läheltä.
- Aseta kuntopyörä tasaiselle alustalle vähintään 0.6 m (2 jalkaa) tilaa sen ympärillä.
- Inspect the exercise bike for worn or loose parts before each use. Tighten or replace any worn parts immediately.
- Käytä asianmukaisia liikuntavaatteita ja urheilukenkiä.
- The EKG grip pulse sensor is not a medical device. Accuracy may vary.
- Käyttäjän enimmäispaino: 125 kg.
Kokoamisohjeet
Detailed assembly instructions are included with your product packaging. Please refer to the separate assembly guide for step-by-step instructions and diagrams. Ensure all parts are present and undamaged before beginning assembly. Two people are recommended for assembly.
Yleiskokouksen vinkkejä:
- Pura kaikki osat pakkauksesta ja aseta ne avoimelle paikalle.
- Use the provided tools or your own appropriate tools for tightening fasteners.
- Do not overtighten bolts until instructed to do so.
- Varmista, että kaikki liitännät ovat kunnossa ennen käyttöä.
Ominaisuudet
- Inertia-Enhanced Flywheel: Provides a smooth and consistent pedaling experience.
- Large LCD Window Display: Tracks essential workout metrics such as distance, cadence, and estimated calorie burn.
- EKG Grip Pulse Sensor: Allows for monitoring of estimated heart rate during workouts. Note: Not a medical device, accuracy may vary.
- 18 vastustasoa: Offers a wide range of intensity options for varied workouts. Features SMR Silent Magnetic Resistance for quiet operation.
- Oversized Adjustable Seat: Designed for comfort and lumbar support, allowing users to find an optimal seating position.
- Vesipullon haltija: Conveniently located for hydration during exercise.
- Kuljetuspyörät: Facilitates easy movement and storage of the bike.

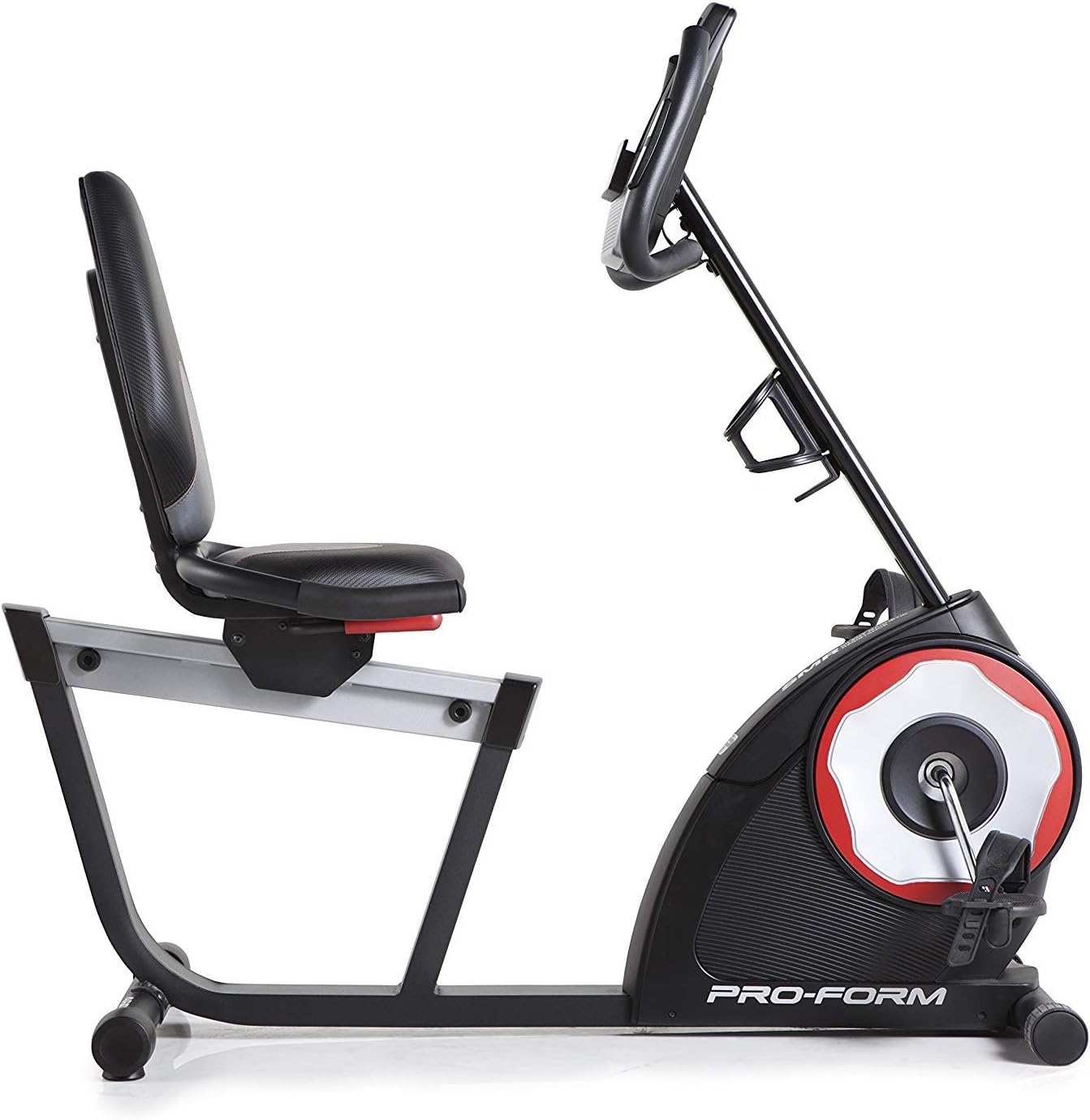

Kuva: Sivu view of the ProForm 235 CSX Recumbent Bike, showcasing its overall design and recumbent seating position.
Käyttöohjeet
1. Powering On the Console
The console can be powered by either an AC adapter (sold separately) or four D batteries. To turn on the console, simply begin pedaling or press any button. The display will activate and show your workout data.
Image: Close-up of the ProForm 235 CSX console, showing the LCD display and control buttons.
2. Istuimen säätö
To adjust the seat position, locate the adjustment lever beneath the seat. Pull the lever to release the seat, then slide the seat forward or backward to your desired position. Release the lever to lock the seat in place. Ensure the seat is securely locked before beginning your workout.

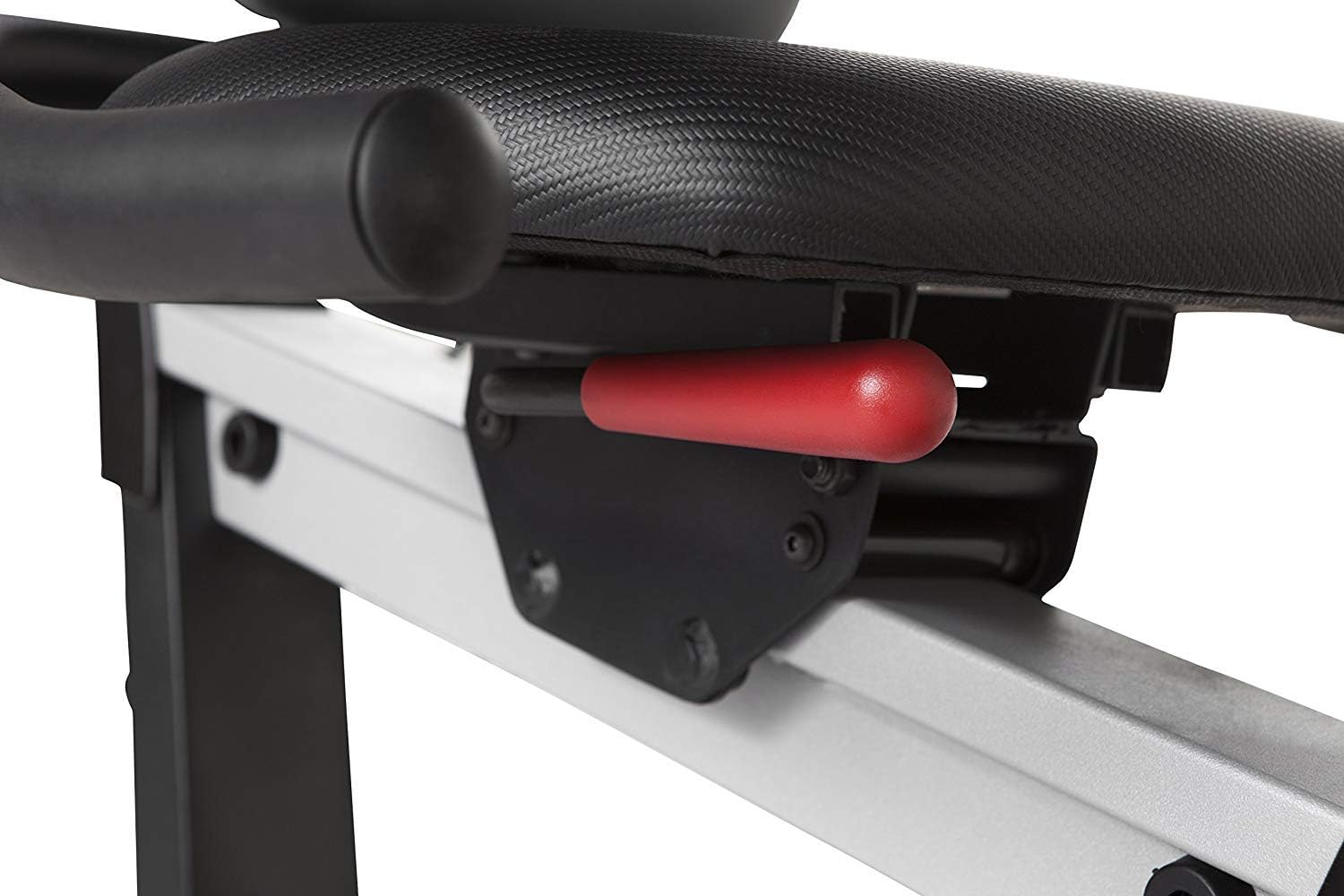

Image: Detail of the red seat adjustment lever located under the seat of the recumbent bike.
3. Vastuksen säätäminen
The bike offers 18 levels of Silent Magnetic Resistance (SMR). Use the + ja - buttons on the console to increase or decrease the resistance level. Higher numbers indicate greater resistance.

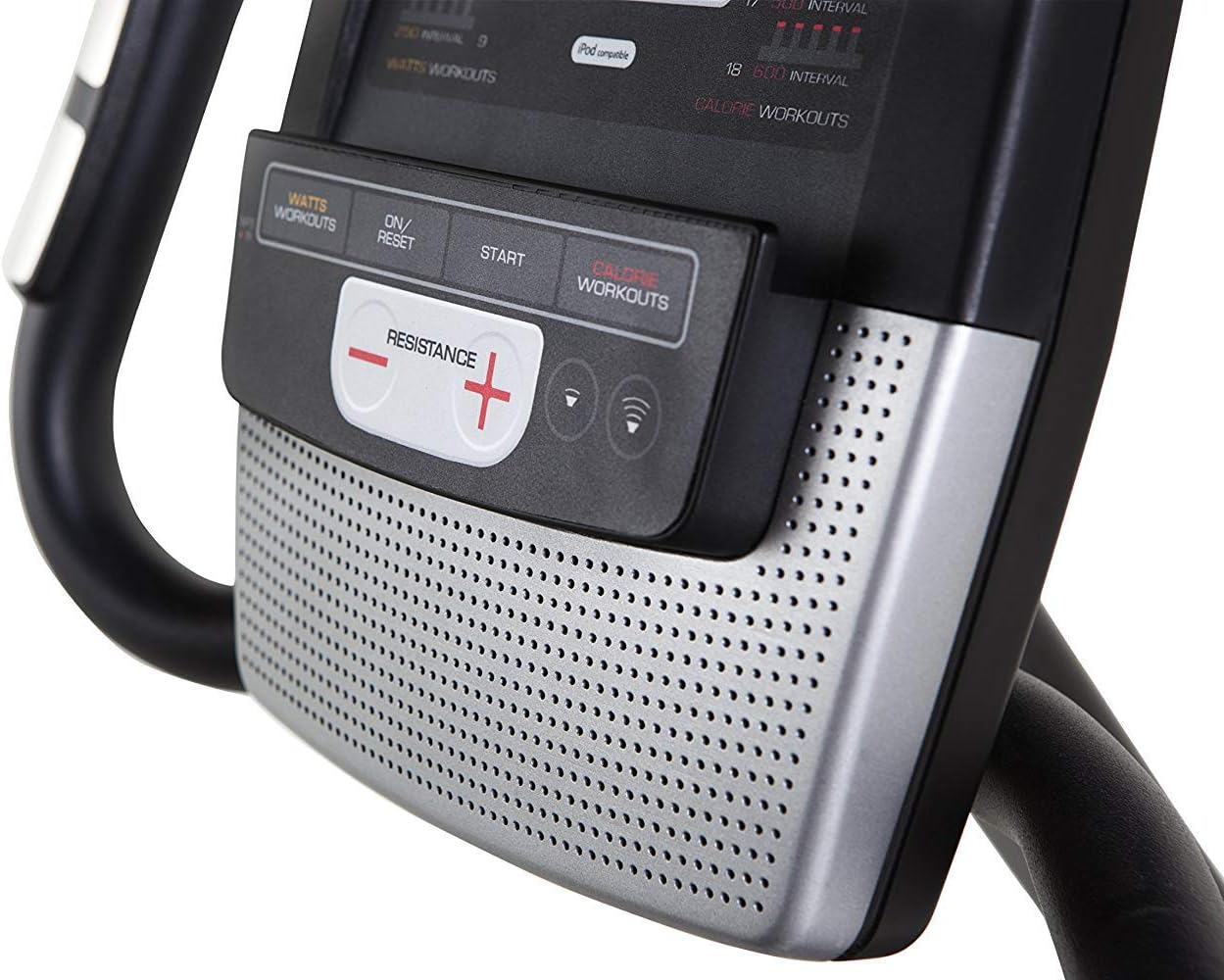

Image: Close-up of the console showing the resistance adjustment buttons and the water bottle holder.
4. Sykkeen seuranta
To monitor your heart rate, firmly grasp the EKG grip pulse sensors on the handlebars. Hold the grips for approximately 15-20 seconds for an accurate reading to appear on the console display. Ensure your hands are clean and dry for optimal contact.
Image: Detail of the EKG grip pulse sensors integrated into the handlebars of the ProForm 235 CSX Recumbent Bike.
5. Using the Water Bottle Holder
A water bottle holder is conveniently located on the frame of the bike. Place your water bottle in the holder to stay hydrated during your workout.
Image: Close-up of the water bottle holder on the frame of the ProForm 235 CSX Recumbent Bike.
Huolto
Regular maintenance is crucial for optimal performance and longevity of your ProForm 235 CSX Recumbent Bike.
- Puhdistus: Pyyhi pyörä jokaisen käyttökerran jälkeen mainoksellaamp liinalla hien ja pölyn poistamiseen. Vältä hankaavia puhdistusaineita.
- Tarkastus: Periodically check all nuts and bolts for tightness. Tighten as necessary.
- Voitelu: No lubrication is required for the internal magnetic resistance system.
- Varastointi: Store the bike in a dry, clean environment away from extreme temperatures and direct sunlight. Use the transport wheels to move the bike carefully.
Vianetsintä
| Ongelma | Ratkaisu |
|---|---|
| Konsoli ei käynnisty. | Ensure batteries are correctly installed and not depleted, or that the AC adapter is properly connected (if used). |
| Vastustus tuntuu epäjohdonmukaiselta tai liian helpolta/vaikealta. | Verify that the resistance adjustment buttons are functioning. Check for any obstructions around the flywheel. |
| Heart rate reading is inaccurate or not displayed. | Ensure hands are firmly grasping both EKG sensors. Hands should be clean and dry. Avoid excessive movement during measurement. |
| Pyörästä kuuluu epätavallisia ääniä. | Check all visible nuts and bolts for tightness. Ensure the bike is on a level surface. If noise persists, contact customer support. |
Tekniset tiedot
- Merkki: ProForm
- Mallin nimi: 235 CSX
- Vastusmekanismi: Magneettinen (SMR hiljainen magneettinen vastus)
- Resistanssitasojen lukumäärä: 18
- Enimmäispainon suositus: 275 puntaa (125 kg)
- Tuotteen mitat (S x L x K): 40" x 21" x 61" (101.6 cm x 53.34 cm x 154.94 cm)
- Tuotteen paino: 102 puntaa (46.27 kg)
- Virtalähde: Electric (AC adapter, sold separately) or 4 D batteries
- Erikoisominaisuudet: Adjustable Seat, Grip Pulse Sensor, Water Bottle Holder, Transport Wheels
- Suositellut käyttötavat: Indoor Cardio Training
- Valmistaja: iFIT Health & Fitness
- Osanumero: PFEX52715
- UPC: 043619976816

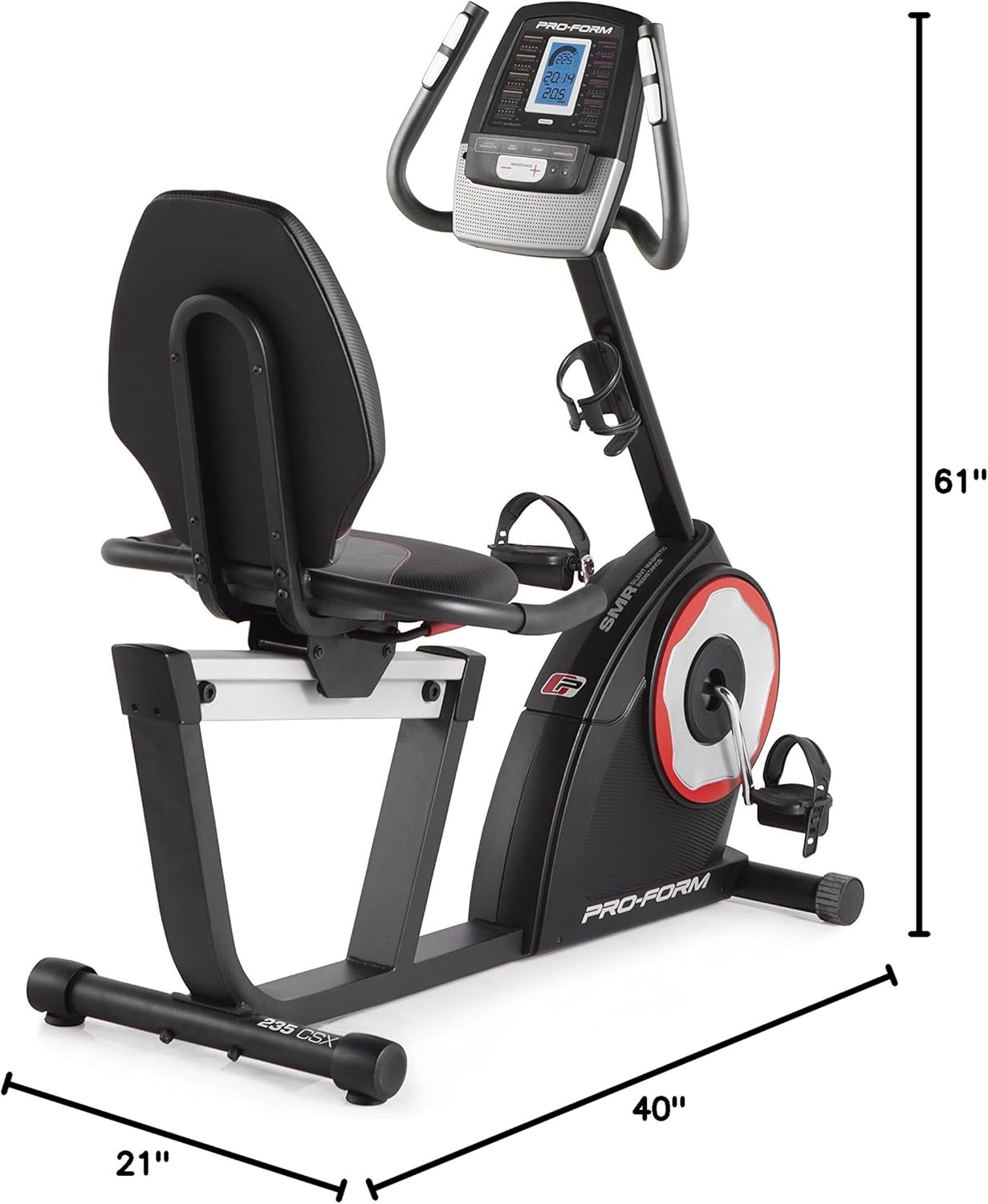

Image: Diagram showing the dimensions of the ProForm 235 CSX Recumbent Bike: 61 inches high, 21 inches wide, and 40 inches long.
Takuu ja tuki
For warranty information, please refer to the warranty card included with your product or visit the official ProForm website. If you encounter any issues or require assistance, please contact ProForm customer support. Contact details can typically be found on the product packaging or the official brand websivusto.
ProForm Official Websivusto: www.proform.com
