Johdanto

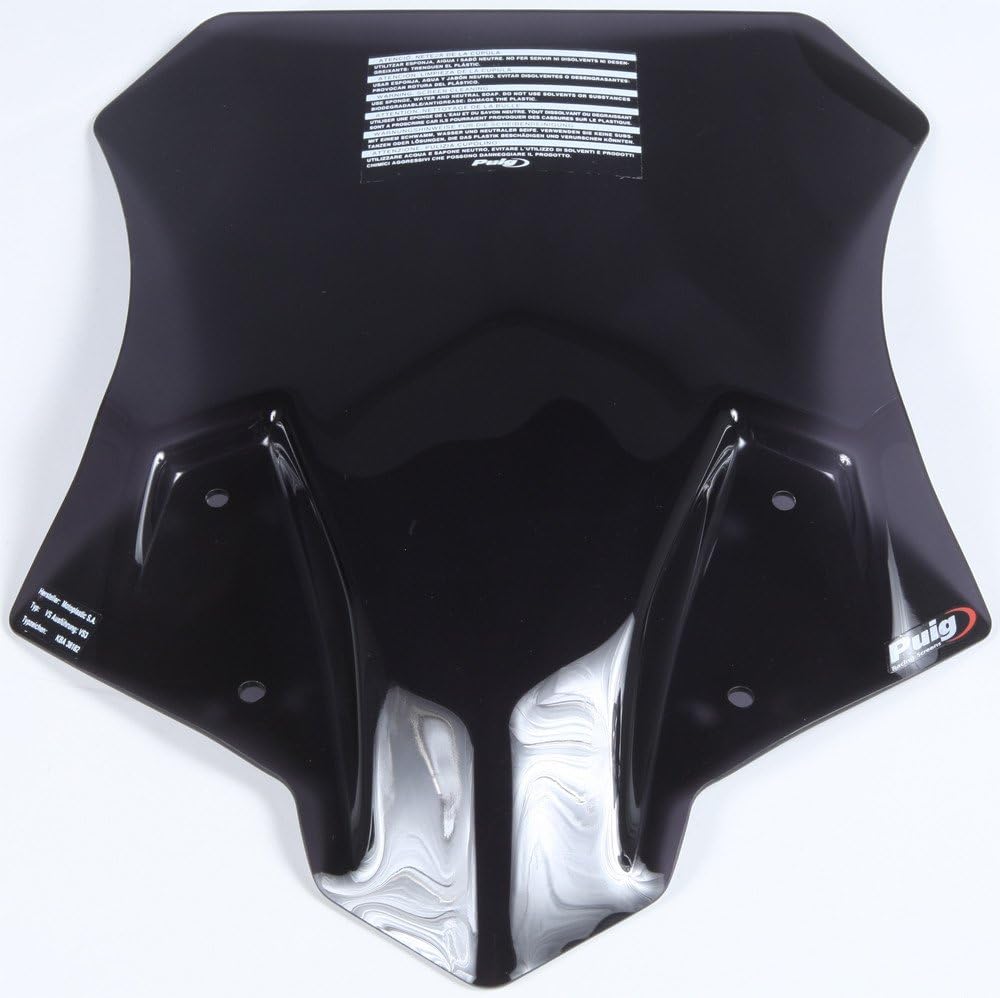

This manual provides essential instructions for the proper installation, operation, and maintenance of your Puig Racing Screen, Model 7645F. This product is designed to enhance the aerodynamic performance and rider comfort of your 2015-2017 Yamaha MT-09 Tracer motorcycle. Please read these instructions carefully before proceeding with installation or use.
Asennus ja asennus
The Puig Racing Screen is designed as a direct replacement for the original equipment (OE) windscreen on compatible Yamaha MT-09 Tracer models. Proper installation is crucial for safety and performance.
- Valmistelu: Ensure your motorcycle is parked on a stable, level surface. Turn off the engine and remove the ignition key. Gather necessary tools, which typically include screwdrivers and Allen wrenches.
- Remove Original Windscreen: Carefully locate and remove the mounting screws or bolts securing the existing windscreen to your motorcycle. Store these fasteners in a safe place as they may be reused. Gently detach the old windscreen.
- Inspect New Screen: Before installation, inspect your new Puig Racing Screen for any signs of damage or manufacturing defects.
- Sijoita uusi näyttö: Align the mounting holes of the Puig Racing Screen with the corresponding attachment points on your motorcycle.
- Suojattu näyttö: Using the original fasteners or new ones provided (if applicable), carefully attach the Puig Racing Screen. Do not overtighten the screws or bolts, as this can crack the acrylic material. Tighten them just enough to secure the screen firmly without causing distortion. Refer to your motorcycle's service manual for specific torque specifications if available.
- Lopputarkastus: Once installed, gently push and pull on the screen to ensure it is securely mounted and does not wobble.
Käyttöön liittyviä näkökohtia
Once installed, the Puig Racing Screen functions passively to redirect airflow over and around the rider. Its design, developed through wind tunnel testing, aims to diminish the air effect on the rider's helmet and provide additional wind protection, contributing to a more comfortable riding experience, especially at higher speeds.
- The 3mm thickness of the acrylic helps absorb vibrations.
- The screen's shape is designed to optimize aerodynamics.
Huolto
Proper care will extend the life and maintain the clarity of your Puig Racing Screen.
- Puhdistus: Use a soft sponge, clean water, and a neutral soap solution to clean the screen. Gently wipe the surface to remove dirt and debris. Rinse thoroughly with clean water.
- Vältä kovia kemikaaleja: Do not use solvents, degreasers, abrasive cleaners, or any petroleum-based products. These chemicals can cause irreversible damage, cracking, or hazing to the acrylic material.
- Kuivaus: Dry the screen with a soft, clean microfiber cloth to prevent water spots and scratches. Avoid wiping when dry, as this can scratch the surface.
- Tarkastus: Periodically inspect the screen for any signs of cracks, deep scratches, or loose mounting hardware. Address any issues promptly to ensure safety.
Vianetsintä
| Antaa | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Liiallinen tärinä tai kolina | Loose mounting screws/bolts. Incorrect installation. | Check and gently tighten all mounting hardware. Ensure the screen is seated correctly. |
| Reduced visibility due to hazing/scratches | Improper cleaning agents or abrasive wiping. | Follow recommended cleaning procedures. Minor scratches may be polished with specialized acrylic polish (use with caution). Severe damage may require replacement. |
| Screen appears distorted | Overtightened mounting hardware. | Loosen mounting hardware slightly and retighten to a snug, but not excessive, level. |
Tekniset tiedot
- Tuotteen malli: 7645F
- Yhteensopivuus: 2015-2017 Yamaha MT-09 Tracer (also known as FJ-09)
- Materiaali: Iskunkestävä akryyli
- Paksuus: 3 mm
- Väri: Tumma Savu
- Mitat (likimääräiset): 11.9 x 15.6 x 2.2 tuumaa (30.2 x 39.6 x 5.6 cm)
- Tuotteen paino (arvio): 13.4 unssia (380 grammaa)
- Valmistaja: PUIG (Motoplastic S.A.)
Takuutiedot
Specific warranty terms for the Puig Racing Screen (Model 7645F) are provided by the manufacturer, PUIG. Please refer to the warranty documentation included with your purchase or contact the seller or manufacturer directly for detailed information regarding warranty coverage, duration, and claims procedures.
Tukea
For technical assistance, installation queries, or product support, please contact the retailer from whom you purchased this product. Alternatively, you may visit the official PUIG website for manufacturer support resources.
