Tekonsha 119178 Tail Light Converter Instruction Manual

1. Johdanto

The Tekonsha 119178 Tail Light Converter is designed to adapt a vehicle's separate turn and stop light system (3-wire system) to a standard trailer's combined taillight wiring system (2-wire system). This unit ensures proper synchronization of vehicle and trailer lighting functions, including tail lights, stop lights, and turn signals. It is compatible with both LED and incandescent bulbs on the vehicle and trailer sides and features integrated circuit protection for enhanced safety.

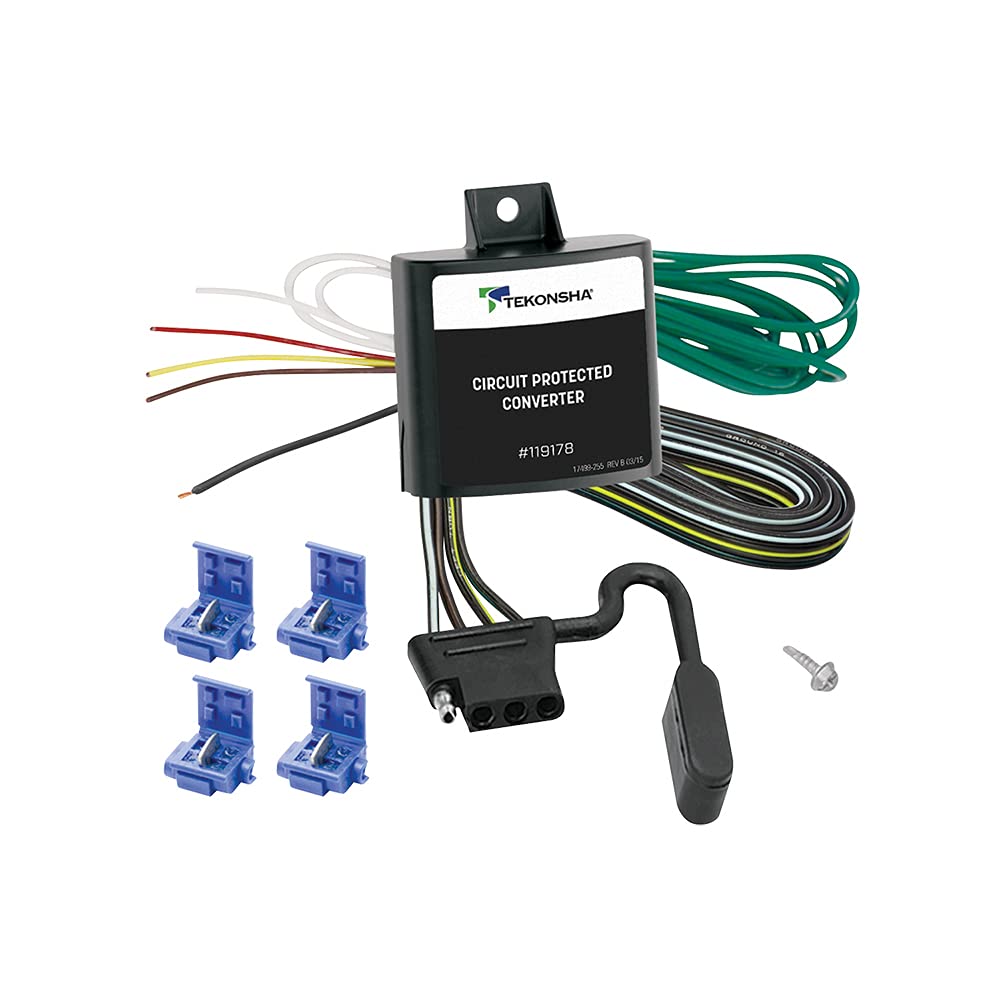

Image of the Tekonsha 119178 Tail Light Converter, a compact black unit with wiring harnesses.

2. Turvallisuustiedot

• Always disconnect the vehicle's battery before beginning any electrical installation to prevent electrical shock or damage to the vehicle's electrical system.
• Varmista, että kaikki johdot ovat kunnolla kiinni ja eristettyinä oikosulkujen välttämiseksi.
• Mount the converter in a dry, protected location away from excessive heat, moisture, and moving parts.
• Jos olet epävarma jostakin asennusprosessin osasta, ota yhteyttä pätevään autoasentajaan.
• Do not exceed the specified circuit capacities of the converter.

3. Pakkauksen sisältö

Varmista, että kaikki osat ovat mukana ennen asennuksen aloittamista:

• Tekonsha 119178 Tail Light Converter Unit
• 60-inch Car Side 4-Flat Vehicle Connector with Cover
• Wiring Harness with 16 Gauge Bonded Wire

4. Tuotteen ominaisuudet

• Universal Circuit Protected Design: Adapts 3-wire vehicle systems to 2-wire trailer systems.
• Laaja yhteensopivuus: Works with both LED and incandescent bulbs on the vehicle and trailer.
• Integrated Short Circuit Protection: Re-settable protection safeguards the tow vehicle from electrical shorts or incorrect wiring.
• Suuri kapasiteetti: 2.1 amp stop light/turn signal circuit capacity; 7.5 amp taillight circuit capacity.
• Kestävä rakenne: All solid-state components for reliable performance.
• Laajennettu kattavuus: Features a 60-inch long, car side 4-flat vehicle connector with cover and 16 gauge bonded wire.

5. Asennus ja asennus

Follow these steps for proper installation of the tail light converter:

1. Valmistelu: Gather necessary tools (wire strippers, crimpers, electrical tape, circuit tester, mounting hardware). Disconnect the vehicle's negative battery terminal.
2. Identify Vehicle Wires: Using a circuit tester, identify the following wires on your vehicle's taillight harness:
   • Tail Light (running lights)
   • Stop Light (brake lights)
   • Vasen suuntavilkku
   • Oikea suuntavilkku
   • Maadoitus
3. Connect Converter Input Wires: Splice the converter's input wires to the corresponding vehicle wires. Ensure secure connections using appropriate connectors or soldering, and insulate thoroughly with electrical tape or heat shrink tubing.
   • Muunnin Ruskea Wire → Vehicle Takavalo Lanka
   • Muunnin Punainen Wire → Vehicle Jarruvalo Lanka
   • Muunnin Keltainen Wire → Vehicle Vasen suuntavilkku Lanka
   • Muunnin Vihreä Wire → Vehicle Oikea suuntavilkku Lanka
   • Muunnin Valkoinen Wire → Vehicle Maadoitus (ensure a good chassis ground connection)
4. Mount Converter: Secure the converter unit in a dry, protected area of the vehicle, such as inside the trunk or under the rear bumper, using screws or zip ties. Ensure it is not exposed to direct water spray or excessive heat.
5. Yhdistä traileriin: Route the converter's 4-flat output connector to the rear of the vehicle where it can easily connect to the trailer's 4-flat plug. Use the included cover to protect the connector when not in use.
6. Testijärjestelmä: Reconnect the vehicle's battery. Connect a trailer or a trailer light tester to the 4-flat connector. Test all lighting functions: tail lights, brake lights, left turn signal, and right turn signal. Ensure all lights operate correctly and independently.

6. Käyttöohjeet

Once properly installed, the Tekonsha 119178 Tail Light Converter operates automatically. When the vehicle's lights are activated, the converter processes the signals and sends the correct output to the trailer's lighting system. No manual intervention is required during operation.

• Before each towing trip, ensure the 4-flat connector is securely plugged into the trailer and that all trailer lights are functioning correctly.
• The converter is designed to work with both LED and incandescent bulbs on both the vehicle and trailer, providing flexibility for various setups.

7. Huolto

Minimal maintenance is required for the Tekonsha 119178 Tail Light Converter:

• Säännöllinen tarkastus: Periodically inspect all wiring and connections for signs of wear, corrosion, or damage. Repair or replace any compromised components immediately.
• Puhtaat liitännät: Keep the 4-flat connector pins clean and free of dirt or debris. Use dielectric grease on the pins to prevent corrosion, especially in harsh environments.
• Turvallinen asennus: Ensure the converter unit remains securely mounted in its designated location.

8. Vianmääritys

If you encounter issues with your tail light converter, refer to the following troubleshooting guide:

9. Tekniset tiedot

• Malli: 119178
• Merkki: Tekonsha
• Stop Light/Turn Signal Circuit Capacity: 2.1 Amps per circuit
• Taillight Circuit Capacity: 7.5 Amps
• Voitage: 12 volttia
• Wattage: 26.2 wattia
• Tuotteen mitat: 22.56 x 10.11 x 4.78 cm (8.88 x 3.98 x 1.88 tuumaa)
• Tuotteen paino: 181 g (0.4 lbs)
• Vaijerin mittari: 16 gauge bonded wire
• Liittimen tyyppi: 4-flat vehicle connector with cover
• Suojaus: Integrated re-settable short circuit protection
• Polttimon yhteensopivuus: LED and/or Incandescent (vehicle and trailer)

10. Takuu ja tuki

The Tekonsha 119178 Tail Light Converter is backed by Tekonsha's 1 vuoden rajoitettu takuu. Tämä takuu kattaa materiaali- ja valmistusvirheet normaalikäytössä.

For warranty claims, technical assistance, or further support, please contact Tekonsha customer service through their official website or the retailer where the product was purchased. Please have your product model number and purchase information available when contacting support.
