1. Johdanto
Thank you for choosing the TECKNET 2.4G Wireless Mini QWERTY Keyboard X315. This ultra-thin, compact keyboard is designed for efficiency and comfort, featuring 2.4 GHz wireless technology for a stable connection and 12 multimedia shortcut keys for enhanced productivity. Its low-profile scissor-switch keys offer a quiet and responsive typing experience. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new keyboard.
Kuva: Edessä view of the TECKNET 2.4G Wireless Mini QWERTY Keyboard X315 in silver.
2. Mitä laatikossa on
- 1 x TECKNET 2.4G Wireless Mini QWERTY Keyboard
- 1 x Nano USB -vastaanotin
- 1 x Käyttöohje
3. Asennusopas
3.1 Akun asennus
- Locate the battery compartment cover on the back of the keyboard.
- Liu'uta kansi auki.
- Aseta kaksi AAA-paristoa (eivät sisälly toimitukseen) lokeroon varmistaen oikean napaisuuden (+/-).
- Sulje paristolokeron kansi kunnolla.

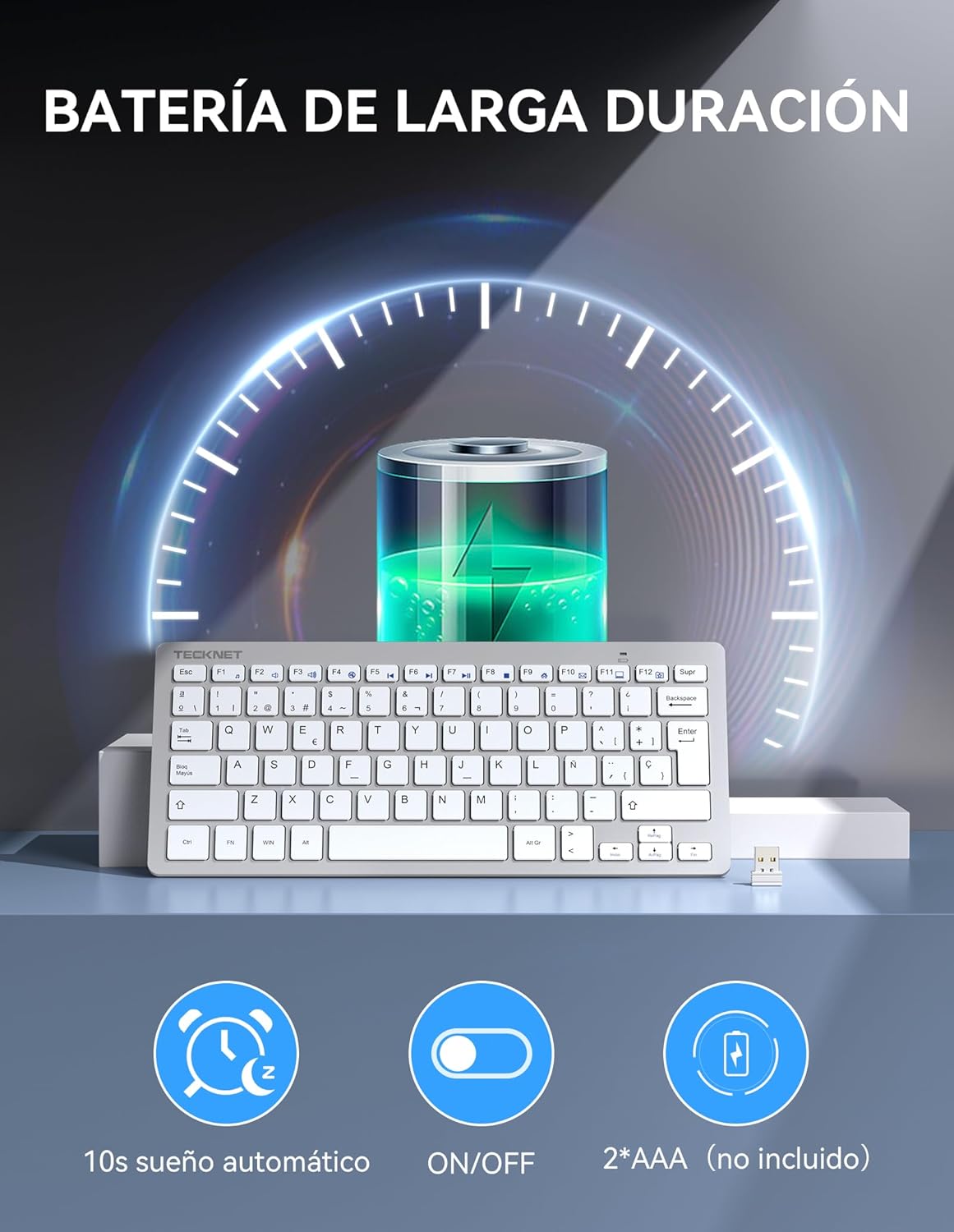

Image: Diagram showing battery installation (2*AAA) and power-saving features like auto-sleep and ON/OFF switch.
3.2 Vastaanottimen kytkeminen
- Remove the Nano USB receiver from its storage slot on the back of the keyboard.
- Plug the Nano USB receiver into an available USB port on your computer, laptop, or compatible device.
- The system will automatically detect and install the necessary drivers. This may take a few moments.
Image: Illustration of the 2.4G wireless connection, showing the Nano USB receiver plugged into a laptop and the keyboard operating wirelessly within a 10-meter range.
3.3 Virran kytkeminen päälle/pois
Locate the ON/OFF switch on the back of the keyboard. Slide it to the 'ON' position to power on the keyboard. Slide it to the 'OFF' position when not in use to conserve battery life.
4. Käyttöohjeet
4.1 Yleinen käyttö
Once connected, your keyboard is ready for use. The 2.4 GHz wireless technology provides a stable and reliable connection up to 10 meters (33 feet) without interference.
4.2 Multimedian pikanäppäimet
The keyboard features 12 multimedia shortcut keys. To activate these functions, press and hold the FN key, then press the corresponding F-key (F1-F12).
| Näppäinyhdistelmä | Toiminto |
|---|---|
| FN + F1 | Musiikkisoitin |
| FN + F2 | Äänenvoimakkuuden vähentäminen |
| FN + F3 | Äänenvoimakkuuden lisääminen |
| FN + F4 | Mykistä |
| FN + F5 | Edellinen kappale |
| FN + F6 | Seuraava kappale |
| FN + F7 | Toista/Tauko |
| FN + F8 | Stop |
| FN + F9 | Internet-selain |
| FN + F10 | Sähköposti |
| FN + F11 | Oma tietokone |
| FN + F12 | Suosikit |

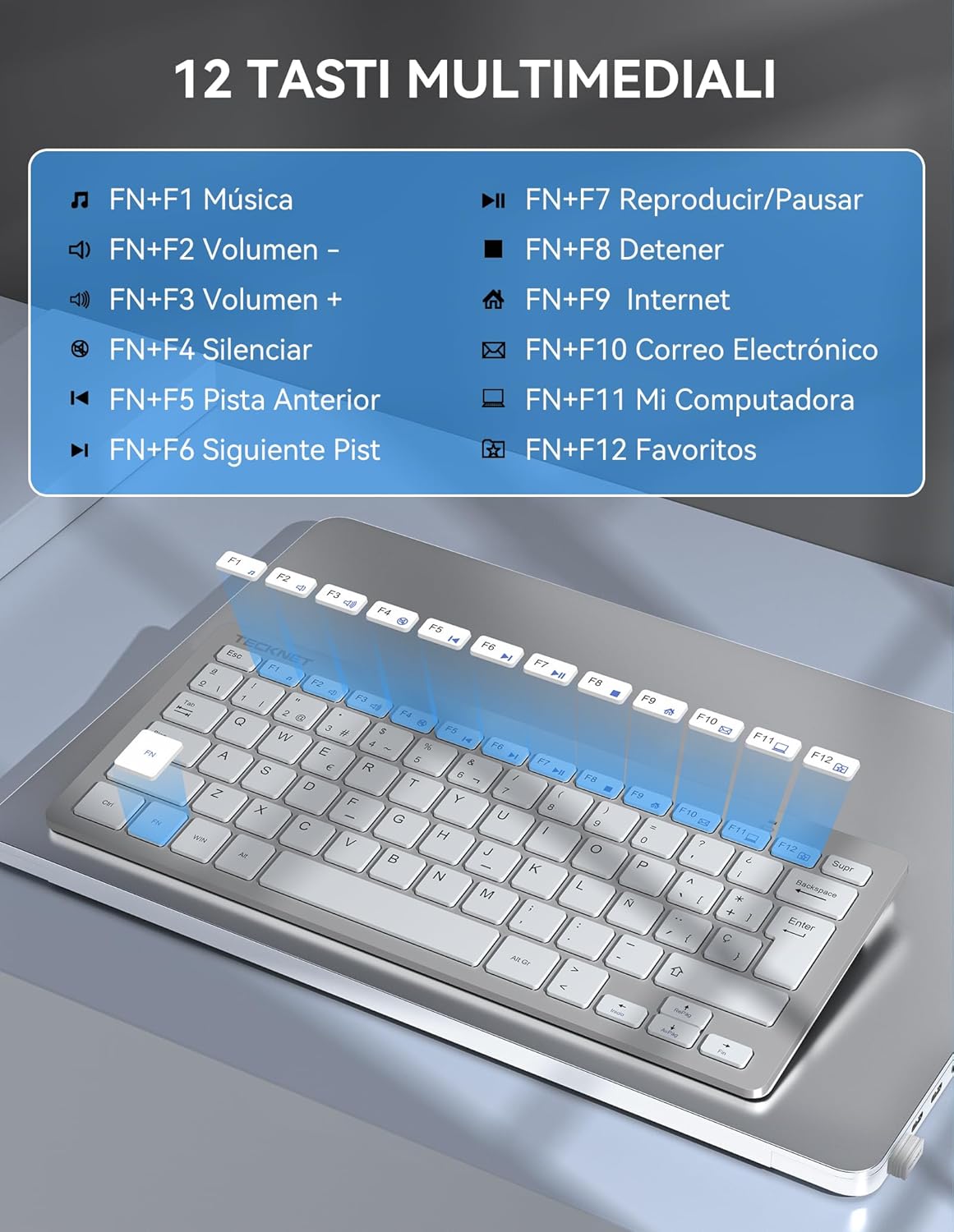

Image: Visual representation of the keyboard highlighting the FN key and multimedia functions (F1-F12).
4.3 Energiansäästötila
The keyboard features an automatic sleep function. If inactive for a period, it will enter sleep mode to conserve battery. Press any key to wake it up.
5. Huolto
5.1 Puhdistus
Puhdista näppäimistö pehmeällä, kuivalla liinalla. Pinttyneeseen likaan voi kostuttaa kevyesti.ampKostuta liina vedellä tai miedolla puhdistusliuoksella. Vältä voimakkaiden kemikaalien tai hankaavien materiaalien käyttöä.
5.2 Pariston vaihto
When the keyboard's performance degrades or it stops responding, replace the AAA batteries as described in Section 3.1.
5.3 Storing the Nano Receiver
When transporting or storing the keyboard, you can safely store the Nano USB receiver in its dedicated slot on the back of the keyboard to prevent loss.
Image: The keyboard shown inside a laptop sleeve, illustrating its slim profile (2cm thickness) and compact dimensions (29.2cm x 12.4cm) for portability.
6. Vianmääritys
6.1 Näppäimistö ei vastaa
- Ensure the keyboard is powered ON using the switch on the back.
- Tarkista, että paristot on asennettu oikein ja että niissä on riittävästi virtaa. Vaihda tarvittaessa.
- Verify that the Nano USB receiver is securely plugged into a working USB port on your device. Try a different USB port.
- Move the keyboard closer to the receiver to rule out range issues (maximum 10 meters).
- Käynnistä tietokone tai laite uudelleen.
6.2 Viive tai katkonainen yhteys
- Ensure there are no large metal objects or other wireless devices (like Wi-Fi routers, cordless phones) operating too close to the keyboard or receiver, as these can cause interference.
- Try plugging the receiver into a different USB port, preferably one that is not next to other USB devices.
7. Tekniset tiedot
| Ominaisuus | Yksityiskohta |
|---|---|
| Merkki | TECKNET |
| Mallinumero | X315 |
| Väri | Hopea |
| Yhteystekniikka | 2.4 GHz: n langaton |
| Wireless Range | Jopa 10 metriä (33 jalkaa) |
| Virtalähde | 2 x AAA paristot (ei mukana) |
| Näppäimistön asettelu | QWERTY |
| Avaimen tyyppi | Scissor-switch, Low-profile |
| Multimedia-näppäimet | 12 (FN + F1–F12) |
| Mitat (P x L x K) | 29.2 x 12.4 x 2 cm (11.5 x 4.9 x 0.8 tuumaa) |
| Paino | 296 grammaa (0.65 lbs) |
| Yhteensopivuus | Windows 11/10/8/7/XP/Vista, PC, Laptops, Desktops, Android Smart TVs |
| Erikoisominaisuudet | Automatic Sleep Mode, Nano Receiver Storage, Quiet Typing |

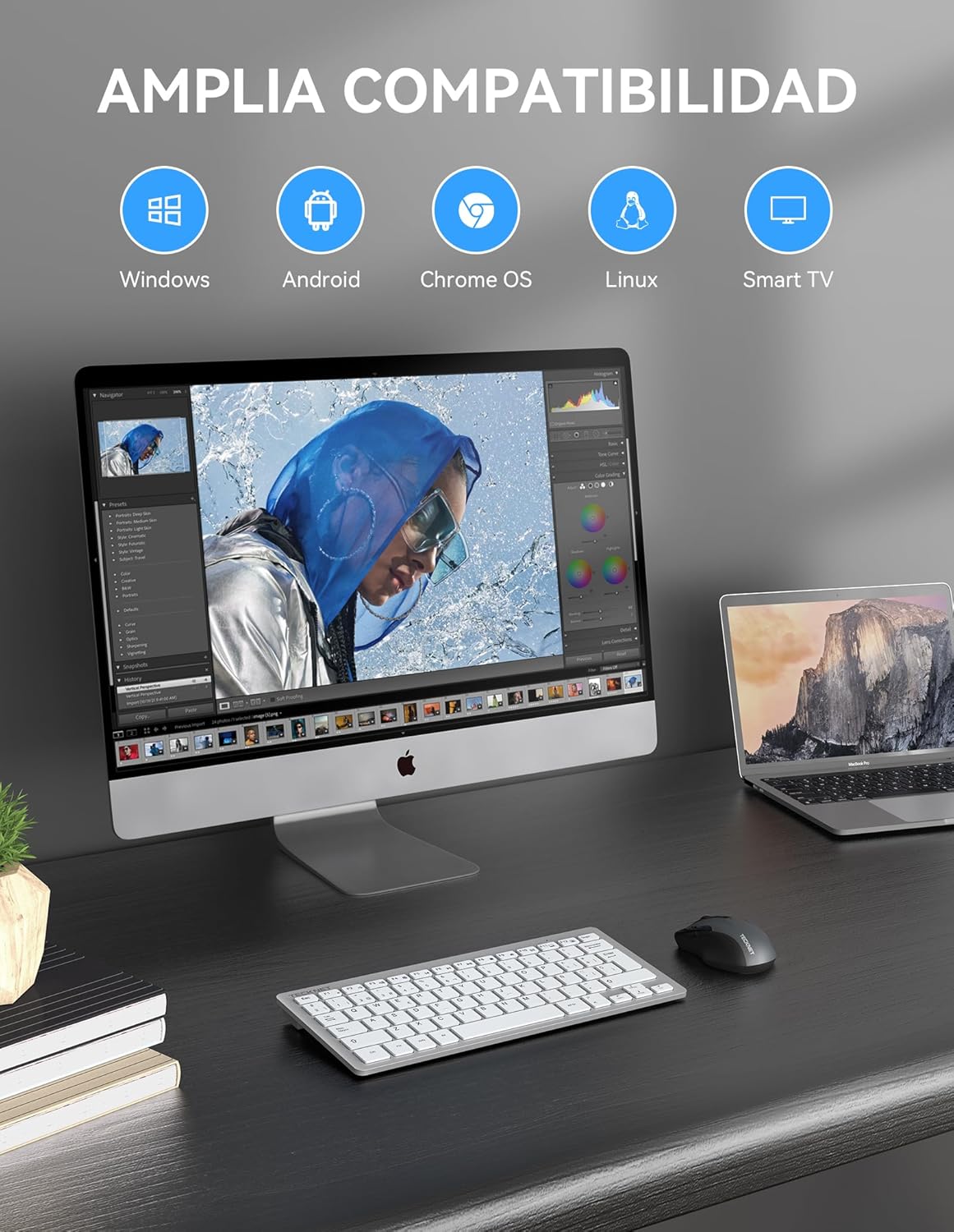

Image: The keyboard displayed with a desktop computer and a laptop, illustrating its wide compatibility with various operating systems and devices.
8. Takuu ja tuki
8.1 Takuutiedot
TECKNET provides a 3-year warranty for registered users only. Please refer to the TECKNET official website or your purchase documentation for details on how to register your product and claim warranty services.
8.2 Asiakastuki
If you encounter any issues or have questions regarding your TECKNET keyboard that are not covered in this manual, please contact TECKNET customer support. Contact information can typically be found on the TECKNET official websivustolla tai tuotepakkauksessa.
