1. Tuote ohiview
The Philips SFL2186 is a high-performance rechargeable LED flashlight designed for various outdoor and indoor activities. Its robust construction and versatile lighting modes make it suitable for camping, hiking, mountaineering, and general utility use. This manual provides essential information for safe and effective operation.
2. Tärkeimmät ominaisuudet
- Tehokas valaistus: Equipped with high-quality P8 LED lamps, delivering 600 lumens of brightness with a 6500K color temperature for natural light reproduction. The beam can reach up to 300 meters.
- Viisi valaistustilaa: Features High, Low, Strobe, SOS, and Continuous Dimming modes. The continuous dimming function allows for precise brightness adjustment by pressing and holding the power button.
- Kestävä rakenne: Crafted from 6063-grade hard-anodized aluminum alloy, providing high resistance to impacts and crushing. The body includes anti-slip stripes and a lanyard design for secure handling.
- USB-C ladattava: Integrated Type-C fast charging port for convenient and efficient power replenishment.
- Vedenkestävä ja pölynkestävä: Rated IP55 for protection against water splashes and dust ingress, ensuring reliable performance in various environments.
- Kannettava muotoilu: Compact and lightweight, making it easy to carry in a pocket or attach to gear for everyday use.
3. Tekniset tiedot
| Merkki | Philips |
| Mallinumero | SFL2186 |
| Valon lähde | P8 LED |
| Valovirta | 600 lumenia |
| Värilämpötila | 6500K |
| Säteen etäisyys | Jopa 300 metriä |
| Valaistustilat | High, Low, Strobe, SOS, Continuous Dimming |
| Virtalähde | Rechargeable Battery (18650, 2200mAh) |
| Latausportti | USB-C |
| Materiaali | 6063 Anodized Aluminum Alloy |
| Vedenkestävyys | IP55 |
| Mitat | 15 x 6 x 10 cm (noin) |
| Paino | 220 g |
4. Asennus ja lataus
4.1 Alkuveloitus
Before first use, fully charge the flashlight. Connect the provided USB-C cable to the flashlight's charging port and to a compatible USB power source (e.g., wall adapter, computer USB port). The charging indicator will show the charging status.

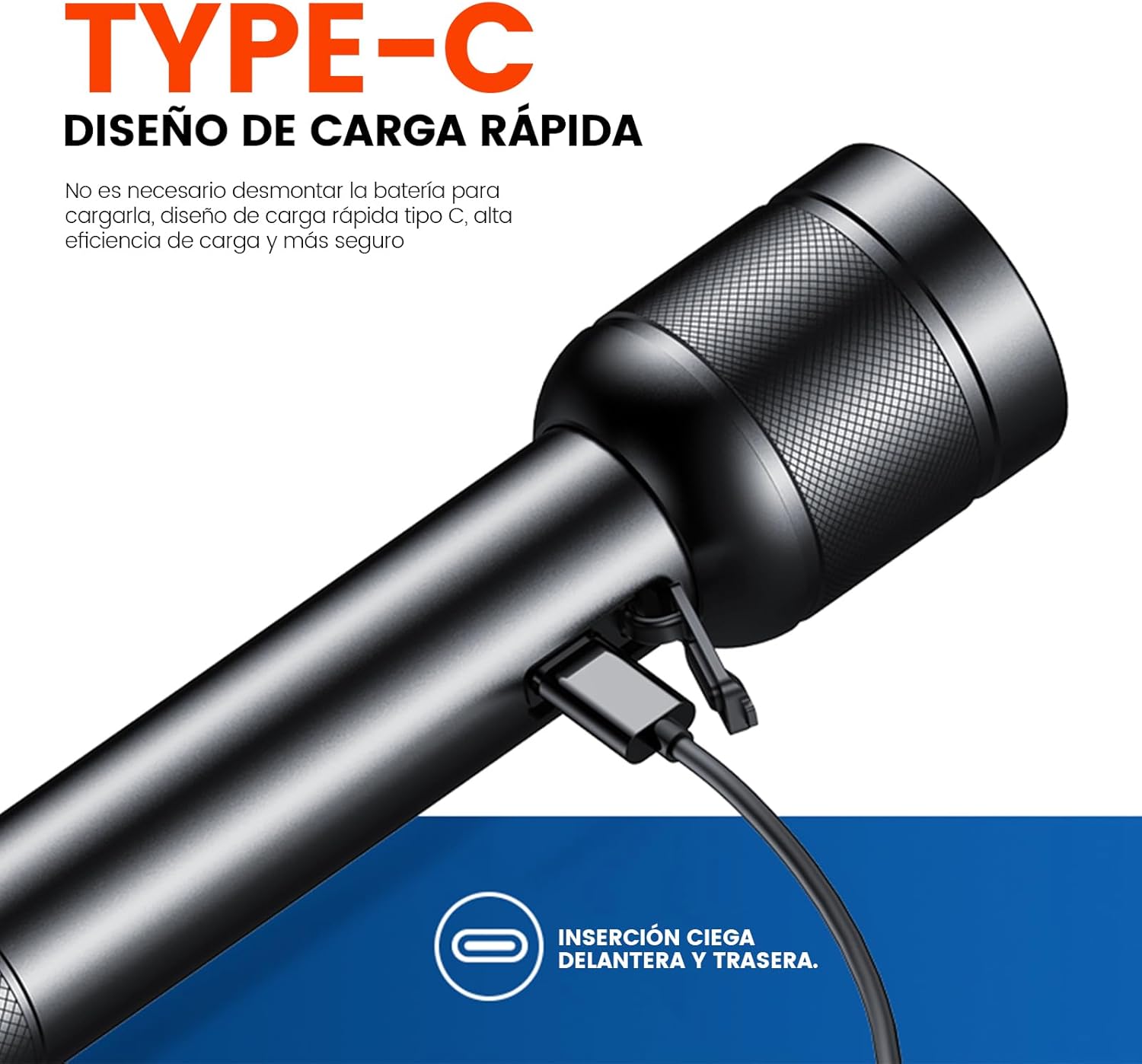

Image: Philips SFL2186 flashlight with its USB-C charging port. This port allows for convenient and fast charging.
4.2 Pariston asennus (jos sovellettavissa)
The Philips SFL2186 typically comes with an integrated rechargeable battery. If battery installation is required, ensure the battery is inserted with the correct polarity as indicated inside the battery compartment. The flashlight uses an 18650 type battery.
Image: Internal diagram of the Philips SFL2186, highlighting the 18650 lithium battery with 2200mAh capacity.
5. Käyttöohjeet
5.1 Virta päälle/pois
Press the power button once to turn the flashlight on. Press it again to cycle through the different lighting modes. To turn off the flashlight, cycle through all modes or press and hold the button for a few seconds.
5.2 vaihtotilaa
The Philips SFL2186 features five lighting modes: High, Low, Strobe, SOS, and Continuous Dimming. Briefly press the power button to switch between High, Low, Strobe, and SOS modes. To activate Continuous Dimming, press and hold the power button while the flashlight is on; release when the desired brightness is reached.
Image: Visual representation of the High, Low, and SOS Flash modes of the Philips SFL2186.
Image: The continuous dimming feature of the Philips SFL2186, activated by a long press, suitable for various lighting needs.
5.3 Beam Performance
The flashlight provides a powerful beam, illuminating objects up to 300 meters away. The 6500K color temperature ensures clear visibility, mimicking natural daylight conditions.
Image: The Philips SFL2186 flashlight illuminating a scene, demonstrating its effective beam distance.
6. Huolto
- Puhdistus: Pyyhi taskulampun runko pehmeällä,amp kangas. Älä käytä hankaavia puhdistusaineita tai liuottimia.
- Linssien hoito: Keep the lens clean to ensure optimal light output. Use a lens cleaning cloth to gently wipe away dust or smudges.
- Varastointi: Store the flashlight in a cool, dry place when not in use. If storing for extended periods, charge the battery periodically to maintain its health.
- Akun kesto: To maximize battery lifespan, avoid fully discharging the battery frequently. Recharge when the battery level is low.
Image: The Philips SFL2186 demonstrating its IP55 water and dust resistance, indicating its suitability for various conditions.
7. Vianmääritys
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Taskulamppu ei syty. | Low battery; improper battery installation; faulty switch. | Charge the battery fully. Ensure the battery is inserted with correct polarity. Contact customer support if the switch is faulty. |
| Valoteho on himmeä. | Akku vähissä; likainen linssi. | Lataa akku. Puhdista linssi pehmeällä liinalla. |
| Taskulamppu ei lataudu. | Faulty USB-C cable or adapter; charging port obstruction. | Kokeile toista USB-C-kaapelia ja virtalähdettä. Tarkista latausportista roskat. |
8. Turvallisuustiedot
- Do not shine the flashlight directly into eyes, as it can cause temporary vision impairment.
- Pidä poissa lasten ulottuvilta.
- Älä pura taskulamppua, sillä se voi mitätöidä takuun ja aiheuttaa vahinkoa.
- Vältä taskulampun altistamista äärimmäisille lämpötiloille tai suoralle auringonvalolle pitkiä aikoja.
9. Tuotevideot
9.1 Philips Flashlight Features Overview
Video: This video demonstrates general features and durability of a Philips flashlight, showcasing its robust design and powerful illumination in various scenarios.
9.2 Philips Flashlight Power and Range Demonstration
Video: This video illustrates the impressive power and long-range illumination capabilities of a Philips flashlight, highlighting its effectiveness in dark environments.
10. Takuu ja tuki
Philips products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty. For detailed warranty information, troubleshooting assistance, or to contact customer support, please refer to the official Philips websivustolla tai tuotteen mukana toimitetussa takuukortissa.
Lisäapua varten käy osoitteessa Philips-myymälä.
