STARLINK Mesh Router Standard (Gen 3) with WiFi 6 (UTR-32) User Manual

1. Johdanto

The STARLINK Mesh Router Standard (Gen 3) with WiFi 6 (UTR-32) is designed to enhance and extend your Starlink internet experience. This router provides seamless wireless coverage, integrating with both Gen 3 Flat Dishes and Gen 2 Rectangular Dishes. Featuring advanced Wi-Fi 6 technology and dual-band support, it ensures fast, stable, and reliable connectivity for multiple devices across larger homes or multi-room environments. This manual will guide you through the setup, operation, and maintenance of your new mesh router.

2. Mitä laatikossa on

Upon unpacking your STARLINK Mesh Router, please verify that all the following components are present:

• STARLINK Mesh Router (UTR-32)
• Virtakaapeli
• Ethernet Cable (for Starlink dish connection)
• Pikaopas / Dokumentaatio

Image: Contents of the STARLINK Mesh Router package, showing the router, power cable, ethernet cable, and printed materials.

3. Tuote ohiview ja Ominaisuudet

The STARLINK Mesh Router (UTR-32) is engineered for high performance and ease of use. Key features include:

• Optimized for Starlink Gen 3: Seamlessly integrates with Starlink Gen 3 flat dishes and Gen 2 rectangular dishes, ensuring robust and reliable connectivity.
• Advanced WiFi 6 Technology: Experience faster speeds, increased capacity, and reduced latency, perfect for streaming, gaming, and remote work.
• Mesh Networking Capability: Eliminate dead zones with mesh technology that provides consistent and expansive coverage throughout your home or office.
• Kaksikaistainen tuki: Operates on both 2.4GHz and 5GHz bands, allowing for flexible device connections and optimal performance.
• Tyylikäs ja kompakti muotoilu: Modern white finish with a compact form factor that blends seamlessly into any environment.

Kuva: Yliview of improved features including WiFi 6, extended coverage, additional ports, and enhanced device support.

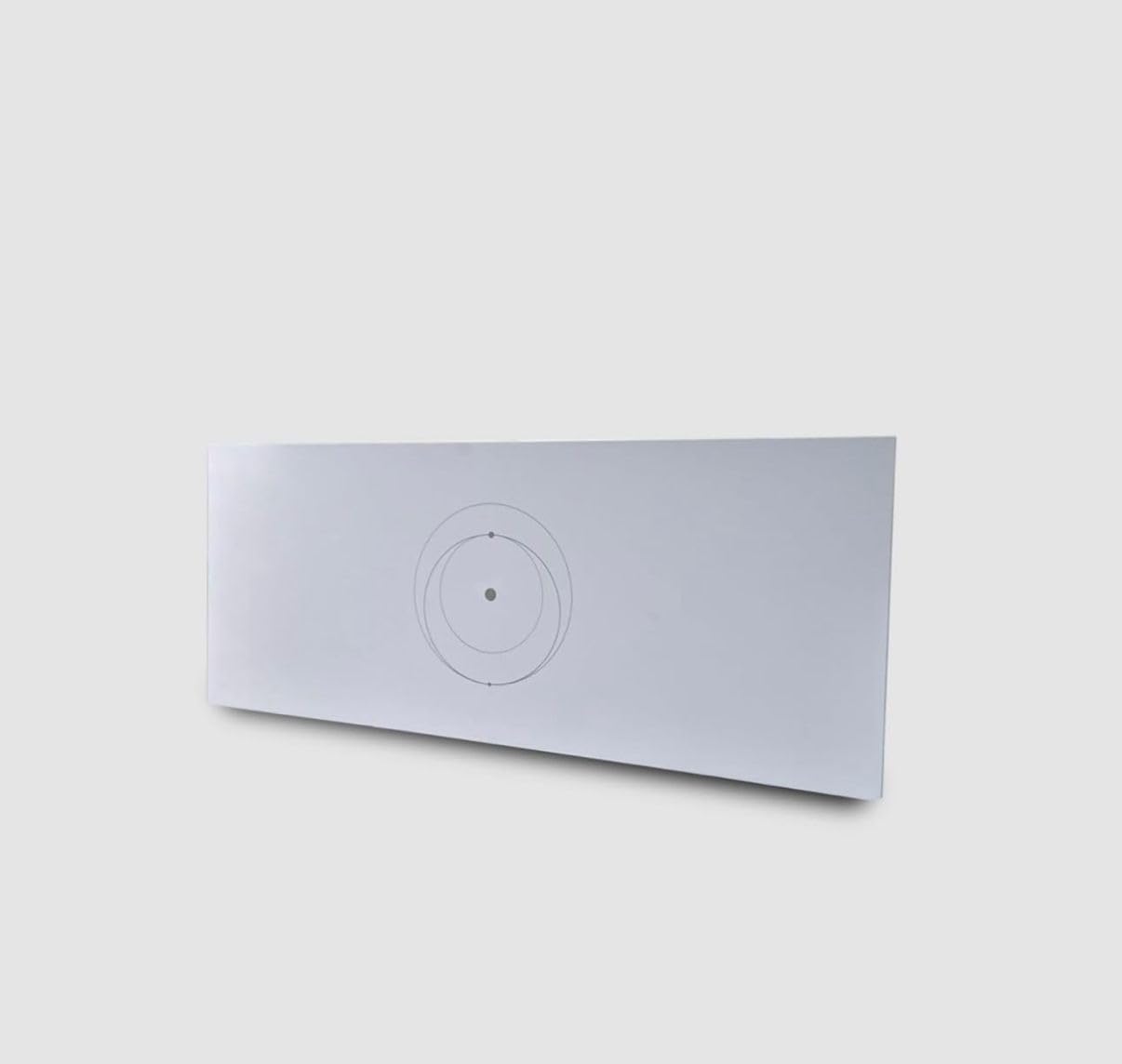

Kuva: Edessä view of the STARLINK Mesh Router (UTR-32).

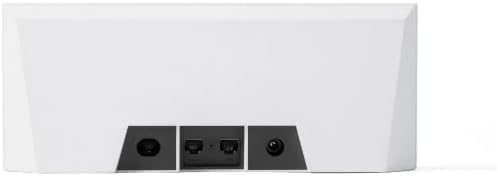

Kuva: Takaosa view of the STARLINK Mesh Router, highlighting the connectivity ports.

4. Asennusohjeet

Follow these steps to set up your STARLINK Mesh Router:

1. Lataa Starlink-sovellus: Before you begin, download the official Starlink App from your device's app store. This app is essential for setup and management.
2. Connect the Starlink Dish: Connect the cable from your Starlink Gen 2 Rectangular Dish or Gen 3 Flat Dish to the designated Starlink port on the back of the Mesh Router. This port is typically labeled or distinct.
3. Liitä virta: Plug the power cable into the router's power input, then connect the other end to a power outlet. The router will begin to power on.
4. Alkuasetukset sovelluksen kautta: Open the Starlink App on your smartphone or tablet. The app will guide you through connecting to the router's temporary Wi-Fi network, naming your network, and setting a password.
5. Mesh Network Expansion (Optional): If you are adding this router to an existing Starlink network as a mesh node, the app will provide instructions for seamless integration to expand your Wi-Fi coverage.

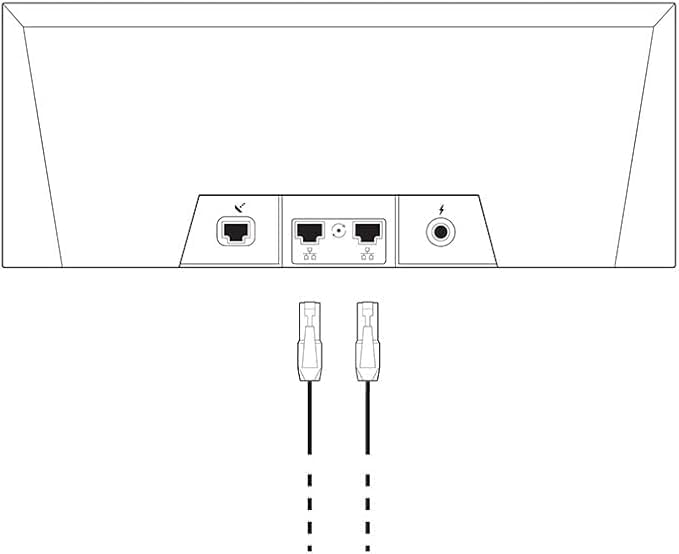

Image: Diagram illustrating the connection points on the back of the router.

Image: The STARLINK Mesh Router in a typical home environment.

5. Käyttöohjeet

Once your STARLINK Mesh Router is set up, it will automatically provide Wi-Fi coverage. Here are some operational guidelines:

• Laitteiden liittäminen: Connect your Wi-Fi enabled devices (smartphones, laptops, smart TVs, etc.) to the Wi-Fi network name (SSID) you configured during setup. Enter your chosen password when prompted.
• Using Ethernet Ports: The router includes two RJ45 Ethernet ports. You can use these to connect wired devices such as desktop computers, gaming consoles, or network-attached storage (NAS) for a stable, high-speed connection.
• Starlink App Management: Use the Starlink App to monitor your network status, view connected devices, adjust Wi-Fi settings, and perform firmware updates. The app provides real-time insights into your internet performance.
• Mesh Network Performance: If you have multiple Starlink Mesh Routers, ensure they are placed strategically to maximize coverage and minimize dead zones. The app can help you identify optimal placement.

6. Huolto

Asianmukainen huolto varmistaa reitittimesi pitkän käyttöiän ja optimaalisen suorituskyvyn:

• Puhdistus: Gently wipe the exterior of the router with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials, as these can damage the device. Ensure no dust accumulates in the ventilation openings.
• Laiteohjelmistopäivitykset: Keep your router's firmware updated through the Starlink App. Firmware updates often include performance improvements, security patches, and new features. The app will typically notify you when an update is available.
• Ilmanvaihto: Ensure the router is placed in a well-ventilated area, away from direct sunlight or heat sources, to prevent overheating. Do not cover the router.
• Kaapelin hallinta: Ensure all cables are securely connected and not crimped or damaged.

7. Vianmääritys

If you encounter issues with your STARLINK Mesh Router, refer to the following troubleshooting steps:

Image: Troubleshooting guide for common connectivity issues and router light indicators.

Router Light Indicators:

• Vilkkuva valkoinen valo: Yritetään muodostaa yhteyttä. Valo palaa tasaisen valkoisena, kun asennus on valmis ja reititin on yhteydessä Internetiin, tai palaa punaisena, jos reititin ei saa yhteyttä Internetiin 20 minuutissa.
• Tasainen valkoinen valo: Yhdistetty Internetiin. Sammuu 1 tunnin kuluttua.
• Ei valoa: Router is off. With good connection, the light will turn off after 1 hour.
• Punainen valo: Ei yhteyttä Internetiin.
• Violetti valo: Reititin on ohitustilassa. Sammuu 1 tunnin kuluttua. Tehdasasetusten palautus vaaditaan ohitustilasta poistumiseksi.

Yleiset vianmääritysvaiheet:

1. Check Starlink App: Avaa Starlink-sovellus tarkistaaksesi mahdolliset hälytykset, outages, or obstructions affecting your service.
2. Tarkista yhteydet: Ensure all cables (power, Starlink dish cable, Ethernet) are securely plugged into their respective ports on the router and the power outlet.
3. Power Cycle the Router: Unplug the router from the power outlet, wait for 30 seconds, then plug it back in. Allow a few minutes for it to restart and reconnect.
4. Tehdasasetusten palautus: If other steps fail, you may perform a factory reset. Locate the reset button (often a small pinhole) on the router. Use a paper clip or similar thin object to press and hold the reset button for approximately 10-15 seconds until the router's light changes or it reboots. Note: A factory reset will erase all custom settings, and you will need to set up the router again via the Starlink App.

Image: Rear port diagram, indicating the location of the reset button (if applicable).

8. Tekniset tiedot

Image: Detailed dimensions and port labels of the STARLINK Mesh Router.

9. Takuutiedot

This STARLINK Mesh Router (UTR-32) comes with a 1 vuoden rajoitettu takuu from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. For specific terms and conditions, please refer to the warranty documentation included with your product or contact Starlink customer support.

10. Tukea

For further assistance, technical support, or to report issues, please utilize the following resources:

• Starlink App: The Starlink App provides access to customer support, FAQs, and diagnostic tools.
• Starlink Websivusto: Visit the official Starlink support website for comprehensive guides, FAQs, and contact options.

When contacting support, please have your router's model number (UTR-32) and any relevant error messages or light indicator statuses ready.
