Yleinen kannettavan tietokoneen näppäimistön käyttöohje

Johdanto

This manual provides essential instructions for the installation, operation, and maintenance of your new Generic Laptop Keyboard. This replacement keyboard is compatible with various Medion Akoya models, including P7649, MD60817, MD60825, MD60826, and MD61046. Please read this manual thoroughly before proceeding with installation to ensure proper function and to avoid damage to your device.

Turvallisuustiedot

• Always disconnect the laptop's power adapter and remove the battery before beginning any installation or repair work.
• Käytä purkamiseen ja kokoamiseen sopivia työkaluja. Vältä liiallista voimankäyttöä.
• Handle electronic components with care to prevent electrostatic discharge (ESD) damage. Consider using an anti-static wrist strap.
• Pidä pienet osat, kuten ruuvit, poissa lasten ulottuvilta.
• Jos olet epävarma jostakin vaiheesta, hae ammattiapua.

Pakkauksen sisältö

Varmista, että paketti sisältää seuraavat kohteet:

• 1 x Generic Laptop Keyboard (Black with Frame, German GR layout)

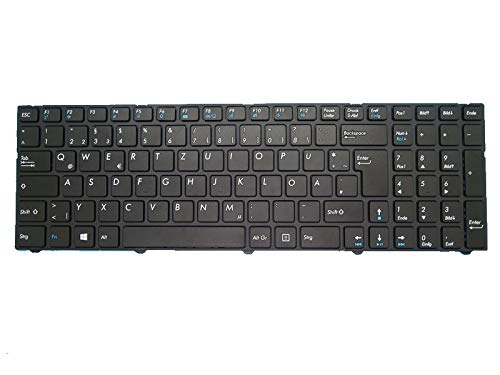

Image: The Generic Laptop Keyboard, featuring a black finish and German (GR) layout, designed for Medion Akoya laptops.

Asennusopas

Tärkeää: Laptop disassembly procedures vary significantly by model. The following steps provide general guidance. Refer to your specific laptop's service manual or a reliable disassembly guide for detailed instructions pertaining to your Medion Akoya P7649, MD60817, MD60825, MD60826, or MD61046 model.

1. Valmistelu

1. Virta pois: Shut down your laptop completely and disconnect the power adapter.
2. Poista akku: If your laptop has a removable battery, remove it. For internal batteries, disconnect the battery connector from the motherboard after opening the laptop.
3. Kerää työkalut: Prepare a small Phillips head screwdriver, a plastic spudger or pry tool, and an anti-static wrist strap (recommended).

2. Removing the Old Keyboard

1. Näppäimistön pidikkeiden paikantaminen: Depending on your laptop model, the keyboard may be held in place by small clips, screws from the bottom case, or a combination.
2. Release Clips/Screws: Carefully release any clips around the keyboard bezel using a plastic spudger. If screws secure the keyboard from the bottom, remove them.
3. Lift Keyboard: Gently lift the keyboard from its housing. Be cautious, as it will still be connected by a ribbon cable.
4. Irrota nauhakaapeli: Flip the keyboard over to expose the ribbon cable connector. Carefully open the retaining clip on the connector (usually a small black or brown bar that flips up) and slide the ribbon cable out.
5. Vanhan näppäimistön poistaminen: Once disconnected, set the old keyboard aside.

3. Installing the New Keyboard

1. Liitä nauhakaapeli: With the retaining clip on the motherboard connector open, carefully insert the ribbon cable of the new keyboard into the connector. Ensure it is fully seated and straight. Close the retaining clip to secure it.
2. Näppäimistön sijainti: Carefully place the new keyboard into its designated slot in the laptop's top case.
3. Suojattu näppäimistö: Press down gently around the edges to engage any clips. If applicable, re-insert and tighten the screws from the bottom case that secure the keyboard.

4. Kokoaminen ja testaus

1. Liitä akku uudelleen: Reconnect the internal battery connector or re-insert the removable battery.
2. Sulje kannettava tietokone: Reassemble any other parts of the laptop that were removed during the process (e.g., bottom cover).
3. Virta päälle: Connect the power adapter and power on your laptop.
4. Testauksen toiminnallisuus: Open a text editor or a browser and test every key on the new keyboard to ensure all keys are working correctly.

Toiminta

The Generic Laptop Keyboard functions as a standard input device for your Medion Akoya laptop. Once installed and recognized by the operating system, you can use it for typing, navigating, and executing commands. No special drivers are typically required for basic functionality, as standard keyboard drivers are usually sufficient.

• Toimintonäppäimet (Fn): Many laptops utilize a "Fn" key in combination with other keys (F1-F12) to control features like screen brightness, volume, Wi-Fi, etc. Refer to your laptop's user manual for specific Fn key combinations.
• Kieliasettelu: This keyboard features a German (GR) layout. Ensure your operating system's keyboard language setting matches this layout for correct character input.

Huolto

• Puhdistus: Käytä pehmeää, nukkaamatonta liinaa hieman dampened with water or a mild electronics cleaner to wipe the keycaps and surrounding areas. Avoid spraying liquids directly onto the keyboard.
• Pölynpoisto: Use compressed air to remove dust and debris from underneath the keycaps. Hold the can upright to prevent propellant discharge.
• Vältä roiskeita: Protect your keyboard from liquid spills, which can cause permanent damage.

Vianetsintä

Tekniset tiedot

Takuu ja tuki

Tämä yleinen kannettavan tietokoneen näppäimistö on varustettu 90 päivän takuu ostopäivästä lukien. Tämä takuu kattaa valmistusvirheet ja varmistaa, että tuotteessa ei ole materiaali- tai valmistusvirheitä normaalissa käytössä.

Takuun poikkeukset: This warranty does not cover damage caused by improper installation, accidental damage, liquid spills, unauthorized repairs, or normal wear and tear.

Asiakastuki: For warranty claims, technical assistance, or further inquiries, please contact your retailer or the seller directly. When contacting support, please provide your purchase details and the product's ASIN (B0G3KTY8H3).
