LAMTTO 2-in-1 Wireless CarPlay and Android Auto Adapter

1. Johdanto

The LAMTTO 2-in-1 Wireless CarPlay and Android Auto Adapter converts your vehicle's wired CarPlay or Android Auto system into a wireless solution. This device allows for convenient access to navigation, music, phone calls, and voice assistants like Siri or Google Assistant without the need for a physical cable connection to your smartphone.

Paketin sisältö:

• 1 x 2-in-1 Wireless CarPlay and Android Auto Adapter
• 1 x USB-A–USB-C-sovitin
• 1 x Käyttöohje

2. Turvallisuustiedot

Tärkeitä turvallisuusohjeita:

• When operating this wireless adapter, interference with other nearby wireless devices may occur.
• Ensure compliance with battery handling instructions (if applicable to connected devices).
• Älä altista laitetta äärimmäisille lämpötiloille tai kosteudelle.

3. Tuote ohiview

The LAMTTO 2-in-1 adapter features a high-performance 5.8 GHz chip for faster processing and a stable connection. Its compact design allows for discreet installation, maintaining a tidy vehicle interior. The device supports both USB-A and USB-C ports for flexible connectivity.

Figure 3.1: Compact design of the LAMTTO adapter.

Figure 3.2: Internal components and connection speed.

4. Asennusopas

The adapter offers a simple Plug & Play setup process. No applications or drivers are required.

1. Liitä sovitin: Plug the adapter into your car's USB data port (either USB-A or USB-C, using the provided adapter if necessary).
2. Activate Bluetooth and Wi-Fi: Ota älypuhelimellasi käyttöön sekä Wi-Fi että Bluetooth.
3. Muodosta laitepari Bluetoothin kanssa: Open your smartphone's Bluetooth interface, search for the adapter's Bluetooth name, and select "Connect."
4. Automaattinen uudelleenkytkentä: After the initial connection, the device will automatically connect to your vehicle each time you start the car.

Huomautus: The connection method for both CarPlay and Android Auto is identical.

Figure 4.1: Step-by-step setup and control methods.

5. Käyttöohjeet

Once connected, the adapter enables wireless access to your smartphone's features through your car's infotainment system. You can control functions using the car's original controls.

• Ääniohjaus: Käytä Siriä tai Google Assistantia handsfree-käyttöön.
• Navigointi: Access map applications like Waze or Apple Maps.
• Musiikin toisto: Stream music from apps like Spotify.
• Puhelut: Make and receive calls directly through the car's system.
• Ajoneuvon hallintalaitteet: The adapter integrates seamlessly with your car's steering wheel buttons, touchscreen, and factory knobs.

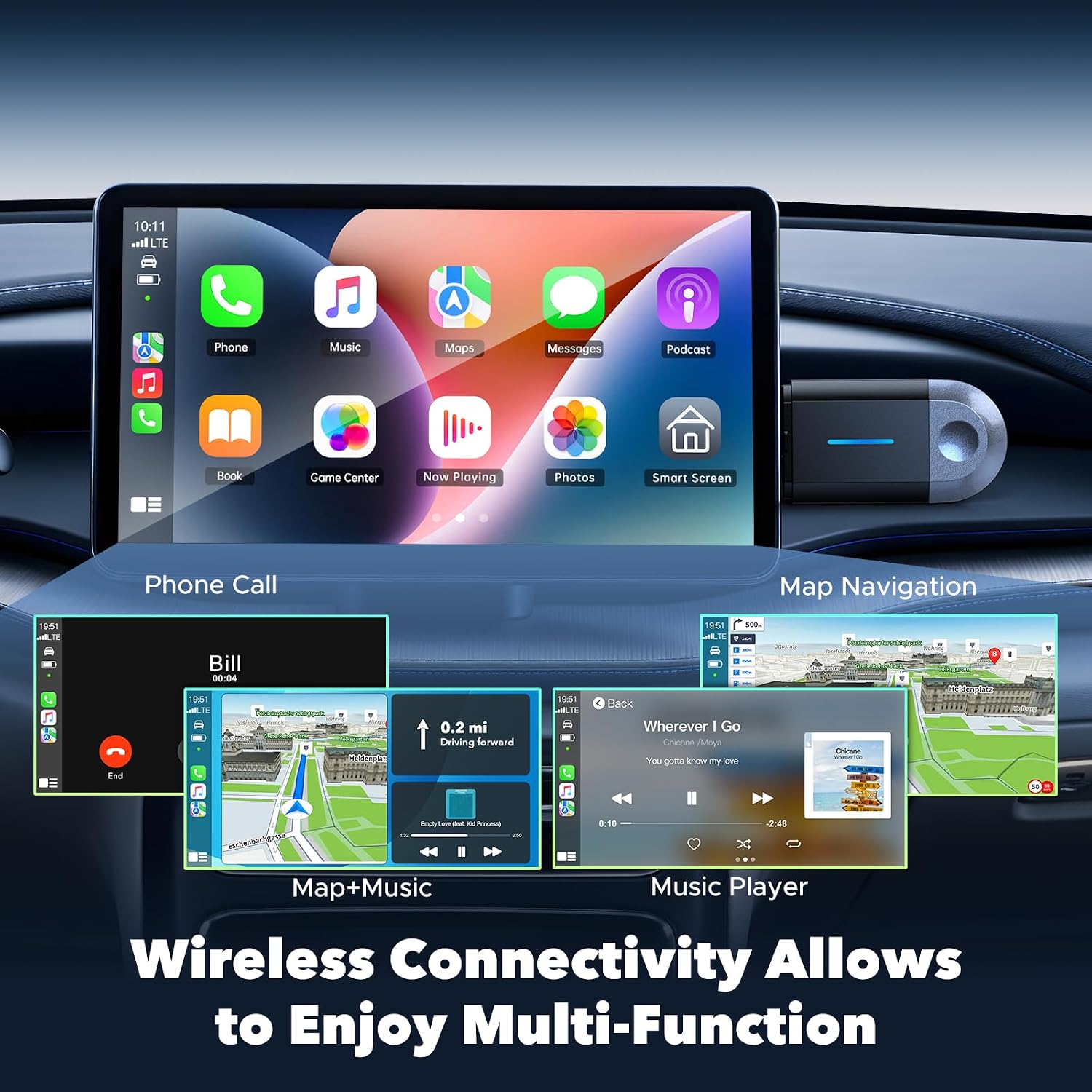

Figure 5.1: Wireless multi-function display on car screen.

6. Firmware Update (OTA)

The adapter supports Over-The-Air (OTA) firmware updates to ensure optimal performance and compatibility. To update the firmware:

1. Connect your smartphone to the adapter's Wi-Fi network.
2. Open a mobile browser on your smartphone.
3. Kirjoita osoite 192.168.1.101 in the browser's address bar.
4. Tarkista ja asenna saatavilla olevat päivitykset noudattamalla näytön ohjeita.

Figure 6.1: OTA firmware update interface.

7. Yhteensopivuus

The LAMTTO 2-in-1 Wireless CarPlay and Android Auto Adapter is designed for wide compatibility.

• Älypuhelimen yhteensopivuus: Supports iPhone 8 or newer (iOS 11+) and Android phones with Android 11+.
• Ajoneuvojen yhteensopivuus: Compatible with over 98% of vehicles equipped with factory-wired Apple CarPlay and Android Auto from the year 2016 onwards. This includes brands such as Ford, Audi, Toyota, VW, and more.
• Yhteensopimattomat ajoneuvot: Not compatible with BM-W, Ben-z, or Tes-la vehicles. Not compatible with Huawei phones.

Figure 7.1: Device and vehicle compatibility overview.

8. Vianmääritys

If the device experiences abnormal operation:

• Perform a restart by unplugging the adapter and then reinserting it into the car's USB port.
• Ensure your smartphone's Wi-Fi and Bluetooth are active and properly paired.
• Check for any available firmware updates as described in Section 6.

9. Tekniset tiedot

10. Takuu ja tuki

The LAMTTO 2-in-1 Wireless CarPlay and Android Auto Adapter comes with a 24-month warranty. For any product inquiries or technical assistance, please contact customer support. Support is available 24/7.
