SENIX Electric Corded Garden Tiller & Cultivator TLE13-M User Manual

1. Johdanto

Thank you for choosing the SENIX Electric Corded Garden Tiller & Cultivator, Model TLE13-M. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new garden tool. Please read this manual thoroughly before operating the tiller to ensure proper use and to prevent injury or damage.

This electric tiller is designed for cultivating soil in gardens, flower beds, and for lawn renovation. Its powerful motor and durable steel tines make it suitable for breaking through tough soil and preparing seedbeds.

2. Tärkeitä turvallisuustietoja

VAROITUS: Lue kaikki turvallisuusvaroitukset ja -ohjeet. Varoitusten ja ohjeiden noudattamatta jättäminen voi aiheuttaa sähköiskun, tulipalon ja/tai vakavan vamman.

• Käytä aina asianmukaisia ​​henkilönsuojaimia, kuten suojalaseja, käsineitä ja tukevia jalkineita.
• Keep children and bystanders at a safe distance (at least 50 feet / 15 meters) from the operating area.
• Inspect the work area for rocks, debris, or other objects that could be thrown by the tines.
• Ensure the power cord is in good condition and positioned to avoid entanglement with the tines. Use only outdoor-rated extension cords.
• Never operate the tiller in wet conditions or rain.
• Always disconnect the power supply before performing any adjustments, cleaning, or maintenance.
• Use the dual safety switch mechanism for safe startup and to prevent accidental activation.

Kuva 2.1: The dual safety switch requires pressing the lock-off button (Step 1) before engaging the switch lever (Step 2) to start the tiller, ensuring safe operation.

3. Tuote ohiview

The SENIX Electric Corded Garden Tiller & Cultivator is designed for efficient soil preparation. Key features include:

• Tehokas 13.5-Amp Moottori: Delivers strong power for breaking through tough soil.
• 16-inch Tilling Width & 8-inch Tilling Depth: Cultivates a significant area in a single pass.
• 6 Durable Steel Tines: Built for longevity and effective soil churning.
• 3-Position Wheel Adjustment: Allows customization of tilling depth and speed.
• Foldable Handle Design: For compact storage and easy transport.

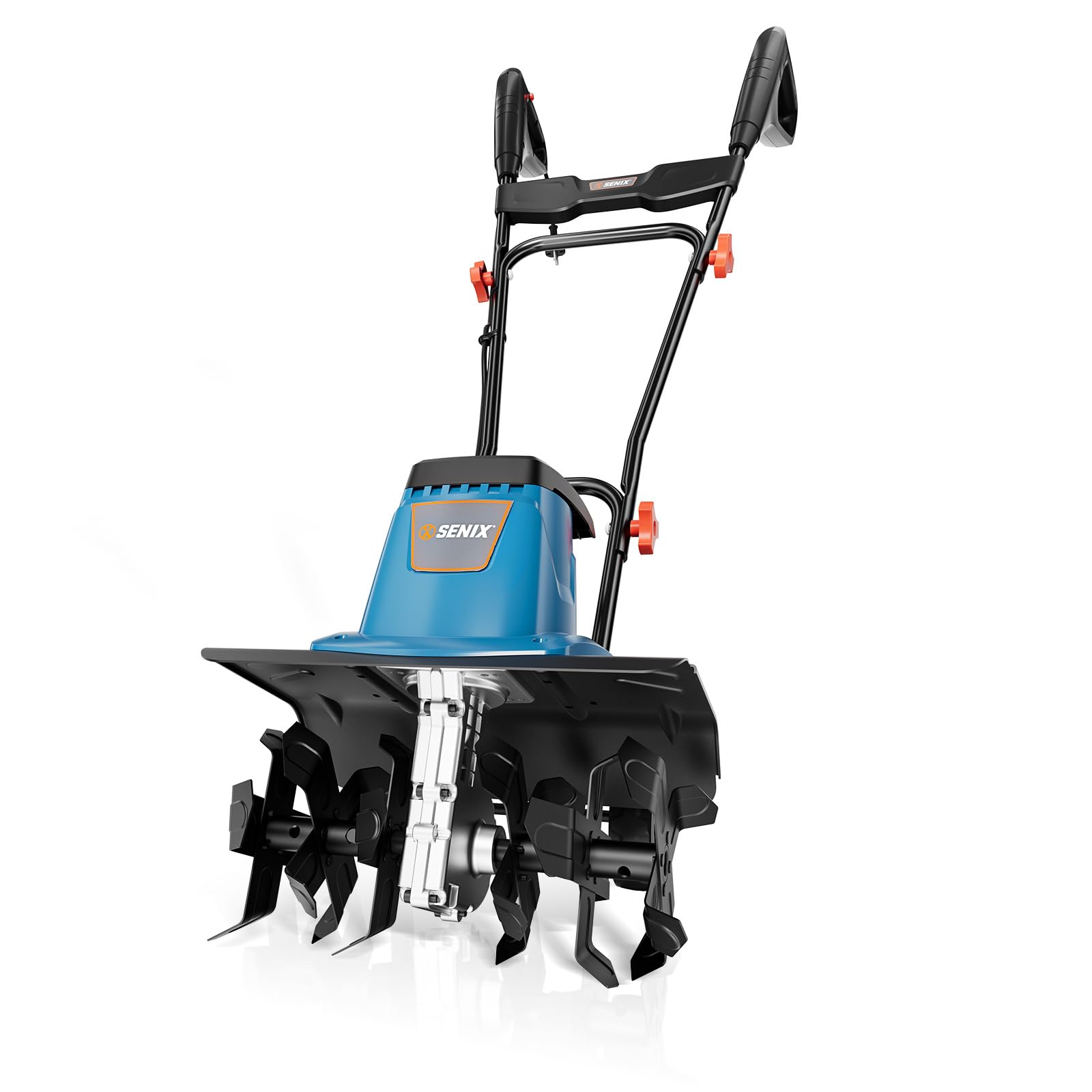

Kuva 3.1: Yliview of the SENIX Electric Tiller highlighting its powerful motor, steel tines, foldable handles, and 3-position wheel adjustment.

Kuva 3.2: Illustration of the tiller's 16-inch wide and 8-inch deep tilling capacity in soil.

Kuva 3.3: Visuaalinen esitys 13.5:sta Amp high-power motor and 370 RPM tilling speed for efficient soil cutting and aeration.

4. Asennus ja kokoonpano

The SENIX TLE13-M tiller requires minimal assembly. Follow these steps:

1. Pura komponentit: Poista kaikki osat varovasti pakkauksesta. Varmista, että kaikki pakkauslistassa luetellut osat ovat mukana.
2. Kahvan kokoonpano: Attach the upper handle to the lower handle using the provided knobs and bolts. Ensure the handle is securely fastened.
3. Johdon hallinta: Secure the power cord along the handle using the provided clips to prevent it from interfering with operation or getting caught in the tines.
4. Pyörän säätö: Adjust the wheels to the desired height for transport or initial tilling. Refer to the "Operating Instructions" section for details on wheel positions.

Kuva 4.1: The tiller features a foldable handle design, allowing for compact storage and easy transport. Dimensions shown are for the folded state.

5. Käyttöohjeet

Ennen aloittamista varmista, että olet lukenut ja ymmärtänyt kaikki turvallisuusvaroitukset.

5.1 Ohjausaisan käynnistäminen ja pysäyttäminen

1. Liitä virta: Plug the tiller's power cord into a suitable outdoor-rated extension cord, then plug the extension cord into a grounded 120V AC outlet.
2. Aloita: Press and hold the lock-off button (refer to Figure 2.1) with your thumb, then squeeze the switch lever with your fingers. The tines will begin to rotate.
3. Stop: Release the switch lever. The tines will stop rotating.

5.2 Adjusting Wheel Position

The tiller features a 3-position wheel adjustment system to control tilling depth and ease of transport.

Kuva 5.1: The 3-position adjustable wheels allow for different tilling depths and transport modes.

• Korkea asema: For easy transport over uneven ground or very light cultivation.
• Keskiasento: Ideal for general soil tilling and preparing seedbeds.
• Matala asento: For deep tine penetration and intensive cultivation in tougher soil.

To adjust, lift the tiller slightly and reposition the wheels into the desired slot. Ensure both wheels are set to the same position.

5.3 Tilling Techniques

• Alkuperäinen läpäisy: For hard-packed soil, start with a shallow depth setting (higher wheel position) and make several passes, gradually increasing the depth.
• päällekkäisyys: Overlap each pass by a few inches to ensure complete cultivation of the area.
• Ohjaus: Hold the tiller firmly with both hands. Allow the tiller to pull itself forward; do not force it. Guide it gently.
• Esteet: If the tines strike a hard object, release the switch lever immediately. Disconnect power, then inspect the tines for damage and remove the obstruction.

6. Huolto

Regular maintenance ensures optimal performance and extends the life of your tiller.

WARNING: Always disconnect the power supply before performing any maintenance or cleaning.

• Puhdistus: After each use, clean soil and debris from the tines and housing. Use a stiff brush or cloth. Do not use water directly on the motor housing.
• Piikkien tarkastus: Regularly inspect the steel tines for wear, damage, or bending. Replace damaged tines promptly.
• Johdon tarkastus: Check the power cord and extension cord for cuts, fraying, or damage. Replace damaged cords immediately.
• Varastointi: Store the tiller in a dry, secure location, out of reach of children. The foldable handle allows for compact storage.

7. Vianmääritys

This section addresses common issues you might encounter with your SENIX TLE13-M tiller.

8. Tekniset tiedot

9. Takuu ja tuki

The SENIX Electric Corded Garden Tiller & Cultivator (Model TLE13-M) is backed by a 3 vuoden rajoitettu takuu. Tämä takuu kattaa materiaali- ja valmistusvirheet normaalikäytössä.

For warranty claims, technical assistance, or to purchase replacement parts, please contact SENIX Tools customer service. Keep your proof of purchase for warranty validation.

Valmistaja: SENIX

Myyjä: SENIX Tools

For the most up-to-date contact information, please refer to the official SENIX websivustolta tai ostodokumentaatiostasi.
