1. Johdanto
This manual provides essential information for the safe and effective operation of your LASER TREE K1 Mini 5W Laser Engraver. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper usage and to prevent damage or injury. This device is designed for high-precision engraving and cutting on various materials, offering a 12x12 inch (300x300mm) work area.
2. Turvallisuustiedot
The LASER TREE K1 Mini 5W is a Class 4 laser product. Improper use can result in serious injury, including eye damage, skin burns, and fire. Always adhere to the following safety guidelines:
- Silmien suojaus: Always wear the provided laser safety goggles when the laser is operating. Never look directly at the laser beam or its reflection.
- Ilmanvaihto: Käytä kaivertinta hyvin ilmastoidussa tilassa, jotta kaiverruksen tai leikkauksen aikana syntyvät höyryt ja savu pääsevät haihtumaan.
- Tulipalon vaara: Keep a fire extinguisher nearby. Do not leave the machine unattended during operation. Certain materials are highly flammable.
- Materiaalien yhteensopivuus: Only engrave or cut approved materials. Avoid reflective, transparent, or blue/purple/white materials, and non-anodized bare aluminum, as these can cause unpredictable laser behavior or damage.
- Lapset ja lemmikit: Pidä lapset ja lemmikkieläimet poissa käyttöalueelta.
- Hätäpysähdys: Familiarize yourself with the location of the power switch for immediate shutdown in an emergency.
3. Tuote ohiview
The LASER TREE K1 Mini 5W Laser Engraver features a 5W output power blue laser diode, offering stable and efficient performance for various DIY projects. It boasts a large 300x300mm engraving area and a full metal aluminum design for durability and precision.
Tärkeimmät ominaisuudet:
- Powerful 5W Laser: Equipped with a 5W output power blue laser diode for high-efficiency engraving and cutting, with a lifespan of up to 20,000 hours.
- Korkea tarkkuus: Utilizes beam compressed spot technology for enhanced accuracy, with a fixed 23mm focal length and a spot size of 0.16*0.04mm.
- Nopea toiminta: Supports engraving speeds up to 25,000 mm/min.
- Laaja materiaalien yhteensopivuus: Engraves and cuts plywood, pine wood, stone, coated glass, brushed/mirror stainless steel, black acrylic, plastic, leather, anodized aluminum, and lacquered metal.
- Silmiensuojainten suunnittelu: Includes safety goggles and a magnetic cover to minimize eye irritation.
- Adjustable Support Feet: Four support feet increase the working height for engraving and cutting operations.
- Easy Focus Adjustment: A dedicated knob allows for simple adjustment of the laser module height to achieve optimal focus based on material thickness.

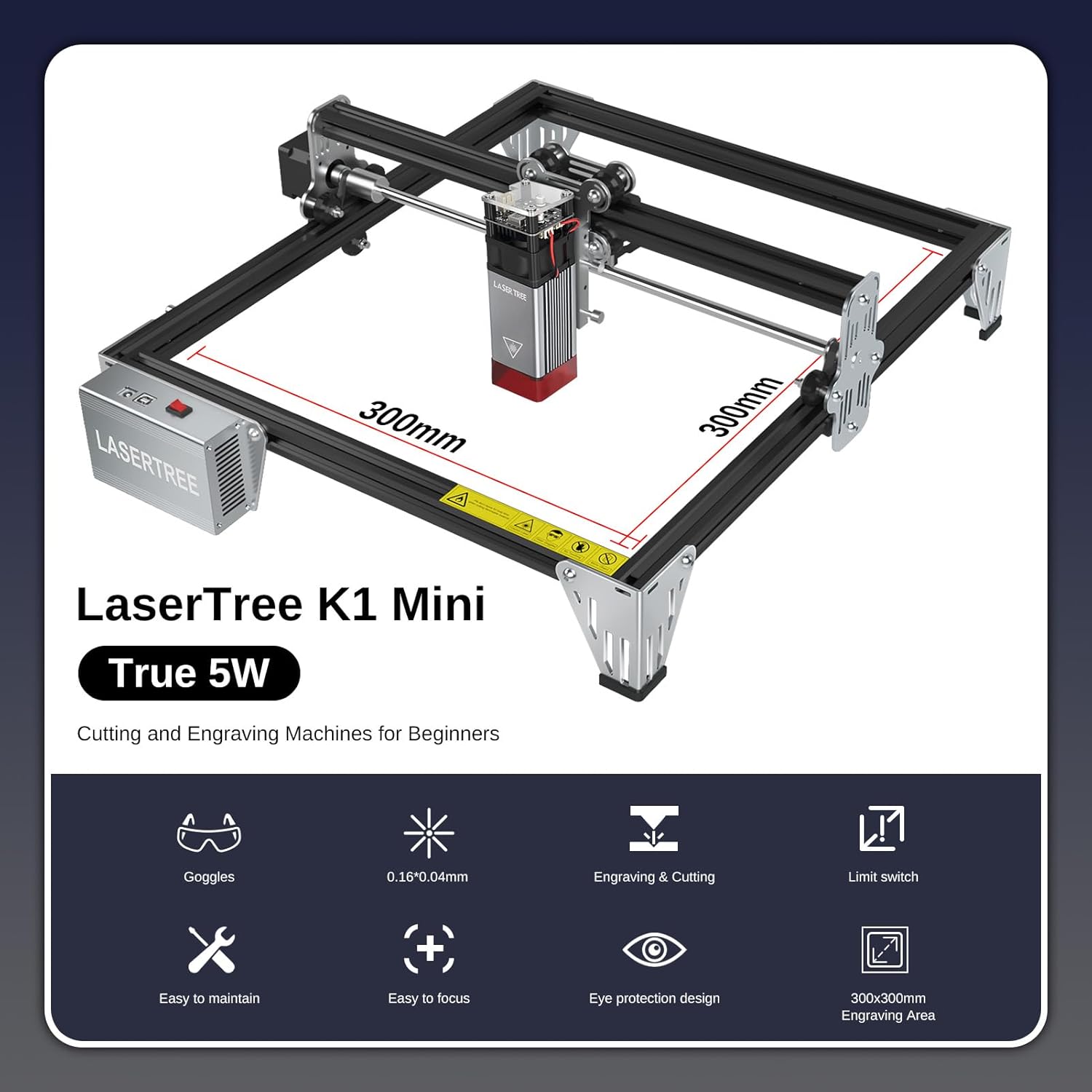

Kuva 3.1: Päättynytview of the LASER TREE K1 Mini 5W Laser Engraver, highlighting its 300x300mm work area.
Figure 3.2: The 5W output power laser module demonstrating its cutting capabilities on various materials such as 3mm acrylic, 3mm MDF, and 4mm plywood.
Figure 3.3: Illustration of the laser's fine spot size (0.16x0.04mm), enabling high-precision engraving.
Figure 3.4: The laser engraver in operation, emphasizing the importance of eye protection with safety goggles and the laser module's protective cover.
Figure 3.5: Detail of the adjustable support feet, designed to increase the working height for various engraving and cutting tasks.
4. Asennus
The LASER TREE K1 Mini 5W is designed for quick and easy installation. All parts are pre-packaged in clearly labeled bags. Refer to the detailed illustrated user manual included in your package for specific step-by-step assembly instructions.
Yleiskokouksen vaiheet:
- Pura kaikki komponentit pakkauksesta ja tarkista ne pakkauslistaa vasten.
- Kokoa runko toimitettujen kaavioiden mukaisesti.
- Asenna lasermoduuli telineeseen.
- Kytke kaikki tarvittavat kaapelit (virtalähde, USB).
- Varmista, että laite on sijoitettu vakaalle, tasaiselle alustalle hyvin ilmastoidussa tilassa.
5. Käyttöohjeet
The K1 Mini 5W laser engraver is compatible with popular engraving software such as LaserGRBL (Windows XP/7/8/10) and LightBurn (Mac OS, Linux). LightBurn is paid software.
Software and Connection:
- Install your preferred software (LaserGRBL or LightBurn) on your computer.
- Liitä kaiverrin tietokoneeseen mukana toimitetulla USB-kaapelilla.
- Power on the engraver.
Figure 5.1: The LASER TREE 5W laser engraver connects to a computer via USB and is compatible with LightBurn and LaserGRBL software.
Perustoiminnot:
- Valmistele materiaali: Place your chosen material on the engraving bed.
- Säädä tarkennusta: Use the focus adjustment knob to set the correct focal length for your material. The fixed focal length is 23mm.
- Kuorman suunnittelu: Open your design file in the engraving software.
- Aseta parametrit: Adjust engraving/cutting parameters (speed, power, DPI) based on the material. Refer to the Material Compatibility & Settings section.
- Aloita toiminta: Initiate the engraving or cutting process from the software. Always supervise the machine during operation.
Video 5.1: This video demonstrates the LASER TREE 5W laser engraver in action, showcasing its engraving capabilities on various materials like stainless steel, leather, and wood (zelkova). It highlights the precision and speed of the machine for different applications.
6. Material Compatibility & Settings
The LASER TREE K1 Mini 5W is compatible with a wide range of materials. Optimal settings vary depending on the material type and desired outcome (engraving vs. cutting). Always perform test engravings on scrap material to find the best parameters.
Yhteensopivat materiaalit:
- Plywood, Pine wood, Bamboo, Walnut
- Stone, Coated glass
- Brushed/Mirror stainless steel, Anodized aluminum, Lacquered metal
- Black acrylic, Plastic
- Nahka
Yhteensopimattomat materiaalit:
- Blue, Purple, White, or Transparent materials
- Non-anodized bare aluminum
Recommended Engraving Parameters:
Figure 6.1: A table outlining recommended settings for different materials, including focus fixed plate distance, speed (mm/min), power (%), and interval/quality (Lines/mm).
| Kaiverrusmateriaali | Focus Fixed Plate (mm) | Recommended Speed (mm/min) | Teho (%) | Interval (mm) / Quality (Lines/mm) |
|---|---|---|---|---|
| Akryyli | 5 | 6,000 | 30 | 0.04 / 10 |
| Vaneri | 5 | 6,000 | 50 | 0.1 / 10 |
| MDF | 5 | 6,000 | 20 | 0.05 / 10 |
| Mäntylauta | 5 | 6,000 | 50 | 0.06 / 10 |
| Bambu | 5 | 6,000 | 40 | 0.05 / 10 |
| Ruostumaton teräs | 5 | 1,200 | 100 | 0.04 / 10 |
| Anodinen alumiinioksidi | 5 | 6,000 | 50 | 0.05 / 10 |
| Nahka | 5 | 6,000 | 10 | 0.05 / 10 |
Note: These parameters are starting points. Fine-tuning may be required for specific material batches or desired effects.
7. Huolto
Säännöllinen huolto varmistaa laserkaiverruskoneesi pitkän käyttöiän ja optimaalisen suorituskyvyn.
- Puhdistus: Regularly clean the engraving bed, gantry rails, and laser lens. Use a soft, lint-free cloth and appropriate cleaning solutions for the lens.
- Voitelu: Periodically lubricate the moving parts (e.g., linear rails) as recommended in the detailed manual to ensure smooth operation.
- Laiteohjelmistopäivitykset: Check the LASER TREE official websivustolta laitteellesi saatavilla olevat laiteohjelmistopäivitykset.
8. Vianmääritys
Jos kohtaat ongelmia, katso seuraavia yleisiä vianmääritysvinkkejä:
- Laser ei toimi: Check power connection, USB connection, and ensure the laser module is properly seated. Verify software settings for laser power.
- Huono kaiverrus-/leikkauslaatu: Re-check focus, adjust speed/power settings, ensure material is flat and secure, and clean the laser lens.
- Ohjelmistoyhteysongelmat: Ensure correct drivers are installed, try a different USB port or cable, and restart both the engraver and computer.
- Kone ei liiku: Check cable connections to motors, ensure no physical obstructions, and verify software commands.
For further assistance, contact LASER TREE customer support.
9. Tekniset tiedot
| Erittely | Yksityiskohta |
|---|---|
| Mallinumero | K1 Mini 5w |
| Laserlähtöteho | 5 W (5000 mW) |
| Työalue | 12 x 12 tuumaa (300 x 300 mm) |
| Tuotteen mitat | 13 x 13 x 6 tuumaa |
| Tuotteen paino | 9.26 kiloa |
| Polttoväli | Kiinteä 23 mm |
| Pistekoko | 0.16*0.04mm |
| Suurin kaiverrusnopeus | 25,000 mm/min |
| Ohjelmiston yhteensopivuus | LaserGRBL (Windows), LightBurn (Mac OS, Linux) |
| Valmistaja | LASER PUU |
10. Takuu ja tuki
LASER TREE is committed to providing high-quality products and customer satisfaction. Your product is supported by a professional engineer team ready to provide timely troubleshooting and after-sales support for all pre-sale and usage questions.
For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official LASER TREE websivusto.
