1. Johdanto
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Faber Hood Venice 75 cm Autoclean Curved Chimney. Please read these instructions carefully before using the appliance and retain them for future reference. This chimney is designed to remove smoke, grease, and odors from your kitchen environment, featuring filterless technology, auto-clean function, and touch/gesture controls.
2. Turvallisuustiedot
Yleiset turvallisuusohjeet
- Varmista, että laitteen asentaa pätevä asentaja paikallisten määräysten mukaisesti.
- Do not operate the chimney without proper ventilation.
- Pidä lapset poissa laitteen läheltä käytön ja puhdistuksen aikana.
- Never flambé under the chimney.
- Do not leave frying food unattended, as overheated oil can ignite.
- Puhdista laite säännöllisesti estääksesi rasvan kertymisen, joka voi aiheuttaa tulipalon vaaran.
- Irrota virtalähde ennen puhdistusta tai huoltoa.
Sähköturvallisuus
- Varmista virtalähteen voltage matches the rating label on the appliance (230 Volts).
- Älä käytä jatkojohtoja tai sovittimia.
- Jos virtajohto on vaurioitunut, valmistajan, sen huoltoedustajan tai vastaavan pätevyyden omaavan henkilön on vaihdettava se vaaran välttämiseksi.
- Varmista, että laite on kunnolla maadoitettu.
3. Tuote ohiview
The Faber Hood Venice 75 cm Autoclean Curved Chimney is a wall-mounted kitchen appliance designed for efficient air purification. Key features include:
- Suodatinton teknologia: Eliminates the need for frequent filter cleaning.
- Autoclean Function: Simplifies internal cleaning by collecting oil in a detachable tray.
- Korkea imuteho: 1200 m³/h tehokasta savun ja hajun poistoa varten.
- Touch & Gesture Control: Intuitive operation with touch buttons and motion sensors.
- LED-valaistus: Provides illumination for your cooking area.
- Matala melutaso: Operates at 59dB for a quieter kitchen environment.
Edessä view of the Faber Hood Venice 75 cm Autoclean Curved Chimney, showcasing its curved glass design and control panel.
4. Asennus ja asennus
The chimney is designed for wall-mounted installation. Proper installation is crucial for optimal performance and safety. It is recommended to have the installation performed by a qualified service technician.
Installation Type: Ducted vs. Ductless
Your chimney supports both ducted and ductless installation methods:
- Kanavaasennus: Smoke and odors are expelled outside through a duct pipe. This method offers maximum efficiency.
- Kanavaton asennus: Air is filtered through an optional charcoal filter (purchased separately) and recirculated into the kitchen. Contact customer support for information on compatible charcoal filters.
Illustration showing both ducted and ductless installation options for the chimney, highlighting the external duct pipe for ducted and the internal charcoal filter for ductless.
Asennus ja mitat
Ensure adequate space above your cooking range for optimal performance. The recommended distance from the gas stove to the chimney base is 71-76 cm.
Diagram illustrating the key dimensions of the 75 cm chimney: 43.5 cm height, 75 cm width, and 41 cm front-to-back depth. Also shows recommended distance from stove.
5. Käyttöohjeet
The chimney can be operated using its touch control panel or gesture control feature.
Ohjauspaneelin toiminnot
- Virtapainike: Kytkee savupiipun päälle/pois.
- Nopeuden valinta: Adjusts suction power across 3 speeds (1, 2, 3). Use higher speeds for heavier cooking.
- Valopainike: Ohjaa LED-valaistusta.
- Autoclean Button: Käynnistää automaattisen puhdistussyklin.
Eleohjaus
The chimney features motion sensors for hands-free operation. Wave your hand in front of the sensor to turn the chimney ON/OFF or to cycle through speed settings.
Demonstration of gesture control (waving hand) and touch control (finger press) for operating the chimney's functions.
Filterless Operation
The filterless design ensures powerful suction without the need for traditional filters. This design directs smoke and grease directly into the oil collector, simplifying maintenance.
Visual representation of the chimney's filterless operation, showing smoke being drawn upwards, and indicating a 1200 m³/hr suction capacity.
6. Huolto
Regular maintenance ensures the longevity and optimal performance of your chimney. Always disconnect the power supply before performing any cleaning or maintenance.
Autoclean Function
The auto-clean feature uses heat to melt and collect oil and grease into a dedicated oil collector. Activate this function regularly, depending on your cooking frequency.
Cleaning the Oil Collector
- Ensure the chimney is turned OFF and cooled down.
- Locate the oil collector tray at the bottom of the chimney.
- Gently pull out the oil collector.
- Tyhjennä kerätty öljy ja pese astia lämpimällä saippuavedellä. Huuhtele huolellisesti ja kuivaa kokonaan ennen takaisin asettamista.
- Aseta öljynkerääjä tukevasti takaisin paikalleen.
Yksityiskohtainen view of the detachable oil collector, shown being removed for cleaning, and the integrated LED light panel.
Ulkopuolen puhdistus
- Pyyhi ulkopinnat pehmeällä liinalla dampmiedolla pesuaineella.
- Älä käytä hankaavia puhdistusaineita, teräsvillaa tai voimakkaita kemikaaleja, sillä ne voivat vahingoittaa pintaa.
- For glass surfaces, use a glass cleaner and a soft cloth.
7. Vianmääritys
Ennen kuin otat yhteyttä asiakaspalveluun, tutustu seuraavaan vianmääritysoppaaseen yleisten ongelmien ratkaisemiseksi.
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Chimney does not turn ON. | Ei virtalähdettä. Virtajohto ei ole kytketty kunnolla. |
Tarkista päävirtakytkin. Varmista, että virtajohto on kunnolla kiinni pistorasiassa. |
| Pieni imuteho. | Oil collector is full. Obstruction in the ducting (ducted models). Charcoal filter clogged (ductless models). |
Empty and clean the oil collector. Tarkista kanavisto tukosten varalta. Replace the charcoal filter if applicable. |
| Epätavallinen ääni käytön aikana. | Irralliset komponentit. Tukos tuulettimessa. |
Varmista, että kaikki osat on kiinnitetty kunnolla. Turn off and disconnect power, then check for foreign objects near the fan. |
| Autoclean function not working. | Chimney not at operating temperature. Sähkövika. |
Ensure the chimney has been running for a short period. Ota yhteyttä asiakastukeen, jos ongelma jatkuu. |
8. Tekniset tiedot
| Merkki | Faber |
| Mallinumero | 325.0737.662 |
| Tuotteen mitat (S x L x K) | 41S x 75L x 45.5K senttimetriä |
| Väri | Musta |
| Materiaalityyppi | Ruostumaton teräs |
| Viimeistelytyyppi | Jauhemaalattu |
| Ilmavirran kapasiteetti | 1200 kuutiometriä tunnissa |
| Melutaso | 59 desibeliä |
| Asennustyyppi | Seinäteline |
| Valvontamenetelmä | Gesture, Touch |
| Nopeuksien määrä | 3 |
| Valon lähde | LED |
| Suodattimen tyyppi | Suodatinton |
| Ilmanvaihtotyyppi | Ducted (Ductless with optional charcoal filter) |
| Voitage | 230 volttia |
| Tuotteen paino | 13.1 kiloa |
9. Takuu ja tuki
Takuutiedot

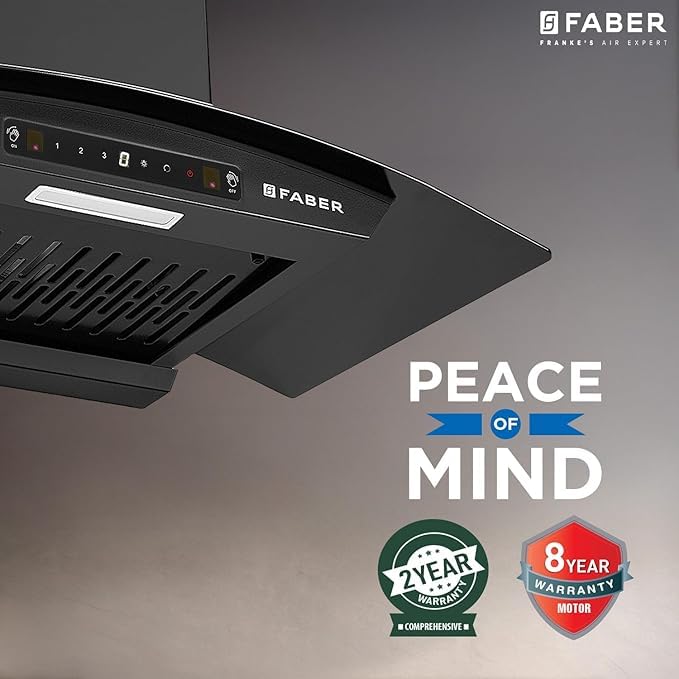

The Faber Hood Venice 75 cm Autoclean Curved Chimney comes with a comprehensive warranty:
- 2 vuoden kattava takuu tuotteen päällä.
- 8 vuoden takuu moottorissa.
Warranty claims require the Amazon Invoice as proof of purchase. For detailed terms and conditions, please refer to the official Faber websivustolla tai ota yhteyttä asiakastukeen.
Asiakastuki
For any queries, service requests, or technical assistance, please contact Faber customer support:
- Toll-Free Contact Number: 1800-209-3484
- Refer to the official Faber website for additional support resources and service center locations.
