OXYSURE 10x12x7.5 FT Outdoor Steel Storage Shed Instruction Manual

1. Johdanto

Thank you for choosing the OXYSURE 10x12x7.5 FT Outdoor Steel Storage Shed. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new storage shed. Please read this manual thoroughly before beginning assembly and retain it for future reference.

This shed is designed to provide ample storage space for gardening tools, outdoor equipment, bicycles, and more. Constructed with a unique aluminum frame and galvanized steel panels, it offers durability and weather resistance. Key features include lockable hinged doors for security and access, and integrated perforated ventilation openings for optimal airflow.

2. Turvallisuustiedot

Please observe the following safety precautions during assembly and use of the shed:

• Lue kaikki ohjeet huolellisesti ennen kokoamista.
• Wear appropriate safety gear, including gloves and eye protection, during assembly to prevent injuries from sharp edges or falling objects.
• Assembly typically requires two or more people. Do not attempt to assemble alone.
• Choose a level and stable site for installation. Ensure the ground is firm and free of obstructions.
• Anchor the shed securely to the ground or a concrete slab to prevent it from being moved by strong winds.
• Pidä lapset ja lemmikit poissa kokoonpanoalueelta onnettomuuksien välttämiseksi.
• Be aware of potential pinch points and sharp edges on metal components.
• Do not climb on the shed or its roof.
• Ensure proper ventilation by keeping the integrated vents clear.

3. Asennus ja kokoonpano

The OXYSURE storage shed is designed for straightforward assembly. Follow the detailed step-by-step instructions provided in the accompanying manual. For visual guidance, refer to the assembly video below.

Kuva 3.1: Etuosa view of the assembled shed.

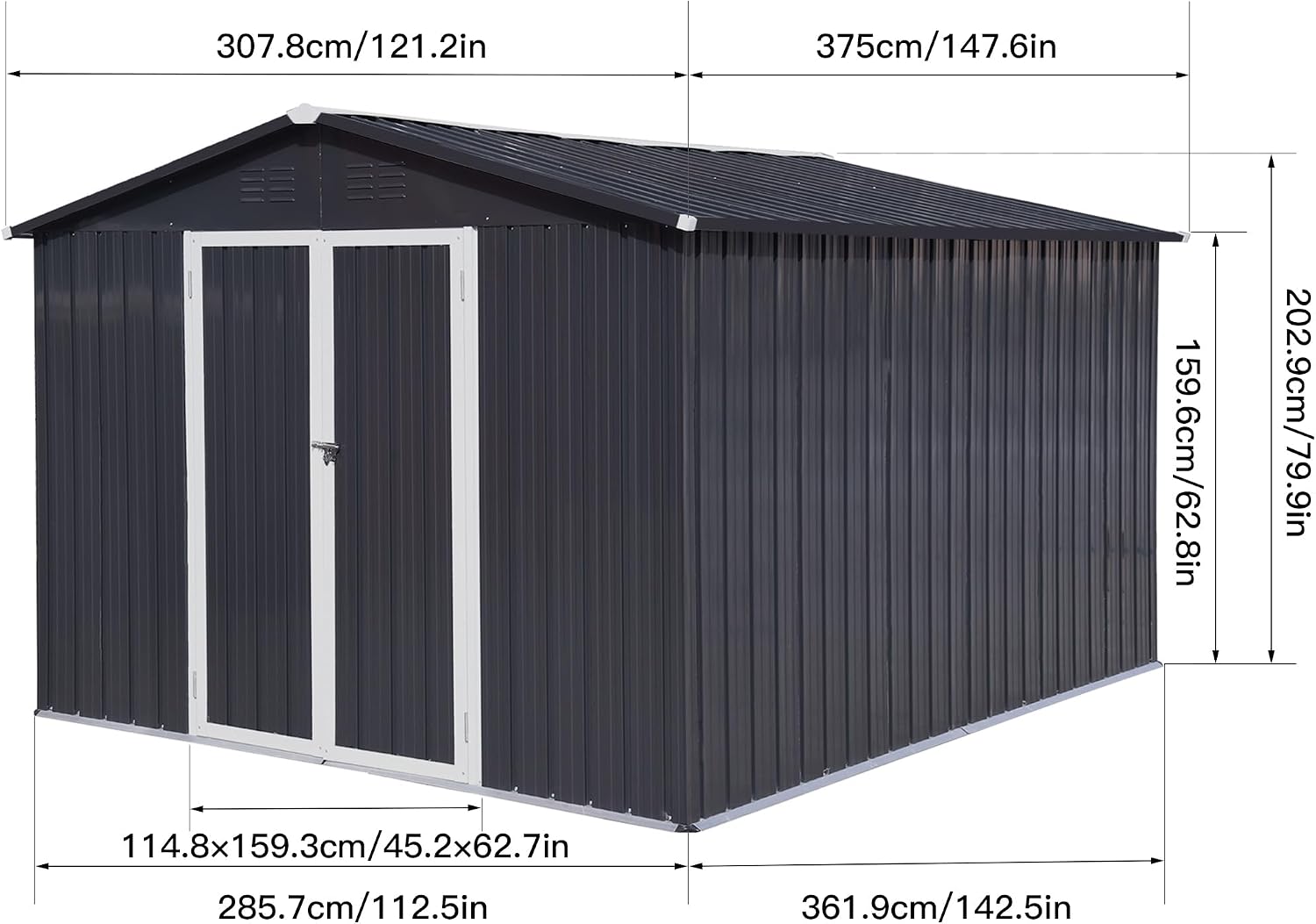

Kuva 3.2: Vajan yksityiskohtaiset mitat.

3.1 Sivuston valmistelu

1. Select a flat, level area for the shed. A concrete slab or a well-compacted gravel base is recommended.
2. Puhdista alue roskista, kivistä tai kasvillisuudesta.
3. Ensure there is adequate space around the shed for assembly and future access.

3.2 Kokoamisvaiheet

Follow the numbered steps in your printed manual. The general sequence involves:

• Pohjarungon kokoaminen.
• Attaching the wall panels.
• Installing the roof structure and panels.
• Mounting the doors and hardware.

For a visual guide to the assembly process, please watch the following video:

4. Käyttöohjeet

Your OXYSURE storage shed is designed for ease of use and security.

4.1 Oven käyttö

The shed features hinged double doors for wide access. To open, simply unlatch the door handle and pull the doors outwards. To close, push the doors firmly until they meet, then engage the latch. The hinged design allows for greater flexibility compared to sliding doors.

Figure 4.1: Shed with doors open, showing interior storage capacity.

4.2 Lukitusmekanismi

A heavy-duty padlock is included to secure your belongings. Insert the padlock through the designated holes on the door handles and lock it. Always ensure the doors are fully closed and locked when the shed is unattended to protect your stored items.

5. Huolto

Regular maintenance will extend the life and appearance of your OXYSURE storage shed.

• Puhdistus: Periodically clean the exterior with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized steel finish. Rinse thoroughly with clean water.
• Kiinnittimien tarkastus: Annually inspect all bolts, screws, and fasteners to ensure they are tight. Re-tighten any loose hardware.
• Ruosteenesto: While the shed is made of galvanized steel, inspect for any signs of rust, especially in areas where the paint might be scratched. Touch up any affected areas with rust-preventative paint.
• Katon hoito: Keep the roof clear of heavy snow accumulation and debris (leaves, branches) to prevent damage and ensure proper drainage.
• Oven saranat: Lubricate door hinges annually with a silicone-based lubricant to ensure smooth operation.
• Ilmanvaihto: Ensure the perforated ventilation openings are clear of obstructions to maintain optimal airflow and prevent condensation buildup inside the shed.

Figure 5.1: Shed demonstrating weather resistance in snowy conditions.

For more information on the shed's weatherproof features, refer to the video below:

6. Vianmääritys

Tässä on ratkaisuja yleisiin ongelmiin, joita saatat kohdata:

• Difficulty aligning panels during assembly: Ensure the base is perfectly level. Double-check that you are using the correct part numbers and that panels are oriented as shown in the manual. Slight adjustments to the base frame may be necessary.
• Leaking roof: Verify that all roof panels are correctly overlapped and securely fastened. Check for any damaged seals or improperly installed screws. Ensure the roof pitch allows for proper water runoff.
• Door sticking or not closing properly: Inspect the door hinges for any damage or misalignment. Ensure the shed is level, as an uneven base can cause the frame to twist, affecting door operation. Lubricate hinges if necessary.
• Kondenssivesi varaston sisällä: Ensure that the perforated ventilation openings are clear of any obstructions. Avoid storing wet items inside the shed, as this can increase humidity. Consider adding a moisture absorber if the problem persists in very humid climates.

7. Tekniset tiedot

Detailed specifications for the OXYSURE 10x12x7.5 FT Outdoor Steel Storage Shed:

8. Takuu ja tuki

For any questions, concerns, or assistance with your OXYSURE storage shed, please contact our customer support. Refer to your purchase documentation for specific warranty details and contact information. We are committed to providing support for our products.
