sweeek Danglars 4-Burner Outdoor Kitchen BBQ Instruction Manual

Johdanto

Welcome to your new sweeek Danglars 4-Burner Outdoor Kitchen BBQ. This manual provides essential information for the safe assembly, operation, and maintenance of your outdoor gas grill. Please read it thoroughly before use to ensure proper functionality and safety.

Image: The sweeek Danglars 4-Burner Outdoor Kitchen BBQ, showcasing its full setup with side tables and integrated storage, ready for use in an outdoor setting.

Tärkeitä turvallisuusohjeita

Always follow these safety guidelines to prevent injury or damage to property.

• Tämä laite on tarkoitettu vain ulkokäyttöön. Älä käytä sitä sisätiloissa.
• Keep children and pets away from the BBQ at all times, especially when in use.
• Ensure adequate ventilation around the BBQ. Do not use in an enclosed space.
• Älä säilytä tai käytä bensiiniä tai muita syttyviä höyryjä tai nesteitä tämän tai minkään muun laitteen läheisyydessä.
• Always check for gas leaks before each use. Use a soapy water solution on connections; bubbles indicate a leak.
• Use only Butane or Propane gas with this BBQ. Ensure the correct regulator is used.
• Never leave the BBQ unattended when lit or in operation.
• Allow the BBQ to cool completely before cleaning, moving, or covering.
• Käytä suojakäsineitä käsitellessäsi kuumia osia.

Pakkauksen sisältö

Before beginning assembly, ensure all components listed below are present and undamaged.

• Main BBQ unit with 4 integrated burners
• 3 Cast iron cooking grates
• 2 Detachable side tables with storage shelves, removable baskets, and hooks
• Rasvankerääjä
• Built-in thermometer (on lid)
• Pullonavaaja
• Kokoonpanolaitteiston sarja
• Käyttöopas

Asennus ja kokoonpano

The sweeek Danglars BBQ requires assembly. Follow these general steps. Refer to the included assembly diagrams for detailed instructions and component identification.

1. Unpack all components from the packaging and verify against the package contents list.
2. Attach the main BBQ unit to the frame structure using the provided hardware.
3. Install the 4 stainless steel burners into their designated positions.
4. Place the 3 cast iron cooking grates onto the burner support frame.
5. Mount the two detachable side tables. These tables provide convenient space for food preparation and storage, and can be removed if needed. Secure any included storage shelves, baskets, and hooks.
6. Connect the gas hose and regulator (not included) to the gas cylinder (Butane or Propane) and the BBQ unit's gas inlet. Ensure all connections are tight and perform a leak test using a soapy water solution.
7. Attach the grease collector beneath the main cooking area.
8. Ensure all wheels are securely attached to the base for easy mobility of the unit.

Image: A close-up of the sweeek Danglars BBQ's control knobs, bottle opener, and integrated storage for spices and utensils, highlighting the functional design.

Käyttöohjeet

Kaasuliitäntä

• Ensure the gas cylinder is placed on a stable, level surface away from the BBQ unit.
• Connect the gas cylinder (Butane or Propane) to the BBQ's regulator and hose. Hand-tighten all connections securely.
• Avaa kaasupullon venttiili hitaasti.

Ignition (Piezo)

• Always ensure the BBQ lid is open before attempting to light the burners.
• Turn one burner control knob to the KORKEA asema.
• Press and hold the ignition button (Piezo igniter) until the burner lights. You should hear a clicking sound followed by the sound of gas igniting.
• If the burner does not light within 5 seconds, turn the control knob to POIS, wait 5 minutes for gas to dissipate, and then repeat the ignition process.
• Once one burner is lit, you can light the other burners by simply turning their respective control knobs to the KORKEA asema.

Ruoanlaitto

• The BBQ features 4 independent burners, allowing for versatile cooking zones and precise temperature control.
• Use the integrated thermometer on the lid to monitor the internal temperature of the cooking chamber without needing to open the lid.
• Adjust individual burner controls to achieve the desired cooking temperature for different foods.

Sammutus

• After cooking, turn all burner control knobs to the POIS asema.
• Sulje kaasupullon venttiili kokonaan.
• Allow the BBQ to cool completely before covering or moving it.

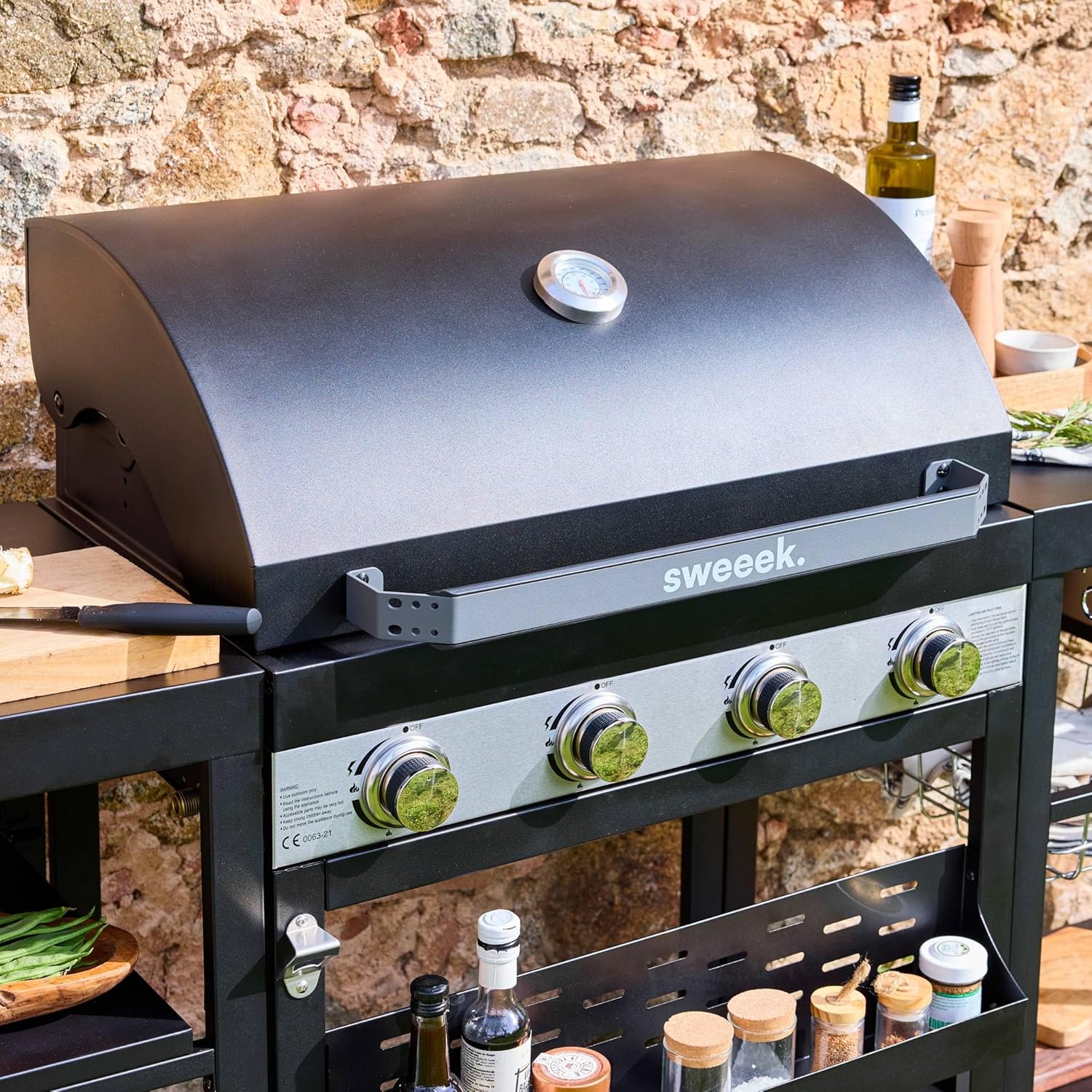

Kuva: Yksityiskohtainen view of the sweeek Danglars BBQ's lid, featuring the integrated thermometer, and the four control knobs for independent burner operation.

Huolto

Regular maintenance ensures the longevity and safe operation of your BBQ.

Keittoritilöiden puhdistus

• After each use, once the grates have cooled, clean them thoroughly with a grill brush to remove food residue.
• For deeper cleaning, remove the cast iron grates and wash them with warm, soapy water. Rinse thoroughly and dry completely to prevent rust.

Rasvan kerääjä

• The BBQ is equipped with a removable grease collector. Regularly check and empty the grease collector to prevent flare-ups and maintain hygiene.
• Remove the collector, dispose of accumulated grease, and wash with warm, soapy water.

Ulkopuolen puhdistus

• Clean the epoxy-painted steel exterior surfaces with a damp cloth and a mild detergent. Avoid using abrasive cleaners or scouring pads, which can damage the finish.

Varastointi

• When not in use for extended periods, store the BBQ in a dry, protected area.
• Consider using a weather-resistant BBQ cover to protect the unit from the elements.

Image: The right side table of the sweeek Danglars BBQ, illustrating its practical features including utensil hooks and a paper towel holder, aiding in efficient outdoor cooking and cleanup.

Vianetsintä

Katso tästä osiosta yleisiä ongelmia ja niiden ratkaisuja.

Poltin ei syty

• Tarkista kaasun syöttö: Ensure the gas cylinder valve is fully open and there is sufficient gas in the cylinder.
• Tarkista liitännät: Verify all gas hose and regulator connections are secure and free of leaks.
• Sytyttimen kipinä: Observe if the piezo igniter produces a visible spark when pressed. If not, the igniter may need adjustment or replacement.
• Clogged Burner Ports: Inspect burner ports for any debris or food residue that might be blocking gas flow. Clean if necessary.

Epätasainen lämmitys

• Puhtaat polttimet: Ensure burner ports are clean and free of any blockages.
• Kaasun paine: Check the gas pressure and ensure the regulator is functioning correctly.

Liialliset pahenemisvaiheet

• Clean Grease Collector: Empty and clean the grease collector regularly to prevent grease buildup.
• Rasvan leikkaaminen: Trim excess fat from meats before grilling to reduce dripping.
• Vähennä lämpöä: Lower burner settings if flare-ups occur. Move food to a cooler part of the grill if necessary.

Tekniset tiedot

Detailed technical specifications for the sweeek Danglars 4-Burner Outdoor Kitchen BBQ.

Image: A technical diagram providing detailed measurements and dimensions of the sweeek Danglars 4-Burner Outdoor Kitchen BBQ.

Takuu ja tuki

For warranty information, terms, and conditions, please refer to the documentation provided at the time of purchase. Keep your proof of purchase for any warranty claims.

For technical support, spare parts, or any other inquiries regarding your sweeek Danglars BBQ, please contact sweeek customer service directly through their official channels. Contact information can typically be found on the product packaging or the manufacturer's websivusto.
