1. Johdanto
Thank you for choosing the FREDBECK 36x84 Bifold Barn Door with Mirror. This product is designed to offer a versatile and space-saving solution for various rooms, including living rooms, bathrooms, and kitchens. The integrated mirror provides dual functionality, enhancing both practicality and the aesthetic appeal of your space by making rooms appear larger and brighter. This manual provides essential information for safe installation, proper operation, and effective maintenance of your new bifold barn door.

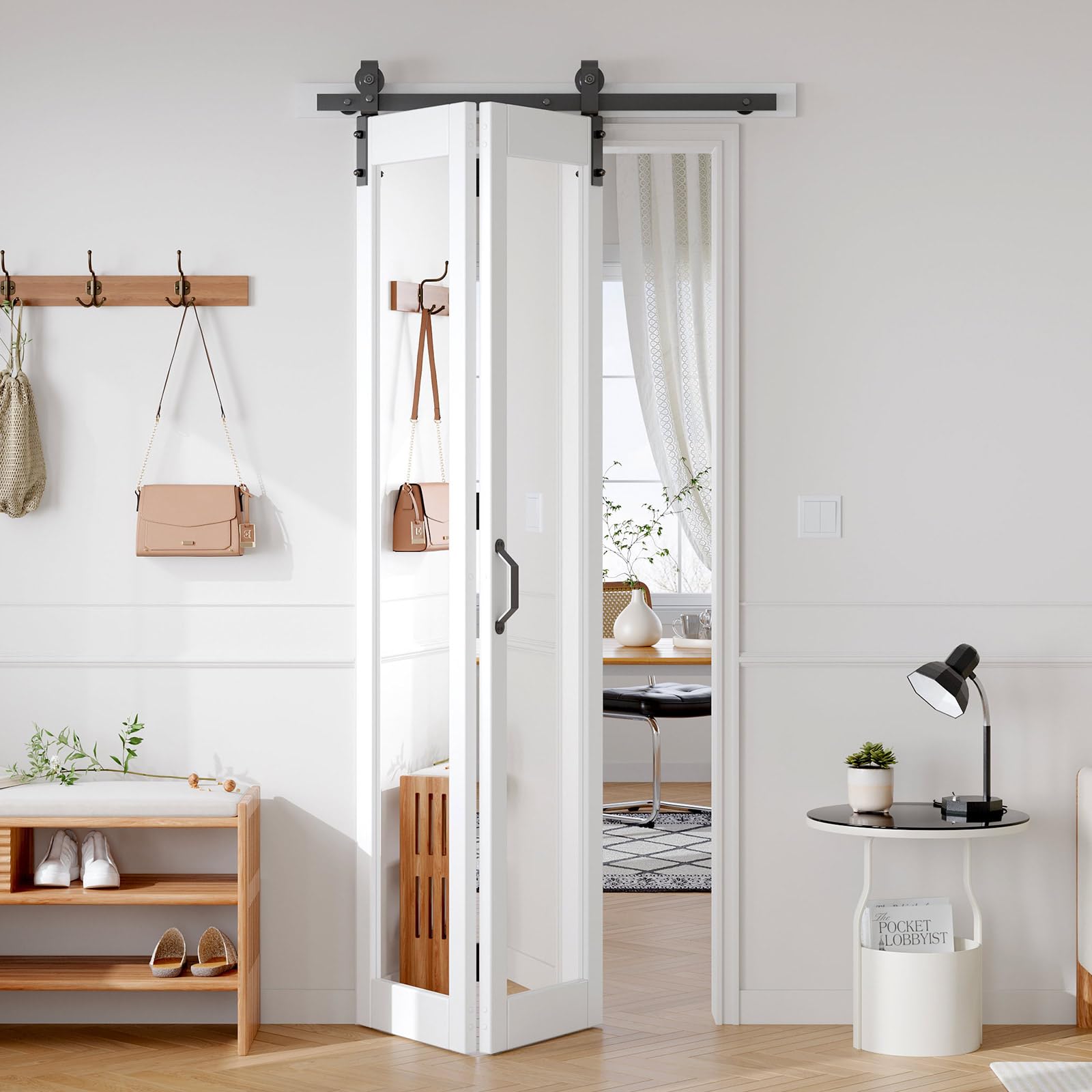

Image 1.1: The FREDBECK 36x84 Bifold Barn Door with Mirror installed in a modern living space, showcasing sen muotoilu ja toiminnallisuus.
2. Turvallisuustiedot
Lue kaikki ohjeet huolellisesti ennen asennusta ja käyttöä. Näiden ohjeiden noudattamatta jättäminen voi johtaa loukkaantumiseen tai tuotteen vaurioitumiseen.
- Käytä aina asianmukaisia suojavarusteita, mukaan lukien käsineitä ja silmäsuojaimia, asennuksen aikana.
- Ensure the mounting surface is structurally sound and capable of supporting the door's weight.
- Pidä lapset ja lemmikit poissa asennusalueelta.
- Handle mirror components with care to prevent breakage. The glass contains explosion-proof film to minimize scattering of fragments in case of breakage, but caution is still advised.
- Do not hang heavy objects on the door or track system.
- Regularly inspect all hardware for tightness and wear.
Image 2.1: Illustration of the explosion-proof film integrated into the mirror glass, designed to enhance safety by containing fragments upon impact.
3. Pakkauksen sisältö
Varmista, että kaikki alla luetellut osat ovat mukana ja vahingoittumattomia ennen asennuksen aloittamista. Jos osia puuttuu tai on vaurioitunut, ota yhteyttä asiakastukeen.
- Bifold Barn Door (Pre-assembled, 2 panels, 18"x84" each)
- Barn Door Hardware Kit (40" track, rollers, stoppers, floor guide, anti-jump pads)
- Kahva
- Ruuvit ja kiinnikkeet
- Käyttöohje
Image 3.1: Visual representation of the package contents, showing the two mirror door panels, the 40-inch track kit, and the door handle.
4. Tekniset tiedot
| Ominaisuus | Yksityiskohta |
|---|---|
| Merkki | FREDBECK |
| Malli | 36x84 Bifold Barn Door with Mirror |
| Väri | Valkoinen |
| Materiaali | MDF with PVC surface, Glass mirror |
| Door Dimensions (Overall) | 36" W x 84" H (Double 18" W x 84" H panels) |
| Oven paksuus | 1 3/8" |
| Radan pituus | 40" |
| Required Clearance (Door Top to Ceiling) | At least 6" |
| Tuotteen paino | 45 puntaa |
| Asennus vaaditaan | No (Door comes pre-assembled) |
Image 4.1: A comprehensive size chart illustrating different door dimensions, corresponding track lengths, and necessary clearances for installation.
5. Asennus ja asennus
The FREDBECK bifold barn door is designed for quick and easy installation, with the door panels arriving pre-assembled. The entire process can be completed in as little as 15 minutes.
5.1 Asennusta edeltävät tarkastukset
- Door Opening Width: Ensure your door opening width is less than the track length (40") minus 4 inches.
- Tilaus: Verify that there is at least 6 inches of clearance between the top of the door opening and the ceiling for track installation.
- Seinän rakenne: Confirm the wall above the door opening is suitable for mounting the track and can support the door's weight.
Image 5.1: This image highlights that the FREDBECK bifold barn door comes pre-assembled, significantly reducing installation time compared to doors requiring full assembly.
5.2 Asennusvaiheet
- Asenna kisko: Securely attach the 40-inch track above your door opening, ensuring it is level and at the correct height to allow for the 6-inch clearance. Use appropriate fasteners for your wall type.
- Install Hinges (if not pre-attached): If your door panels require hinge attachment, follow the provided hardware instructions to connect the two door panels. (Note: This model typically comes with panels pre-hinged).
- Ripusta ovi: Carefully lift the pre-assembled door panels and attach the rollers to the track. Ensure the rollers slide smoothly.
- Asennuskahva: Attach the handle to the door at a comfortable height.
- Adjust Stoppers and Floor Guide: Position the track stoppers to limit the door's travel and install the floor guide to prevent the door from swinging out.
Image 5.2: A simplified three-step visual guide for installing the bifold barn door, emphasizing its ease of setup.
6. Operating the Bifold Barn Door
The FREDBECK bifold barn door offers smooth and quiet operation, allowing for flexible space management. The design allows the door to fold, saving up to 50% of space compared to traditional barn doors.
6.1 Avaaminen ja sulkeminen
- To open the door, gently pull the handle to slide the panels along the track. The panels will fold inward as they move.
- To close the door, push the panels back along the track until they fully extend and meet, covering the opening.
- The door can be positioned fully opened, half closed, or fully closed, adapting to your privacy and space needs.
Image 6.1: This image illustrates the door in three states: fully opened, half closed, and fully closed, highlighting its versatility and space-saving benefits.
6.2 Smooth and Quiet Operation
The high-quality hardware, featuring super silent nylon wheels, ensures that the rollers slide smoothly and quietly along the track. This design minimizes noise during operation, making it suitable for any room.
Image 6.2: A visual explanation of the door's smooth and quiet mechanism, featuring nylon wheels and bearings for effortless movement.
7. Huolto
Proper maintenance will ensure the longevity and optimal performance of your FREDBECK bifold barn door.
- Cleaning the Door Panels: The PVC surface is waterproof and easy to clean. Use a soft, damp cloth with mild soap and water to wipe down the door panels. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Peilin puhdistus: Use a standard glass cleaner and a lint-free cloth to clean the mirror surface.
- Rata ja rullat: Periodically inspect the track for any debris or dust accumulation. Clean the track with a dry cloth. Check the rollers for smooth movement and lubricate with a silicone-based spray if necessary.
- Laitteiston tarkistus: Regularly check all screws and fasteners on the track, rollers, and handle to ensure they are tight. Tighten any loose hardware to maintain stability and safety.
8. Vianmääritys
If you encounter any issues with your bifold barn door, refer to the common problems and solutions below.
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Ovi ei liuku tasaisesti tai pitää ääntä. | Debris in track, dry rollers, loose hardware. | Clean the track. Lubricate rollers with silicone spray. Check and tighten all track and roller hardware. |
| Door panels feel loose or wobbly. | Loose hinges or mounting screws. | Inspect and tighten all hinge screws and mounting hardware on the door panels and track. |
| Gaps around the door frame when closed. | Improper installation, uneven wall surface. | Ensure the track is perfectly level. Adjust the floor guide if possible. Consider adding weather stripping for minor gaps. |
| Mirror appears loose within the frame. | Manufacturing tolerance or minor shifting. | If the mirror is genuinely loose and causing rattling, contact customer support. Avoid attempting to secure it yourself if it involves disassembling the door. |
| Door panels separate or show signs of damage. | Impact, manufacturing defect, or stress. | For significant damage or separation, contact customer support. Do not attempt repairs that could compromise the door's structural integrity or safety. |
9. Takuu ja asiakastuki
FREDBECK is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any questions, concerns, or assistance with your product, including missing parts, installation guidance, or troubleshooting beyond what is covered in this manual, please contact FREDBECK customer support through the retailer where the product was purchased.
Löydät yleensä yhteystiedot jälleenmyyjän osoitteesta website or your purchase receipt. Please have your product model number (36x84 Bifold Barn Door with Mirror) and ASIN (B0DNFFVRGZ) ready when contacting support.
