Voyager Breeze Foldable Drone Instruction Manual

1. Johdanto

The Voyager Breeze Foldable Drone is a compact and versatile quadcopter equipped with a dual 480p WiFi camera, designed for ease of use and stable flight. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure an optimal user experience.

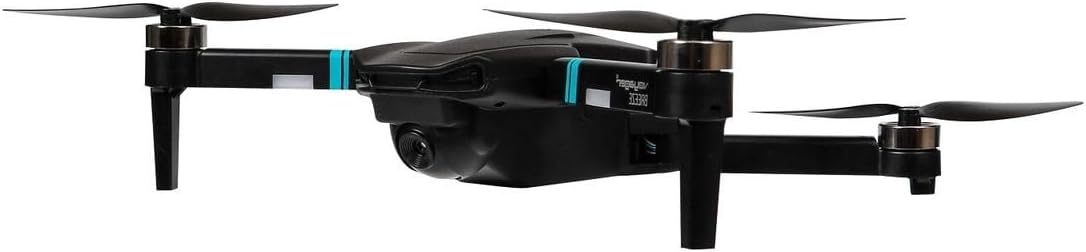

Image 1.1: The Voyager Breeze Foldable Drone in its unfolded, flight-ready configuration.

2. Pakkauksen sisältö

Varmista, että pakkauksessasi on kaikki tarvittavat osat:

• Voyager Breeze Foldable Drone
• 2.4G Remote Control (Transmitter)
• 3.7V 1000mAh Li-ion Drone Battery
• USB-latauskaapeli
• Varaterät (setti)
• Propeller Guards (set)
• Käyttöopas (tämä asiakirja)

3. Asennus

3.1. Drone Battery Charging and Installation

1. Liitä dronin akku mukana toimitettuun USB-latauskaapeliin.
2. Kytke USB-kaapeli tavalliseen USB-virtalähteeseen (ei sisälly toimitukseen).
3. Allow approximately 80 minutes for a full charge. The indicator light on the USB cable will change when charging is complete.
4. Once charged, insert the battery into the drone's battery compartment, ensuring a secure connection.

3.2. Lähettimen paristojen asennus

1. Open the battery compartment on the back of the 2.4G remote control.
2. Insert three (3) 1.5V AA batteries (not included), observing the correct polarity (+/-).
3. Sulje paristolokero kunnolla.

Image 3.1: The 2.4G remote control for the Voyager Breeze Drone, showing controls and battery compartment location.

3.3. Potkurisuojuksen asennus

For beginner pilots or indoor flight, it is recommended to install the propeller guards:

1. Identify the four propeller guards.
2. Gently snap each guard onto the corresponding motor arm of the drone. Ensure they are firmly attached without obstructing propeller rotation.

3.4. Folding and Unfolding the Drone

The Voyager Breeze drone features a foldable design for portability.

• Avaaminen: Gently extend each of the four rotor arms outwards until they click into place.
• Taittaa: Gently push each rotor arm inwards until it locks into the compact position.

Image 3.2: The Voyager Breeze Foldable Drone in its compact, folded state for easy transport.

4. Käyttöohjeet

4.1. Virta päälle/pois ja pariliitos

1. Droonin käynnistys: Paina ja pidä dronin virtapainiketta painettuna, kunnes merkkivalot syttyvät.
2. Lähettimen käynnistys: Press the ON/OFF button on the remote control.
3. Pariliitos: Push the left joystick (throttle) fully up, then fully down. The drone's lights will stop flashing and become solid, indicating successful pairing.

4.2. Lennon perusohjaimet

• Yksi keskeinen nousu/lasku: Press the dedicated button on the transmitter to automatically take off or land.
• Hätäpysähdys: In an emergency, press the emergency stop button to immediately cut power to the motors.
• Korkeuden pito: The drone maintains a stable altitude automatically, allowing for easier control.
• Optisen virtauksen paikannus: Utilizes a downward-facing camera to enhance stability and precise hovering, especially indoors.

4.3. Edistyneet lentotoiminnot

• Päätön tila: When activated, the drone's orientation is relative to the pilot, regardless of the drone's front direction. Press the Headless Mode button to activate/deactivate.
• 3D-käännös: Fly the drone to a sufficient height, then press the 3D Flip button and move the right joystick in the desired flip direction.
• Yksi keskeinen paluu: Press the One Key Return button, and the drone will attempt to fly back towards its take-off point. Note: This function is based on initial calibration and is not GPS-accurate.

4.4. Dual 480p WiFi Camera Operation

The drone is equipped with a dual 480p WiFi camera. To use the camera functions:

1. Download the dedicated drone control app to your smartphone (refer to the QR code in the quick start guide or search your app store).
2. Connect your smartphone to the drone's WiFi network (usually named 'WIFI_UFO-XXXXXX').
3. Avaa sovellus kohteeseen view the live camera feed, capture photos, and record videos.

5. Huolto

5.1. Puhdistus

Regularly clean the drone with a soft, dry cloth. Avoid using water or solvents that could damage electronic components.

5.2. Akun hoito

• Älä ylilataa tai liikaa tyhjennä dronin akkua.
• Säilytä akkuja viileässä, kuivassa paikassa suojassa suoralta auringonvalolta.
• Jos dronea ei käytetä pitkään aikaan, lataa akku noin 50-prosenttisesti ennen säilytystä.

5.3. Potkurin vaihto

If a propeller is damaged, replace it with a spare blade from the package. Ensure the correct propeller (A or B) is installed on the corresponding motor, matching the original configuration.

6. Vianmääritys

• Drone does not respond to transmitter: Ensure both drone and transmitter are powered on and successfully paired. Check transmitter batteries.
• Drooni ajelehtii lennon aikana: Perform a gyroscope calibration. Refer to the quick start guide for specific calibration steps. Ensure optical flow positioning is active if flying indoors.
• Camera feed not visible on phone: Verify your phone is connected to the drone's WiFi network and the drone app is open. Ensure the drone battery has sufficient charge.
• Lyhyt lentoaika: Ensure the drone battery is fully charged. Flight time can be affected by aggressive flying, wind conditions, and continuous camera use.
• Droonit kaatuvat usein: Check for damaged propellers and replace if necessary. Ensure propeller guards are installed for added protection. Practice basic controls in an open, safe area.

7. Tekniset tiedot

8. Takuutiedot

The Voyager Breeze Foldable Drone comes with a 1 vuoden takuu from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance. Please retain your proof of purchase for warranty claims.

9. Tukea

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your purchase documentation or visit the official Voyager product support websivusto.
