1. Tärkeitä turvallisuustietoja
Please read this entire manual carefully before assembling, operating, or servicing your sweeek Edmond Gas Barbecue. Failure to follow these instructions could result in property damage, bodily injury, or death.
- VAIN ULKOKÄYTTÖÖN. Älä käytä tätä laitetta sisätiloissa.
- Pidä lapset ja lemmikkieläimet aina poissa grillin läheltä.
- Ensure the barbecue is placed on a stable, level surface, away from flammable materials.
- Always check for gas leaks before each use. Refer to the 'Operating Instructions' section for leak testing procedures.
- A gas hose and pressure regulator are required for connection to a gas bottle and are EI SISÄLLÄ with this product. Ensure they are compatible with Butane or Propane gas and meet local safety standards.
- Älä säilytä tai käytä bensiiniä tai muita syttyviä nesteitä tai höyryjä tämän tai minkään muun laitteen läheisyydessä.
- Käytä aina suojakäsineitä käsitellessäsi kuumia pintoja.
2. Tuote ohiview
The sweeek Edmond Gas Barbecue is designed for outdoor cooking, featuring multiple burners and a robust construction for efficient grilling.
- polttimet: 6 main burners + 1 side burner for versatile cooking.
- Sytytys: Electronic Piezo ignition for easy startup.
- Lämpötilan säätö: Integrated thermometer in the lid for monitoring cooking temperature.
- Rakenne: High-quality steel frame with heat-resistant epoxy paint. Stainless steel burners.
- Keittopinta: Enameled cast iron grill grates.
- Liikkuvuus: Equipped with 4 wheels for easy relocation.
- Varastointi: Front cabinet with 2 doors.

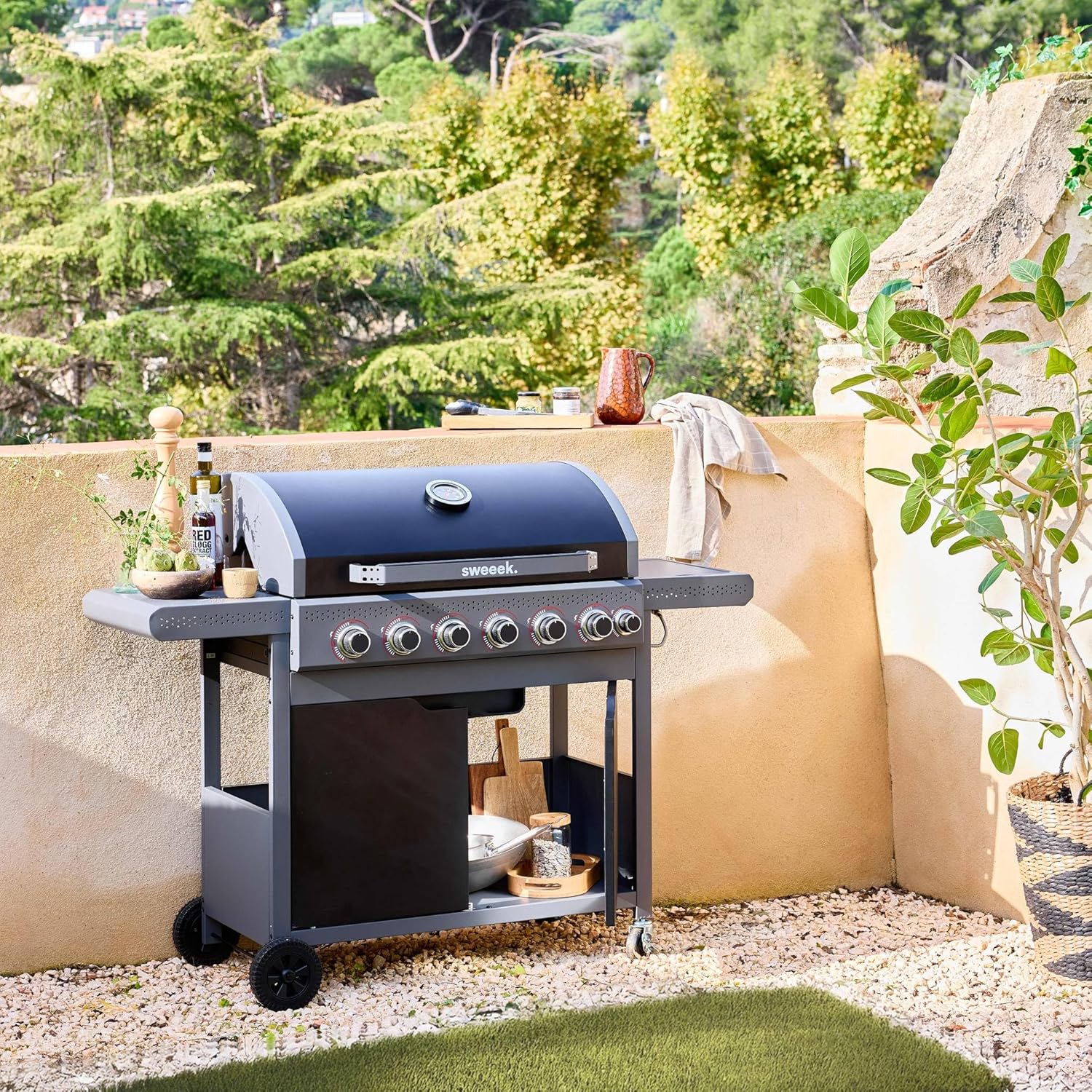

Kuva 2.1: Päättynytview of the sweeek Edmond Gas Barbecue with the lid closed.
3. Asennus ja kokoonpano
Assembly of the sweeek Edmond Gas Barbecue is straightforward. A detailed assembly manual is included in the product packaging. Ensure all components are present and undamaged before beginning assembly.
3.1 Komponenttien tarkistus
Before assembly, unpack all parts and verify against the included parts list. Contact customer support if any parts are missing or damaged.
3.2 Kokoamisvaiheet
- Noudata erillisessä kokoamisoppaassa annettuja vaiheittaisia ohjeita.
- Varmista, että kaikki kiinnikkeet on kiristetty tiukasti.
- Attach the wheels to the base for mobility.
- Install the side shelves and the main grill body.
- Place the enameled cast iron grill grates and warming rack into position.
3.3 Kaasuliitäntä
Connect a suitable gas hose and pressure regulator (not supplied) to your gas bottle and the barbecue's gas inlet. Ensure all connections are tight and perform a leak test before first use.
Figure 3.1: Dimensional diagram of the barbecue, useful for planning placement.
4. Käyttöohjeet
This section details how to safely operate your gas barbecue.
4.1 Vuototestaus
Perform a leak test every time you connect a new gas bottle or if you suspect a leak.
- Sekoita liuos, jossa on yhtä paljon nestemäistä astianpesuainetta ja vettä.
- Varmista, että kaikki polttimen säätönupit ovat 'OFF'-asennossa.
- Turn on the gas supply at the bottle.
- Apply the soap solution to all gas connections (hose to regulator, regulator to bottle, hose to barbecue inlet).
- If bubbles appear, there is a leak. Immediately turn off the gas supply. Tighten connections and re-test. If the leak persists, do not use the barbecue and contact customer support.
4.2 Pääpolttimien sytyttäminen
- Avaa grillin kansi.
- Varmista, että kaikki polttimen säätönupit ovat 'OFF'-asennossa.
- Open the gas supply valve on the gas bottle.
- Push in and turn one main burner control knob counter-clockwise to the 'HIGH' position.
- Press and hold the electronic piezo ignition button until the burner ignites. You should hear a clicking sound.
- Once ignited, release the ignition button. If the burner does not light within 5 seconds, turn the control knob to 'OFF', wait 5 minutes for gas to dissipate, and repeat the process.
- Repeat for other main burners as needed. Each burner operates independently.
- Adjust the flame intensity by turning the control knobs between 'HIGH' and 'LOW'.
4.3 Sivupolttimen sytyttäminen
- Avaa sivupolttimen kansi.
- Ensure the side burner control knob is in the 'OFF' position.
- Open the gas supply valve on the gas bottle.
- Paina sivupolttimen säätönuppia sisään ja käännä sitä vastapäivään asentoon 'HIGH'.
- Press and hold the electronic piezo ignition button until the burner ignites.
- Once ignited, release the ignition button. If the burner does not light within 5 seconds, turn the control knob to 'OFF', wait 5 minutes, and repeat.
- Adjust the flame intensity as required.
Figure 4.1: Control knobs and integrated thermometer.
Figure 4.2: The auxiliary side burner.

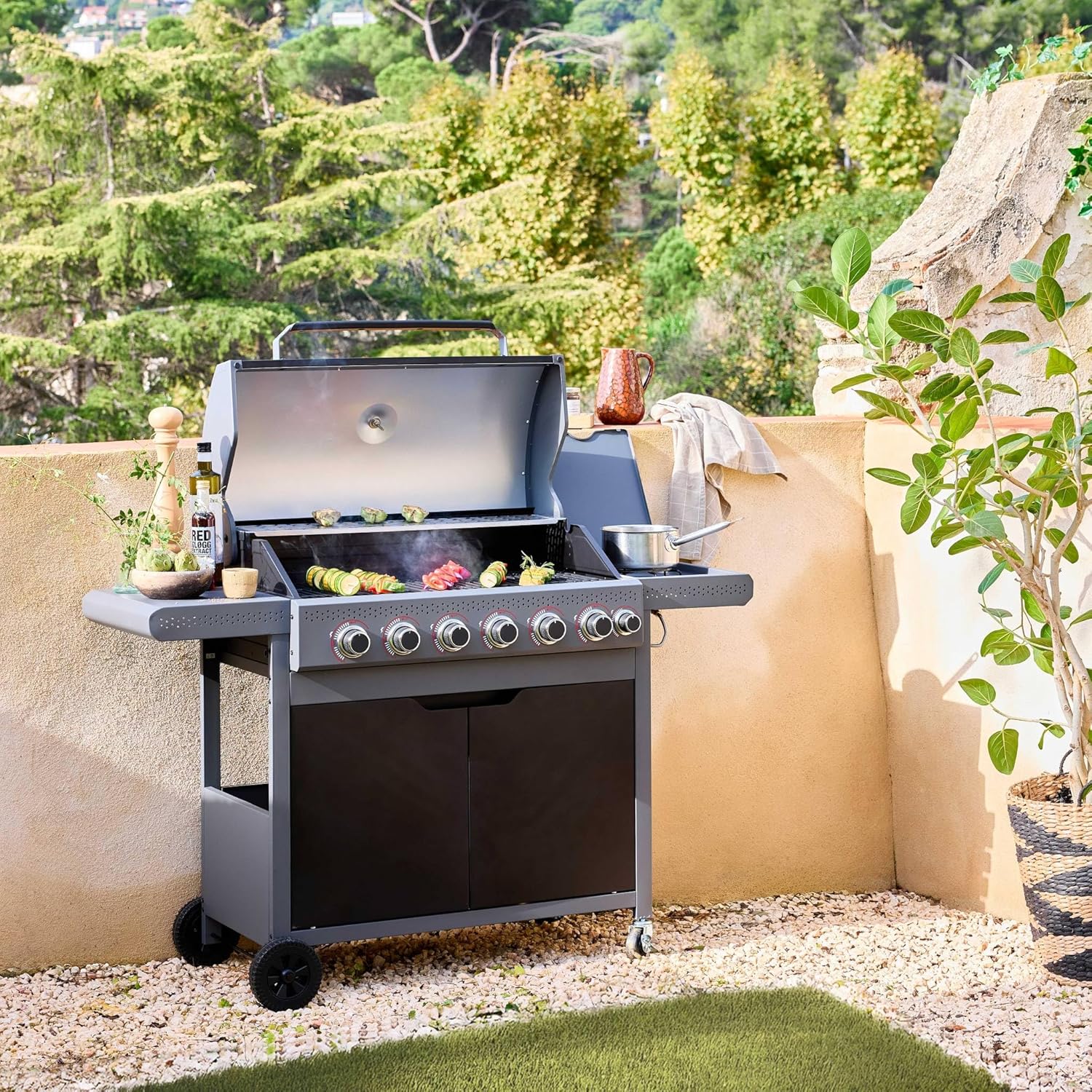

Figure 4.3: Barbecue in operation with food on the grill.
5. Huolto
Säännöllinen puhdistus ja huolto pidentää grillisi käyttöikää ja varmistaa sen turvallisen käytön.
5.1 Cleaning the Grill Grates
The enameled cast iron grill grates should be cleaned after each use once they have cooled down.
- Use a grill brush to remove food residue.
- For stubborn residue, wash with warm soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely to prevent rust.
5.2 Rasvataso
The grease tray collects drippings during cooking. It should be emptied and cleaned regularly to prevent grease fires.
- Anna grillin jäähtyä kokonaan.
- Carefully slide out the grease tray (dimensions: 11.5 x 18 x 3.5 cm).
- Dispose of collected grease responsibly.
- Wash the tray with warm soapy water, rinse, and dry before replacing.
5.3 Ulkopuolen puhdistus
Clean the exterior surfaces with a mild detergent and a soft cloth. Avoid abrasive cleaners or pads that could damage the finish.
6. Vianmääritys
Tässä osiossa käsitellään yleisiä ongelmia, joita saatat kohdata kaasugrillisi kanssa.
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Poltin ei syty | Ei kaasunsyöttöä, polttimen aukko tukossa, sytytin viallinen. | Check gas bottle, regulator, and hose connections. Ensure gas valve is open. Clean burner ports. Check igniter electrode for spark. |
| Epätasainen lämmitys | Tukkeutuneet polttimen aukot, alhainen kaasunpaine. | Clean burner ports. Check gas level in bottle. Ensure regulator is functioning correctly. |
| Keltainen tai oranssi liekki | Improper air/gas mixture, clogged burner. | Clean burner ports. Ensure air vents are clear. |
| Kaasun haju | Kaasuvuoto. | Immediately turn off gas supply. Perform a leak test (Section 4.1). Do not use if leak persists. |
7. Tekniset tiedot
Detailed technical specifications for the sweeek Edmond Gas Barbecue.
| Ominaisuus | Erittely |
|---|---|
| Merkki | sweeek |
| Mallinumero | 3701672509965 |
| Väri | Musta |
| Polttoainetyyppi | Gas (Butane or Propane recommended) |
| Polttimia yhteensä | 7 (6 main burners + 1 side burner) |
| Total Heating Power | 20.5 kW (20500 wattia) |
| Main Burner Power | 3 kW per burner (total 18 kW for 6 main burners) |
| Sivupolttimen teho | 2.5 kW |
| Sytytystyyppi | Elektroninen piezo |
| Materiaali (runko) | Alloy Steel with epoxy paint |
| Material (Burners) | Ruostumaton teräs |
| Material (Cooking Surface) | Emaloitu valurauta |
| Kokonaismitat (P x L x K) | 144 x 62 x 143 cm |
| Grill Surface Dimensions | 41.5 x 22.5 cm (Note: This seems to be for one grate, not total. The description states 3 grates, so total cooking area would be larger.) |
| Grillikorkeus | 85.5 cm |
| Kannen mitat | 82.5 x 45 x 24.5 cm |
| Grease Tray Dimensions | 11.5 x 18 x 3.5 cm |
| Paino | 40 kg |
| Asennus vaaditaan | Kyllä |
| Erikoisominaisuudet | Integrated thermometer, portable (with wheels) |
8. Takuu ja tuki
For warranty information, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Specific warranty terms and conditions may vary.
If you require technical assistance, have questions about assembly, operation, or maintenance, please contact sweeek customer support or your authorized dealer. Please have your model number (Edmond Gas Barbecue Model 3701672509965) and proof of purchase available when contacting support.
