BIG RED ATRT1061CRR Torin Manual Hand Crank Winch User Manual

Johdanto

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your BIG RED ATRT1061CRR Torin Manual Hand Crank Winch. Please read and understand all instructions before using the product.

The BIG RED ATRT1061CRR Torin Manual Hand Crank Winch is a versatile and durable tool designed for various lifting and pulling tasks. Constructed from heavy-duty carbon steel with a rust-resistant zinc plating, it offers a 600 lbs capacity with a 26.3ft steel cable. Its compact design and comfortable anti-slip handle ensure ease of use and portability.

Turvallisuustiedot

VAROITUS: Näiden turvallisuusohjeiden noudattamatta jättäminen voi johtaa vakaviin vammoihin tai omaisuusvahinkoihin.

• Always inspect the winch, cable, and hook for damage before each use. Do not use if any components are worn or damaged.
• Älä ylitä 600 lbs:n nimelliskuormitusta.
• Ensure the winch is securely mounted to a stable surface capable of supporting the load.
• Keep hands and clothing clear of moving parts, especially the cable and gears, during operation.
• Käytä asianmukaisia ​​henkilönsuojaimia, kuten käsineitä ja silmäsuojaimia.
• Never use the winch to lift or transport people.
• Pidä kahvasta tukeva ote käytön aikana.
• When changing the ratchet switch position, always hold the crank handle tightly, especially if the winch is under load.
• Avoid sudden jerking motions when pulling or releasing a load. Operate smoothly.
• Store the winch in a dry, clean place when not in use.

Tuote loppuview

The BIG RED ATRT1061CRR winch features a robust construction and user-friendly design for various pulling and lifting applications.

Kuva 1: Päättynytview of the BIG RED ATRT1061CRR Torin Manual Hand Crank Winch.

Tärkeimmät ominaisuudet:

• Kompakti muotoilu: Dimensions of 8.6 x 8.6 x 4.7 inches for portability.
• Tukeva materiaali: Heavy-duty carbon steel with zinc-plated finish for rust resistance.
• Mukava ote: 7.3-inch anti-slip handle for secure operation.
• Powerful Gear System: Hardened steel gears with a 3.1:1 gear ratio for efficient task handling.
• Turvallisuus ja luotettavuus: Mooring hook with safety claw, allowing for forward and reverse ratcheting.
• Kaapeli: 26.3ft steel cable.

Kuva 2: Yksityiskohtainen view of the winch components, highlighting the comfortable handle, durable gear, strong steel wire, and strong hook.

Asennus

Purkaminen:

Carefully remove all components from the packaging. Verify that all parts are present and undamaged. The package should include the hand winch with steel cable and handle.

Vinssin asennus:

1. Select a mounting location that is structurally sound and can safely support the maximum load capacity of the winch.
2. Ensure the mounting surface is flat and provides adequate clearance for the winch handle to operate freely.
3. Use appropriate hardware (bolts, nuts, washers - not included) to securely fasten the winch to the mounting surface through the pre-drilled holes in the winch base.
4. Tighten all fasteners firmly to prevent movement during operation.

Kahvan kiinnitys:

Attach the anti-slip handle to the winch shaft using the provided hardware. Ensure it is securely fastened for safe operation.

Figure 3: The anti-slip handle provides a comfortable and secure grip for operation.

Käyttöohjeet

Yleinen toiminta:

1. Ensure the load is properly secured to the winch hook. The mooring hook is equipped with a safety claw; ensure it is fully closed around the attachment point.
2. Verify that the steel cable is properly wound on the drum and free from kinks or damage.
3. Position yourself safely, maintaining a clear view of the operation and keeping hands away from moving parts.

Ratchet Switch Positions:

The winch features a three-position ratchet switch to control the cable direction. Always hold the crank handle tightly when changing the switch position, especially if the winch is under load.

Figure 4: Illustration of the three ratchet switch positions and their functions.

• Upward Position (Pulling): Move the switch to the upward position to engage the pulling mechanism. Rotate the handle clockwise to pull the cable in.
• Downward Position (Releasing): Move the switch to the downward position to engage the releasing mechanism. Rotate the handle counter-clockwise to release the cable.
• Middle Position (Two Directions): This position allows for free movement in both directions but should only be used when the winch is unloaded. Do not use this position with a load.

Figure 5: Important instructions for safely operating the ratchet switch.

Sovellukset:

This manual hand crank winch is suitable for various applications, including:

• Pulling trailers
• Assisting with SUV recovery (light duty)
• Hauling fishing boats
• Light crane operations

Kuva 6: Esimamples of common applications for the hand crank winch.

Huolto

• Säännöllinen tarkastus: Before each use, inspect the winch for any signs of wear, corrosion, or damage to the cable, hook, gears, and housing.
• Voitelu: Periodically apply a light grease or oil to the gears and moving parts to ensure smooth operation and prevent rust.
• Puhdistus: Keep the winch clean from dirt, debris, and moisture. Wipe down the unit after use, especially if exposed to harsh conditions.
• Kaapelihuolto: Inspect the steel cable for fraying, kinks, or broken strands. Replace the cable if any damage is observed. Ensure the cable is wound neatly on the drum.
• Varastointi: Store the winch in a dry, protected environment to prevent rust and extend its lifespan.

Vianetsintä

Tekniset tiedot

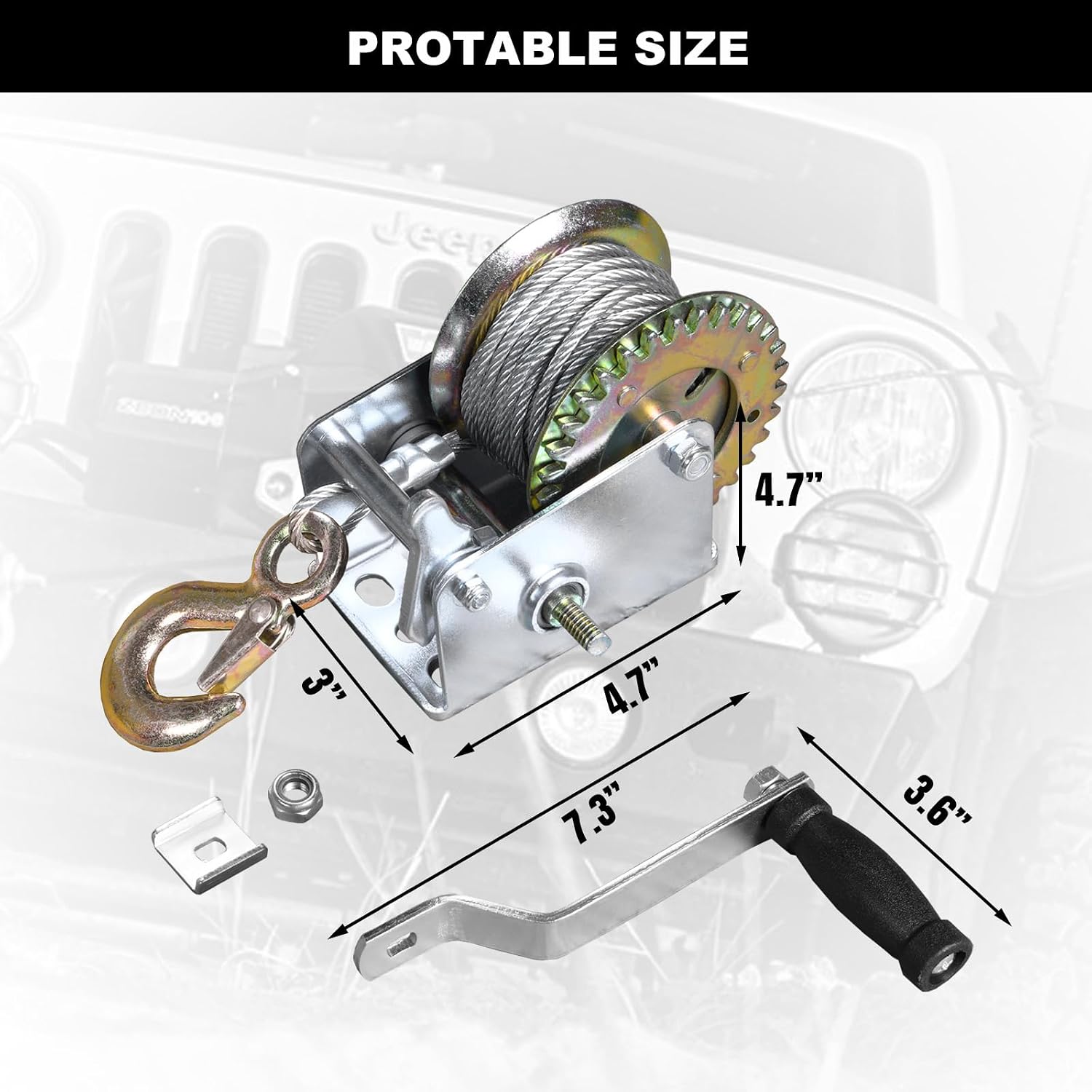

Figure 7: Key dimensions of the BIG RED ATRT1061CRR winch.

Figure 8: Illustration of the winch's robust gear system and 3.1:1 gear ratio.

Takuu

Tämän tuotteen mukana tulee a 1 vuoden rajoitettu valmistajan takuu. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact BIG RED customer support.

Tukea

For technical assistance, replacement parts, or warranty claims, please contact BIG RED customer support. You can find contact information on the official BIG RED websivustoltasi tai jälleenmyyjän kautta.

Verkkoresurssit: Visit the BIG RED Store on Amazon
