MCombo 7785 Power Swivel Glider Rocker Recliner Instruction Manual

1. Asennusohjeet

The MCombo 7785 Power Swivel Glider Rocker Recliner is designed for quick and easy assembly, typically within 15 minutes. It arrives in three boxes. Follow these steps for proper setup:

1.1 Pakkauksen purkaminen ja osien tunnistaminen

Carefully unpack all components from the three boxes. Ensure all parts are present before beginning assembly. The main components include the base, backrest, left armrest, right armrest, manual, parts box, and power adapter.

Image: All components of the MCombo 7785 recliner laid out after unpacking.

1.2 Armrest and Backrest Assembly

1. Remove any protective packaging from the armrest and backrest connection points.
2. Align the metal brackets on the armrests with the corresponding slots on the base. Slide the armrests down until they securely lock into place.
3. Similarly, align the backrest with the slots on the base and slide it down firmly until it clicks into position.

1.3 Johdinliitännät

Connect the internal wires for the massage, heat, and reclining functions. These connections are tool-free and typically involve matching color-coded or uniquely shaped connectors.

• Connect the massage wires (often red and white RCA-style connectors).
• Connect the massage remote control wire.
• Connect the USB wire.
• Connect the recline remote control wire.
• Plug the power adapter into the designated port on the chair and then into a wall outlet. Ensure the power switch on the chair's base is in the 'ON' position.

2. Käyttöohjeet

The MCombo 7785 recliner offers multiple features for enhanced comfort and convenience.

2.1 Power Reclining Function

Use the recline remote control to adjust the chair's recline angle. The chair can recline up to 142 degrees, allowing for various comfortable positions, including napping.

Image: The recliner demonstrating its maximum recline angle of 142 degrees.

2.2 Swivel and Gliding Movement

The chair features a 270-degree swivel movement and a smooth gliding motion. These functions operate manually by shifting your weight or gently pushing off the floor.

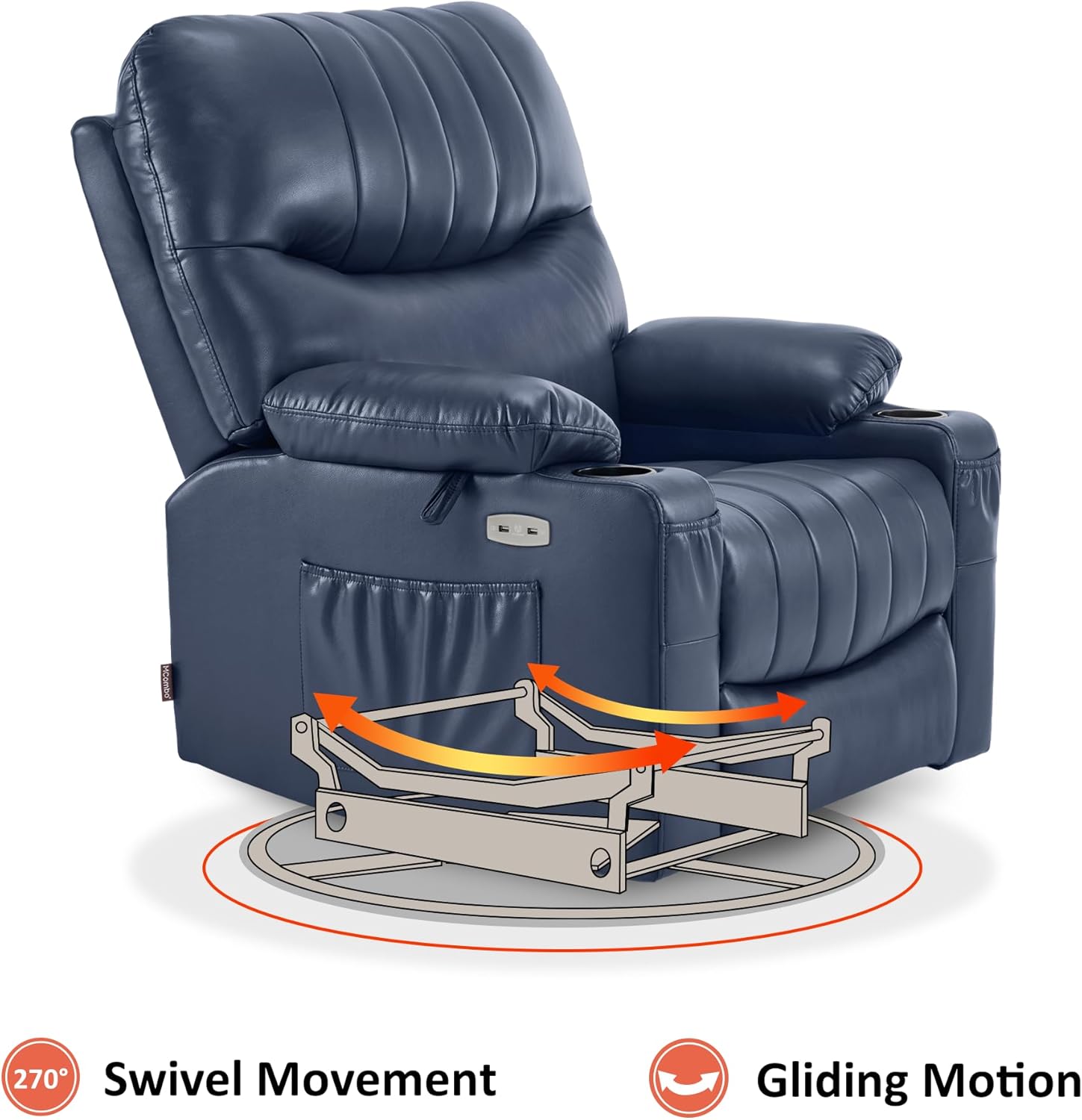

Image: Visual representation of the chair's swivel and gliding capabilities.

2.3 Heat and Vibration Massage

The chair includes a full-body vibration massage system with 7 points (shoulder, waist, thigh) and 1 lumbar heating zone. Use the massage remote control to customize massage modes, intensity, and set timers.

• Lämpötoiminto: Press the 'HEAT' button on the remote to activate lumbar heating.
• Tärinä hieronta: Select from various massage modes and adjust intensity using the remote.
• Ajastimet: Set the massage duration using the timer buttons.

Image: The massage remote control, highlighting buttons for heat, massage modes, and timers.

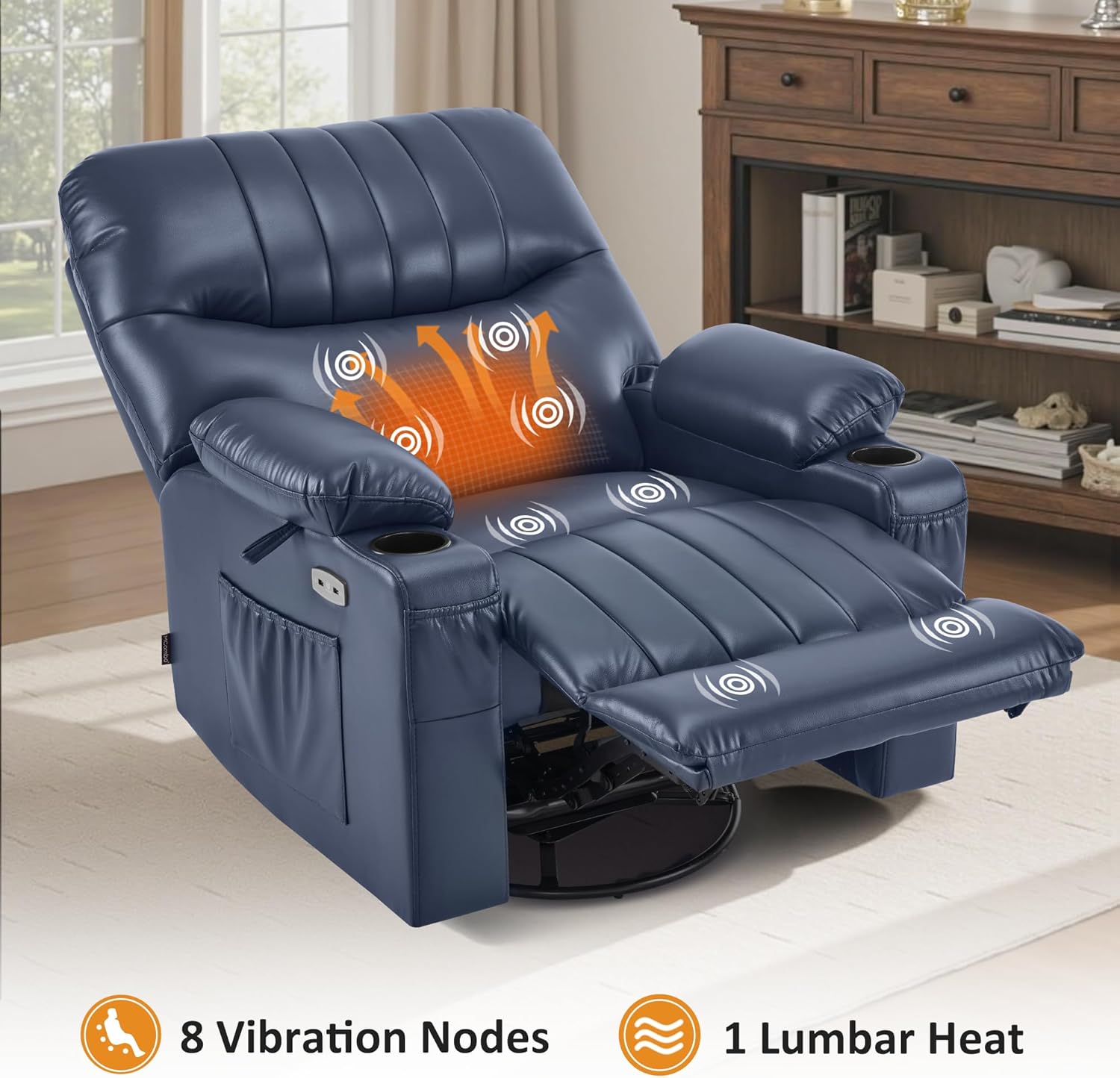

Image: The recliner showing the areas of vibration massage and lumbar heat.

2.4 USB Ports and Storage

The chair is equipped with USB ports for charging low-power devices, cup holders for beverages, and side/front pockets for storing items like magazines or remote controls.

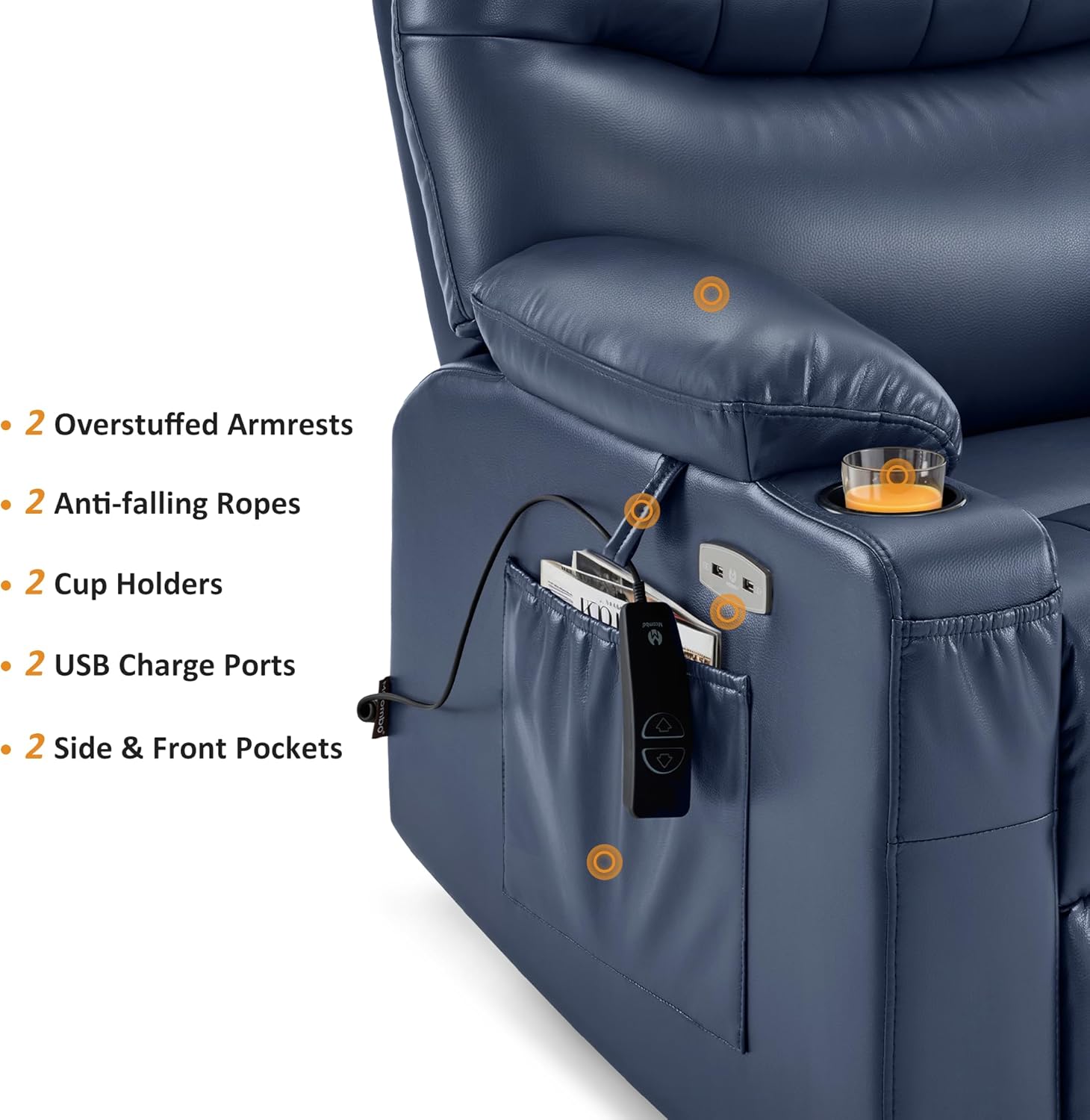

Image: Armrest features including USB ports, cup holders, and storage pockets.

3. Huolto

Proper care ensures the longevity and appearance of your MCombo recliner.

3.1 Puhdistusohjeet

• Keinonahka: Pyyhi puhtaaksi mainoksellaamp liinalla. Vältä voimakkaita kemikaaleja tai hankaavia puhdistusaineita, sillä ne voivat vahingoittaa materiaalia.
• Roiskeet pyyhitään välittömästi puhtaalla, kuivalla liinalla.

3.2 Yleishoito

• Avoid placing the chair in direct sunlight or near heat sources to prevent material fading or cracking.
• Tarkista säännöllisesti kaikki liitännät ja kiinnikkeet varmistaaksesi, että ne ovat tukevasti kiinni.
• Älä ylitä 320 paunan enimmäispainokapasiteettia.

4. Vianmääritys

If you encounter issues with your recliner, refer to the following common solutions:

• Chair Not Reclining/No Power:
  • Varmista, että virtalähde on kytketty kunnolla sekä tuoliin että toimivaan pistorasiaan.
  • Check that the power switch on the chair's base is in the 'ON' position.
  • Verify all internal wire connections are firm and correctly matched.
• Hieronta/lämpö ei toimi:
  • Confirm the massage remote control is properly connected.
  • Ensure the chair has power (see 'Chair Not Reclining' above).
  • Check the specific buttons on the remote for activation.
• Epätavalliset äänet käytön aikana:
  • Inspect the chair's mechanism for any obstructions.
  • Ensure all assembly bolts and connections are tightened.

If these steps do not resolve the issue, please contact MCombo customer support.

5. Tekniset tiedot

6. Takuu

The MCombo 7785 Power Swivel Glider Rocker Recliner comes with a 2 vuoden rajoitettu takuuTämä takuu kattaa valmistusvirheet ja materiaalivirheet normaalissa käytössä. Säilytä ostokuitti takuuvaatimuksia varten.

For specific details regarding coverage, exclusions, and how to make a claim, refer to the warranty information provided with your product packaging or contact MCombo customer support.

7. Asiakastuki

For any questions, assistance with assembly, troubleshooting, or warranty inquiries, please contact MCombo customer support.

• Online-tuki: Visit the official MCombo websivusto usein kysyttyjen kysymysten ja tukiresurssien osalta.
• Yhteystiedot: Refer to your product packaging or the MCombo websivustolta ajantasaisimmat yhteystiedot (puhelin, sähköpostiosoite).

When contacting support, please have your product model number (6160-7785) and proof of purchase readily available to expedite assistance.
