Johdanto
This user manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your MCombo Dual Motor Power Lift Recliner Chair, Model 6160-7634. Please read this manual thoroughly before using the product to ensure safe and efficient operation. Keep this manual for future reference.
The MCombo Dual Motor Power Lift Recliner Chair, featuring a dark grey faux leather finish and integrated cup holders.
Asennus ja kokoonpano
Your MCombo recliner chair is designed for straightforward assembly, typically requiring no special tools and taking approximately 15-20 minutes for one person. The chair arrives in multiple boxes containing the main components.
Mukana tulevat komponentit:
- selkänoja
- Pohja
- Vasen käsinoja
- Oikea käsinoja
- Rinnetyyny
- Accessory Box (containing power adapter, remote controls, and other small parts)
- Käyttöopas
Kokoamisvaiheet:
- Pura kaikki osat huolellisesti pakkauksesta ja varmista, että kaikki osat ovat mukana.
- Place the chair base on a flat, stable surface.
- Slide the backrest onto the base, ensuring the metal brackets align and lock securely.
- Attach the left and right armrests to the sides of the chair base, ensuring they click into place.
- Connect all electrical cables according to the labels. Ensure the power adapter is securely connected to the chair and a power outlet.
- Place the lumbar pillow for added comfort.
The power lift mechanism assists users in standing up from the chair.
Käyttöohjeet
The MCombo recliner chair features dual motors, allowing independent adjustment of the backrest and footrest, along with massage, heating, and power lift functions.
Kaukosäätimen toiminnot:
The chair comes with two remote controls: one for reclining and lift functions, and another for massage and heating.
The primary remote control for adjusting chair positions, including headrest, backrest, footrest, and lift functions.
- Power Headrest (Tilt/Back): Use the dedicated buttons to adjust the angle of the headrest for optimal neck support.
- Backrest (Up/Down): Independently adjust the backrest to your desired angle.
- Footrest (Up/Down): Independently adjust the footrest to elevate your legs. The extended footrest design prevents feet from dangling.
- Nosta ylös: Gently lifts the chair to assist you in standing up.
- Nojaa taaksepäin: Reclines the chair to a comfortable resting position, up to 165 degrees.
The adjustable power headrest provides customized comfort for various activities like watching TV.

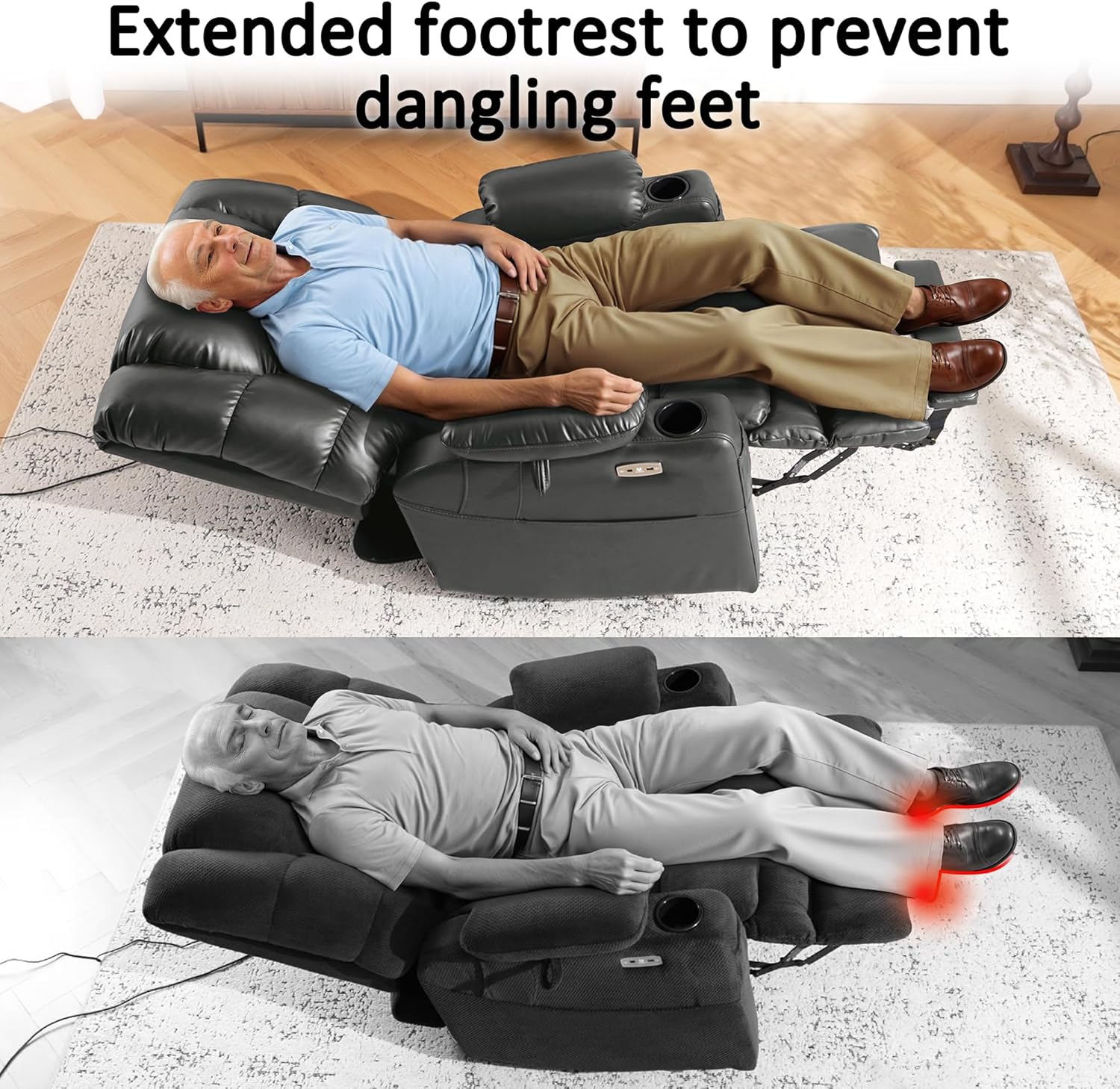

The extended footrest ensures full leg support, enhancing comfort during recline.
Massage and Heating Functions:
Use the secondary remote control to activate and customize the massage and heating features.
The chair offers dual heating for lumbar and seat areas, along with an 8-point vibrating massage system.
- Dual Heating: Provides warmth to the lumbar and seat areas. This function operates independently of the massage.
- Hieronta: Features 8 vibrating nodes for a relaxing massage experience. Adjust intensity and mode as desired.
Lisäominaisuudet:
- USB -latausportit: Conveniently located USB ports allow you to charge mobile devices while relaxing.
- Mukin pidikkeet: Two integrated cup holders provide a secure place for beverages.
Huolto
Proper care and maintenance will extend the life of your MCombo recliner chair.
- Puhdistus: Pyyhi puhtaaksi pehmeällä, damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the faux leather material.
- Roiskeet: Pyyhi roiskeet välittömästi puhtaalla, kuivalla liinalla.
- Sähkökomponentit: Ensure all electrical connections are secure. Keep liquids away from power cords and outlets.
- Tuolin siirtäminen: When moving the chair, lift it rather than dragging to prevent damage to the base and flooring.
The faux leather material is durable and easy to clean, certified by OEKO-TEX Standard 100.
Vianetsintä
Jos nojatuolissasi on ongelmia, katso seuraavat yleiset ongelmat ja ratkaisut:
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Chair does not respond to remote control. | Power cord disconnected; power outlet not working; remote control issue. | Ensure power cord is securely plugged into the chair and a functional wall outlet. Test the outlet with another device. Check remote control connections. |
| Recline or lift function is not smooth. | Obstruction in mechanism; loose connection. | Inspect for any objects obstructing the moving parts. Check all assembly connections. |
| Massage or heating not working. | Secondary remote not connected; power issue. | Ensure the secondary remote is properly connected. Verify the main power supply. |
| Epätavallisia ääniä käytön aikana. | Loose components; mechanism friction. | Check for any loose screws or connections. If noises persist, contact customer support. |
If the problem persists after attempting these solutions, please contact MCombo customer support for further assistance.
Tekniset tiedot
Detailed dimensions and specifications for the MCombo Dual Motor Power Lift Recliner Chair.
| Mallinumero: | 6160-7634 |
| Merkki: | MCombo |
| Materiaali: | Faux Leather (Artificial Leather), Foam Filling |
| Rungon materiaali: | Seosteräs |
| Kokonaismitat (S x L x K): | 100.1 cm x 94 cm x 116.1 cm (39.4" D x 37" W x 45.7" H) |
| Istuimen korkeus: | 52.1 cm (20.5") |
| Istuimen syvyys: | 54.1 cm (21.3") |
| Selkänojan korkeus (istuimesta): | 76 cm (30") |
| Käsivarren korkeus: | 69.1 cm (27.2") |
| Tuotteen paino: | 58.2 kg (128.3 lbs) |
| Enimmäispainon suositus: | 158.7 kg (350 lbs) |
| Maximum Reclining Angle: | 165° |
| Suositeltu käyttäjän pituus: | 170 cm - 188 cm (5'7" - 6'2") |
| Erikoisominaisuudet: | Dual Motor, Power Lift, Adjustable Power Headrest, Lumbar & Seat Heating, 8-Point Vibration Massage, USB Charging Ports, Cup Holders |
| Asennus vaaditaan: | Kyllä |
Takuutiedot
MCombo products typically come with a manufacturer's warranty covering defects in materials and workmanship. For specific warranty terms and duration applicable to your Model 6160-7634 recliner, please refer to the warranty card included in your packaging or contact MCombo customer support directly. Keep your purchase receipt as proof of purchase for any warranty claims.
Asiakastuki
Should you require assistance with assembly, operation, troubleshooting, or warranty claims, please contact MCombo customer support. Contact information can typically be found on the MCombo official websivustolla tai tuotteen mukana toimitetuissa pakkausmateriaaleissa.
Kun otat yhteyttä tukeen, pidä mallinumerosi (6160-7634) ja ostotiedot helposti saatavilla.
