Hudson 4 Gallon Piston Pump Backpack Sprayer Instruction Manual

Tuote loppuview

The Hudson® Piston Backpack Sprayer is engineered for both professional landscapers and homeowners, making it suitable for a wide range of large home and garden projects. Its design prioritizes user convenience and efficiency, featuring a large tank opening with an integrated filter to facilitate easy liquid addition and prevent debris from entering the tank. The ergonomic handle ensures comfortable operation, while the lock-on thumb trigger allows for continuous, effortless spraying. Precision spraying in hard-to-reach areas is made possible by the heavy-duty 22-inch fiberglass wand and an adjustable nozzle that transitions from a fine stream to a mist. The pump handle can be interchanged for either left or right-handed users, and the backpack harness includes adjustable padded straps and a waist belt for enhanced comfort and stability during use.

Kaiken kaikkiaan view of the Hudson 4 Gallon Piston Pump Backpack Sprayer, showcasing its main components including the tank, pump handle, and spray wand.

Tärkeitä turvallisuustietoja

VAROITUS:

• Always wear appropriate protective gear, including gloves and eye protection, when handling chemicals.
• Avoid direct eye contact with sprayed liquids. In case of contact, flush eyes immediately with plenty of water and seek medical attention.
• Do not ingest or inhale the contents of the sprayer. Use in well-ventilated areas.
• Safely dispose of used chemicals and their packaging according to local regulations.
• Exercise caution when handling pressurized liquids. Ensure all connections are secure before pressurizing.
• Use the lock-on trigger carefully to prevent accidental or continuous spraying when not intended.
• Säilytä poissa lasten ja lemmikkieläinten ulottuvilta.

Komponentit ja osat

The Hudson 4 Gallon Piston Pump Backpack Sprayer includes the following main components:

• 4-Gallon Tank (White, High Density Polyethylene)
• Mäntäpumppukokoonpano
• Heavy-Duty 22-inch Fiberglass Wand
• Adjustable Nozzle (Stream to Mist)
• Hose (46 Inches)
• Shut-off Valve with Lock-on Trigger
• Pump Handle (Interchangeable for left or right-handed use)
• Backpack Harness with Adjustable Padded Straps and Waist Belt
• Large Mouth Opening with Filter

Yläosa view of the sprayer showing the tank opening and the spray wand resting on top.

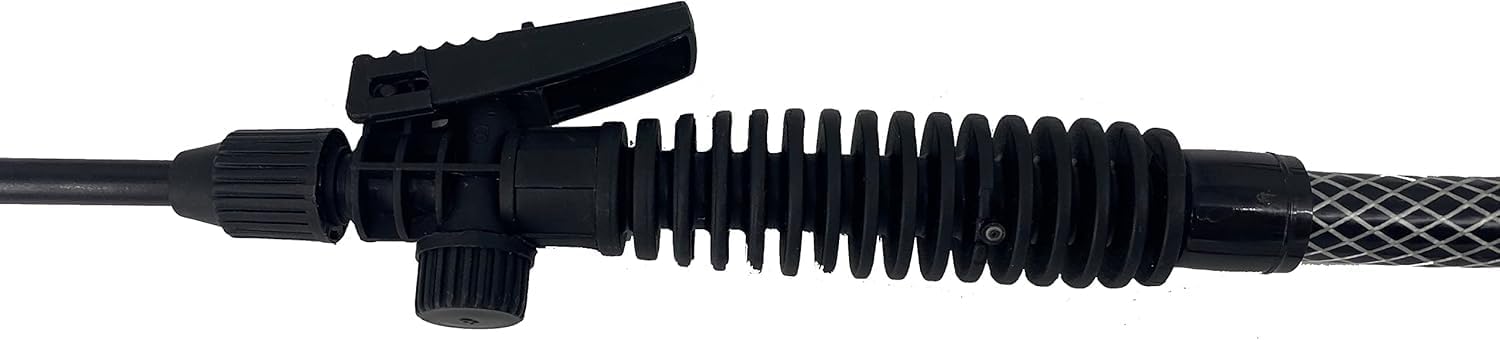

Yksityiskohtainen view of the shut-off valve and lock-on trigger mechanism on the spray wand.

Asennus ja kokoonpano

1. Kiinnitä letku: Connect the hose to the sprayer tank outlet and the spray wand handle. Ensure all connections are tightened securely to prevent leaks.
2. Kiinnitä suihkusuutin: Securely attach the fiberglass wand to the spray handle.
3. Install Pump Handle: Insert the pump handle into the pump mechanism. The handle can be installed on either the left or right side of the sprayer to accommodate user preference.
4. Adjust Backpack Harness: Put on the backpack sprayer. Adjust the padded shoulder straps and the waist belt to ensure a comfortable and stable fit. The sprayer should sit securely on your back without excessive movement.

A user demonstrating the adjustable padded straps and waist belt for comfortable wear, along with a close-up of the large mouth opening for easy filling.

Käyttöohjeet

1. Valmistele ratkaisu: Carefully mix your desired liquid solution according to the manufacturer's instructions.
2. Täytä säiliö: Unscrew the large tank opening cap. Pour the prepared solution into the tank, utilizing the integrated filter to prevent debris. Do not overfill. Securely replace the cap.
3. Pressurize Sprayer: Pump the handle repeatedly until resistance is felt and the sprayer is adequately pressurized.
4. Säädä suutin: Rotate the adjustable nozzle at the end of the wand to select your desired spray pattern, from a fine mist for delicate plants to a strong stream for broader coverage.
5. Aloita ruiskutus: Point the wand towards the target area and depress the thumb trigger on the handle to begin spraying. For continuous spraying, engage the lock-on feature by pushing the trigger forward.
6. Stop Spraying: Release the thumb trigger to stop spraying. If the lock-on feature is engaged, disengage it by pulling the trigger back.
7. Paineenalennus: After use, always depressurize the sprayer by holding the trigger until all pressure is released.

The adjustable nozzle allows for a fine mist suitable for delicate flowers or a strong stream for larger areas.

A user operating the sprayer, highlighting the heavy-duty fiberglass wand and the lock-on trigger for continuous spraying.

Huolto ja varastointi

• Puhdistus: After each use, thoroughly rinse the tank, hose, and wand with clean water. Pump clean water through the sprayer to flush out any chemical residue.
• Suuttimien puhdistus: If the nozzle becomes clogged, remove it and clean any debris.
• Tarkastus: Regularly inspect the hose, seals, and connections for any signs of wear, cracks, or damage. Replace worn parts as necessary.
• Voitelu: Periodically lubricate the pump piston O-rings with silicone grease to maintain smooth operation.
• Varastointi: Store the sprayer in a cool, dry place, away from direct sunlight and freezing temperatures. Ensure the tank is empty and depressurized before storage.

Vianetsintä

Tekniset tiedot

• Merkki: Hudson
• Mallin nimi: Hudson 4 Gallon Piston Pump Backpack Sprayer
• Mallinumero: 19004
• Säiliön tilavuus: 4 litraa (15 litraa)
• Väri: Valkoinen
• Suositellut käyttötavat: Pest Control, Vehicle Washing, Watering, Weed Control
• Materiaali: Fiberglass (wand), Polyethylene, High Density Polyethylene (tank)
• Tuotteen paino: 9.5 puntaa
• Tyyli: Reppu
• Virtalähde: Käsikäyttöinen
• Letkun pituus: 46 tuumaa
• Tuotteen mitat: 11 x 7 x 21 tuumaa
• UPC: 026156915029
• Valmistaja: HD Hudson

Takuu ja tuki

For specific warranty information and customer support, please contact Hudson directly through their official websivustolta tai jälleenmyyjältä, jolta tuote on ostettu. Säilytä ostokuitti mahdollisten takuuvaatimusten varalta.
