MCombo 3 Seat Patio Swing Chair (Model 4090) Instruction Manual

1. Johdanto

Thank you for choosing the MCombo 3 Seat Patio Swing Chair, Model 4090. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new patio swing. Please read these instructions carefully before assembly and retain them for future reference.

2. Turvallisuustiedot

• Suurin kapasiteetti: Do not exceed the maximum weight capacity of 750 lbs (approximately 340 kg). This swing is designed for up to three adults.
• Kokoonpano: Ensure all parts are correctly assembled and tightened according to the instructions. Improper assembly can lead to instability and injury.
• Sijoitus: Aseta keinu tasaiselle ja vakaalle alustalle. Vältä epätasaista maata tai rinteitä.
• Sääolosuhteet: While weather-resistant, it is recommended to secure or store the canopy and cushions during strong winds or severe weather to prevent damage.
• Lapset: Supervise children when they are using the swing. Do not allow them to stand on the seat or engage in rough play.
• Tarkastus: Regularly inspect all bolts, nuts, and connections for tightness. Re-tighten as necessary. Check for any signs of wear or damage to the frame, fabric, or springs.
• Terävät esineet: Keep sharp objects away from the swing fabric to prevent tears.

3. Pakkauksen sisältö

Your MCombo Patio Swing Chair is shipped in two boxes. Please ensure all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

Komponenttiluettelo:

• Steel Frame Components (legs, crossbars, canopy supports)
• Keinuistuimen runko
• Katoksen kangas
• Seat Cushions and Backrests
• Springs and Hanging Chains
• Tarvikesarja (pultit, mutterit, aluslevyt, jakoavaimet)
• Side Trays (if applicable)
• Käyttöohje

4. Asennus ja kokoonpano

Assembly typically requires two adults and takes approximately 30 minutes. Follow the numbered steps in the included diagrammatic instructions for best results. Use the provided hardware and tools, or your own tools for easier assembly.

Yleiskokouksen vaiheet:

1. Pura komponentit: Poista kaikki osat varovasti pakkauksesta. Aseta ne puhtaalle ja pehmeälle alustalle naarmuuntumisen estämiseksi.
2. Kokoa pohjarunko: Connect the main leg sections and crossbars to form the base of the swing. Secure with bolts and nuts, but do not fully tighten yet.
3. Kiinnitä pystytuet: Fasten the upright supports to the base frame.
4. Assemble Swing Seat: Construct the swing seat frame and attach the hanging chains.
5. Hang Swing Seat: Carefully lift and attach the swing seat to the upright supports using the provided springs and hooks.
6. Asenna katoksen kehys: Kokoa katoksen runko ja kiinnitä se päärungon yläosaan.
7. Kiinnitä katoskangas: Secure the canopy fabric to the canopy frame.
8. Aseta tyynyt: Position the seat cushions and backrests onto the swing seat.
9. Lopullinen kiristys: Kun kaikki osat ovat paikoillaan, kiristä kaikki pultit ja mutterit järjestelmällisesti tiukasti. Älä kiristä liikaa.

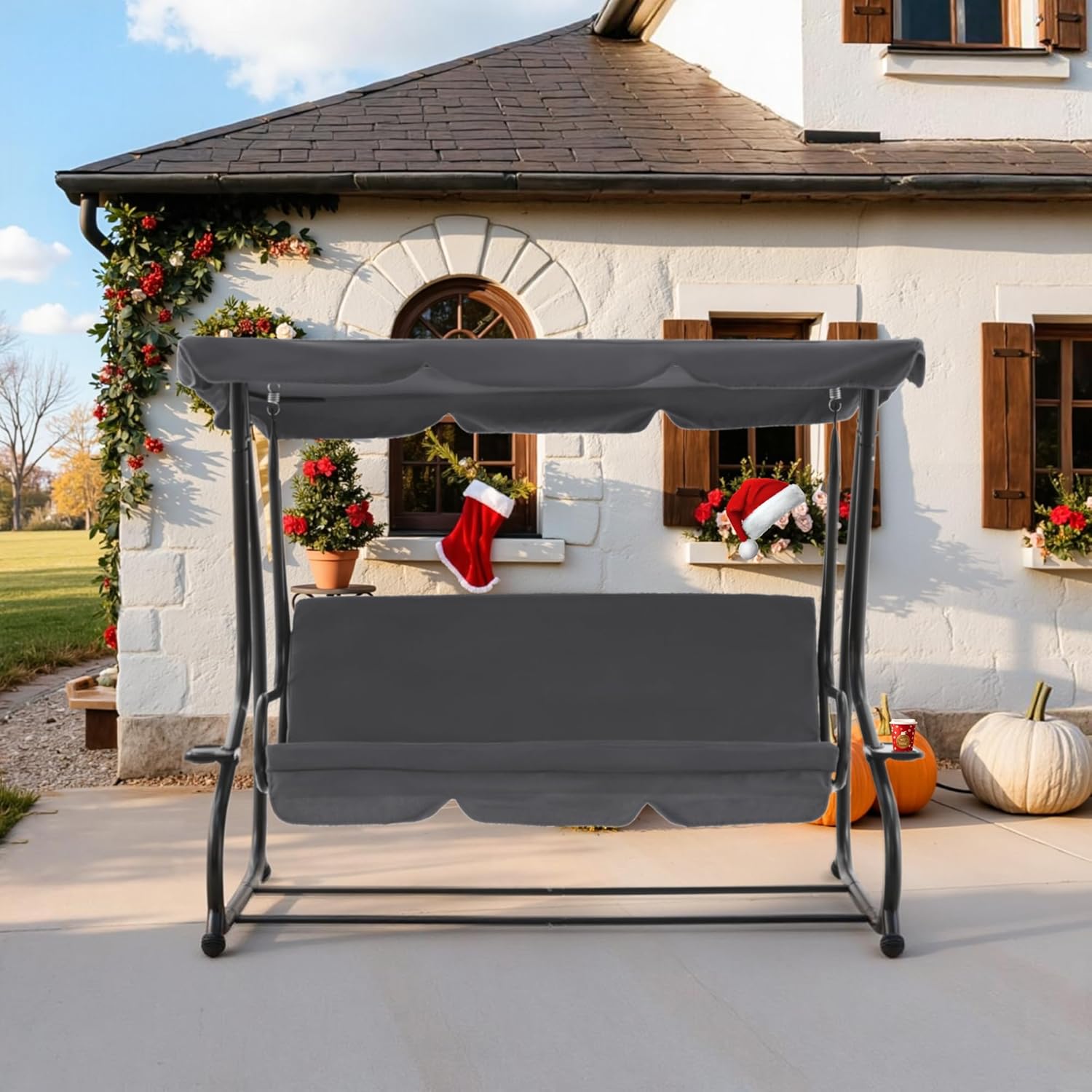

Kuva: Edessä view of the assembled MCombo 3 Seat Patio Swing Chair in dark grey.

Image: Diagram illustrating the thickened steel frame construction for enhanced durability.

5. Käyttöohjeet

Swingin käyttö:

• Gently sit on the swing seat. Avoid sudden movements or excessive force when swinging.
• Ensure weight is distributed evenly across the seat.

Katoksen säätö:

The canopy can be adjusted to provide optimal shade. Locate the adjustment knobs on either side of the canopy frame. Loosen the knobs, position the canopy to your desired angle (up to 45 degrees), and then tighten the knobs to secure it.

Kuva: Lähikuva view of the adjustable canopy mechanism, showing how to rotate and secure the canopy.

Muuntaminen tasoskanneriksi:

This swing features a 2-in-1 design, allowing it to convert into a flatbed. To convert:

1. Ensure no one is on the swing.
2. Locate the lock and release system mechanism, typically on the sides of the swing seat.
3. Follow the specific instructions in your diagrammatic manual to unlock and recline the backrest until it forms a flat surface with the seat.
4. Ensure the recline mechanism is securely locked in the flat position before use.

Image: The MCombo swing chair converting from a seated position to a flatbed, with a person relaxing on it.

Image: A visual representation of the swing's 2-in-1 design, showing its transformation from a swing to a flatbed.

6. Huolto

Puhdistus:

• Kehys: Pyyhi teräsrunko mainoksellaamp liinalla ja miedolla saippualla. Huuhtele huolellisesti ja kuivaa ruosteen estämiseksi.
• Fabric (Canopy & Cushions): The thickened polyester fabric is UV light-resistant and waterproof. Clean with a soft brush, mild soap, and water. Allow to air dry completely. Do not use harsh chemicals or abrasive cleaners.
• The seat cushions are detachable for easier cleaning and storage.

Image: Close-up of the thickened polyester fabric, highlighting its UV light-resistant and waterproof properties.

Image: Diagram illustrating the detachable seat cushion feature for easy removal and cleaning.

Varastointi:

During off-season or prolonged periods of non-use, it is recommended to store the cushions and canopy indoors in a dry place. If possible, cover the entire swing with a weather-resistant cover to protect the frame.

7. Vianmääritys

• Keinu tuntuu epävakaalta: Check all bolts and nuts to ensure they are securely tightened. Verify the swing is placed on a flat, level surface.
• Katos ei pysy paikallaan: Ensure the adjustment knobs on the canopy frame are fully tightened after positioning.
• Difficulty converting to flatbed: Ensure the lock and release mechanism is fully disengaged before attempting to recline the backrest. Do not force the mechanism.
• Nariseva ääni keinunnan aikana: Apply a silicone-based lubricant to the springs and pivot points of the swing mechanism. Avoid oil-based lubricants that can attract dirt.

8. Tekniset tiedot

Image: Detailed dimensions of the MCombo 3 Seat Patio Swing Chair, including height, width, and depth.

9. Takuu ja tuki

MCombo products are designed for quality and durability. For specific warranty information, please refer to the documentation included with your purchase or visit the official MCombo website. If you have any questions, require replacement parts, or need assistance with assembly or operation, please contact MCombo customer support. Contact information can typically be found on the product packaging or the MCombo brand store on Amazon.

MCombo is committed to providing the best solution within 24 hours for any inquiries regarding your swing.
