All States Disc Mower Blade 189351 Instruction Manual

1. Tuote ohiview

The All States Disc Mower Blade, Model 189351, is a high-quality replacement blade specifically designed for M&W Hay Cutting machines. This package includes 25 left-hand, Type 10 blades, engineered for durability and efficient cutting performance in agricultural applications.

Key features of these blades include:

• Yhteensopivuus: Designed for M&W Hay Cutting models HC5, HC6, and HC7.
• OEM-vaihto: Directly replaces M&W OEM Number 3238726.
• Korroosionkestävyys: Blades are powder coated to prevent rust and extend their operational life.
• Määrä: Supplied in a convenient package of 25 blades.
• Mitat: Hole Diameter: 0.79", Length: 3.94", Thickness: 0.16", Width: 1.77".

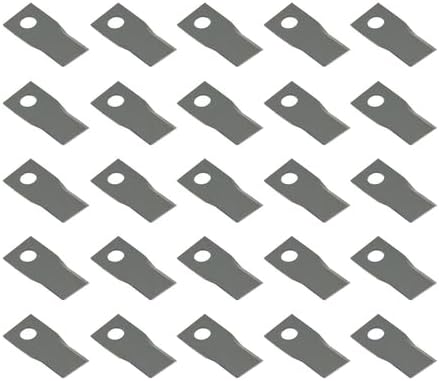

Image 1.1: A package containing 25 All States Disc Mower Blades, Model 189351, ready for installation.

2. Asennus ja asennus

Installation of disc mower blades requires careful attention to safety and proper procedure. Always consult your M&W hay cutting machine's original operator's manual for specific blade replacement instructions and safety guidelines before proceeding.

Turvallisuusohjeet:

• Ensure the hay cutting machine is completely turned off and disconnected from its power source (e.g., tractor PTO) before beginning any work.
• Engage all safety locks and stands to prevent accidental movement of the machine.
• Käytä asianmukaisia ​​henkilönsuojaimia, mukaan lukien kestävät käsineet ja silmäsuojaimet.
• Allow any hot components to cool down before handling.

Asennusvaiheet:

1. Käyttöterät: Carefully lift or position the mower head to gain clear access to the disc blades.
2. Identify Worn Blades: Locate the blades that need replacement. These All States blades are Left Hand Type 10.
3. Poista vanha terä: Using appropriate tools (typically a wrench or impact gun), carefully unfasten the bolt securing the old blade to the disc. Remove the old blade and any associated washers or spacers.
4. Puhdas asennusalue: Clean any debris or rust from the blade mounting area on the disc.
5. Asenna uusi terä: Position the new All States Disc Mower Blade (Model 189351) onto the disc, ensuring the hole aligns correctly. Reinsert the bolt and any washers/spacers.
6. Turvallinen terä: Tighten the bolt to the torque specifications provided in your M&W machine's manual. Over-tightening or under-tightening can lead to premature wear or failure.
7. Toistaa: Repeat the process for all blades requiring replacement.
8. Lopputarkastus: After all blades are installed, manually rotate the discs to ensure all blades move freely and are securely fastened.

Kuva 2.1: Lähikuva view of a single All States Disc Mower Blade, highlighting its design and mounting hole.

3. Käyttöohjeet

These All States Disc Mower Blades are designed for optimal performance in M&W HC5, HC6, and HC7 hay cutting machines. Proper operation of your equipment is essential for maximizing blade life and ensuring efficient cutting.

• Käyttöä edeltävä tarkistus: Before each use, visually inspect all blades for secure fastening, damage, or excessive wear. Replace any damaged or severely worn blades immediately.
• Koneen asetukset: Operate your M&W hay cutting machine according to the manufacturer's recommended settings for ground speed, PTO speed, and cutting height.
• Field Conditions: Avoid operating in areas with excessive rocks, debris, or foreign objects that could damage the blades.
• Tasainen kuluminen: Periodically check for even wear across all blades. Uneven wear can indicate issues with machine balance or operation.

4. Huolto

Regular maintenance of your disc mower blades is crucial for maintaining cutting efficiency, ensuring safety, and extending the lifespan of both the blades and your hay cutting machine.

• Päivittäinen tarkastus: After each use, clean any accumulated crop residue from the blades and discs. Inspect for any signs of damage, cracks, bends, or excessive wear.
• Terän vaihto: Replace blades as soon as they show significant wear or damage. Worn blades reduce cutting quality and can increase fuel consumption. Always replace blades in sets or as recommended by your machine's manual to maintain balance.
• Kiinnittimen tarkistus: Regularly check the tightness of all blade mounting bolts. Loose bolts can lead to blade loss or damage to the disc.
• Varastointi: When storing the machine for extended periods, ensure blades are clean and dry. The powder coating on these blades helps prevent rust, but proper storage in a dry environment further protects them.

5. Vianmääritys

If you encounter issues with your disc mower's cutting performance, consider the following troubleshooting steps related to the blades:

• Huono leikkauslaatu: If the mower is leaving ragged stubble or an uneven cut, inspect all blades for excessive wear, dullness, or damage. Replace worn blades.
• Liiallinen tärinä: Unusual vibration during operation can indicate an unbalanced disc or damaged blades. Check for bent, broken, or missing blades. Ensure all blades are securely fastened and that replacement blades are of the correct type and weight to maintain balance.
• Terän rikkoutuminen: Frequent blade breakage can be caused by striking foreign objects, incorrect blade type for the application, or improper installation (e.g., over-tightened bolts causing stress points). Review operating procedures and installation steps.

For issues beyond blade-related concerns, refer to your M&W hay cutting machine's comprehensive troubleshooting guide.

6. Tekniset tiedot

7. Takuutiedot

For specific warranty information regarding your All States Disc Mower Blades, please refer to the manufacturer's official website or contact their customer support directly. It is recommended to retain your purchase receipt for any potential warranty claims.

8. Asiakastuki

For technical assistance, product inquiries, or further support, please contact All States customer service. Always refer to your specific M&W hay cutting machine's operator's manual for comprehensive operational and safety guidelines.
